Anton Bauer D-Box Sony (Venice) - V-Mount)

$4,099.95
RRP inc GST /
Our SKU: 8075-0298
MFR: 8075-0298

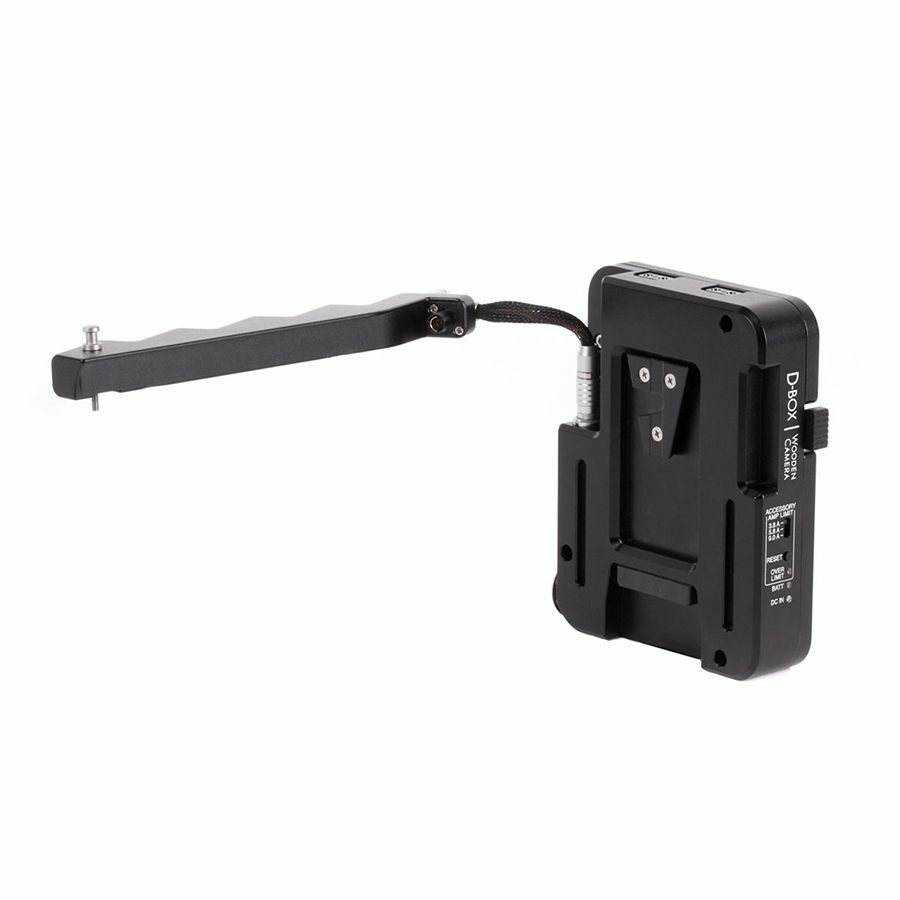

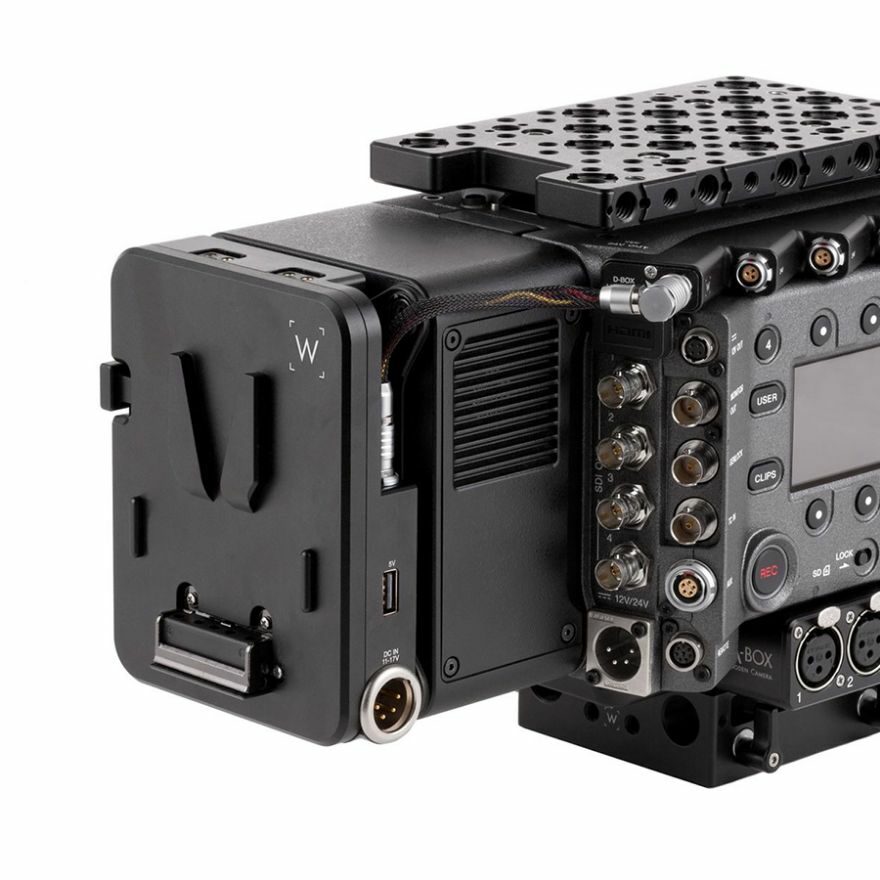

D-Box (Sony Venice, V-Mount) adds power distribution, standardized remote start/stop, and hot swap abilities for the Sony Venice camera. The D-Box main unit attaches to the back of the AXS-R7 or to the V-Mount plate on the camera rear, and the Power Strip portion attaches to the top right side of the camera via a 3-pin Fischer and the tape hook threaded hole.

Connectors on the D-Box Power Strip are contoured to match the camera profile, allowing all cables to be installed with no obstructions. The module communicates with the camera and allows any ARRI standard start/stop trigger to be used with the 3-pin Fischer port, including the ARRI UMC-4 / WCU-4. The DC input allows an AC power supply, external power plate, or VCLX block battery to be connected to power accessories and camera during a battery change.

Physical fuses have been replaced by a processor-controlled amp limit, settable to 3.8, 5.8, or 9 amps using the slide switch on the operator's side. Highest quality Anton/Bauer components are used in the V-Mount assembly, and the unibody power plate design is both extremely durable and lightweight.

Camera Brand: Sony
Camera Model: Venice
Compatibility: Specialized
Depth: 13.335 cm
Height: 11.43 cm
Mount Type: V-Mount
Weight: 0.484 kg
Width: 31.8 mm
Interfaces: 1x V-Mount Power Plate
2x 3pin Fischer at 24V with Run Stop
Regulator built in to convert battery voltage to 24V
Maximum 3A surge, 2.5A sustained shared between connectors
2x 2pin LEMO at 12V unregulated
ARRI standard wiring
Maximum 7A current rating, shared between connectors
2x P-Tap at 12V unregulated
Maximum 9A current rating, shared between connectors
1x 5V USB
Maximum 2.5A
1x 4pin XLR DC Input
For use with 14.4V block batteries
DC Input takes priority when voltage is between 12.9-18V
Accessories are powered when utilizing DC Input
