Sachtler

System Ace M Ground Spreader Mk II

$1,799.95
RRP inc GST /
Our SKU: 1002M

Are you ready?

With Ace, precision meets dedication. Achieve finesse in every shot with fast counterbalance, and smooth drag adjustments. Lightweight and compact, with consistent performance, Ace is along for the journey. From urban jungles to the call of the wild, be ready for every opportunity that comes your way.

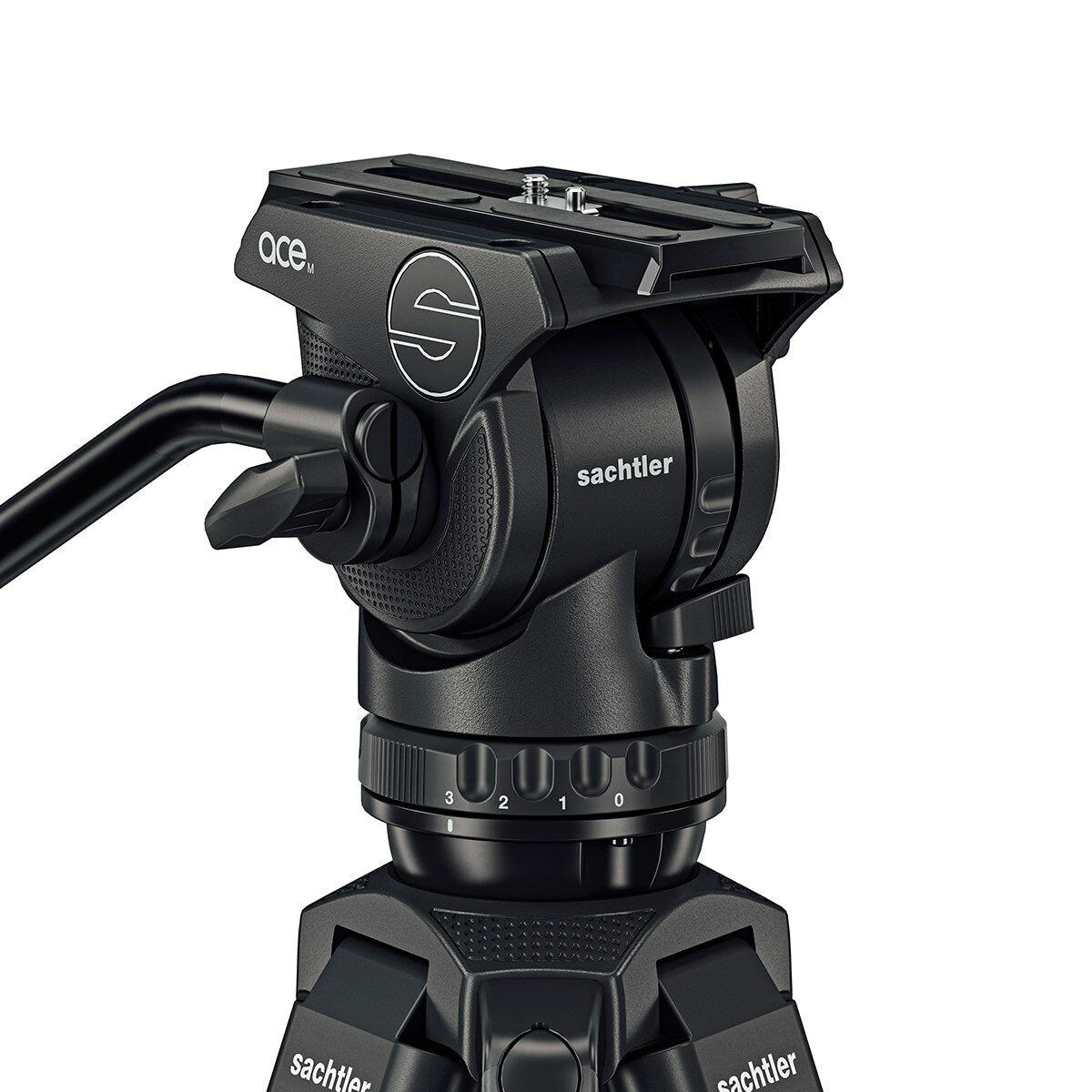

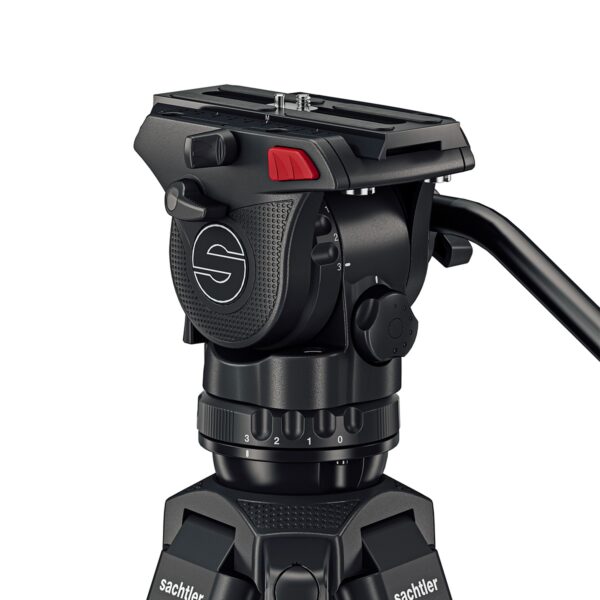

With Ace in your corner, stability and smoothness comes with every shot. It simplifies your setup with camera plate markers, stepped counterbalance and quick pan and tilt adjustments. Ace M supports camera rigs weighing up to 4kg (8.8lbs), with five steps of balance to quickly match your payload. The balance plate has 104mm (4.1in) sliding range to make sure you can position accessorised cameras centrally on the head. Sachtler drag gives smooth movement in any temperature. Weighing just 4.5kg (9.9lbs), this Ace M system is light in weight but not in features, so go further, climb higher and capture that winning shot unplanned or in the heat of the moment.

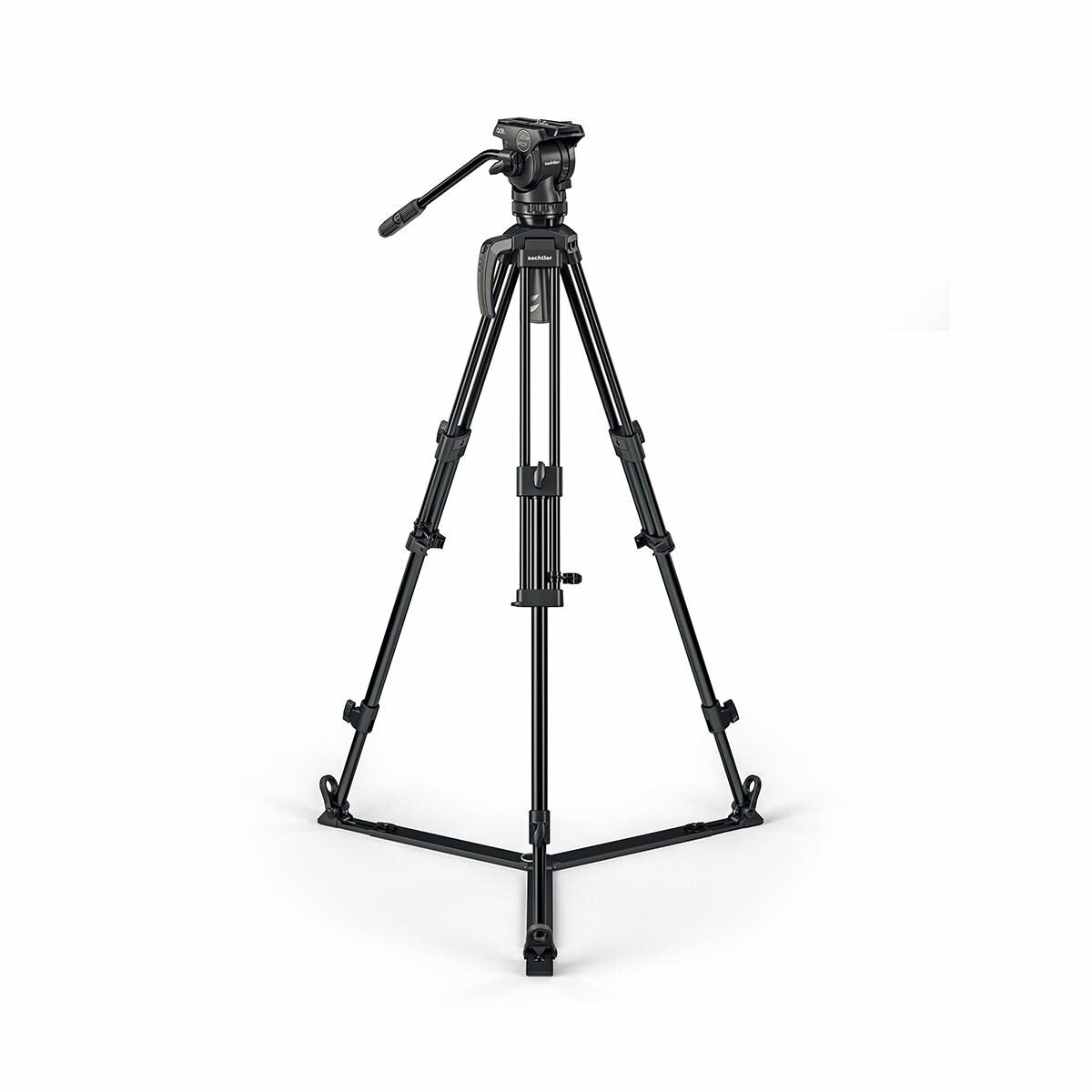

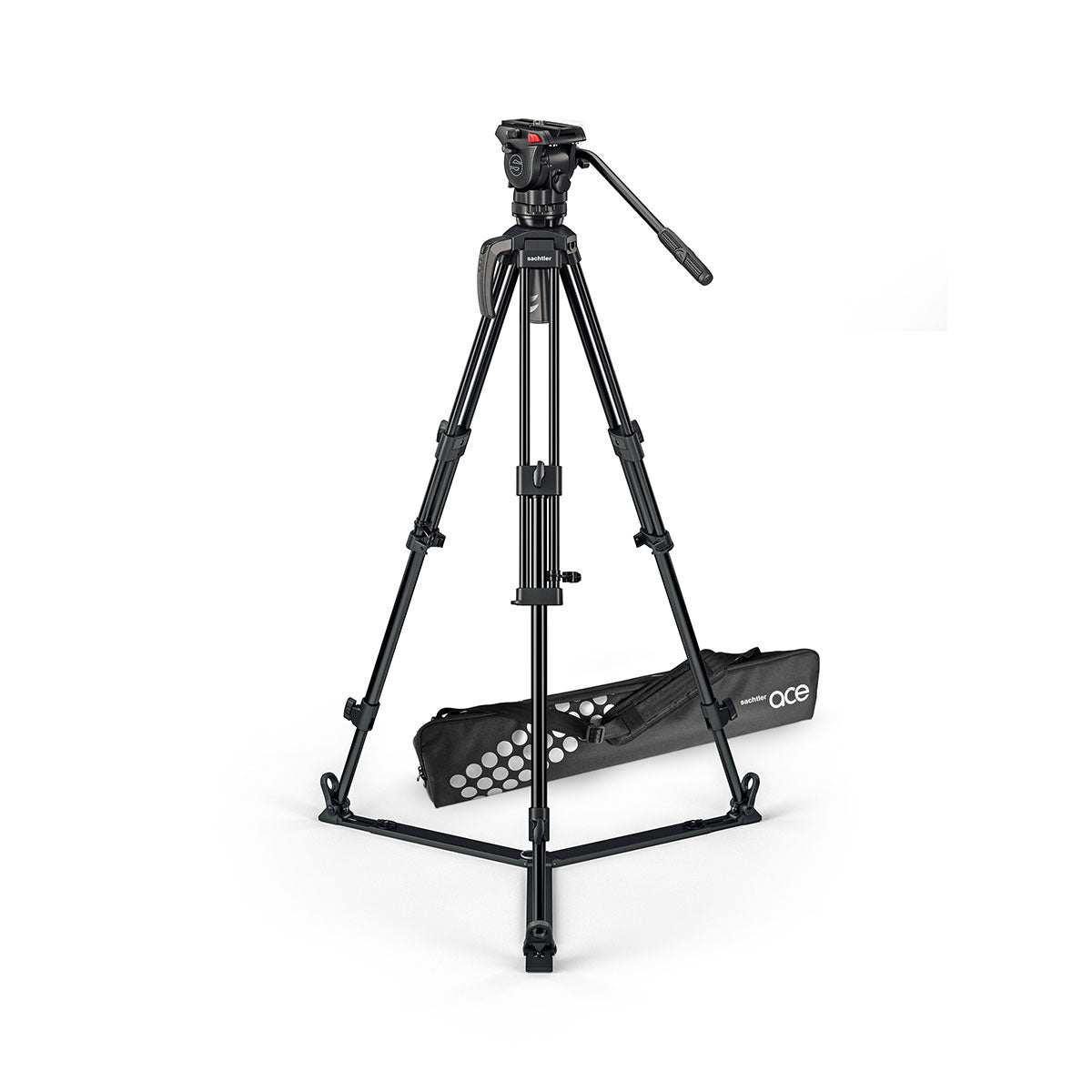

The System Ace M GS includes a lightweight 2-stage aluminium 75mm tripod that’s portable without sacrificing strength. With three 3/8” accessory mounting points on the tripod bowl you can add something extra to your rig like a Magic Arm. Or attach the carry handle so you’re always ready to chase down the shot. The detachable ground spreader provides maximum stability wherever you are. And when the road is long, Ace comes with a carry case for protection on the go.

Ace is built to earn its place on your journey. Designed with precision-engineered drag segments and rigorously tested materials, consistent performance is a given. That’s why Sachtler is trusted by professionals like you. Whatever path you choose to travel, Ace is your support system.

Payload: 0 kg to 8 kg (0 lb to 17.64 lb)
Drag: 3 + 0 drag settings
Counterbalance: 5 + 0
Bowl Size: 75 mm
Height: 58 cm to 173 cm (22.83 in to 68.11 in)
Material: Aluminium
Tripod Stages: 2
Spreader Type: Ground spreader
Weight: 4.5 kg (9.92 lb)
Transport Length: 87 cm (34.25 in)
Pan Bar Count: 1
Tilt Range: 90° to -75°
Sliding Range: 10.4 cm (4.09 in)
Temperature Range: -30°C to 60°C (-22°F to 140°F)
Pan Bar Type: Pan bar Ace
Camera Plate: Slide in
Fluid Head: Ace M
System Only - Ace M Mk II
S2172-0001 - Tripod 75/2 AL Mk II
7001 - Ground spreader SP 75
S2051-1063 - Carry handle
