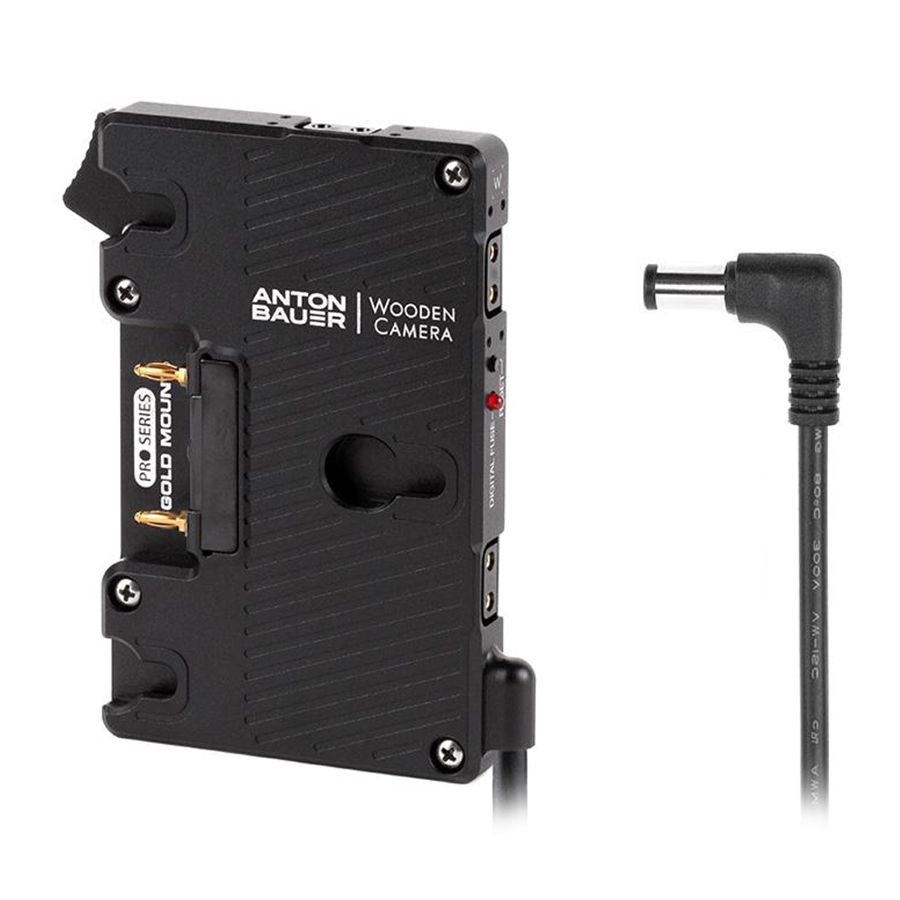

Anton Bauer Pro Gold Mount battery bracket for Sony FS7, FS5 and Panasonic EVA1
Anton Bauer Pro Gold Mount battery bracket for Sony FS7, FS5 and Panasonic EVA1
Anton Bauer Pro V-Mount battery bracket for Sony FS7, FS5 and Panasonic EVA1
Anton Bauer Pro V-Mount battery bracket for Sony FS7, FS5 and Panasonic EVA1
Anton Bauer V-Mount battery bracket fitted to a Sony FS7
Anton Bauer V-Mount battery bracket fitted to a Sony FS7
Anton Bauer Battery Bracket, Sony FS7, FS5 and Panasonic EVA1
Anton Bauer Gold Mount Battery Bracket Sony (FS7, FS5) & Panasonic (EVA1)
Anton Bauer Gold Mount Battery Bracket Sony (FS7, FS5) & Panasonic (EVA1) - detail
Anton Bauer Gold Mount Battery Bracket Sony (FS7, FS5) & Panasonic (EVA1) - back
Anton Bauer V-Mount battery bracket for Sony FS7, FS5 and Panasonic EVA1
Anton Bauer Pro Gold Mount battery bracket for Sony FS7, FS5 and Panasonic EVA1
Anton Bauer Pro V-Mount battery bracket for Sony FS7, FS5 and Panasonic EVA1
Anton Bauer V-Mount battery bracket fitted to a Sony FS7
Anton Bauer

Anton Bauer Battery Bracket, Sony FS7, FS5 and Panasonic EVA1

$504.95 - $754.95
RRP inc GST /
SKU: 8075-0280SKU: 8075-0281SKU: 8075-0283SKU: 8075-0282

Select an option to add this to your cart.

What you'd use it for

Feeds a Sony PXW-FS7, FS7mkII, FS5 or Panasonic EVA1 from a full size Anton Bauer brick through the camera's DC input, with P-Taps on the plate for a monitor, receiver or motor. The plate also works with the Sony EX3. The cable exits the right side so it loops cleanly into the camera and stays clear of the operator side of a shoulder build.

Options

Mount selects the battery interface, Gold Mount or V-Mount. Version selects the plate. Standard is a two P-Tap plate with an integrated regulator supplying a constant 12V to the camera. Pro adds a rugged aluminium body, a third P-Tap, a digital fuse with reset button, a rear cover plate and captive mounting screws. Both fit the same cameras.

Technical data

Gold Mount, Standard 8075-0280. DC connector for Sony PXW-FS7, FS7mkII, FS5 and Panasonic EVA1, integrated regulator supplying a constant 12V, 2x P-Taps, 16 inch cable.
V-Mount, Standard 8075-0281. As above with a V-Mount battery interface.
Gold Mount, Pro 8075-0283. Aluminium body, same DC connector, 3x P-Taps at battery voltage of 12V to 16V, digital fuse with reset button, rear cover plate, captive mounting screws, 15 inch (381mm) cable.
V-Mount, Pro 8075-0282. As above with a V-Mount battery interface.

On the Pro plates, exceeding the set accessory current disables only the accessory outputs and leaves the camera running. Press the reset button once the load is reduced to restore accessory power.

Figures published by Anton/Bauer.

Camera Brand: Panasonic, Sony
Camera Model: EVA1, FS5, FS7
Compatibility: Specialized
Depth: 12.7 mm
Height: 84.5 mm
Mount Type: Gold Mount
Weight: 0.087 kg
Width: 11.95 cm
Gold Mount battery plate
2 P-Tap power ports
16″ cable
