OConnor 120EX Package Mitchell Only
OConnor 120EX Package Mitchell Only
OConnor

OConnor 120EX Package Mitchell Only

$39,899.95
RRP inc GST /
Our SKU: C1225-0001

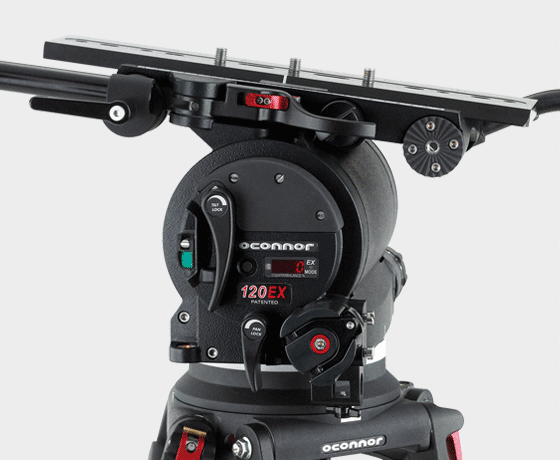

The OConnor 120EX head delivers the smooth OConnor feel with infinitely adjustable control, balancing a huge capacity range of 30-240 lbs (14-109 kg). Its patented stepless counterbalance mechanism and EX-technology let the head be boosted into EX-mode, going far beyond its standard maximum payload by progressively limiting tilt range as payload increases.

This Mitchell-only package includes the 120EX Fluid Head with pan handle and extension, supporting payloads of 36.5-286 lb (16.5-129.4 kg) at a 6 in (152 mm) CoG above platform.

Model: 120EX & 120EXe
Capacity @ 8 in (203mm) minimum: 30 lbs (14 kg)
Capacity @ 8 in (203mm) +/-90 degrees: 120 lbs (54 kg)
Capacity @ 8 in (203mm) +/-80 degrees: 147 lbs (67 kg)
Capacity @ 8 in (203mm) +/-70 degrees: 188 lbs (85 kg)
Capacity @ 8 in (203mm) +/-60 degrees: 240 lbs (109 kg)
Platform options: OConnor Plate, OConnor Geared Plate, 120mm Euro Plate, Panavision Dovetail Plate, Arriflex Dovetail Plate, Arri 24in (60.96cm) Plate
Handle(s): 30 degrees
Bases: Mitchell
Tilt: +90 / -90 degrees
Height: 9.8 in (24.8 cm)
Width: 13.5 in (34.3 cm)
Depth: 10.5 in (26.6 cm)
Weight: 34.1 lbs (15.5 kg)
OConnor 120EX Fluid Head (Mitchell Only) (C1225-0003)
Pan handle for 2065, 2575 & 120EX ranges (2575-137)
Pan handle extension for 1030-246 & 2575-137 (2575-135)
Payload: 36.5-286 lb (16.5-129.4 kg) at 6 in (152 mm) CoG above platform
