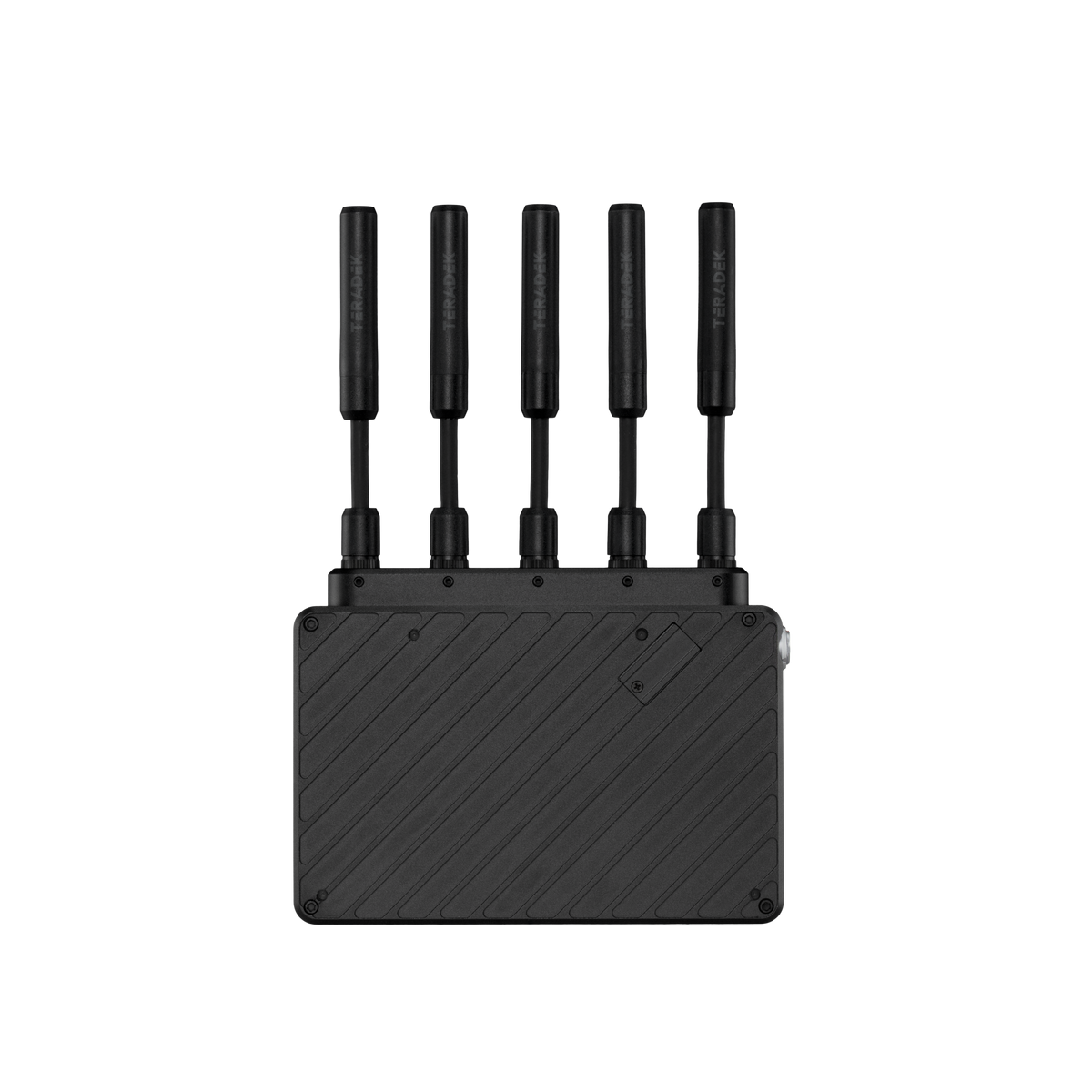

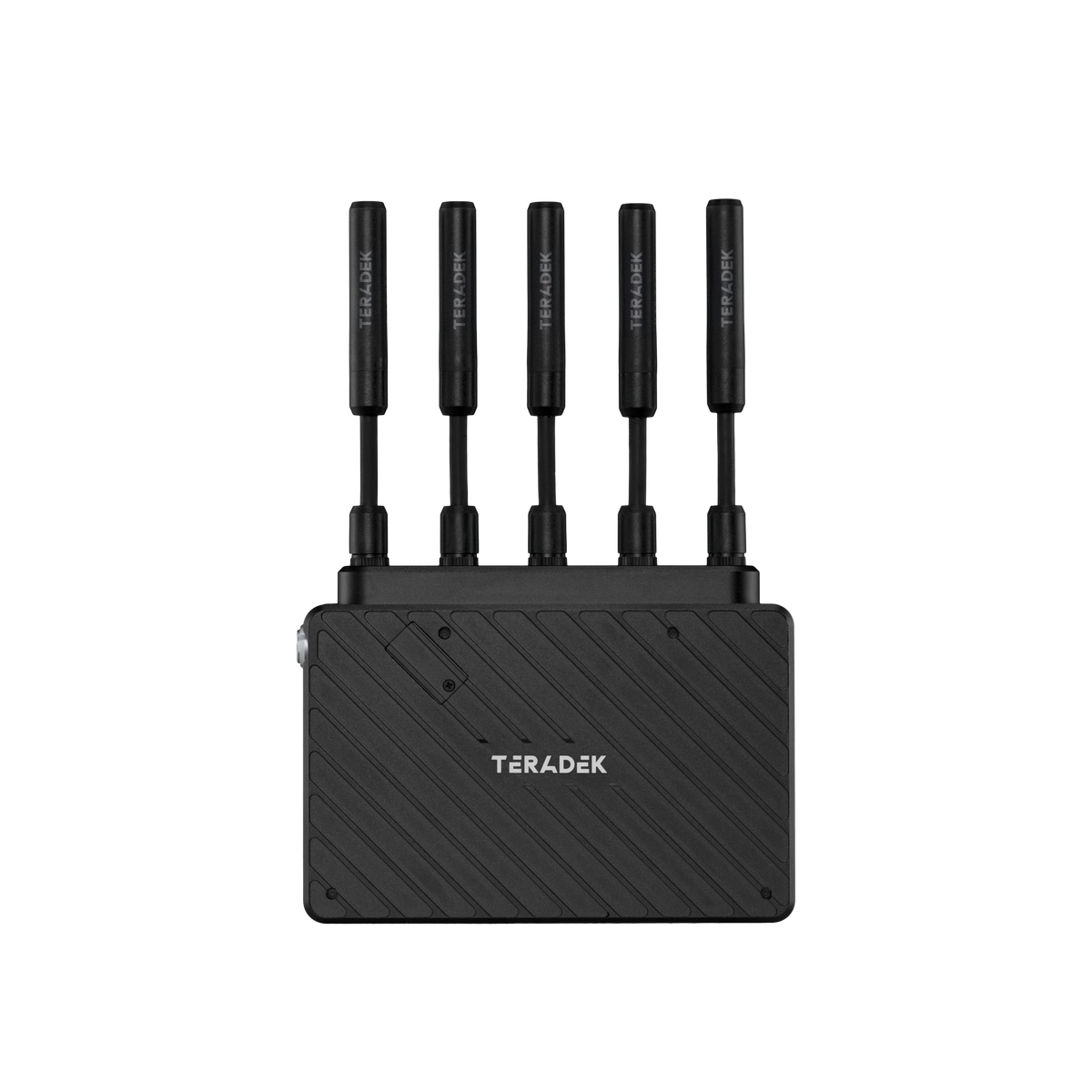

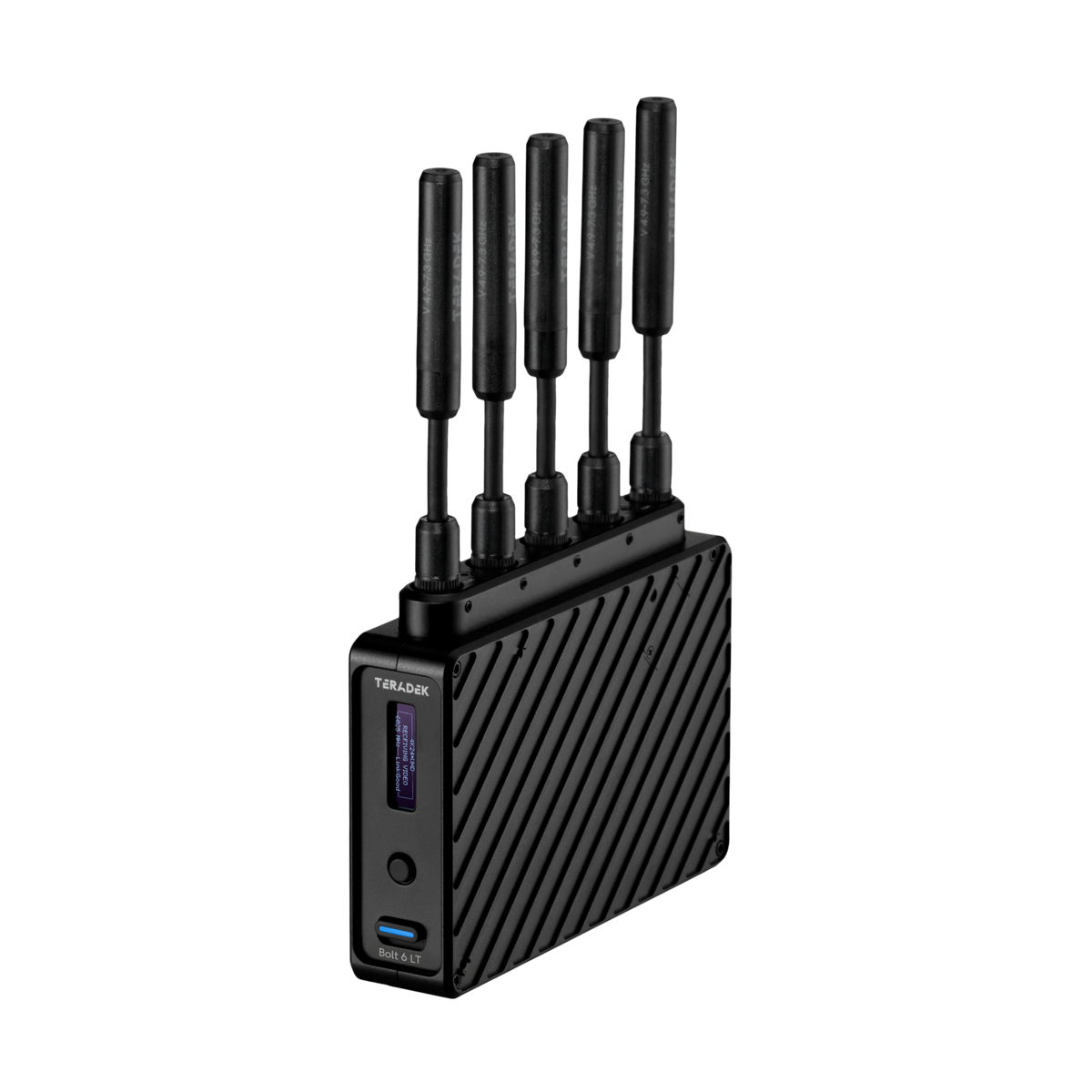

Teradek Bolt 6 LT 750 RX

$2,544.95 AUD - $2,909.95 AUD

RRP inc GST /

SKU: 10-2262SKU: 10-2262-GSKU: 10-2262-V

Select an option to add this to your cart.

Configuration : No Mount : Gold Mount : V-Mount

For updated Stock on hand, please contact sales@blkflag.com.au otherwise we will email you ETA after confirmed order placement.

Bolt 6 LT RX is a wireless video receiver that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

Bolt 6 LT RX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

The Receiver is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

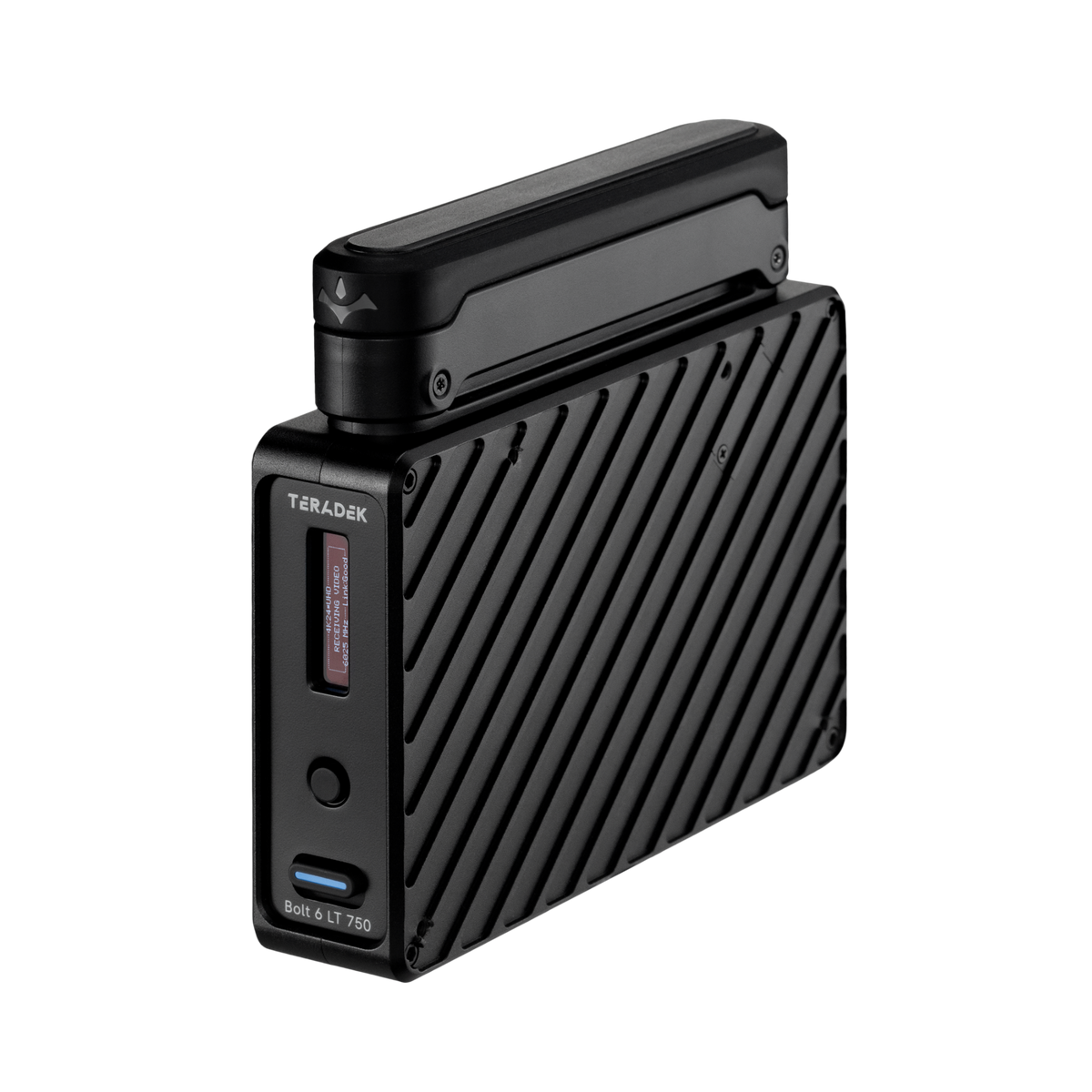

Optionally, the 750 model of Bolt 6 LT RX can include internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.

Looking for even more robust signal connection when in the most challenging RF environments? Try using RF-X Auto-Switcher, built specifically for Teradek Bolt RXs to secure the best possible signal every time.

Read the Bolt 6 Internal Antenna FAQ to learn more about the optional built-in internal antennas.

Video Outputs: 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle
SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Output Video Scaling: No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output
Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression: Visually Lossless
Test Pattern Generator Support: Yes
Spectrum Analyzer: Yes
Color Correction: 17x17x17 3D LUT (supports 10-bit color)
Audio Compression: 48kHz 24-bit PCM
Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)
Dimensions (cm): 12.2 x 9.4 x 2.7
Weight (kg): 0.292
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Mobile App: Bolt App
Desktop App: Bolt Manager application for OSX & Windows
USB Interface Functionality: Upgrade via Micro-USB
Bluetooth: 2.4 GHz
Antennas: 5 External 2 dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
RF Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
RF Power: 21 dbm EIRP
Range: Up to 750 ft, line of sight
Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability (Compatibility): Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: None, optional Gold or V mount battery plate
Nominal Power Consumption: 11 Watts
Operating Temperature: 0-40℃

— No Mount —
1 x Bolt 6 LT 750 RX
1 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
1 x SDI - BNC to BNC Cable, 10in
1 x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable

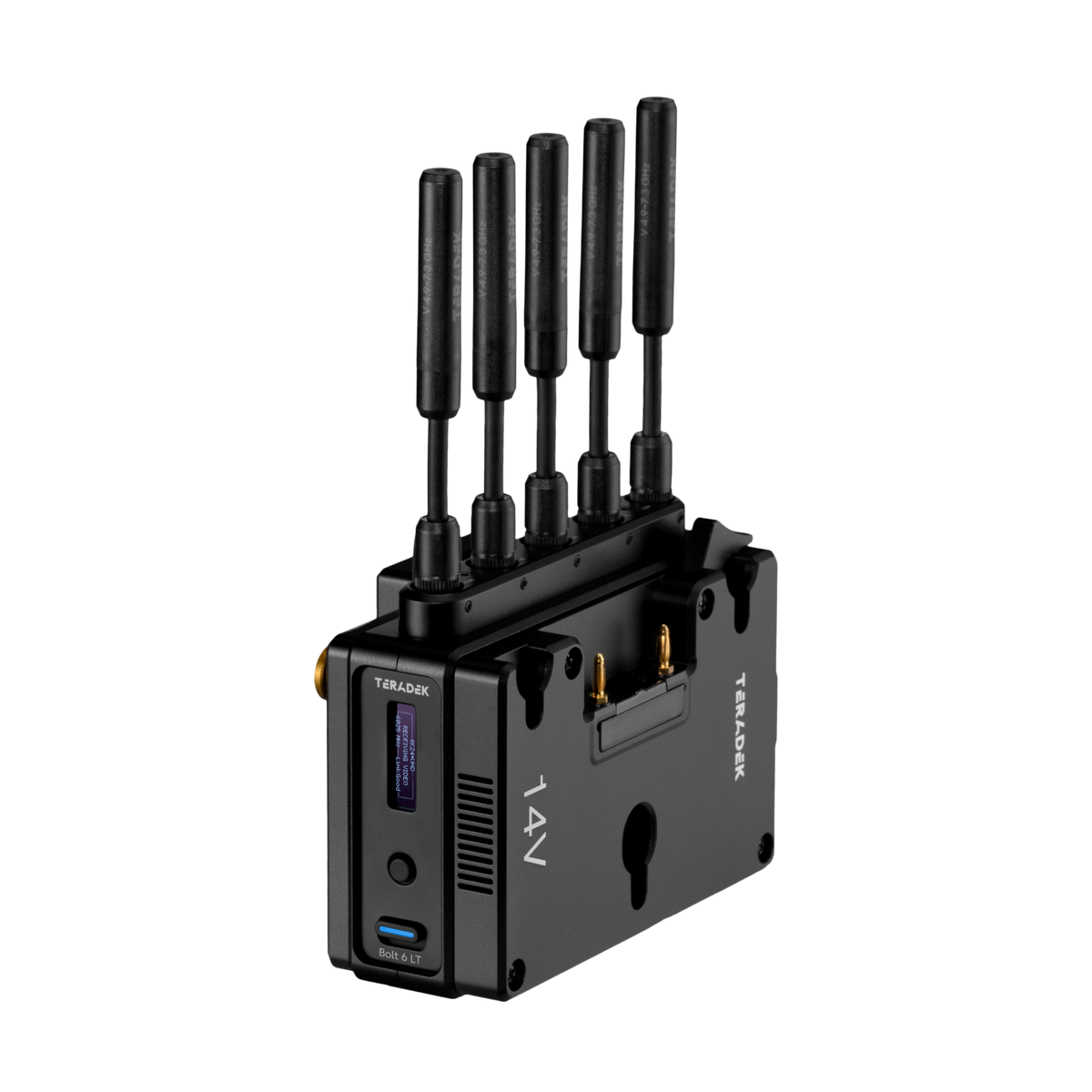

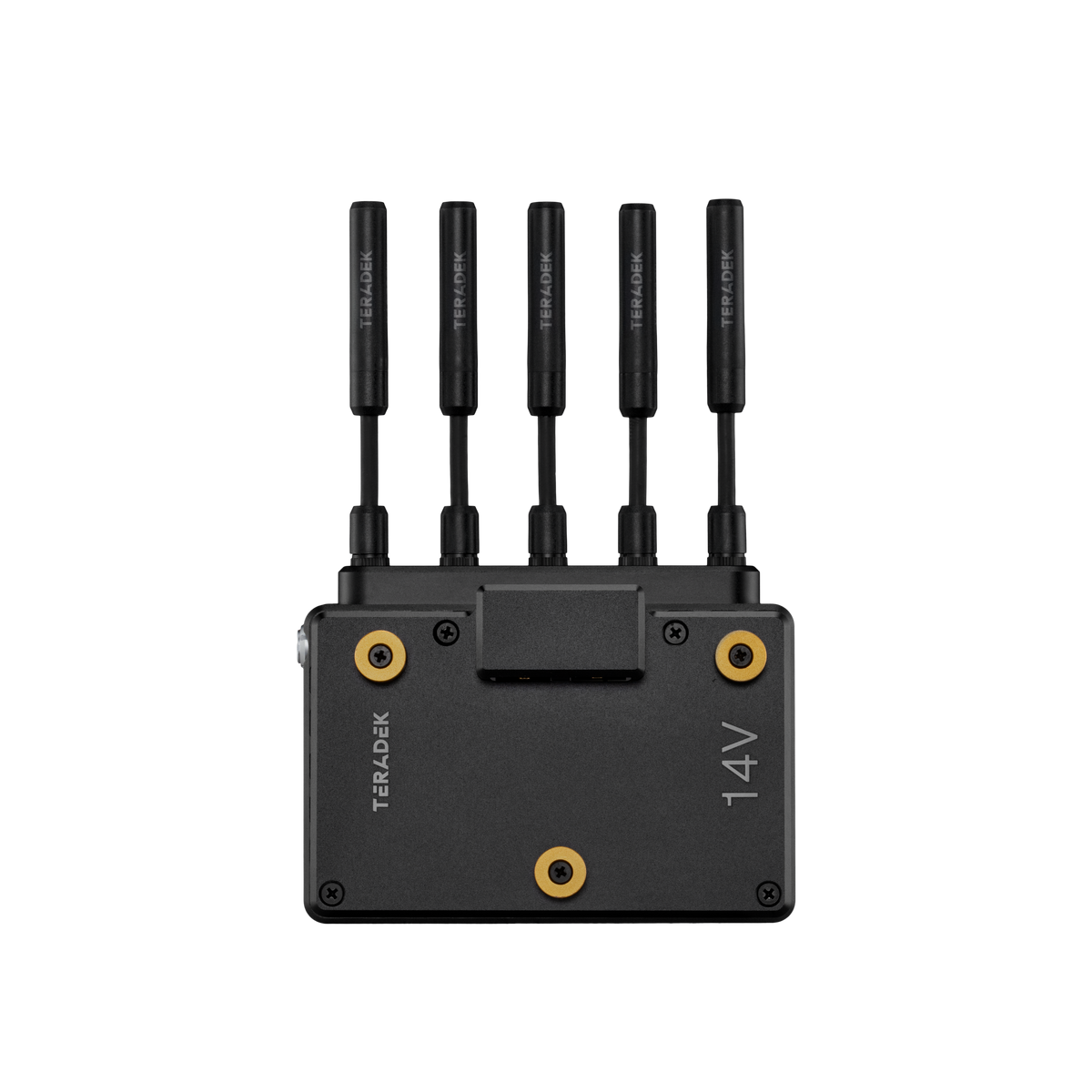

— Gold Mount —
1 x Bolt 6 LT 750 RX Gold Mount
2 x Bolt 4K LT RX Battery Cover
2 x Screw Flat Head Phillips
1 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
1 x SDI - BNC to BNC Cable, 10in
1 x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable

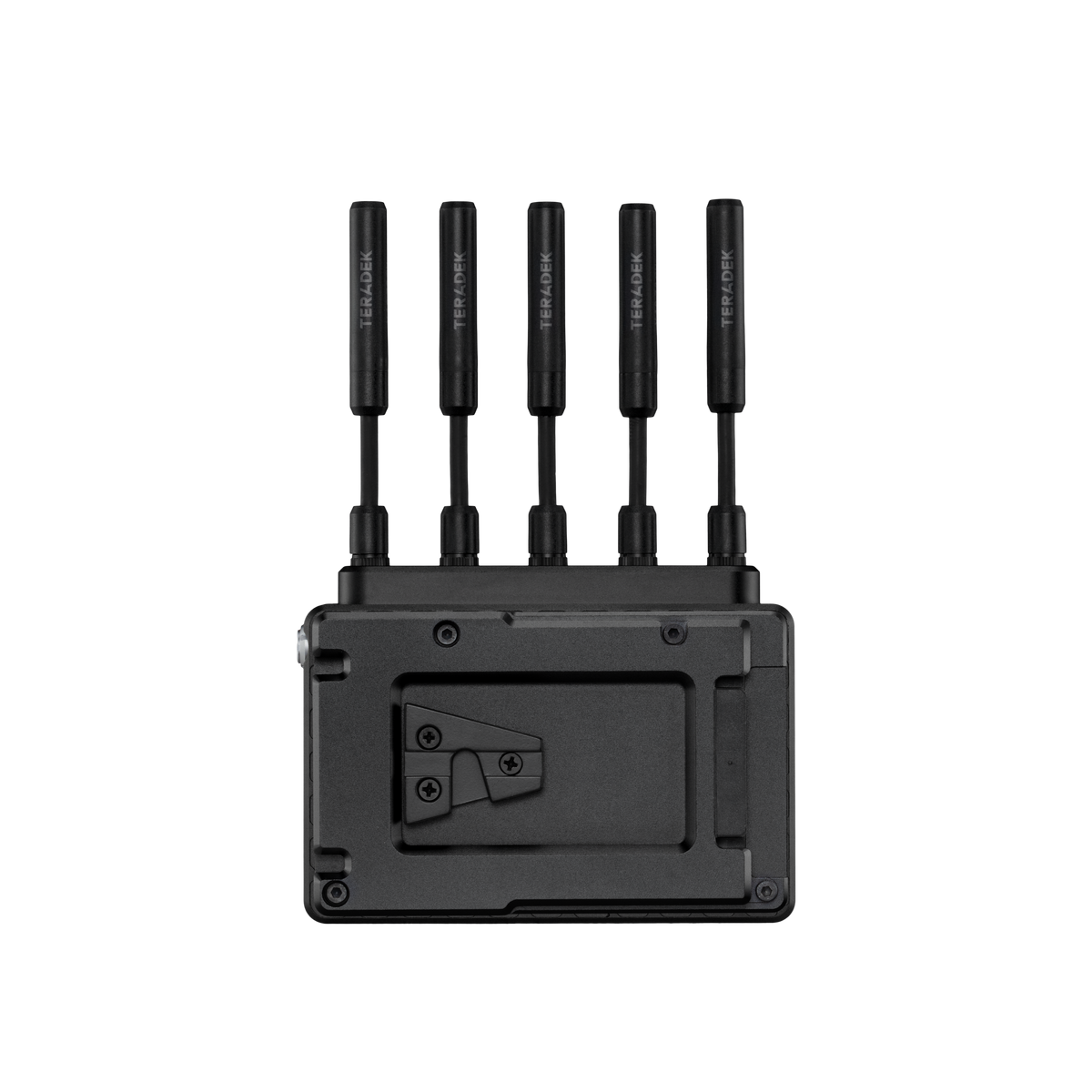

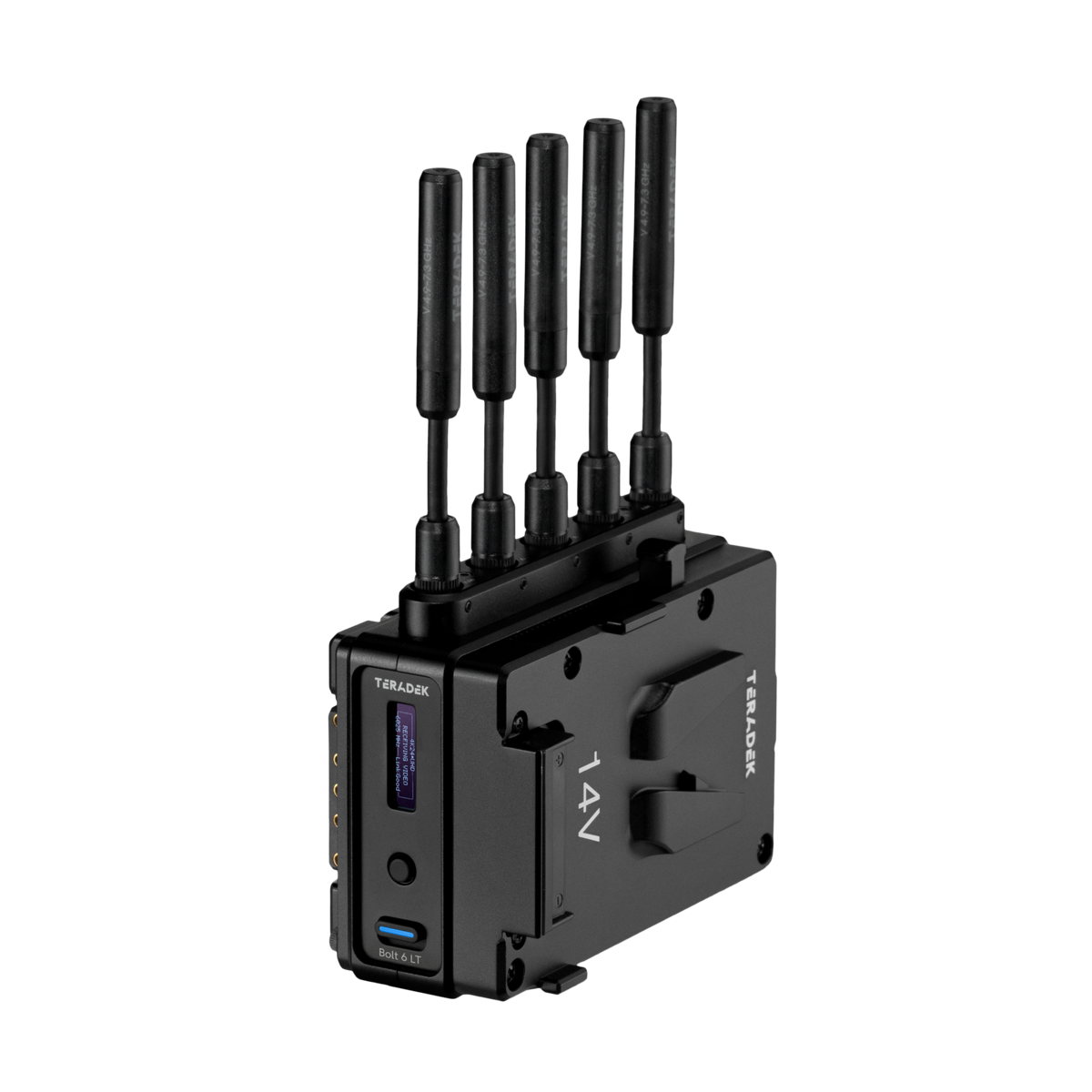

— V-Mount —
1 x Bolt 6 LT 750 RX V-Mount
2 x Bolt 4K LT RX Battery Cover
2 x Screw Flat Head Phillips
1 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
1 x SDI - BNC to BNC Cable, 10in
1 x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
