Teradek Bolt 6 LT 750 with Internal Antennas - RX

Teradek Bolt 6 LT 750 with Internal Antennas - RX

$2,544.95 AUD - $2,909.95 AUD

RRP inc GST /

SKU: 10-2264SKU: 10-2264-GSKU: 10-2264-V

Select an option to add this to your cart.

Configuration : No Mount : Gold Mount : V-Mount

For updated Stock on hand, please contact sales@blkflag.com.au otherwise we will email you ETA after confirmed order placement.

Bolt 6 LT RX is a wireless video receiver that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

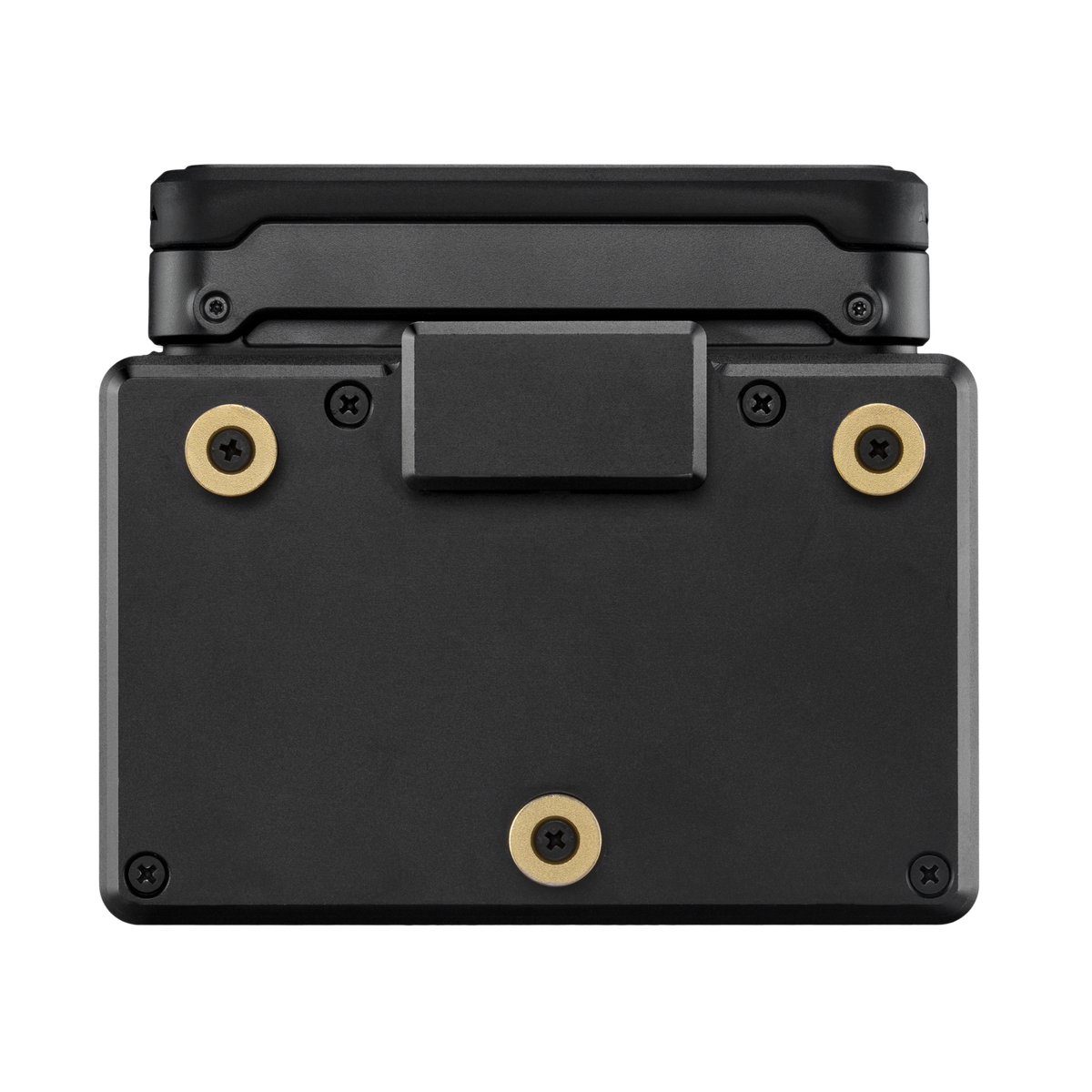

Bolt 6 LT RX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

The Receiver is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

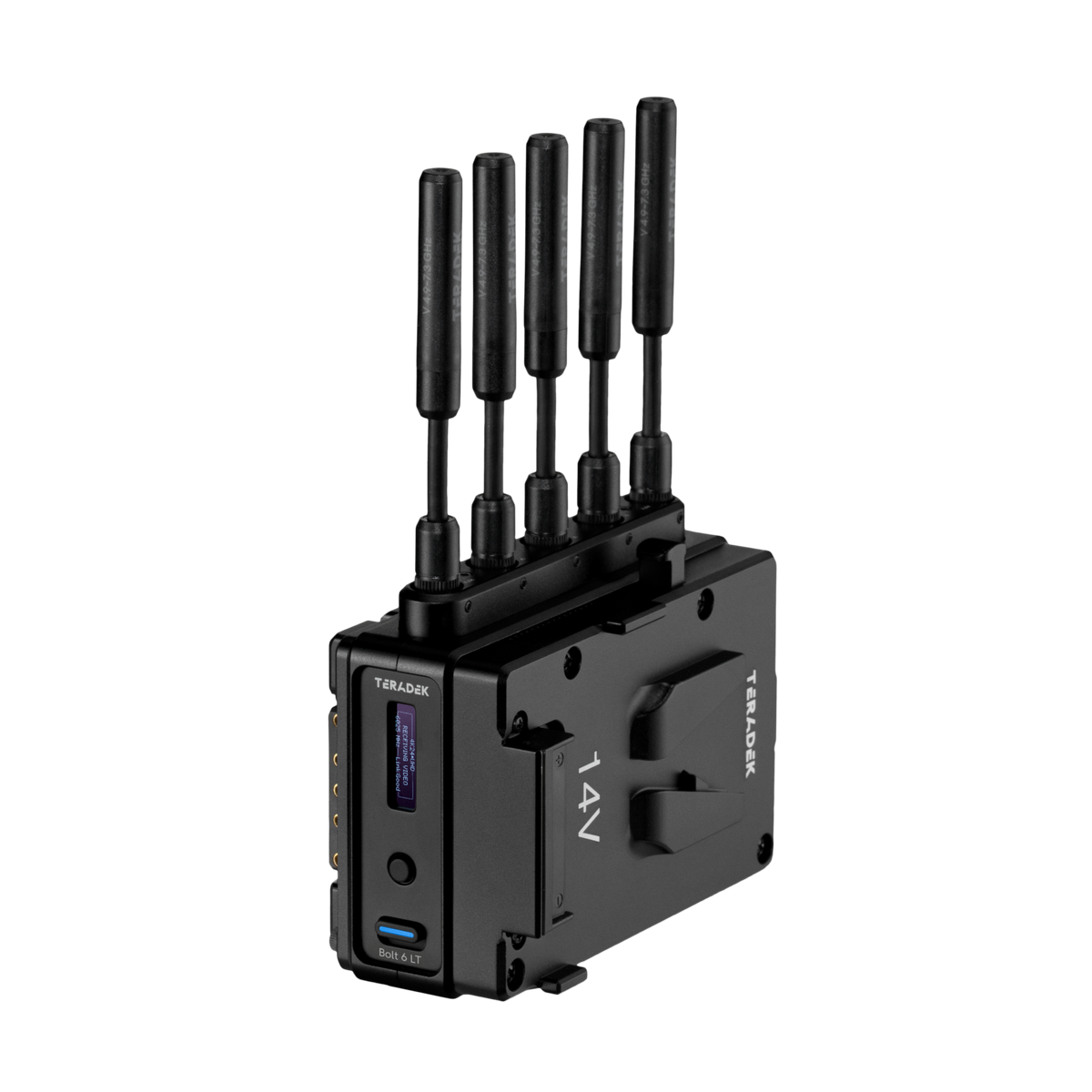

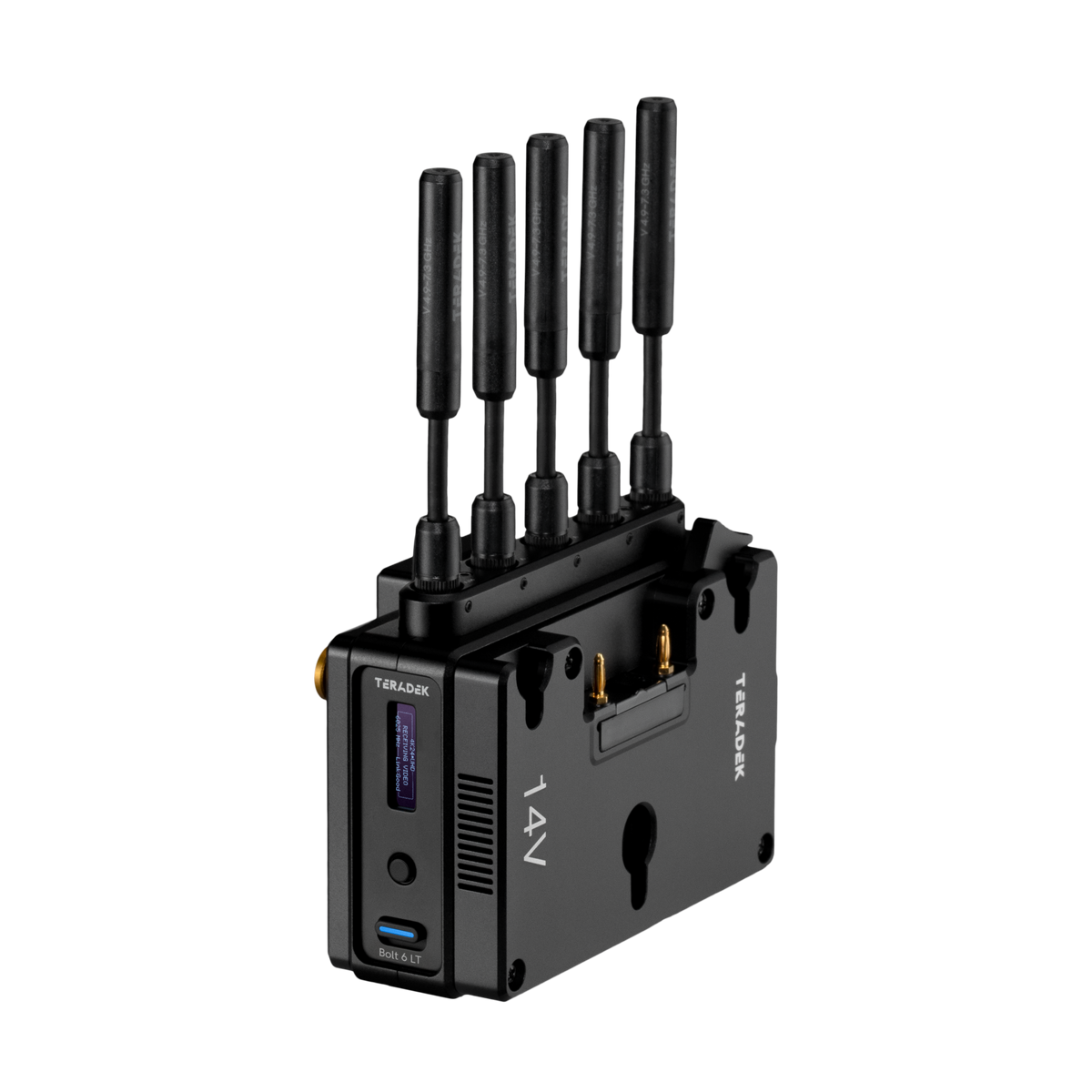

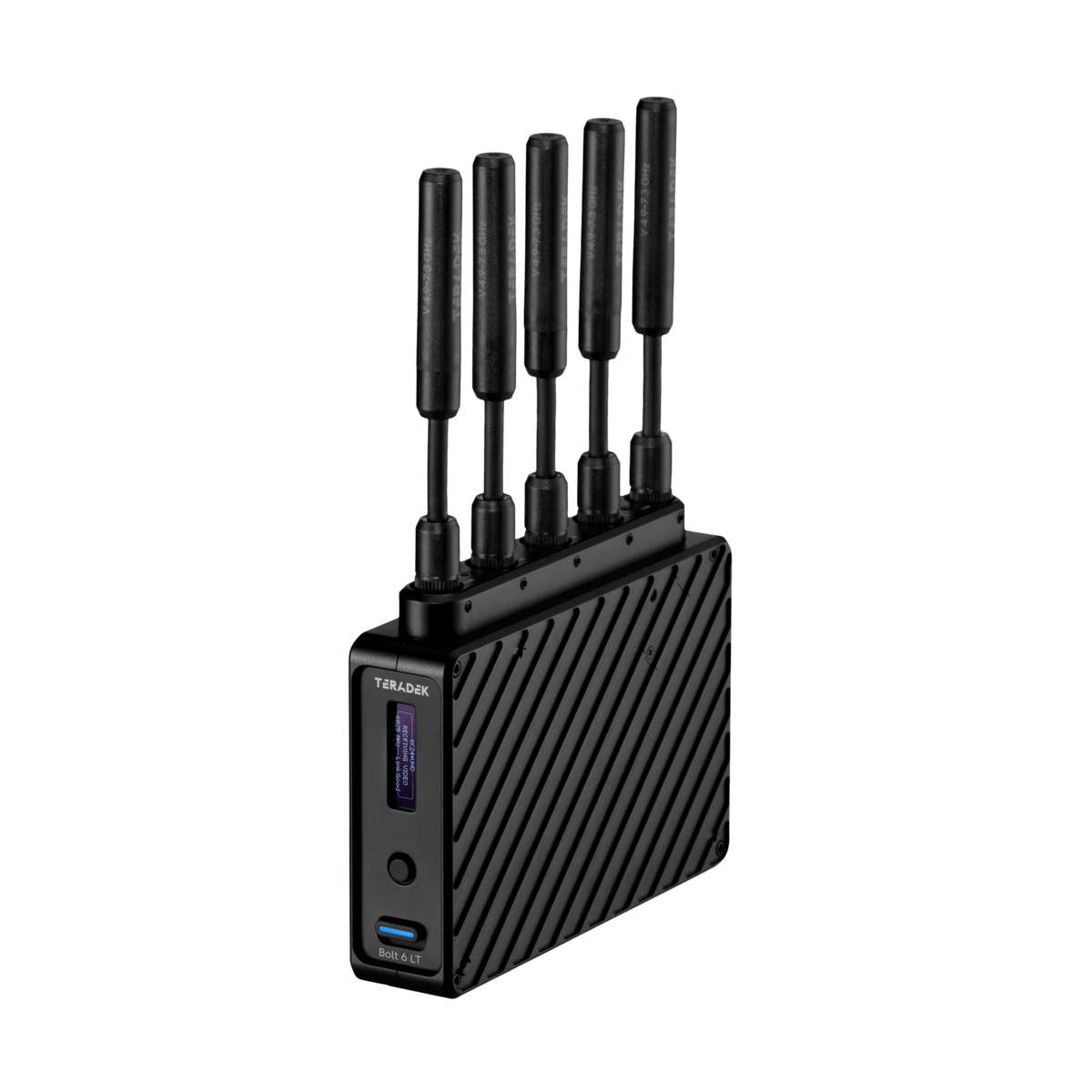

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

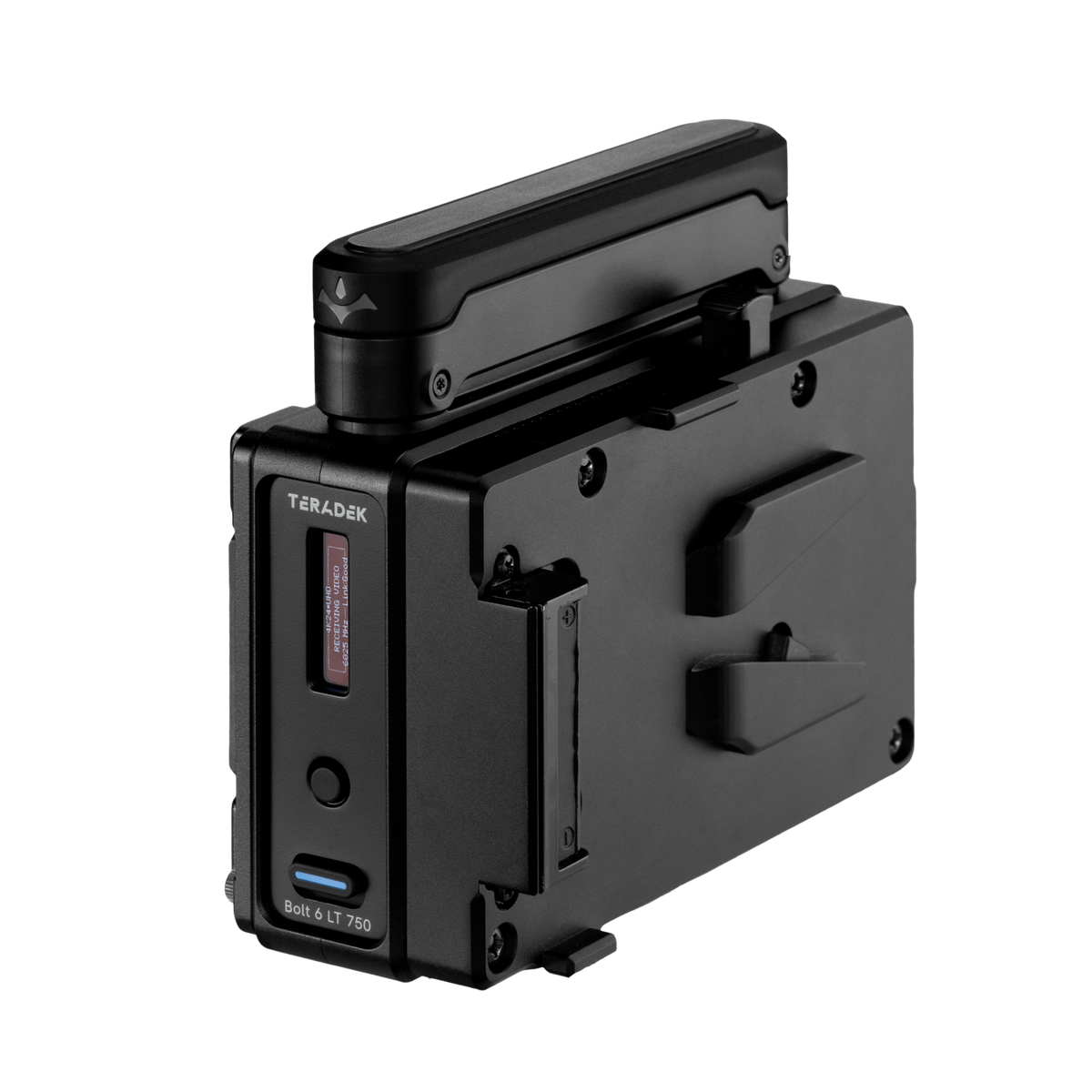

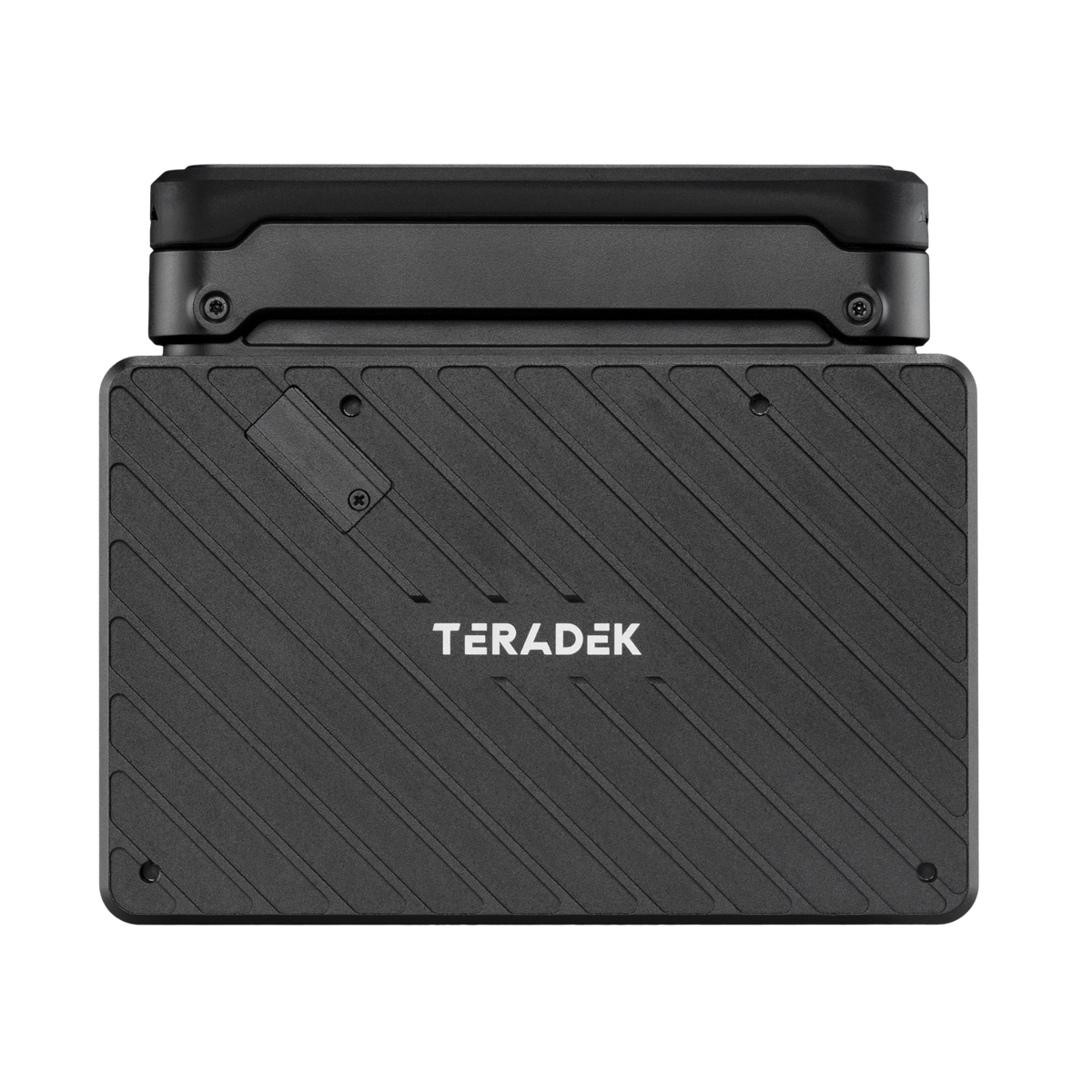

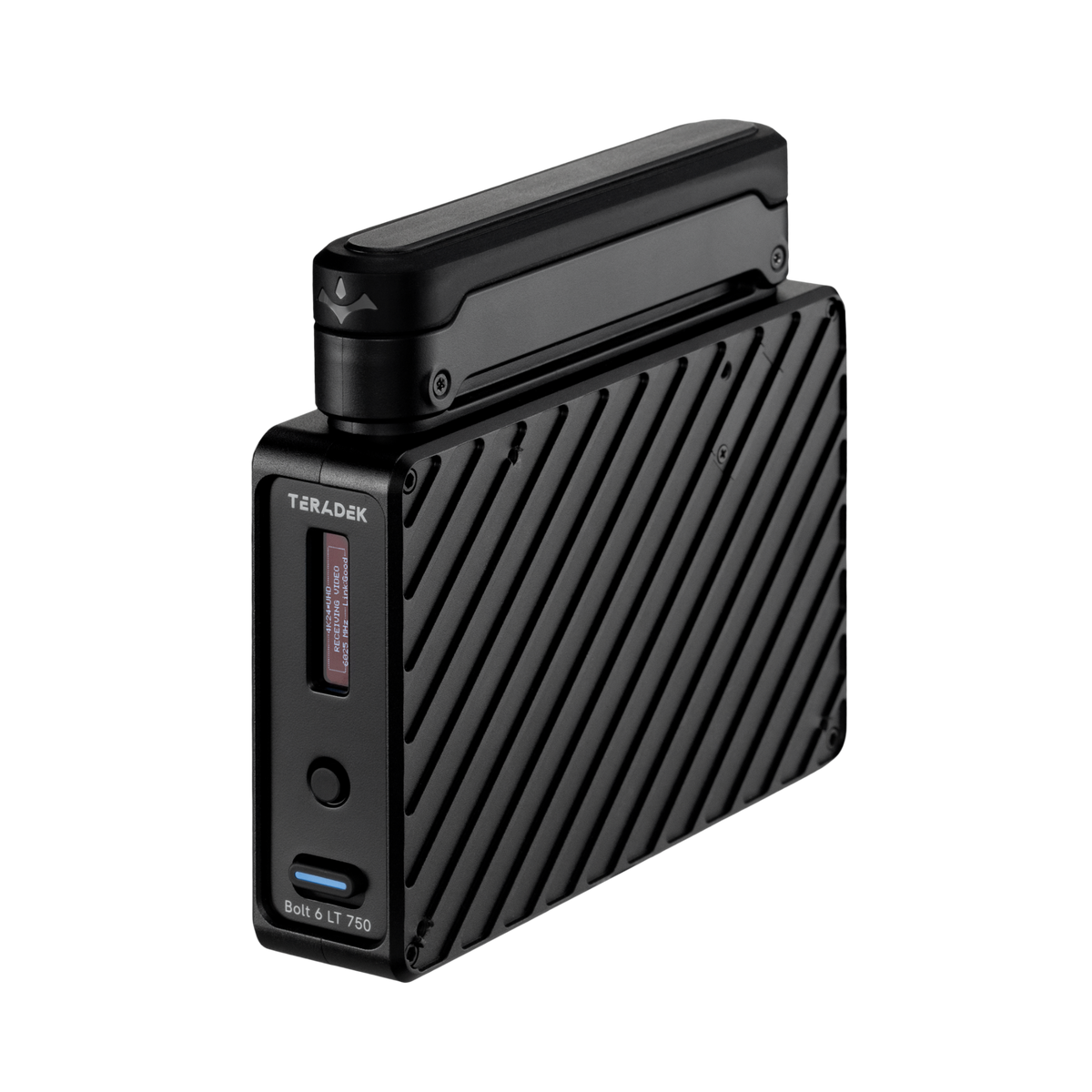

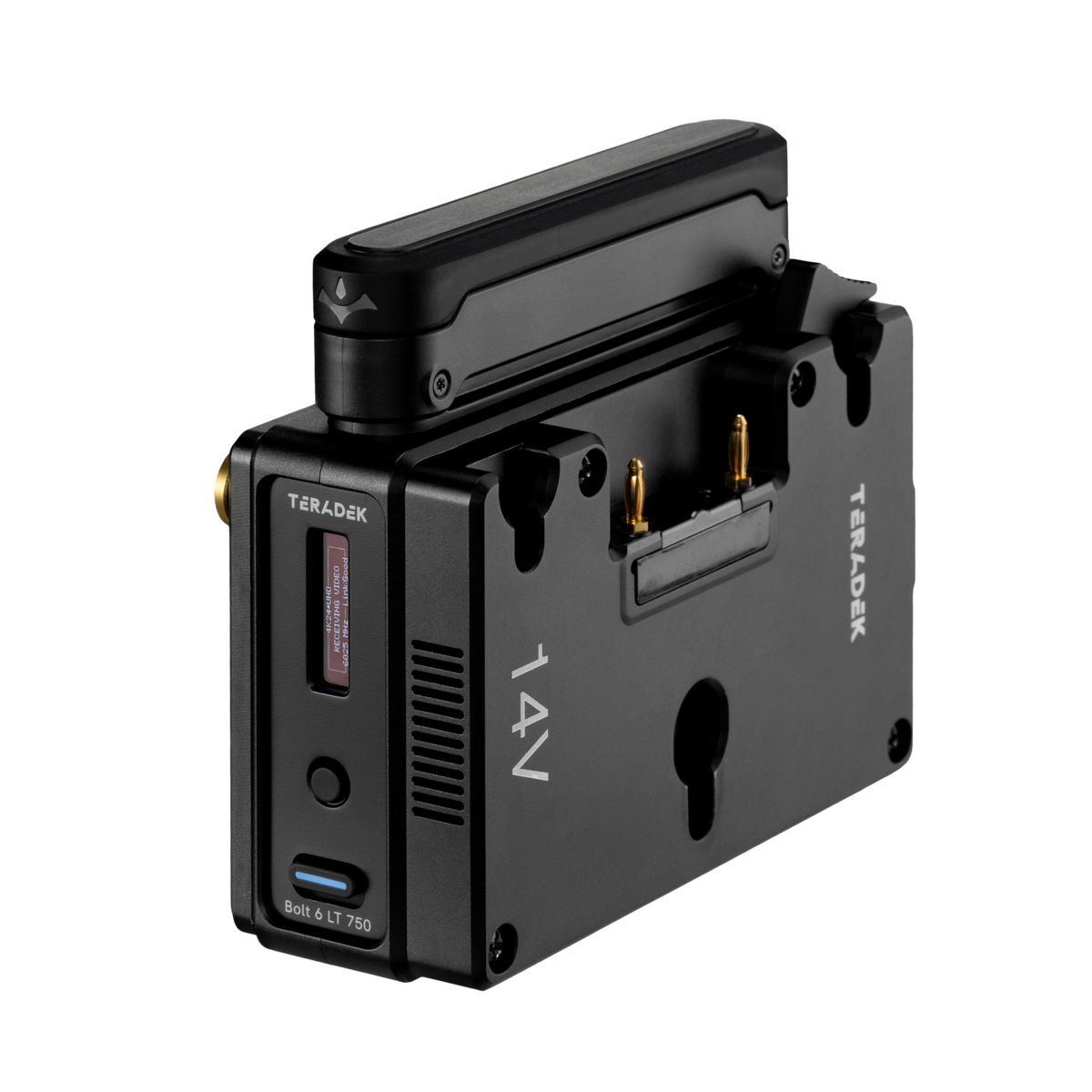

Optionally, the 750 model of Bolt 6 LT RX can include internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.

Looking for even more robust signal connection when in the most challenging RF environments? Try using RF-X Auto-Switcher, built specifically for Teradek Bolt RXs to secure the best possible signal every time.

Read the Bolt 6 Internal Antenna FAQ to learn more about the optional built-in internal antennas.

— No Mount —
Video Outputs: 3G-SDI SMPTE 424M standard/75 Ω (BNC x 1), 1x HDMI 1.4b Type-A receptacle
SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay (TX to RX): <0.001sec
Output Video Scaling: No (4Kp30 signals are output on HDMI, but scaled to 1080p30 and output over SDI. 4Kp60 signals received from Bolt 6 XT devices are scaled to 1080p60 and output over both HDMI and SDI outputs)
Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression: Visually Lossless
Test Pattern Generator Support: Yes
Spectrum Analyzer: Yes
Color Correction: None
Audio Compression: -
Audio Output: Embedded SDI/HDMI Audio Input (2 Channel)
Dimensions (cm): 12.2 x 10.7 x 2.5 (310.9mm x 269.7mm x 68.8mm)
Weight (kg): 0.303
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 3/8”x16 and 1/4-20” holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Mobile App: Bolt App
Desktop App: Bolt Manager application for OSX & Windows
USB Interface Functionality: Upgrade via Micro-USB
Bluetooth: 2.4 GHz
Antennas: 5x Internal 2dBi antennas
Wireless: DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
RF Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
RF Power: 21 dbm EIRP
Range: Up to 750 ft, line of sight
Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability (Compatibility): Can receive wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: None, optional Gold or V mount battery plate
Nominal Power Consumption: 11 Watts
Operating Temperature: 0-40℃
— Gold Mount —
Video Outputs: 3G-SDI SMPTE 424M standard/75 Ω (BNC x 1), 1x HDMI 1.4b Type-A receptacle
SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay (TX to RX): <0.001sec
Output Video Scaling: No (4Kp30 signals are output on HDMI, but scaled to 1080p30 and output over SDI. 4Kp60 signals received from Bolt 6 XT devices are scaled to 1080p60 and output over both HDMI and SDI outputs)
Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression: Visually Lossless
Test Pattern Generator Support: Yes
Spectrum Analyzer: Yes
Color Correction: None
Audio Output: Embedded SDI/HDMI Audio Input (2 Channel)
Dimensions (cm): 12.2 x 10.7 x 2.5 (310.9mm x 269.7mm x 68.8mm)
Weight (kg): 0.303
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 3/8”x16 and 1/4-20” holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Mobile App: Bolt App
Desktop App: Bolt Manager application for OSX & Windows
USB Interface Functionality: Upgrade via Micro-USB
Bluetooth: 2.4 GHz
Antennas: 4x Internal 2dBi Antennas
Wireless: DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
RF Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
RF Power: 21 dbm EIRP
Range: Up to 750 ft, line of sight
Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability (Compatibility): Can receive wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: None, optional Gold or V mount battery plate
Nominal Power Consumption: 11 Watts
Operating Temperature: 0-40℃
— V-Mount —
Video Outputs: 3G-SDI SMPTE 424M standard/75 Ω (BNC x 1), 1x HDMI 1.4b Type-A receptacle
SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay (TX to RX): <0.001sec
Output Video Scaling: No (4Kp30 signals are output on HDMI, but scaled to 1080p30 and output over SDI. 4Kp60 signals received from Bolt 6 XT devices are scaled to 1080p60 and output over both HDMI and SDI outputs)
Supported Resolutions: 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression: Visually Lossless
Test Pattern Generator Support: Yes
Spectrum Analyzer: Yes
Color Correction: None
Audio Output: Embedded SDI/HDMI Audio Input (2 Channel)
Dimensions (cm): 12.2 x 10.7 x 2.5 (310.9mm x 269.7mm x 68.8mm)
Weight (kg): 0.303
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 3/8”x16 and 1/4-20” holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
Mobile App: Bolt App
Desktop App: Bolt Manager application for OSX & Windows
USB Interface Functionality: Upgrade via Micro-USB
Bluetooth: 2.4 GHz
Antennas: 4x Internal 2dBi Antennas
Wireless: DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
RF Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
RF Power: 21 dbm EIRP
Range: Up to 750 ft, line of sight
Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability (Compatibility): Can receive wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: None, optional Gold or V mount battery plate
Nominal Power Consumption: 11 Watts
Operating Temperature: 0-40℃

— No Mount —
1 x Bolt 6 LT 750 RX Internal Antenna
1 x 2pin to P-Tap Cable, 18in
1 x 2pin to AC Adapter 18W, 6ft
1 x SDI Cable, 10in
1 x USB-C 2.0 Male to Male, 1m

— Gold Mount —
1 x Bolt 6 LT 750 RX Internal Antenna Gold Mount
1 x 2pin to P-Tap Cable, 18in
1 x 2pin to AC Adapter 18W, 6ft
1 x SDI Cable, 10in
1 x USB-C 2.0 Male to Male, 1m

— V-Mount —
1 x Bolt 6 LT 750 RX Internal Antenna V-Mount
1 x 2pin to P-Tap Cable, 18in
1 x 2pin to AC Adapter 18W, 6ft
1 x SDI Cable, 10in
1 x USB-C 2.0 Male to Male, 1m
