Teradek Bolt 6 Monitor Module 1500 TX

Name: Teradek Bolt 6 Monitor Module 1500 TX
Brand: Teradek
SKU: 10-2298-7
Price: 5289.95 AUD
Availability: InStock

$5,289.95 AUD

RRP inc GST /

SKU: 10-2298-7

For updated Stock on hand, please contact sales@blkflag.com.au otherwise we will email you ETA after confirmed order placement.

Bolt 6 Monitor Module TX is a wireless video transmitter that supports up to 4K30 10-bit 422 HDR video. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

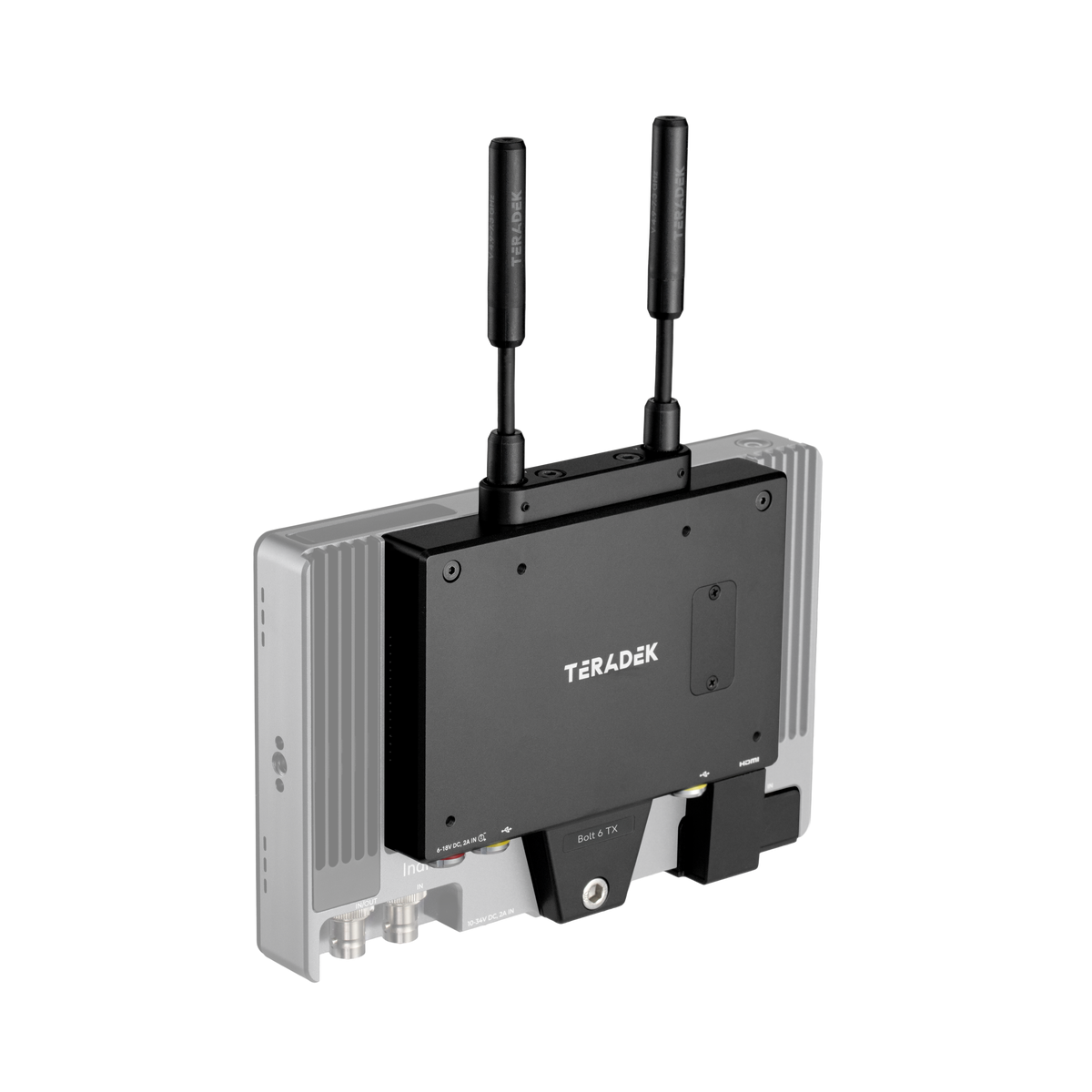

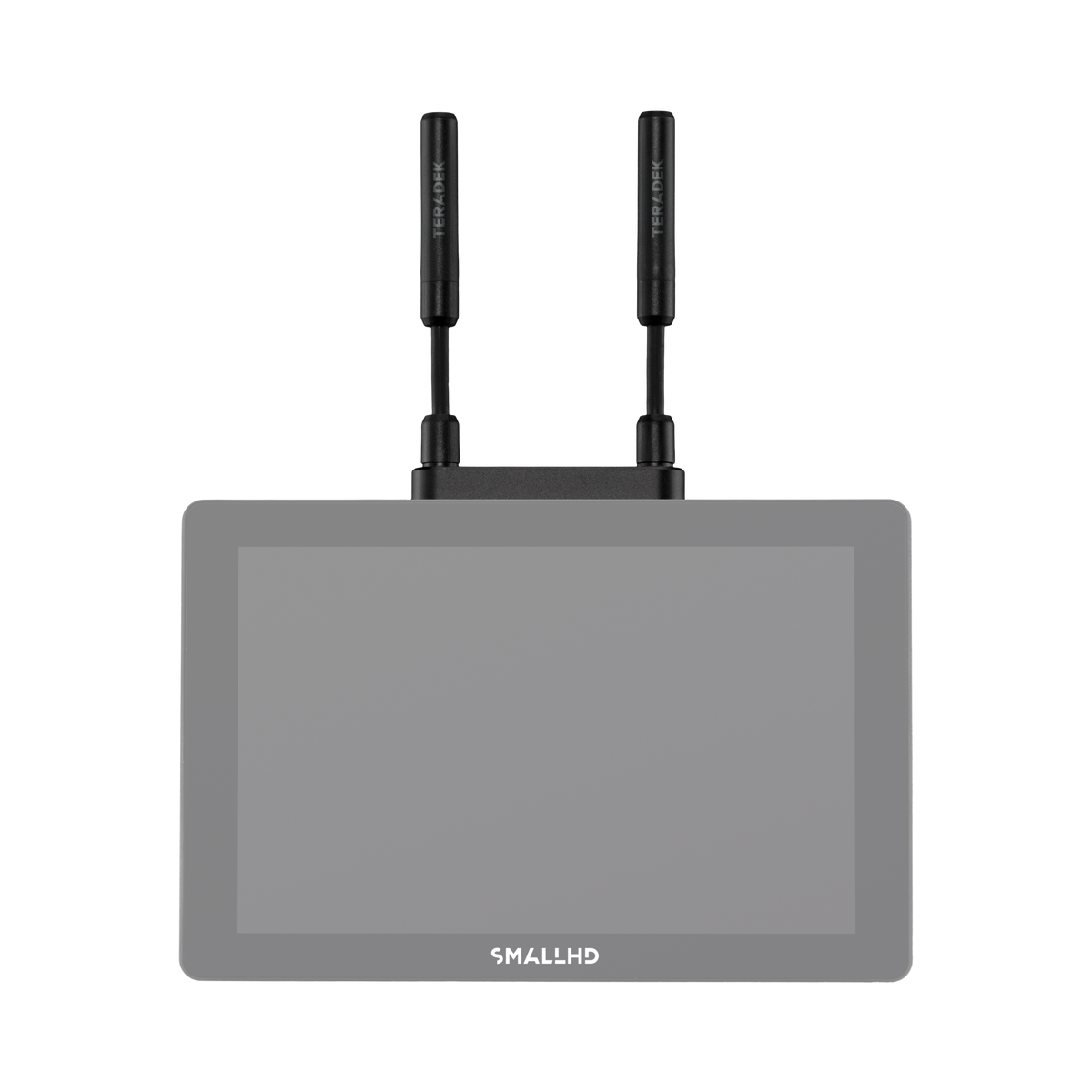

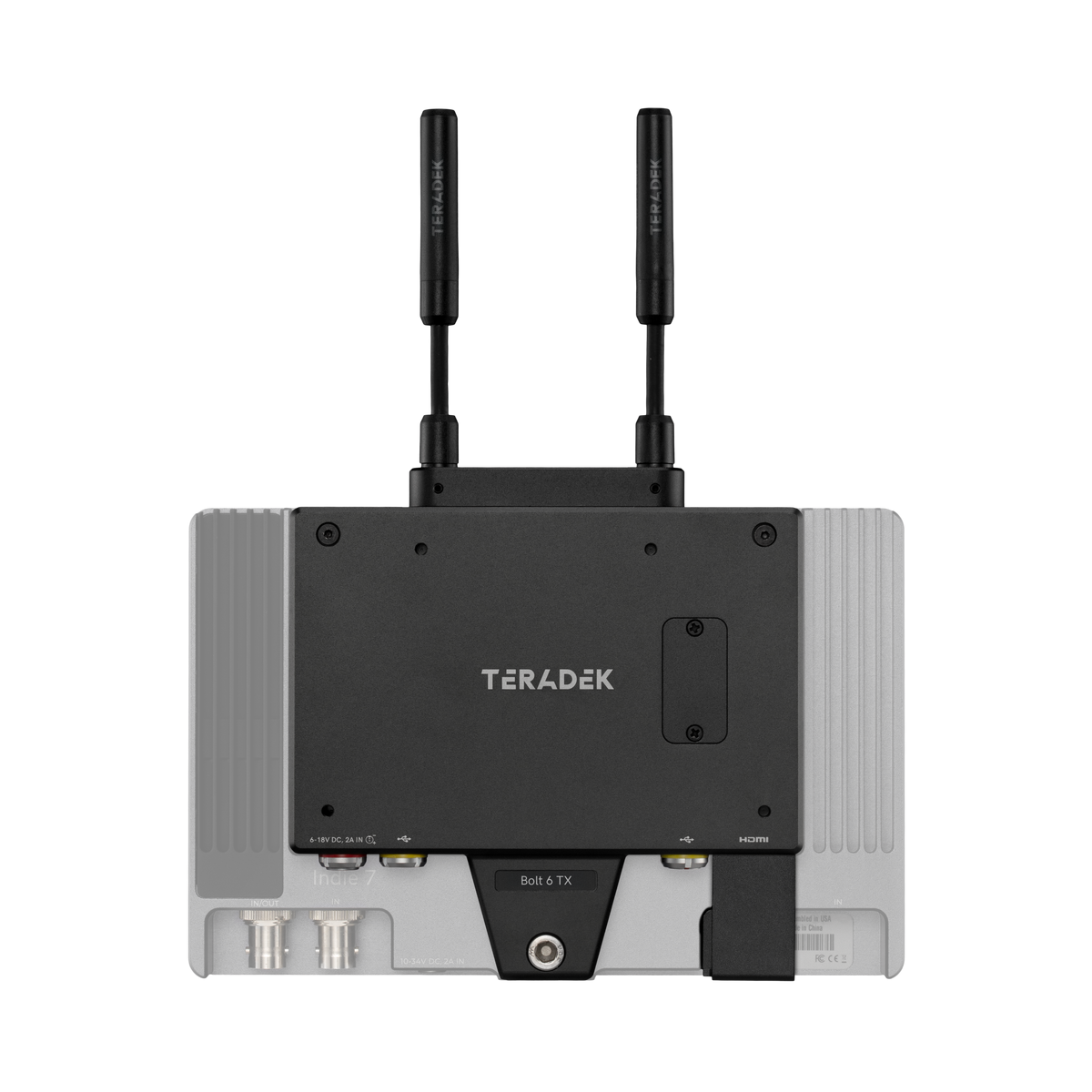

The Bolt 6 Transmitter Monitor Module easily attaches to the back of SmallHD’s Cine 7, 702 Touch, and Indie 7 Smart Monitors. With this direct integration, the Bolt 6 and Smart monitor can share power and video, allowing you to reduce the amount of cables on set. With the Bolt 6 Monitor Module, Wireless Camera-Control is also possible because it integrates directly into SmallHD Smart Monitors.

Bolt 6 Monitor Module RX offers two line-of-sight options: 750 ft. and 1500 ft. The 750 model includes V (vertical) Antennas. 1500 models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Video Inputs: 1 x HDMI 1.4b Type-A receptacle
SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay (TX to RX): <0.001sec
Supported Resolutions: 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression: Visually Lossless
Color Correction: None
Audio Compression: 48kHz 24-bit PCM
Audio Input: Embedded HDMI Audio Input (2 Channel)
Dimensions (cm): 6 x 10.3 x 3.3
Weight (kg): 0.206
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: SmallHD 7" Monitor
Configuration Interfaces: SmallHD Monitor UI
Mobile App: Bolt App
USB Interface Functionality: SmallHD Monitor UI 2x 5pin Locking Connector CCU (Host)
Bluetooth: Via SmallHD Monitor
Antennas: 2 External 2dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
RF Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
RF Power: 23 dbm EIRP
Range: Up to 1500 ft, line of sight
Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability (Compatibility): Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
Power Input: 2-Pin Circular locking Connector 6-18 VDC
Battery: None, optional Sony/Canon dual battery plate
Nominal Power Consumption: 7 Watts
Operating Temperature: 0-40℃

1 x Bolt 6 Monitor Module 1500 TX
1 x Hex L key 3/16" x 2 13/16" length
1 x Hex L key 2mm size 3-3/8" length
1 x Screw Socket Head Black 1/4-20 x 3/8" length
2 x Screw Socket Head Low Profile Black Oxide M3 x 20mm
2 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
1 x Lightstand Adapter 1/4-20in
1 x HDMI Adapter Bolt 4K TX Monitor Module
