Teradek Bolt 6 XT 1500 12G SDI/HDMI Wireless TX/RX

Teradek Bolt 6 XT 1500 12G SDI/HDMI Wireless TX/RX

$19,189.95 AUD - $22,849.95 AUD

RRP inc GST /

SKU: 10-2310SKU: 10-2310-GSKU: 10-2310-V

Select an option to add this to your cart.

Configuration : No Mount : Gold Mount : V-Mount

For updated Stock on hand, please contact sales@blkflag.com.au otherwise we will email you ETA after confirmed order placement.

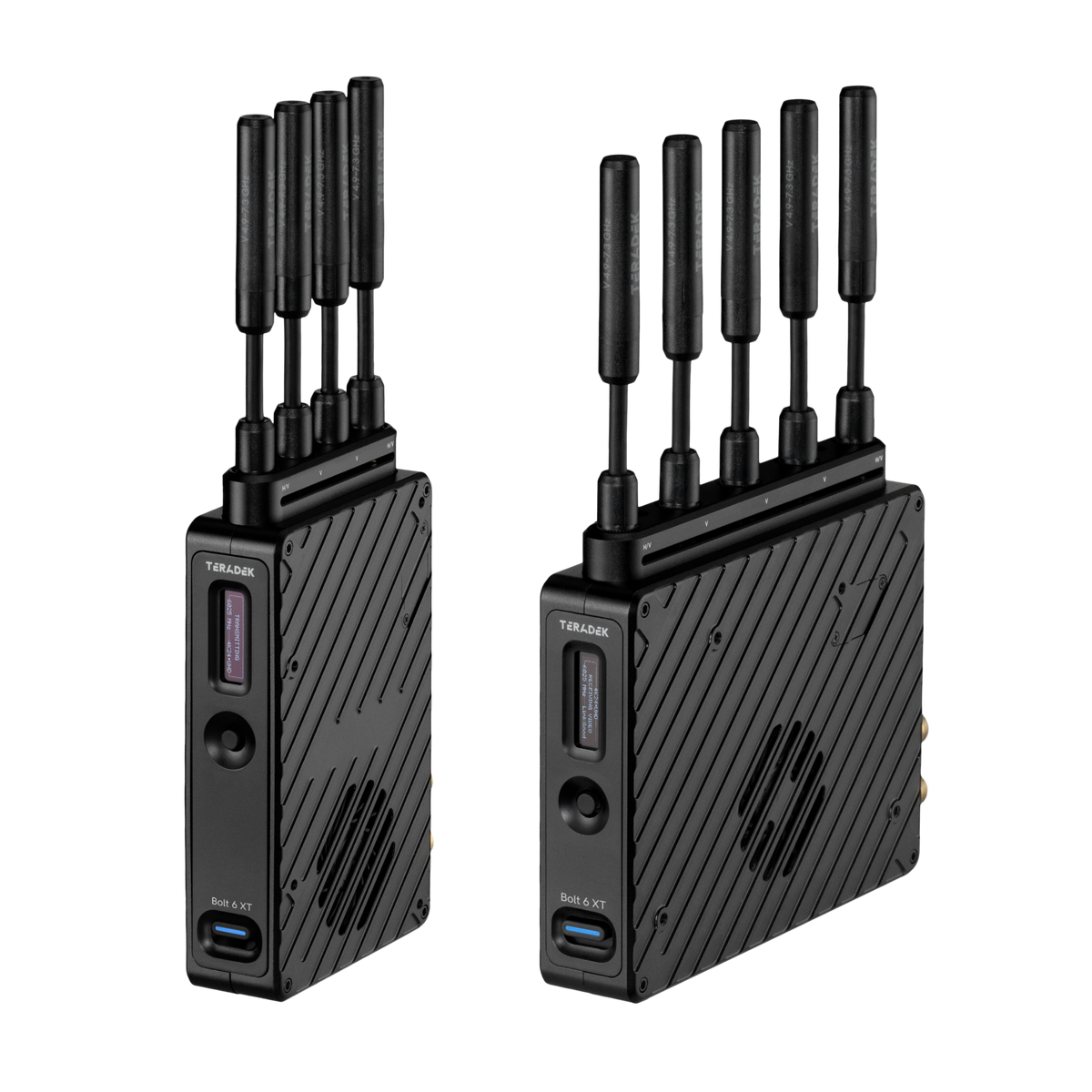

Bolt 6 XT is a wireless video transmission system that supports up to 4K60 10-bit 422 HDR video over 12G-SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

Bolt 6 XT Sets offer three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.

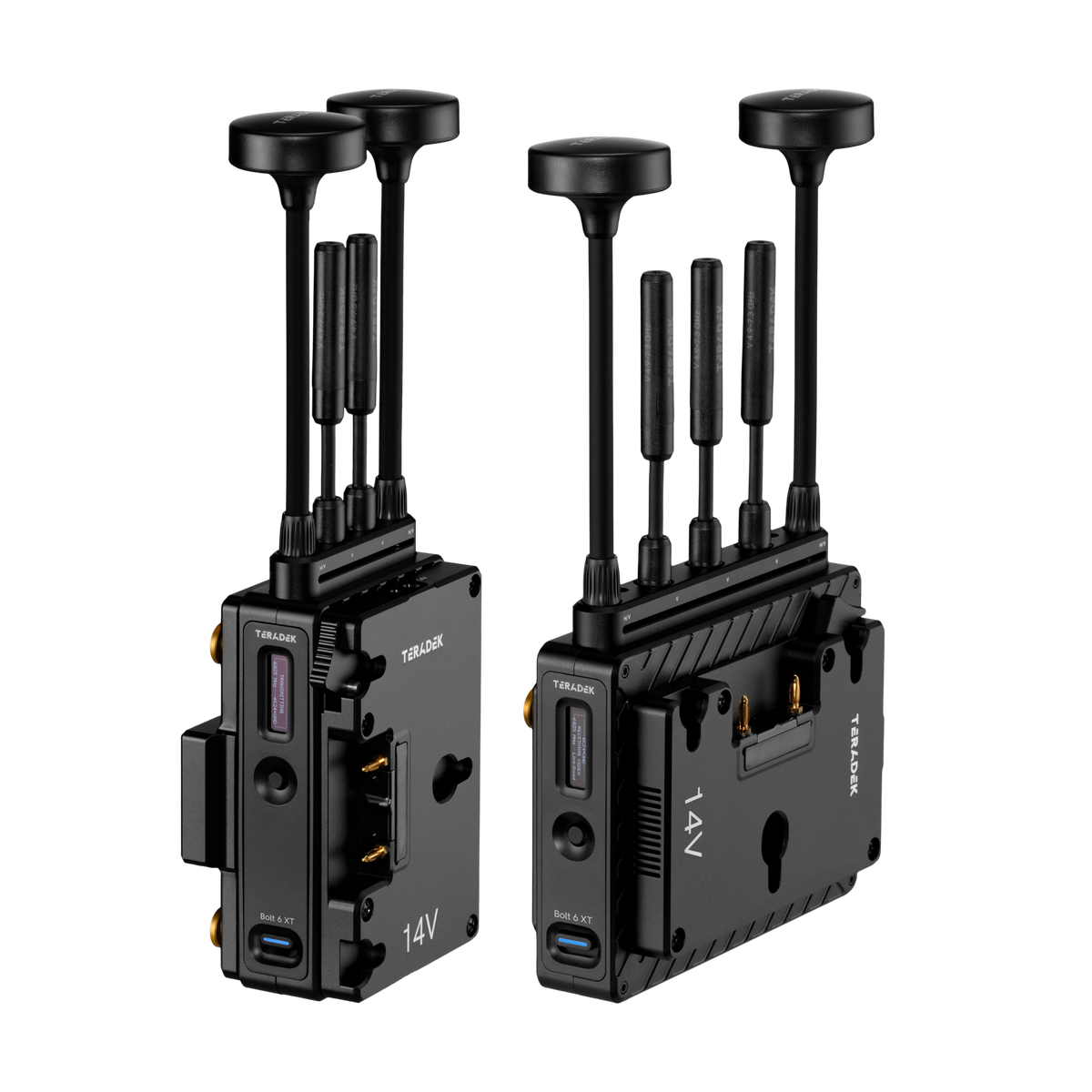

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Kit options include the Transmitter and Receiver by themselves or within a Deluxe kit that also includes Gold or V-Mount Battery plates.

Looking for even more robust signal connection when in the most challenging RF environments? Try using RF-X Auto-Switcher, built specifically for Teradek Bolt RXs to secure the best possible signal every time.

— No Mount —
Antenna Ports: Transmitter: 4 x RP-SMA Female Receiver: 5 x RP-SMA Female

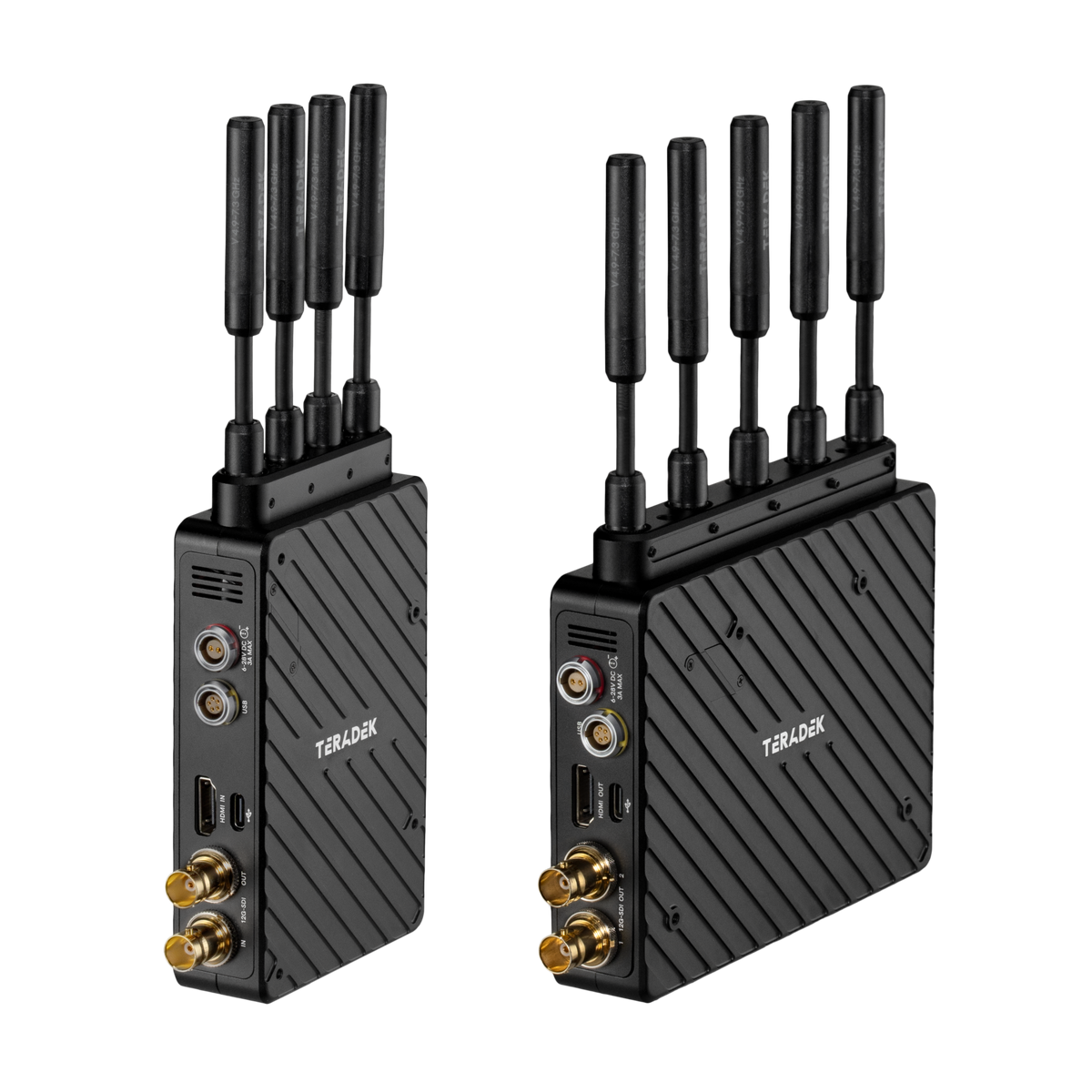

Video: Transmitter: 1 x HDMI Type A (HDMI 2.0) Input Transmitter: 1 x BNC (12G-SDI) Input Transmitter: 1 x BNC (12G-SDI) Loop Output Receiver: 1 x HDMI Type A (HDMI 2.0) Output Receiver: 1 x BNC (12G-SDI) Output
Embedded Audio: HDMI: 2-Channel SDI
Audio: None
Power: Transmitter/Receiver: 1 x LEMO 2-Pin (28 VDC) Input
Other I/O: Transmitter/Receiver: 1 x USB-C 2.0 Input Transmitter/Receiver: 1 x LEMO 5-Pin 2.0 Output
Encryption: 256-Bit AES
Wireless Range: 1500' / 457.2 m (Line-of-Sight)
Channel Bandwidth: 40 MHz
Frequency Range: Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: None
Bluetooth: Yes
Video Format: HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz
Timecode Support: Yes
DC Input Power: 6 to 28 VDC
Power Consumption: Transmitter: 20 W Receiver: 18 W
IP Rating: None
Operating Temperature: 0 to 40°C
Material of Construction: Aluminum, Polycarbonate
Dimensions (cm): Transmitter: 13.2 x 9.1 x 2.7 Receiver: 13.9 x 11.2 x 2.7
Weight (kg): 0.344

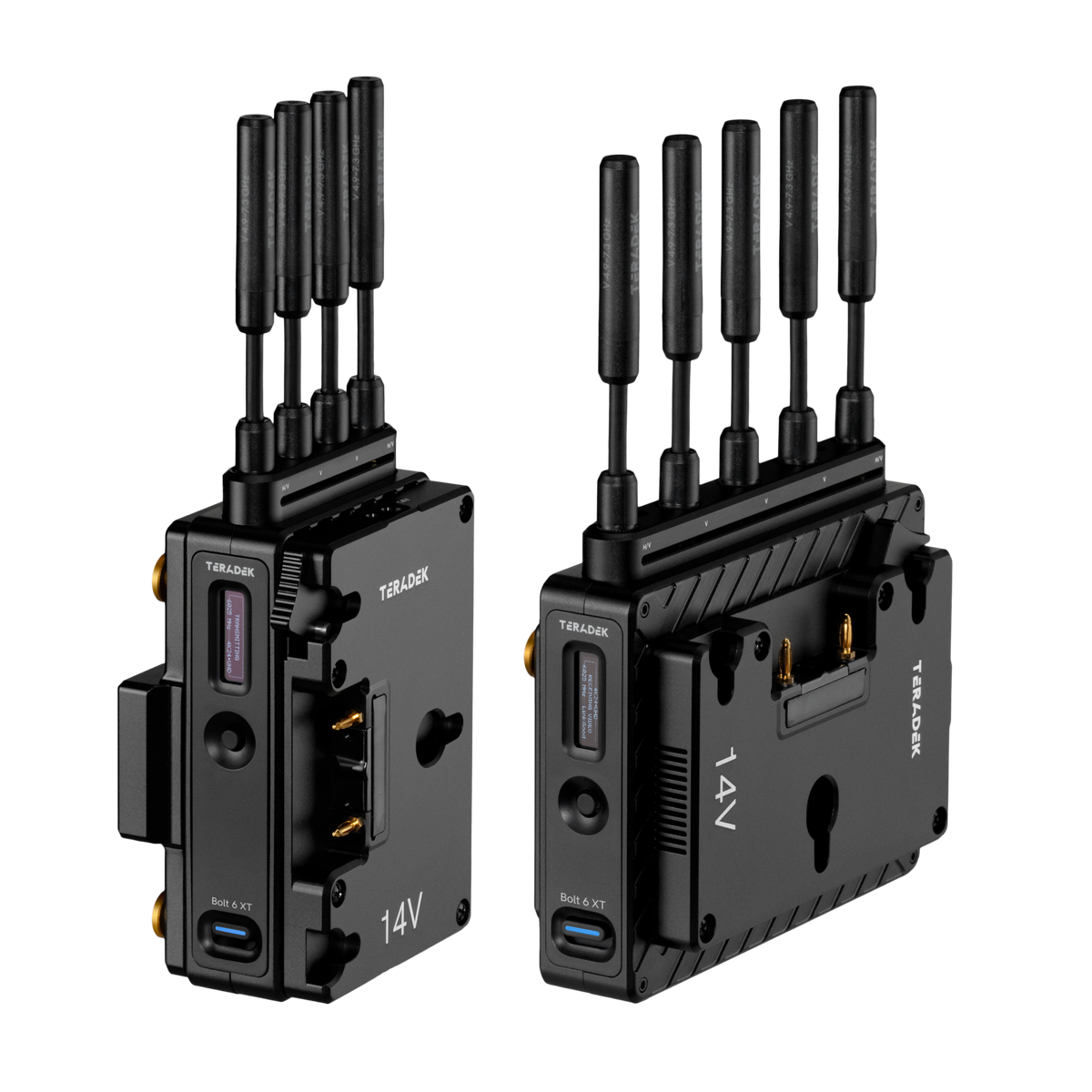

— Gold Mount —
Antenna Ports: Transmitter: 4 x RP-SMA Female Receiver: 5 x RP-SMA Female
Video: Transmitter: 1 x HDMI Type A (HDMI 2.0) Input Transmitter: 1 x BNC (12G-SDI) Input Transmitter: 1 x BNC (12G-SDI) Loop Output Receiver: 1 x HDMI Type A (HDMI 2.0) Output Receiver: 1 x BNC (12G-SDI) Output
Embedded Audio: SDI: 2-Channel HDMI: 2-Channel
Audio: None
Power: Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O: Transmitter/Receiver: 1 x USB-C Input
Encryption: 256-Bit AES
Wireless Range: 1500' / 457.2 m (Line-of-Sight)
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range: Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: None
Bluetooth: Yes
Video Format: HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 SDI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 59.94/50 480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression: Uncompressed
Timecode Support: Yes
DC Input Power: 28 VDC
Battery Type: Receiver: 1 x Gold Mount
Power Consumption: Transmitter: 20 W Receiver: 18 W
Mounting: 1 x 1/4"-20 Female 1 x 3/8"-16 Female
IP Rating: None
Operating Temperature: 0 to 40°C
Material of Construction: Aluminum
Dimensions (cm): Transmitter: 13.2 x 9.1 x 2.7 Receiver: 0.5 13.8 x 11.2 x 2.7
Weight (kg): 0.344

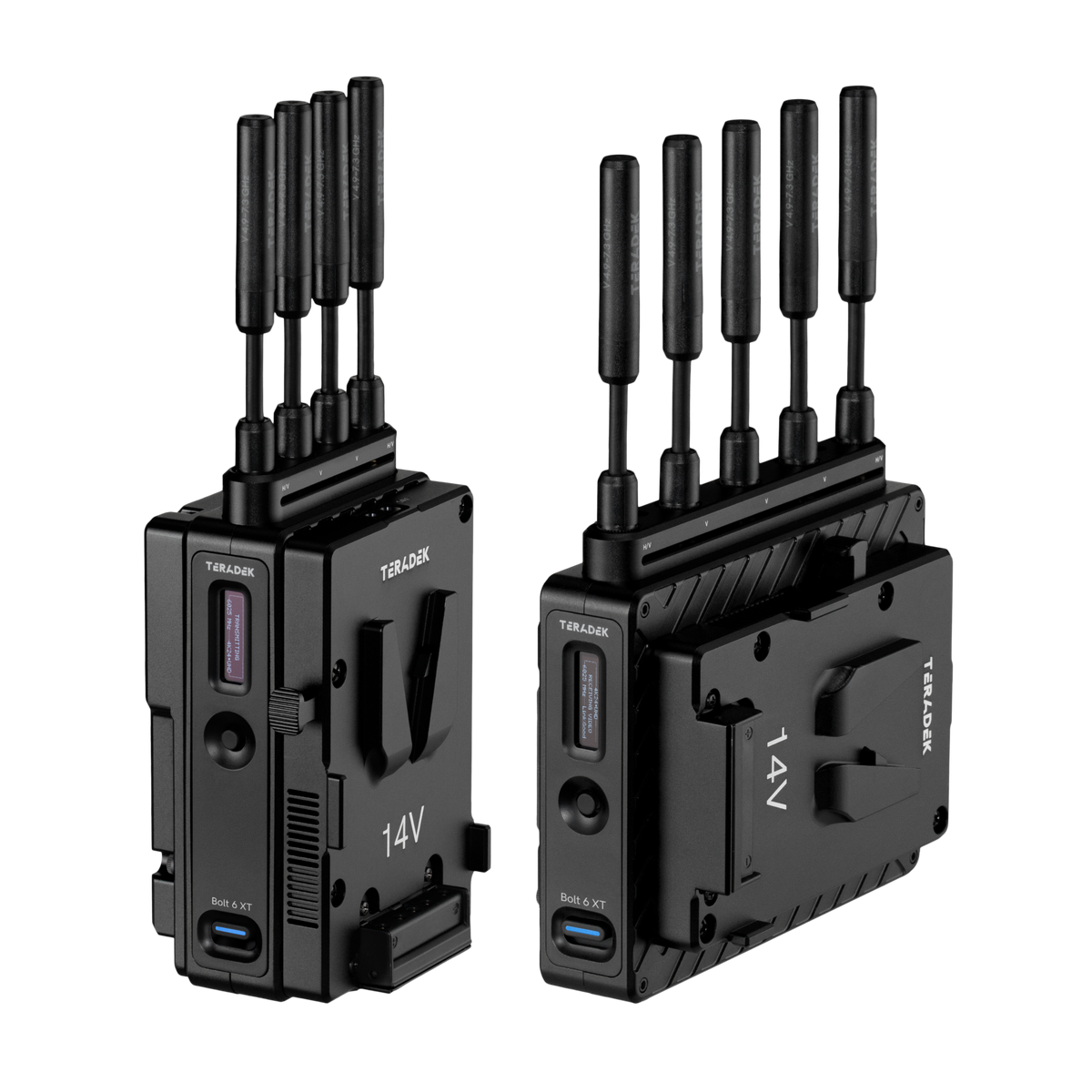

— V-Mount —
Antenna Ports: Transmitter: 4 x RP-SMA Female Receiver: 5 x RP-SMA Female
Video: Transmitter: 1 x HDMI Type A (HDMI 2.0) Input Transmitter: 1 x BNC (12G-SDI) Input Transmitter: 1 x BNC (12G-SDI) Loop Output Receiver: 1 x HDMI Type A (HDMI 2.0) Output Receiver: 1 x BNC (12G-SDI) Output
Embedded Audio: SDI: 2-Channel HDMI: 2-Channel
Audio: None
Power: Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O: Transmitter/Receiver: 1 x USB-C Input
Encryption: 256-Bit AES
Wireless Range: 1500' / 457.2 m (Line-of-Sight)
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range: Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: None
Bluetooth: Yes
Video Format: HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 SDI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 59.94/50 480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression: Uncompressed
Timecode Support: Yes
DC Input Power: 28 VDC
Battery Type: Receiver: 1 x V-Mount
Power Consumption: Transmitter: 20 W Receiver: 18 W
Mounting: 1 x 1/4"-20 Female 1 x 3/8"-16 Female
IP Rating: None
Operating Temperature: 0 to 40°C
Material of Construction: Aluminum
Dimensions (cm): Transmitter: 13.2 x 9.1 x 2.7 Receiver: 13.8 x 11.2 x 2.7
Weight (kg): 0.344

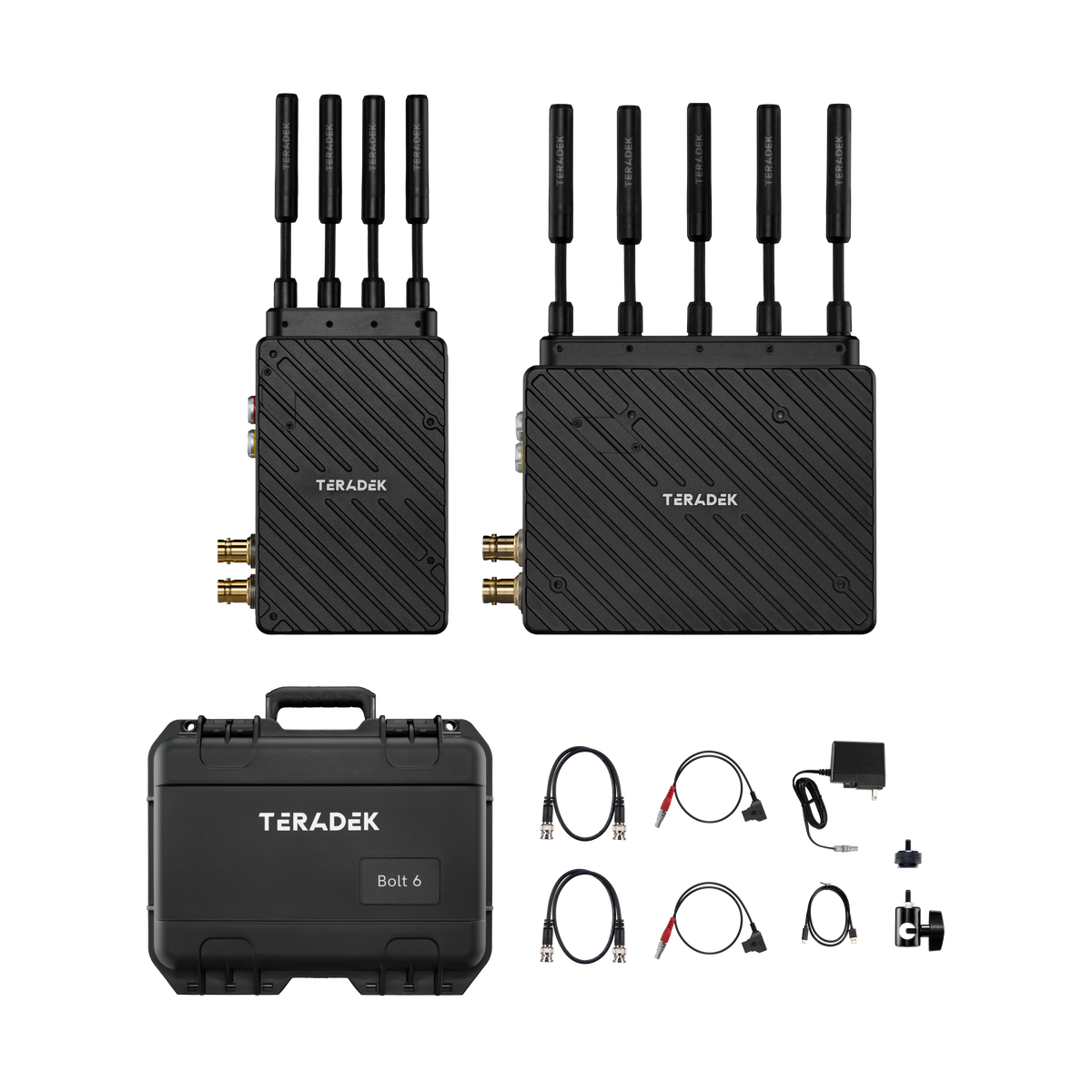

— No Mount —
1 x Bolt 6 XT 1500 TX
1 x Bolt 6 XT 1500 RX
1 x Lightstand Adapter 1/4-20in
1 x Hot Shoe Adaptor
2 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
2 x SDI 12G BNC to BNC 18in/46cm Cable
1 x Teradek Case Large - Bolt XT TX/2RX
1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
4 x Teradek 6G Flexible H Antenna "Mushroom" (2dBi 4.9-7.3Ghz RP-SMA)
1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable

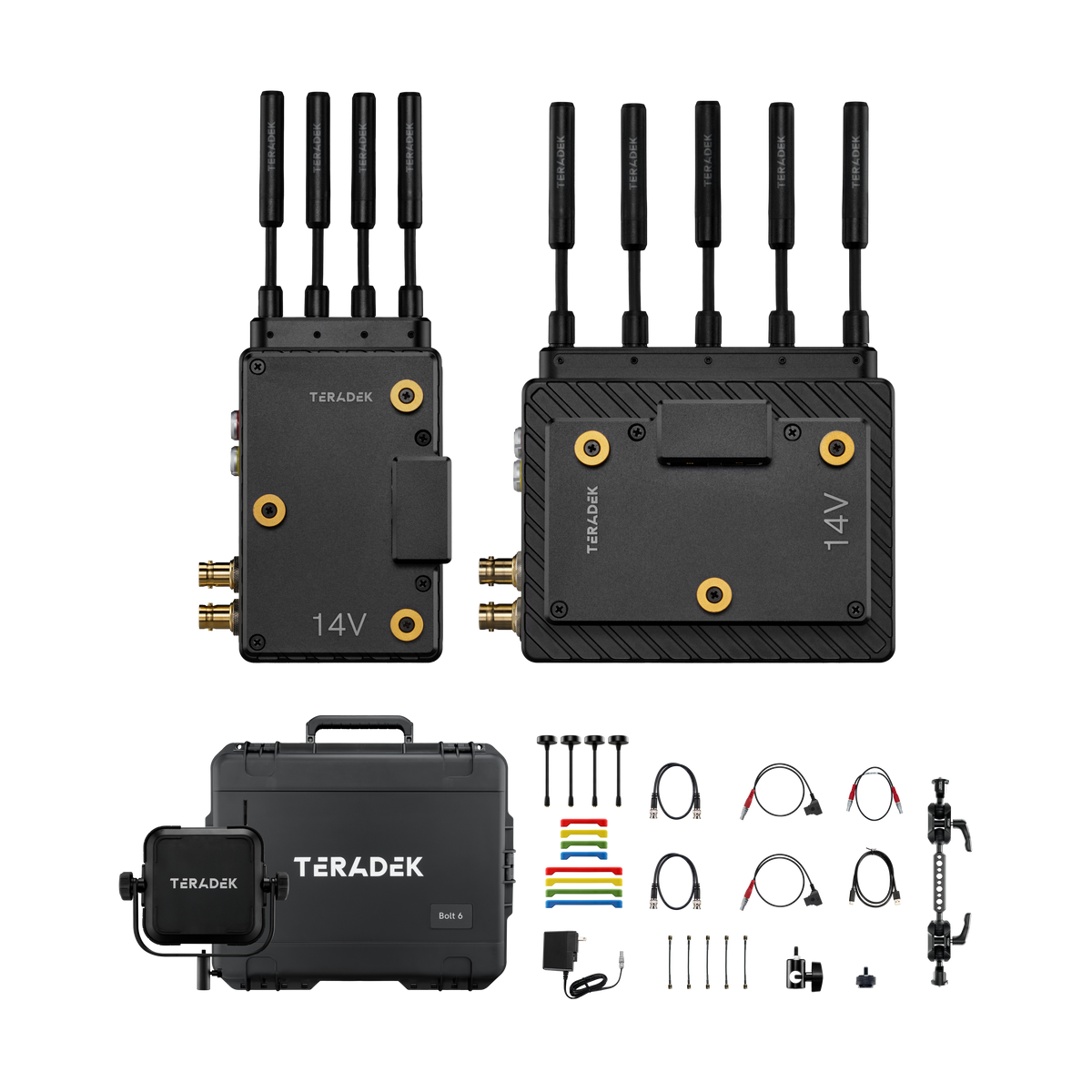

— Gold Mount —
1 x Bolt 6 XT 1500 TX Gold Mount
1 x Bolt 6 XT 1500 RX Gold Mount
1 x Antenna Array
1 x Lightstand Adapter 1/4-20in
1 x Hot Shoe Adaptor
1 x Hex L key 2.5mm size 3-5/8" length
2 x 2pin Conn. to PowerTap - 18in/46cm Cable
1 x 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
5 x RP-SMA Female to RP-SMA Female 4in/10cm Cable
2 x SDI 12G BNC to BNC 18in/46cm Cable
1 x Teradek Case XL - Bolt XT/4RX and Array Antenna
1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
4 x Teradek 6G Flexible H Antenna "Mushroom" (2dBi 4.9-7.3Ghz RP-SMA)
1 x Wooden Camera - Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5")
1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable
1 x Bolt 6 XT TX Color Band (Red Rubber)
1 x Bolt 6 XT TX Color Band (Yellow Rubber)
1 x Bolt 6 XT TX Color Band (Green Rubber)
1 x Bolt 6 XT TX Color Band (Blue Rubber)
1 x Bolt 6 XT RX Color Band (Red Rubber)
1 x Bolt 6 XT RX Color Band (Yellow Rubber)
1 x Bolt 6 XT RX Color Band (Green Rubber)
1 x Bolt 6 XT RX Color Band (Blue Rubber)

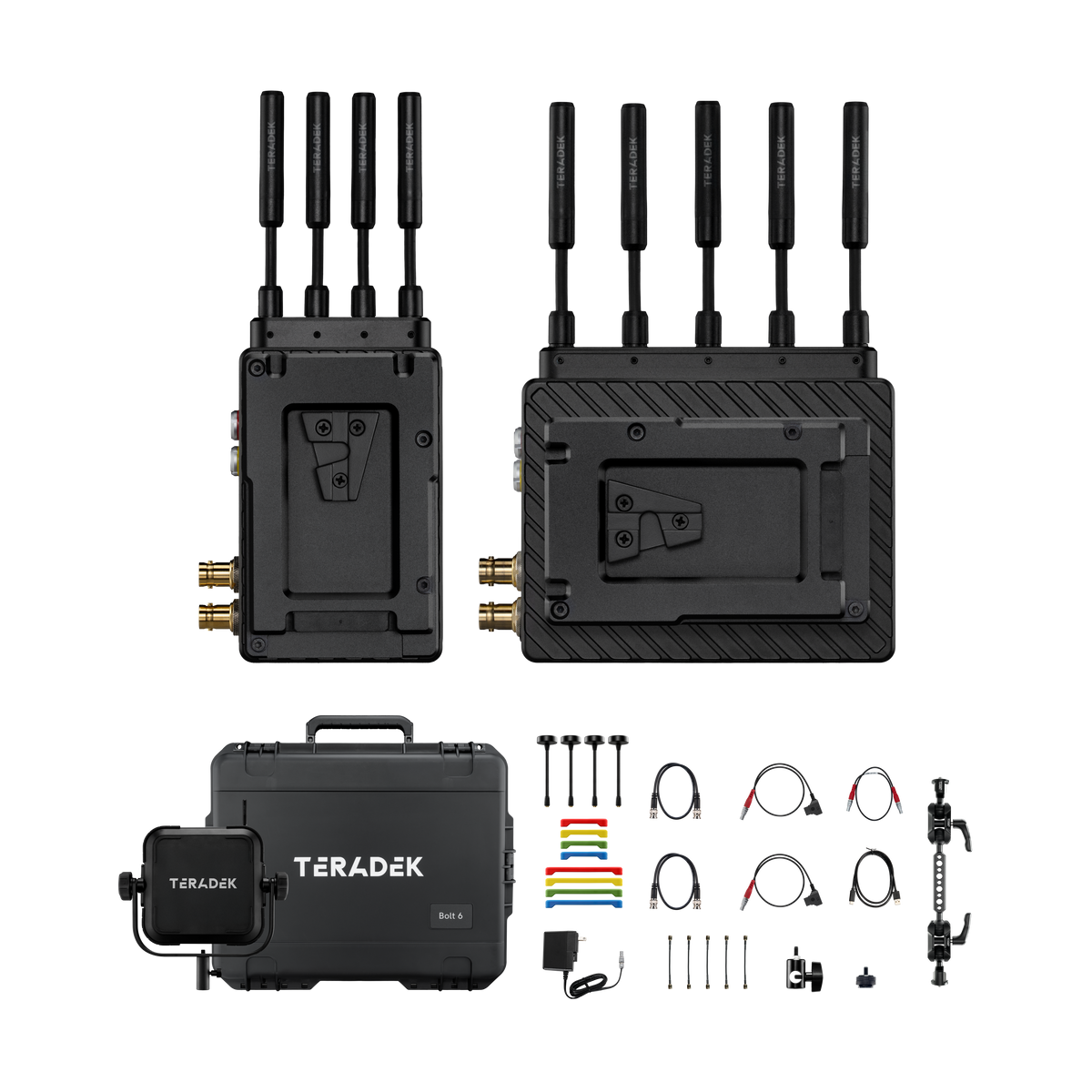

— V-Mount —
1 x Bolt 6 XT 1500 TX V-Mount
1 x Bolt 6 XT 1500 RX V-Mount
1 x Antenna Array
1 x Lightstand Adapter 1/4-20in
1 x Hot Shoe Adaptor
1 x Hex L key 2.5mm size 3-5/8" length
2 x 2pin Conn. to PowerTap - 18in/46cm Cable
1 x 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
5 x RP-SMA Female to RP-SMA Female 4in/10cm Cable
2 x SDI 12G BNC to BNC 18in/46cm Cable
1 x Teradek Case XL - Bolt XT/4RX and Array Antenna
1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
4 x Teradek 6G Flexible H Antenna "Mushroom" (2dBi 4.9-7.3Ghz RP-SMA)
1 x Wooden Camera - Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5")
1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable
1 x Bolt 6 XT TX Color Band (Red Rubber)
1 x Bolt 6 XT TX Color Band (Yellow Rubber)
1 x Bolt 6 XT TX Color Band (Green Rubber)
1 x Bolt 6 XT TX Color Band (Blue Rubber)
1 x Bolt 6 XT RX Color Band (Red Rubber)
1 x Bolt 6 XT RX Color Band (Yellow Rubber)
1 x Bolt 6 XT RX Color Band (Green Rubber)
1 x Bolt 6 XT RX Color Band (Blue Rubber)
