Bolt 7 is the next evolution in our zero-delay wireless ecosystem. Designed for cinema and live production professionals, Bolt 7 delivers 4K HDR wireless video while introducing an entirely new way to move production-critical data across set.
Available in 750ft (228m), 1,500ft (450m), and MAX (up to 5000ft/1.5km) models, Bolt 7 combines zero-delay 12G-SDI and HDMI wireless video with a dedicated 900 MHz data channel that enables wireless camera control, monitor control, color workflows, Ethernet transport, and more, all through a single integrated system. By replacing multiple cables and standalone devices, Bolt 7 simplifies production workflows while reducing setup time and on-set complexity.
A redesigned compact chassis makes Bolt 7 easier to mount on modern camera builds, while a new full-color OLED display, streamlined pairing options, and improved control through the Bolt App make deployment faster than ever. Bolt 7 maintains backward compatibility with Bolt 4K, Bolt 6, and RF-X systems, allowing productions to seamlessly integrate it into their current Teradek ecosystem and scale set capabilities.
Support for DisplayPort Alt Mode over USB-C also enables emerging workflows with compatible cameras using a single cable for video and communications.
Whether you're shooting feature films, broadcast sports, live events, or commercial productions, Bolt 7 provides the reliability, image quality, and workflow flexibility professionals have come to expect from Teradek.
Key Features
- Zero-delay 4K HDR wireless video over 12G-SDI and HDMI
- Dedicated 900 MHz wireless data transport for camera control, monitor control, Ethernet transport and color workflows
- Smaller camera-mounted design with redesigned compact milled aluminum chassis
- Faster pairing and simplified setup with new full-color OLED display and joystick navigation
- New wireless and wired pairing options, plus control and RF monitoring through the Bolt App
- Support for DisplayPort Alt Mode over USB-C for single-cable video and communications with compatible cameras
- Backward compatible with Bolt 4K, Bolt 6 and RF-X systems
- Optional Gold Mount (14V or 26V), Gold Mount Plus, or V-Mount Battery Cradles
- AES-256 encryption; 1 TX to up to 6 RX
Specifications
| Interfaces |
Color OLED with Menu, Joystick Navigation; On/Off Switch; USB-C Port for firmware upgrade and DisplayPort ALT mode video; Locking 5-Pin USB Port for camera control; Bluetooth compatibility |
| Wireless Frequencies |
Non-DFS: 5.190GHz to 5.230GHz, 5.755GHz to 5.795GHz, 5.945GHz to 6.425GHz; DFS: 5.270GHz to 5.670GHz; Bluetooth 2.4GHz |
| Data Radio |
Dedicated 900MHz (865 to 926MHz) camera control / data radio |
| RF Channel Selection |
Auto/Manual |
| Encryption |
AES-256, RSA-1024 |
| Transmit Power |
23dBm EIRP |
| Range |
Up to 750ft (228m) line of sight |
| Compatibility |
Compatible with Bolt 4K, Bolt 6, Bolt 7 products; 1x TX to 6x RX; Coexists with WiFi/5GHz phones; Up to 6x receiver sets same location |
| Power |
6V to 28VDC input; No battery; 20W nominal consumption |
| Resolutions Supported |
4Kp23.98/24/25/29.97/30/50/59.94/60; 1080p all frame rates; 720p/480p/576p |

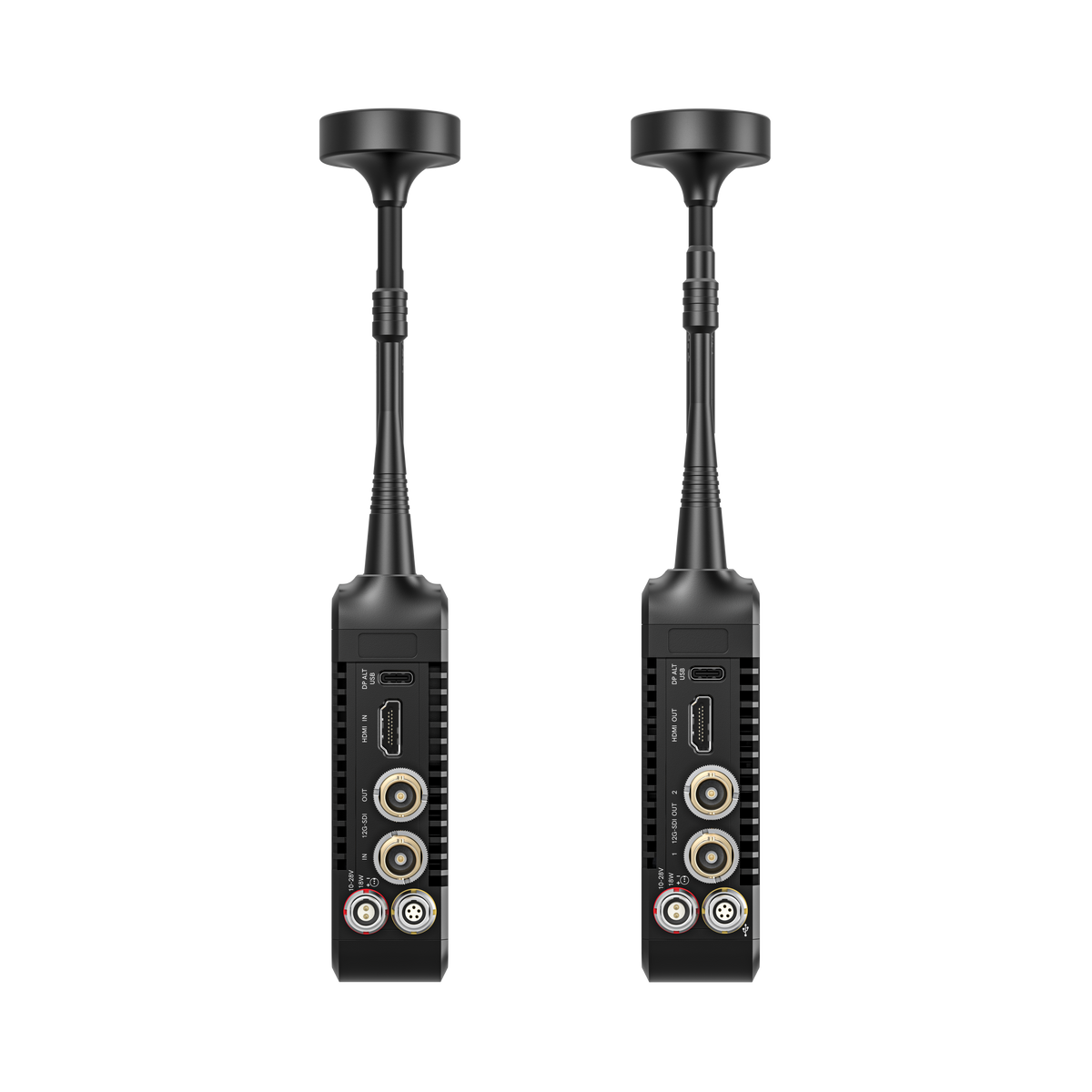

| TX Video Inputs |
1x 12G-SDI; 1x HDMI 2.0; 1x USB-C DisplayPort ALT mode |
| TX Video Outputs |
1x 12G-SDI |
| RX Video Outputs |
1x 12G-SDI; 1x HDMI 2.0; 1x USB-C DisplayPort ALT mode |
| Color Sampling |
SDI: YCbCr 4:2:2, 10-bit; HDMI: RGB/YCbCr 4:4:4/4:2:2/4:2:0, 8/10-bit |
| Delay |
<0.001sec TX to RX |
| Audio |
48kHz 24-bit PCM; Embedded SDI/HDMI audio |
| TX Dimensions |
4.41 x 3.46 x 1.26 in |
| TX Weight |
1.01 lb |
| TX Construction |

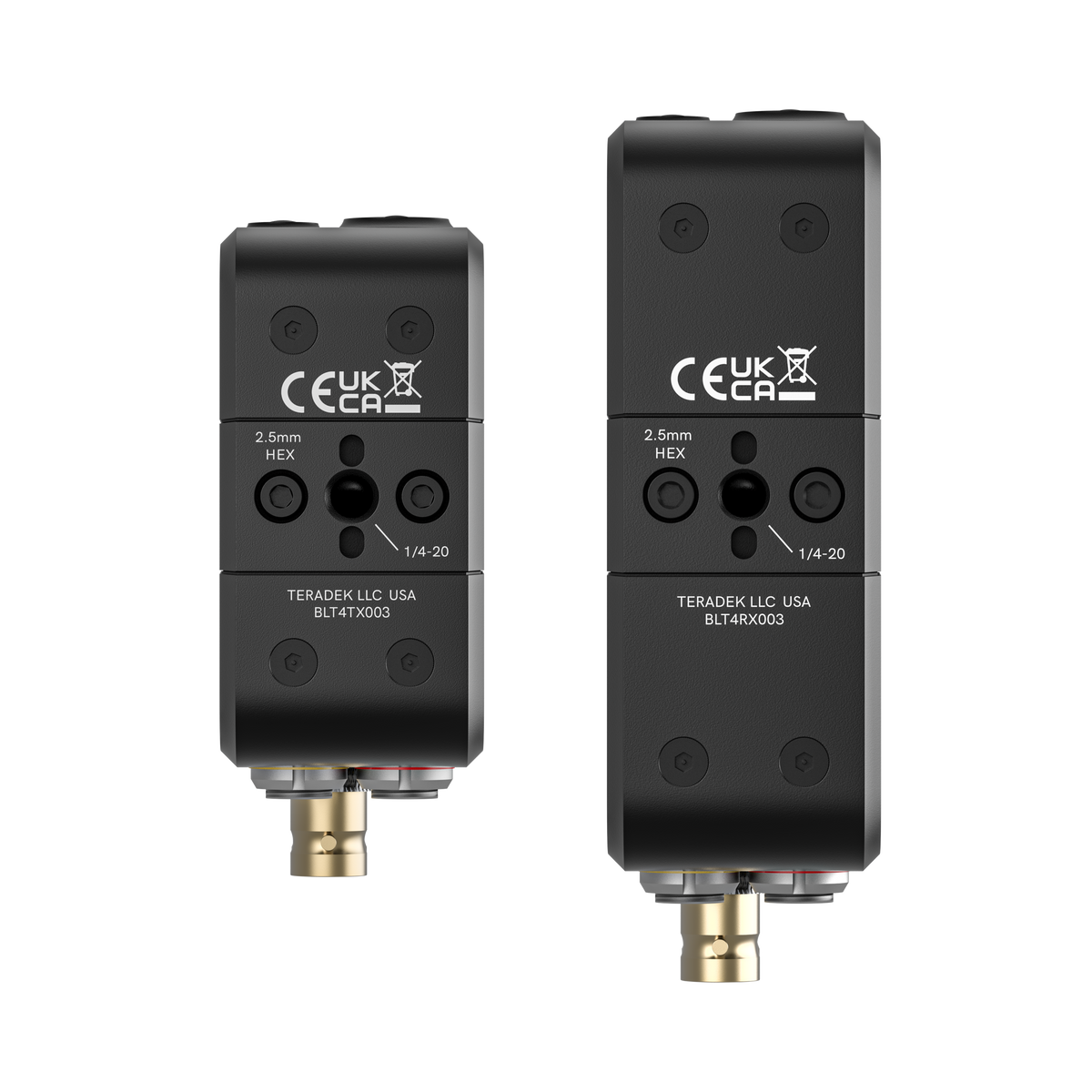

Milled aluminum chassis; 1/4"-20 and 3/8"-16 mounting holes |
| RX Dimensions |
4.41 x 2.60 x 1.26 in |
| RX Weight |
0.88 lb |
| RX Construction |
Milled aluminum chassis; 1/4"-20 and M3 mounting holes |
Compatibility
- Backward compatible with Bolt 4K, Bolt 6 and RF-X systems
- Pairs with Bolt 7 750, 1500 and MAX receivers (1x TX to up to 6x RX)
- Optional Bolt 7 Battery Cradles: Gold Mount 14V (11-1610), Gold Mount 26V (11-1611), V-Mount (11-1612)
- DisplayPort Alt Mode over USB-C with compatible cameras

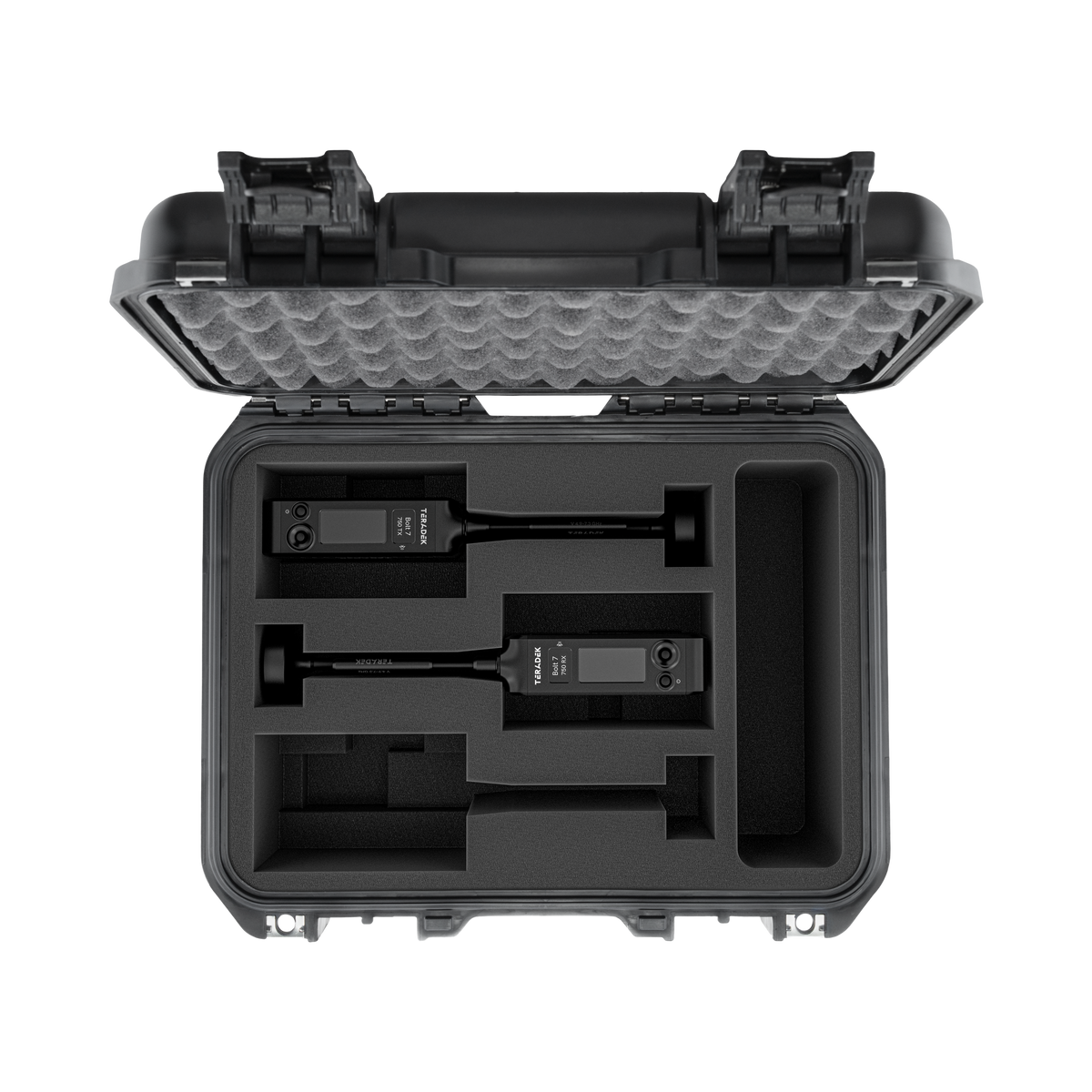

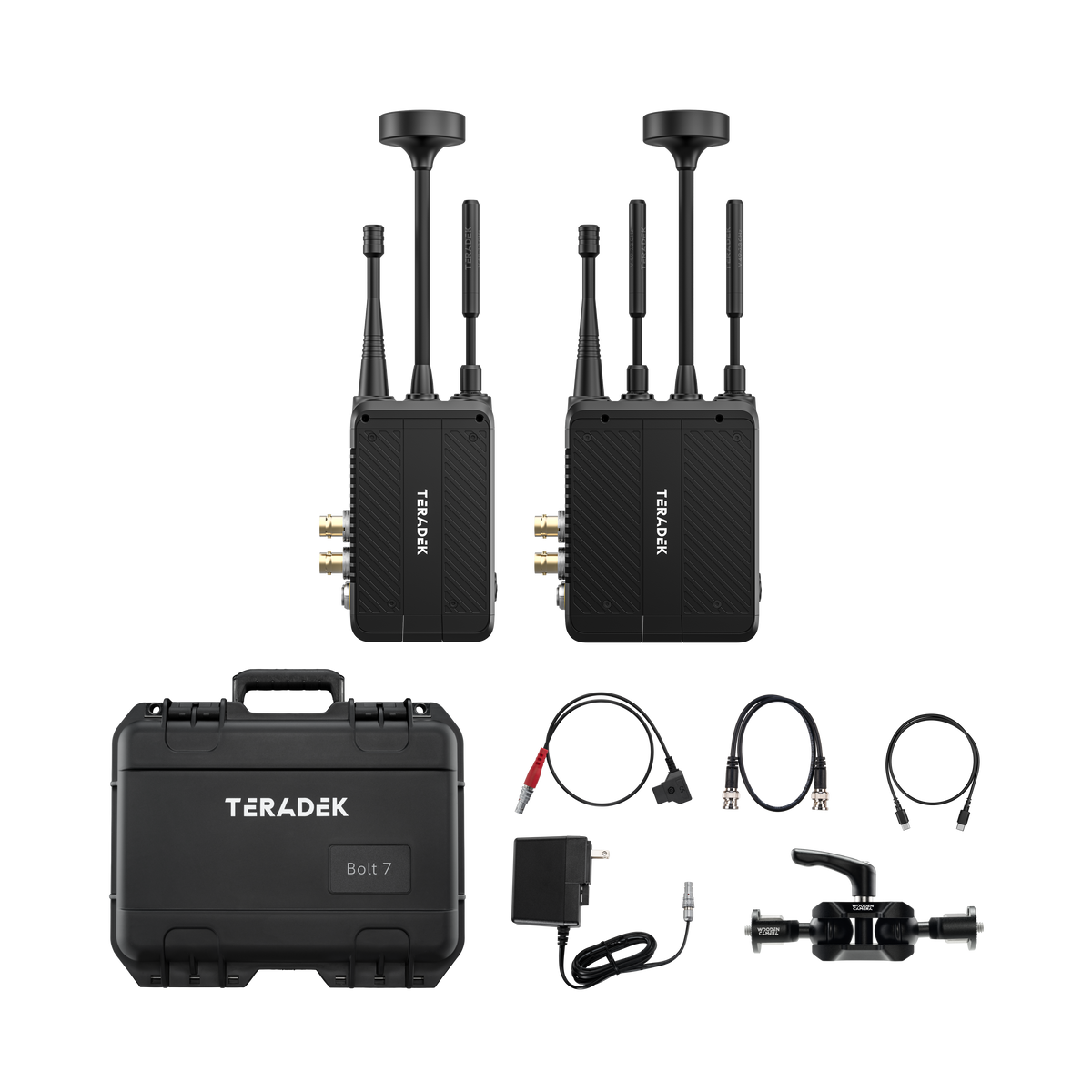

In the Box

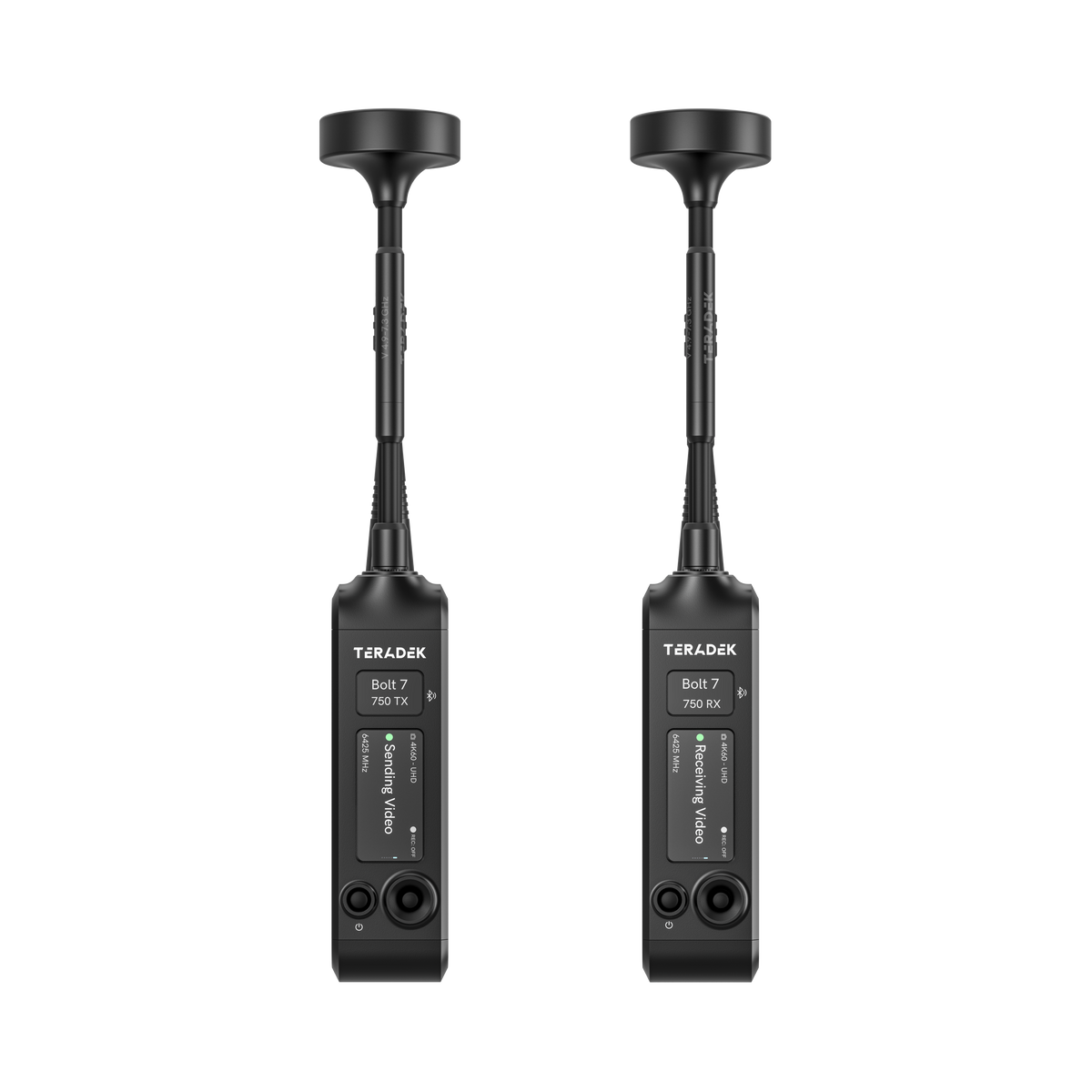

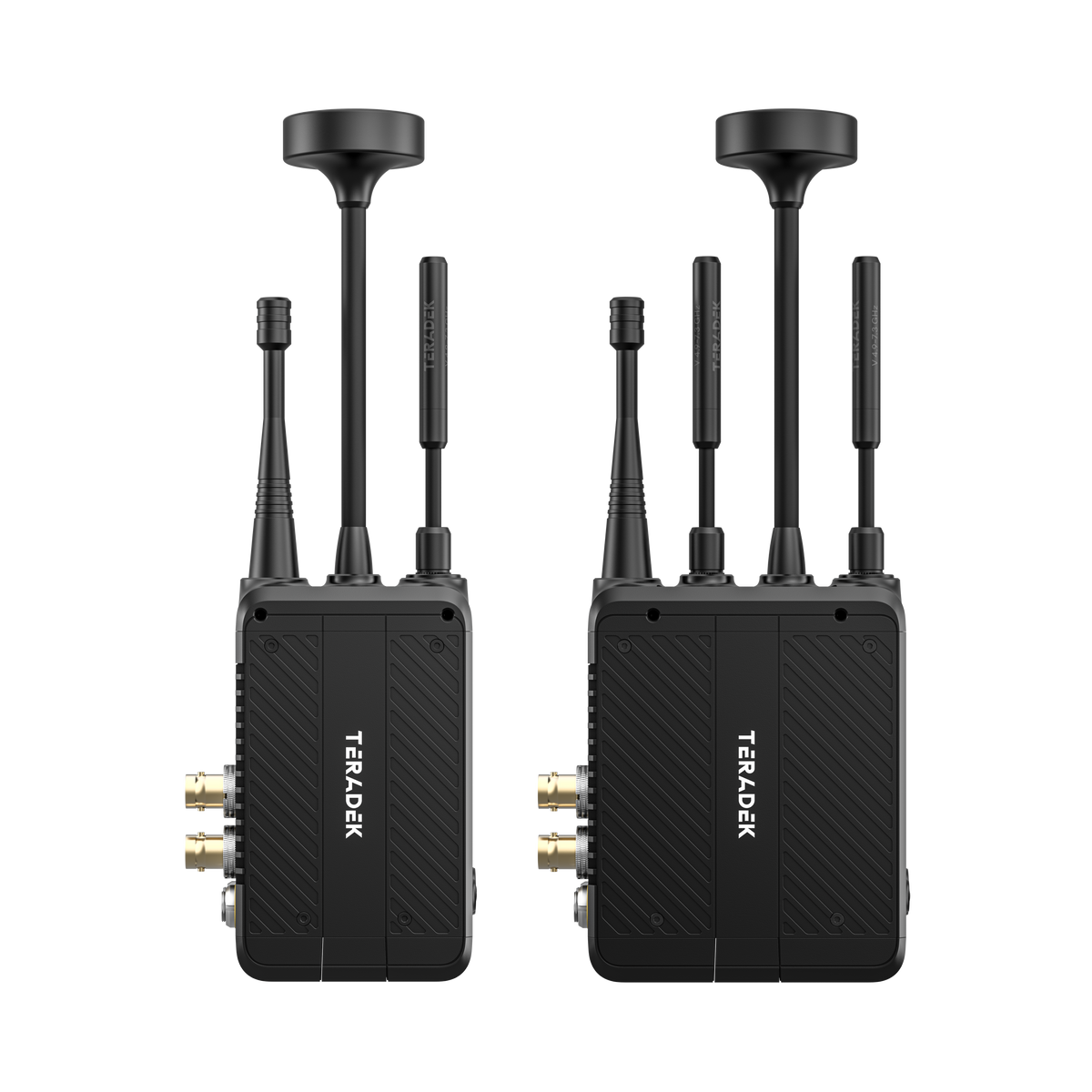

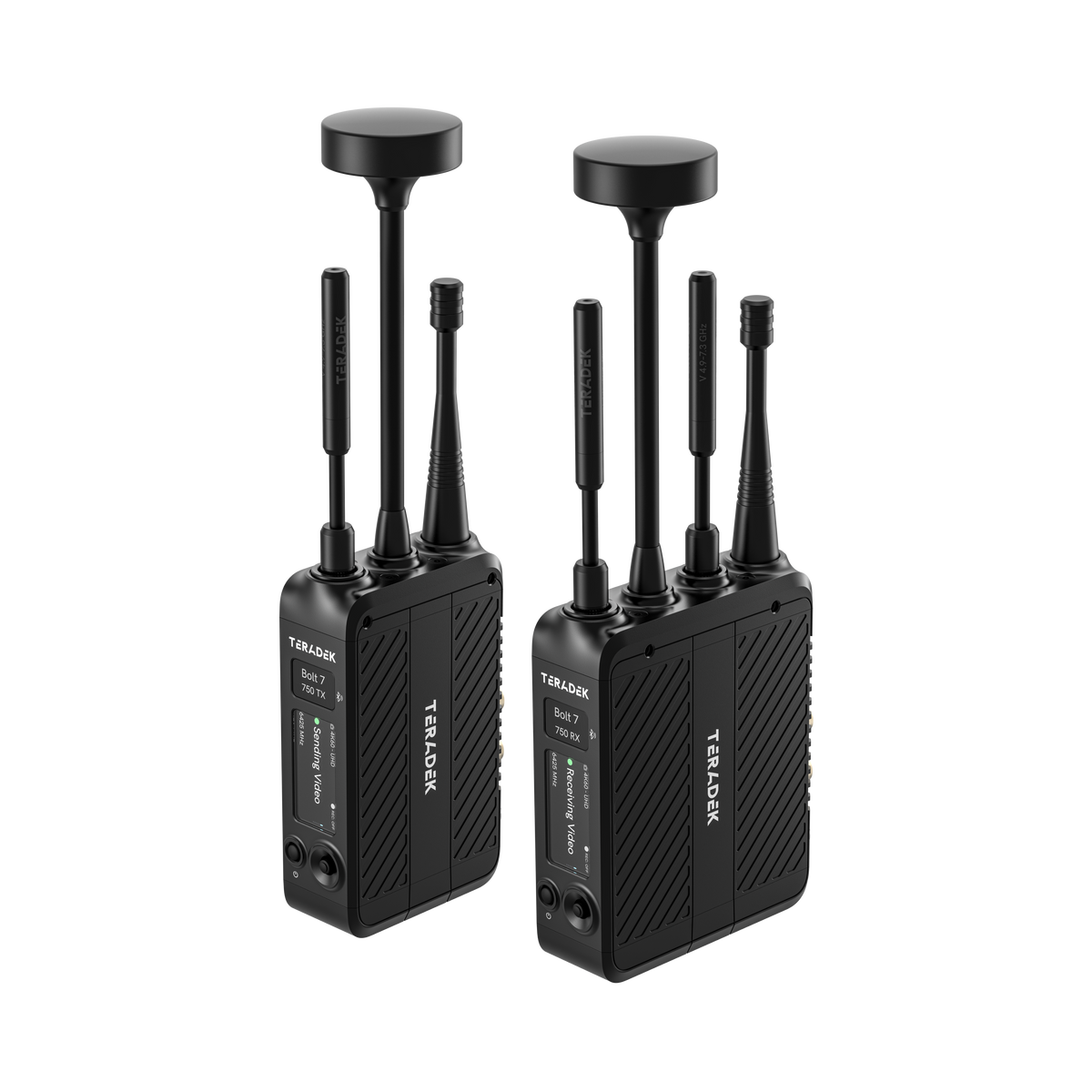

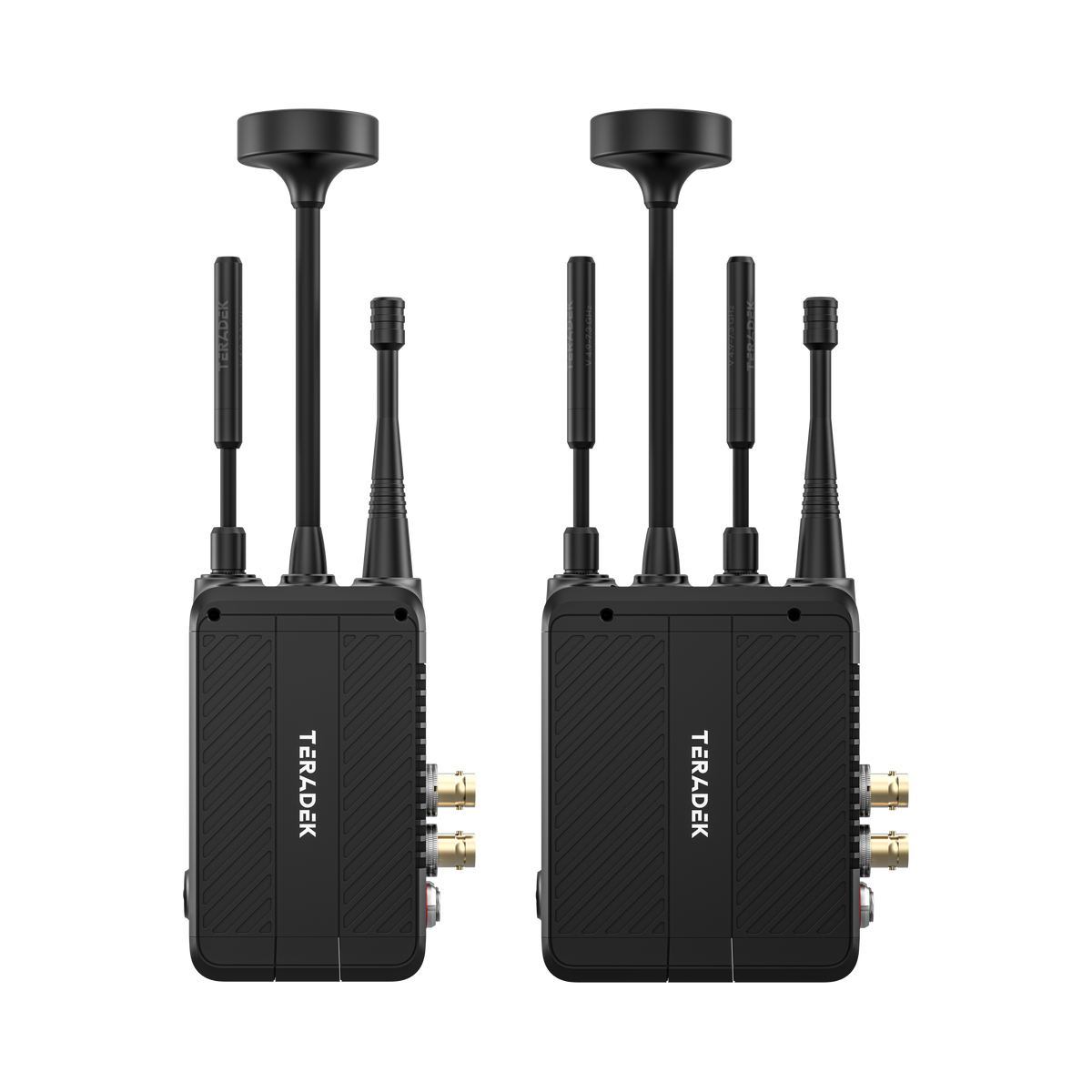

- 1 x Bolt 7 750 Transmitter
- 1 x Bolt 7 750 Receiver

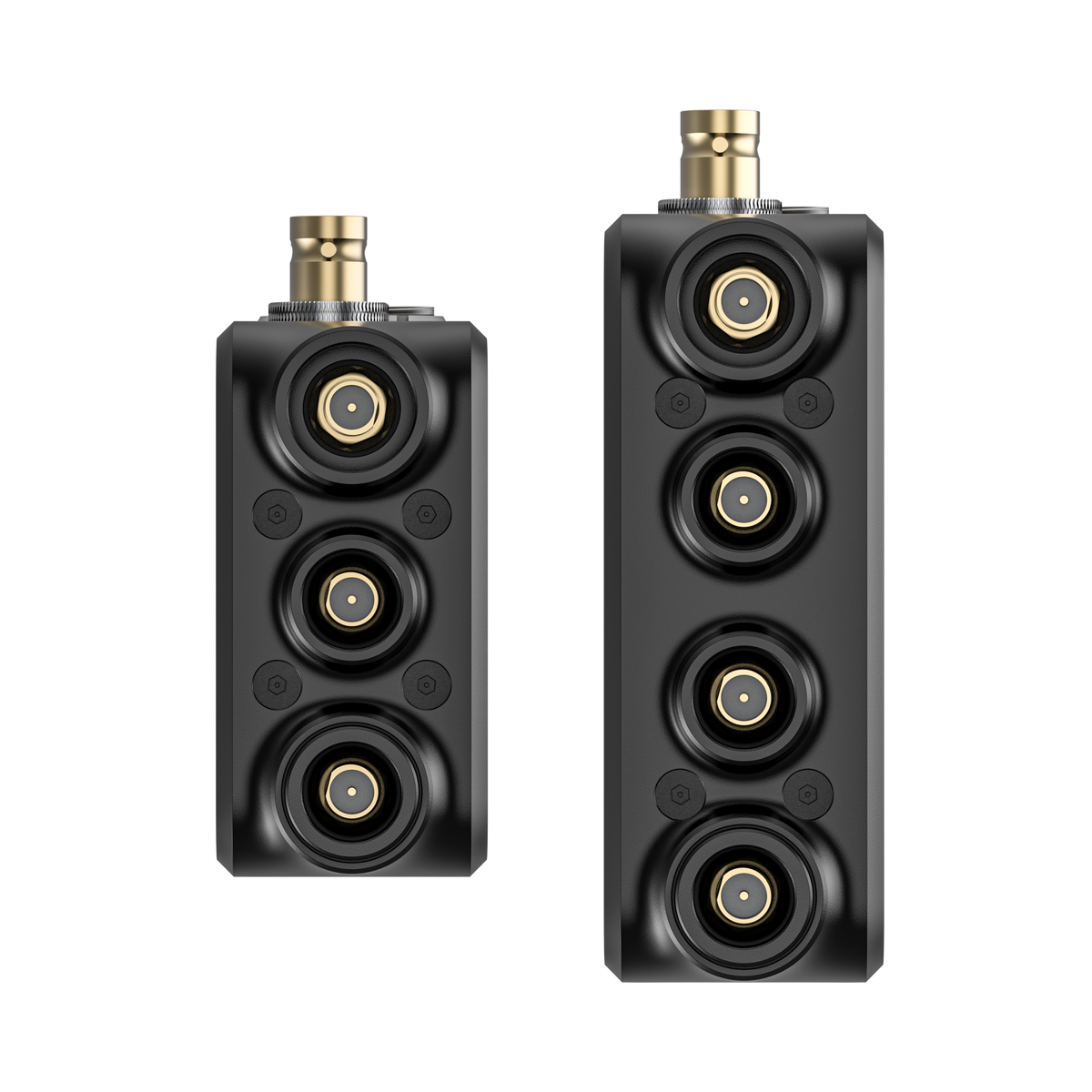

- 3 x Antenna 2dBi Flex V 4.9-7.3GHz RP-SMA
- 2 x Antenna 2dBi Flexible H Mushroom V 4.9-7.3GHz RP-SMA
- 2 x Antenna 865-926 MHz SMA
- 2 x SDI 12G BNC to BNC Cable (18in/46cm)
- 1 x DP ALT Mode USB-C Cable (36in)
- 2 x 2pin Connector to PowerTap Cable (18in)
- 1 x PSU 2pin Connector to 36W AC Adapter (6ft cable)
- 1 x 5pin Lemo to USB-C Cable (36in)
- 1 x Wooden Camera Universal Ultra Arm Mini
