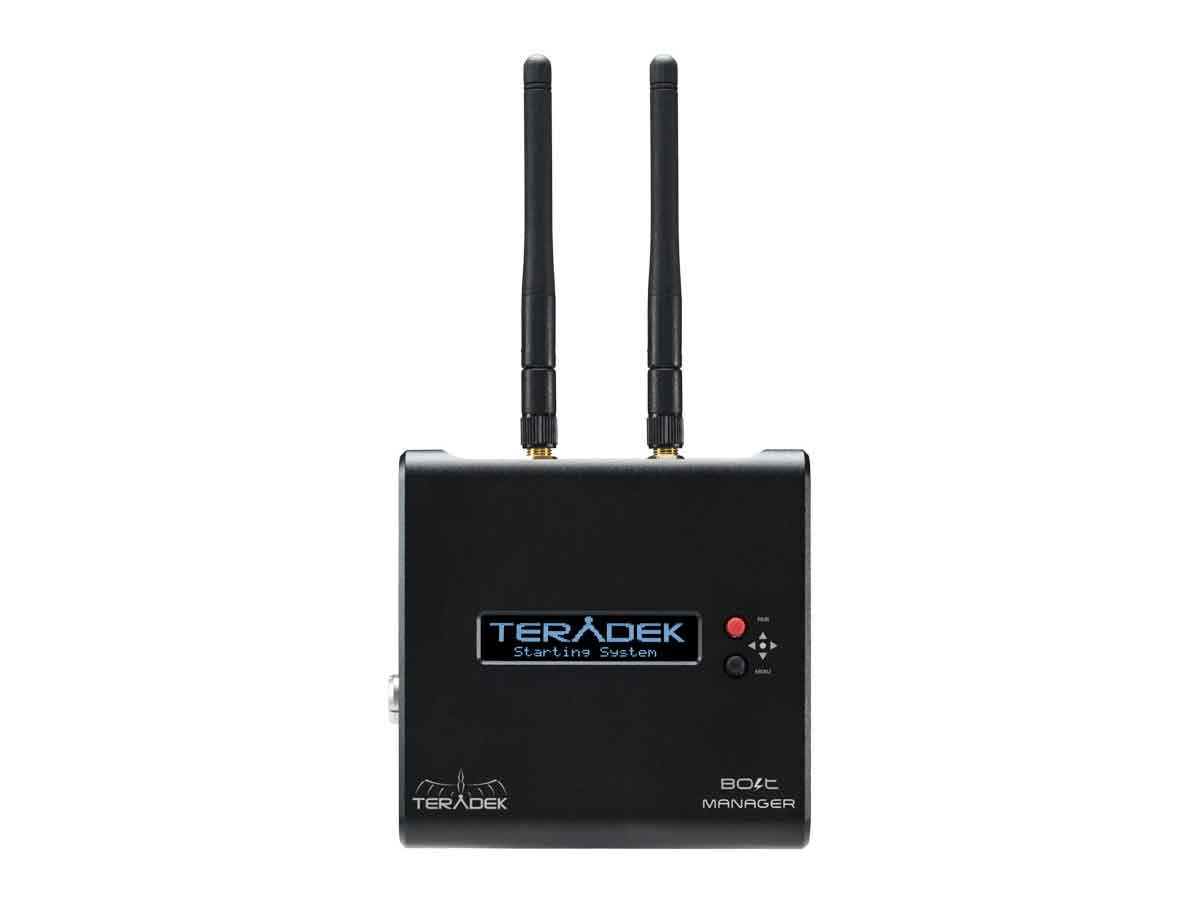

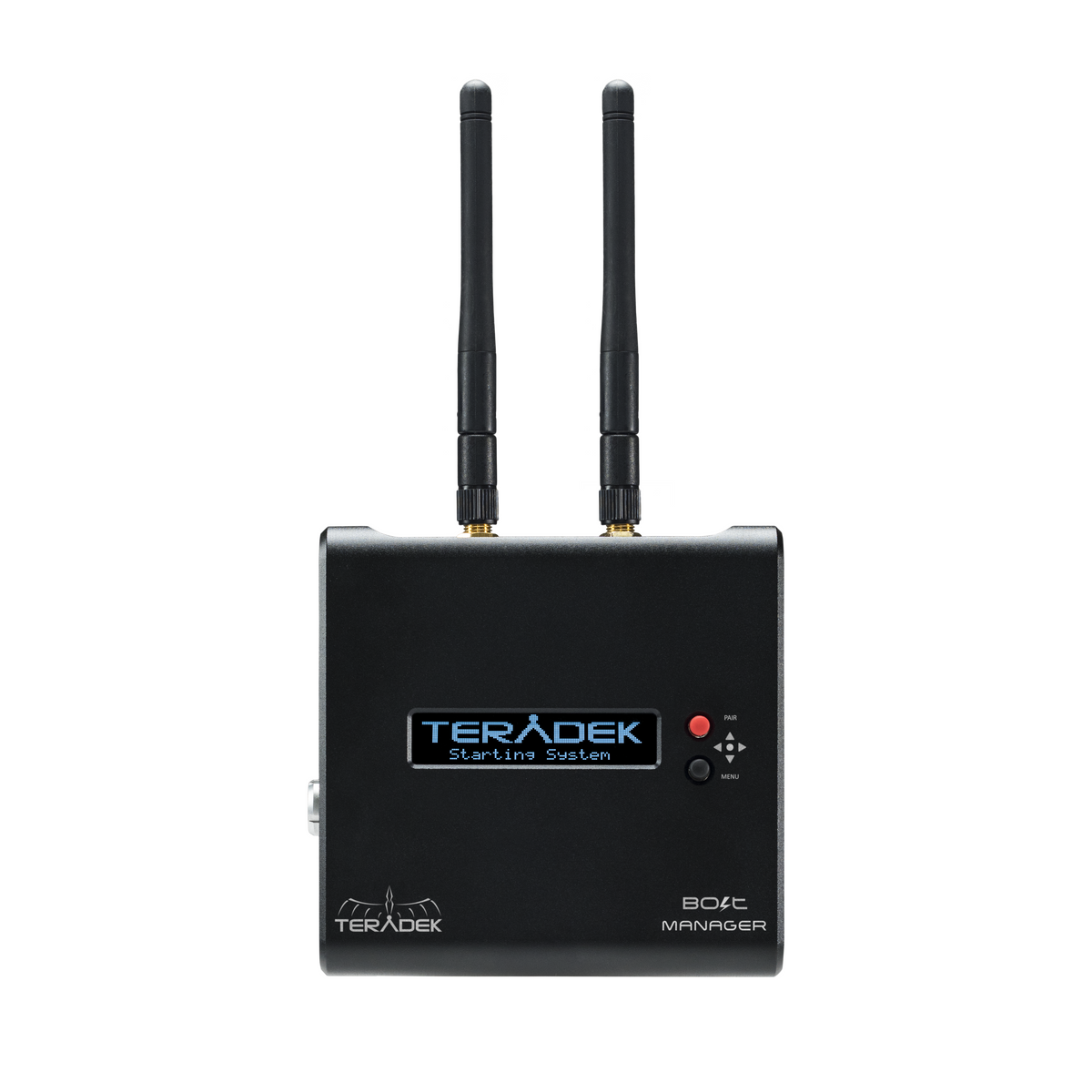

Bolt Manager helps you quickly configure your wireless video system without a computer. Perfect for rental houses, the Bolt Manager hardware box lets you rapidly pair multiple receivers, change wireless channels, update firmware, and configure regional settings during prep or on set.
Bolt Manager's pairing feature is only compatible with Bolt 500, 1000, 3000, 10K, Sidekick II / XT / LT.
Key Features
- Quick configuration tool for Bolt models (3rd Generation or newer) without a computer
- One-click pairing of multiple receivers
- Wireless channel management across receiver sets
- Firmware updates and regional settings configuration
- Accommodates up to 4 receivers simultaneously
- OLED display with 2 joysticks and status LEDs
- 5 powered USB 2.0 host ports
Specifications
| Material |
Machined Aluminum, black anodized & lasered |
| Dimensions |
Approx. 5 x 5 x 2 in |
| Weight |
8.7 oz |
| Mountability |
Table top with rubber feet |
| Output Voltage |
14.4V max from D-Tap connector |
| Configuration Interfaces |
OLED with 2 joysticks and status LEDs; WebUI for firmware upgrade |
| USB Interface |
5 powered USB 2.0 host ports; upgrade via Mini-USB |
| Power Input |
2-pin connector, 6-28V DC |
| Battery |
None |
| Ethernet |
10/100BASE-T |
| Wireless |
Dual Band MIMO 802.11 a/b/g/n; 2x 2dBi WiFi antennas 2.4/5.8 GHz |
| Operating Temperature |
0 to 50°C ambient |
| Humidity |
0-95% non-condensing |
Compatibility
- Pairing compatible with Bolt 500, 1000, 3000, 10K and Sidekick II / XT / LT (3rd generation Bolt or newer)
- Not listed as compatible with Bolt 4K, Bolt 6 or Bolt 7 pairing
In the Box
- 1 x Bolt Manager
- 2 x 2dBi WiFi 2.4/5.8 GHz antennas
- 1 x 18W AC adapter with 2-pin connector
- 5 x USB 2.0 cables (A-Male to Mini-B)
- 1 x Ethernet cable
