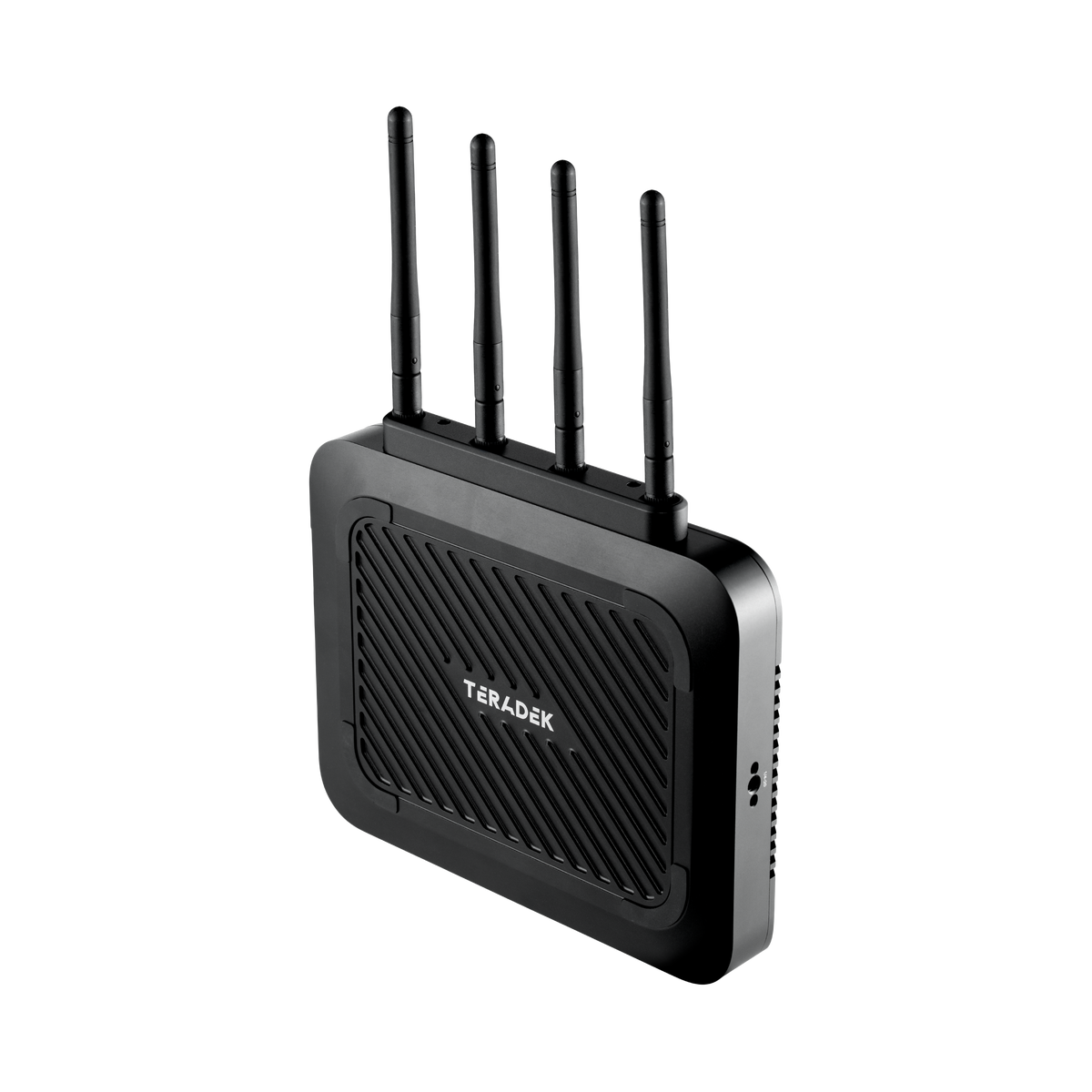

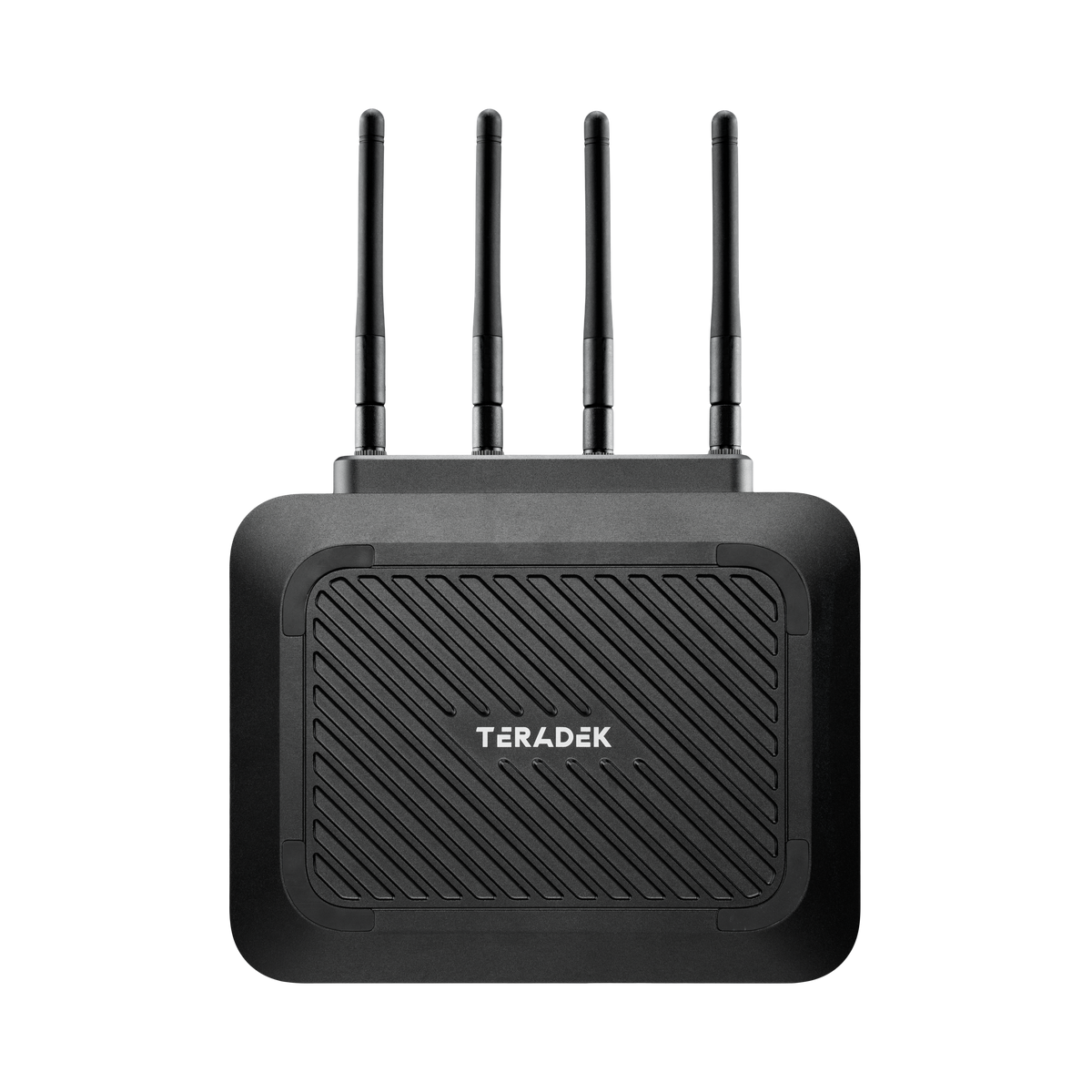

Link AX expands your production networking capabilities with a ruggedized, set-ready aluminum chassis wrapped around a Wi-Fi 6 (802.11AX) router. Use Link AX for multiple workflow scenarios: more cameras and devices on your local production streaming network, camera-to-cloud for multiple cameras, and simultaneous camera-control over multiple cameras.

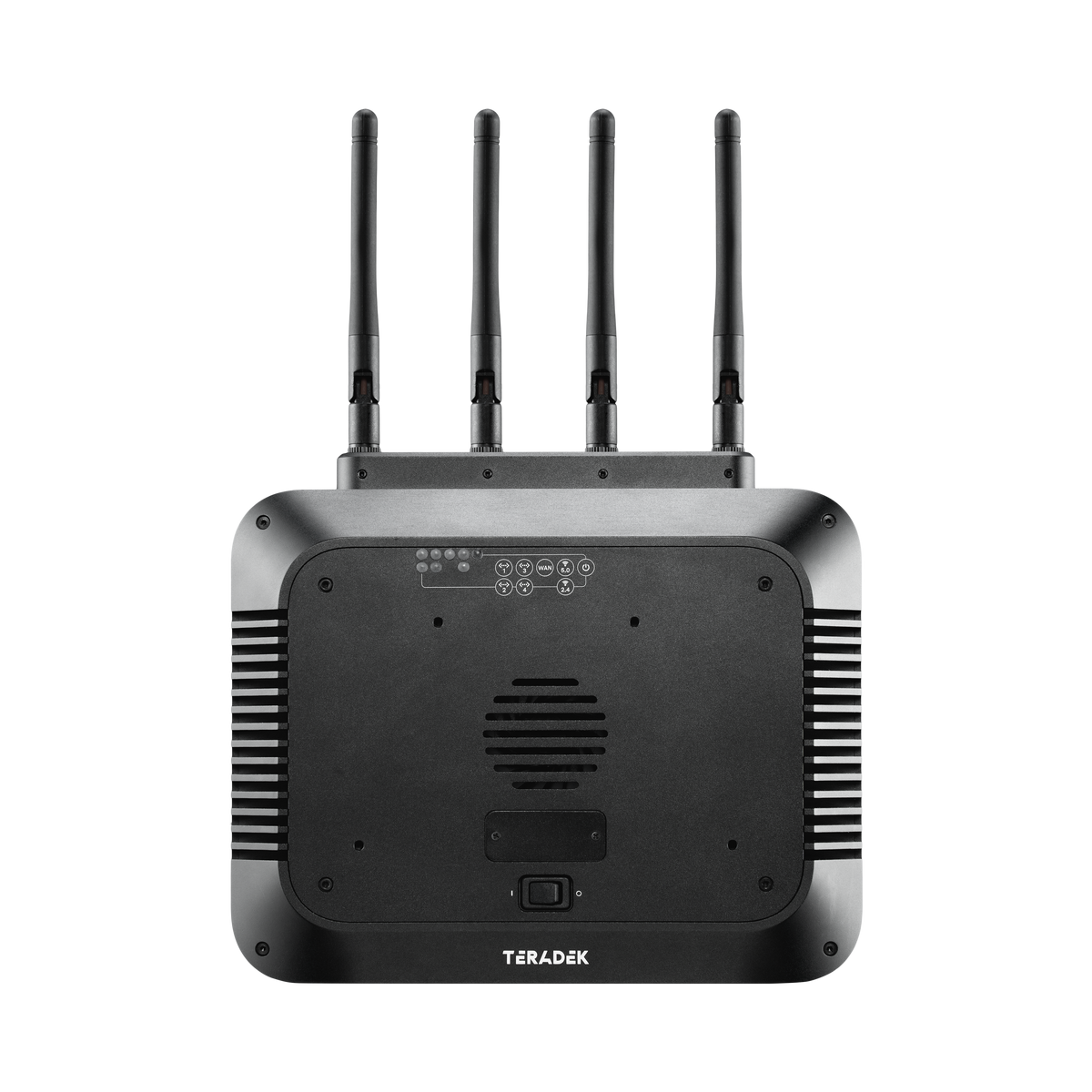

Rugged Design: robust aluminum chassis, Gold-Mount and V-Mount battery plate options, 3/8" and 1/4"-20 mounting points, 5 customizable ethernet ports, and USB-A for cellular modems like Node II with Teradek Data.
Built for Production: Wi-Fi monitoring with multiple Serv devices, 20 independent viewers using the Teradek TV app on mobile devices. Add an internet connection to enable remote monitoring or camera-to-cloud workflows. Simultaneous control of multiple cameras over Wi-Fi.
Serv Micro, Serv 4K, or Serv Pro required for Wi-Fi monitoring. Sold separately.
Key Features
- Wi-Fi 6 (802.11ax) dual band 2x2 MU-MIMO OFDMA router
- Ruggedized, set-ready milled aluminum chassis

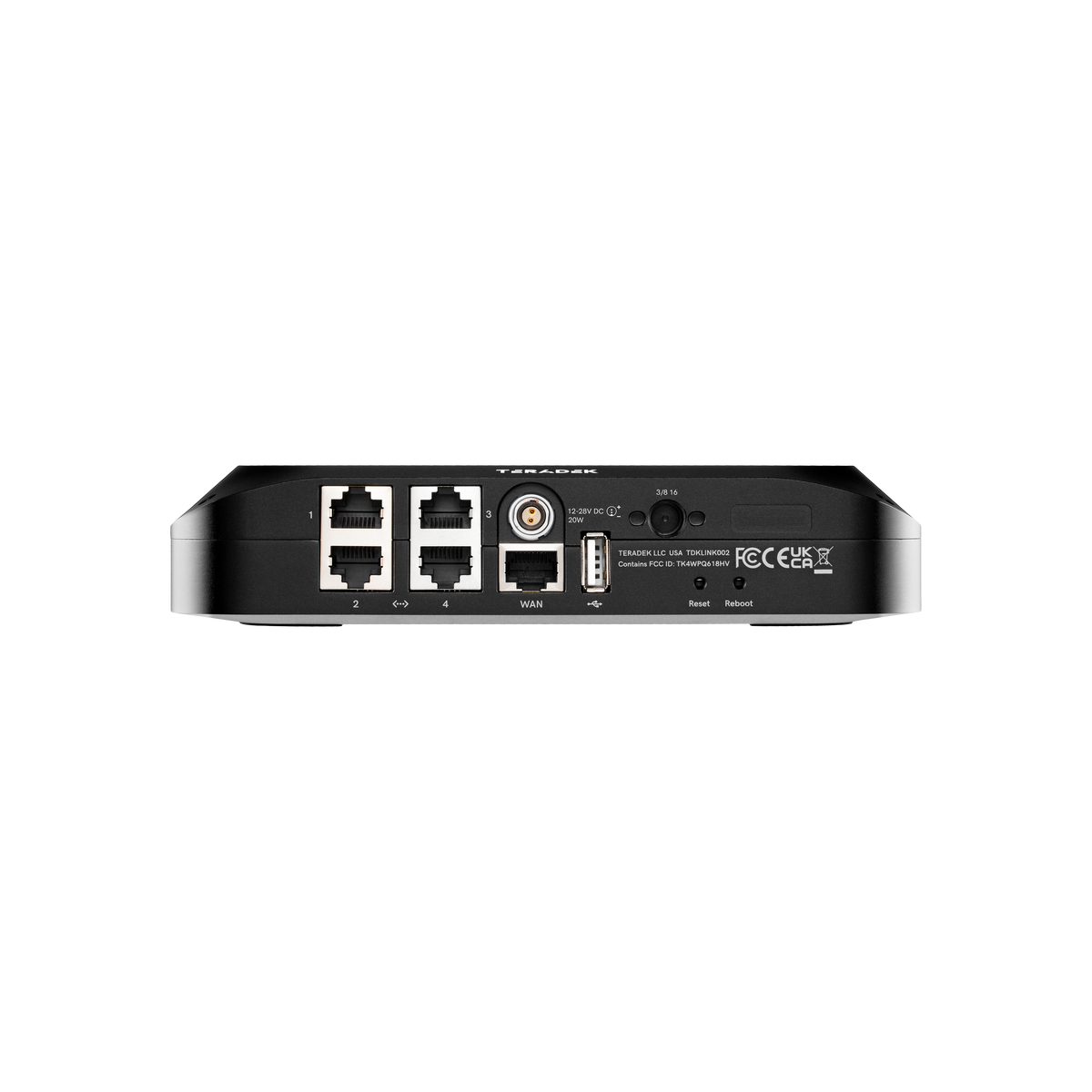

- 5 customizable Ethernet ports (4x 1Gbps + 1x 2.5Gbps)
- Supports up to 20 independent viewers via Teradek TV app with Serv devices
- Camera-to-cloud and remote monitoring when connected to the internet
- Simultaneous Wi-Fi camera control of multiple cameras
- PoE input support (IEEE 802.3at)
- 2-pin 12-28V power input, optional integrated Gold Mount or V-Mount battery plate
- Web UI configuration
Specifications
| Network Protocols |
TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP |
| Ethernet |
4x 1Gbps Ethernet ports; 1x 2.5Gbps Ethernet port |
| Modem |
USB 2.0 |
| Wi-Fi 2.4GHz |
2x2 MU-MIMO OFDMA 802.11 b/g/n/ax, max 20dBm per chain |
| Wi-Fi 5GHz |
2x2 MU-MIMO OFDMA 802.11 a/n/ac/ax, max 20dBm per chain |
| Frequency Range |
2.412 to 2.472GHz, 5.180 to 5.825GHz |
| Encryption |
802.11AX, 802.1x, 802.11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES |
| Power Input |
2-pin locking connector, 12-28V |
| Power Consumption |
17.5W (max) |
| PoE |
Supports IEEE 802.3at 48-56V |
| Battery Plates |
Integrated Gold or V-mount battery plate (optional) |
| Dimensions |
7.3 x 5.7 x 2 in (185 x 145 x 51 mm) |
| Weight |
37 oz (1046 g) without plate; 38.4 oz (1090 g) with plate |
| Construction |
Milled Aluminum |
| Mountability |
2x 1/4"-20 threaded holes; 1x 3/8"-16 threaded hole |
| Configuration Interface |
Web UI for configuration and control |
| Switches |
On/Off, Reset and Reboot switches |
| Status LEDs |
Device, wireless and network status LEDs |
| Operating Temperature |
-10°C to 50°C |
| Storage Temperature |
-40°C to 90°C |
| Humidity |
Operating 5% to 95%; storage max. 90% |
| Mount |
No mount |
Compatibility
- Serv Micro, Serv 4K and Serv Pro (required for Wi-Fi monitoring, sold separately)
- Teradek TV app on iOS/Android mobile devices (up to 20 viewers)
- Node II cellular modem with Teradek Data via USB-A
- Gold Mount or V-Mount batteries (mount versions)
In the Box
- 1 x Link AX Wireless Access Point Router (5 Port)
- 1 x Lightstand Adapter 3/8in
- 1 x PSU with 36W AC Adapter (6ft cable)
