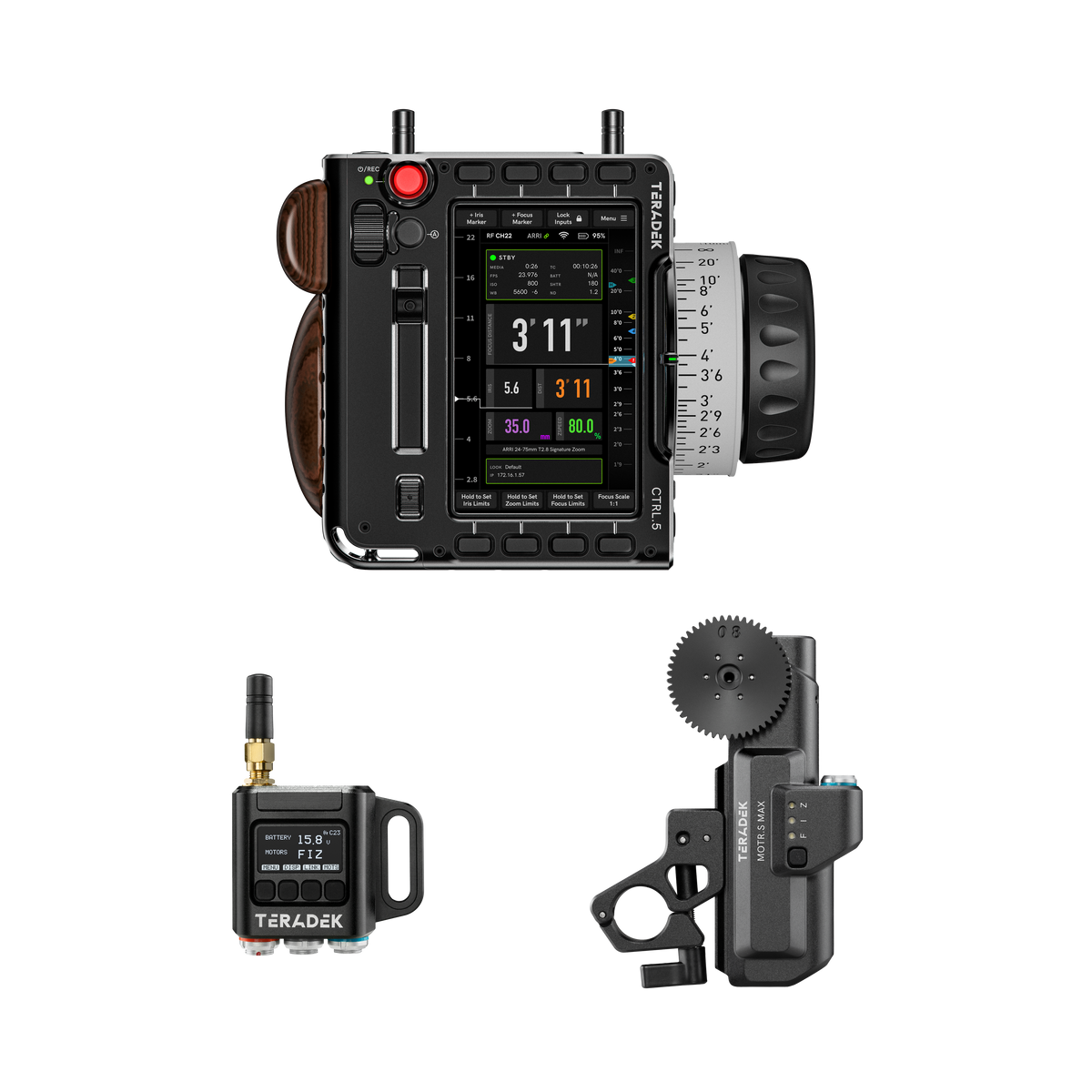

Teradek RT systems combine premium lens-control technology with smart design, allowing you to view and adjust critical lens data and functions directly on your CTRL.5 screen for unparalleled accuracy and dependability on set.

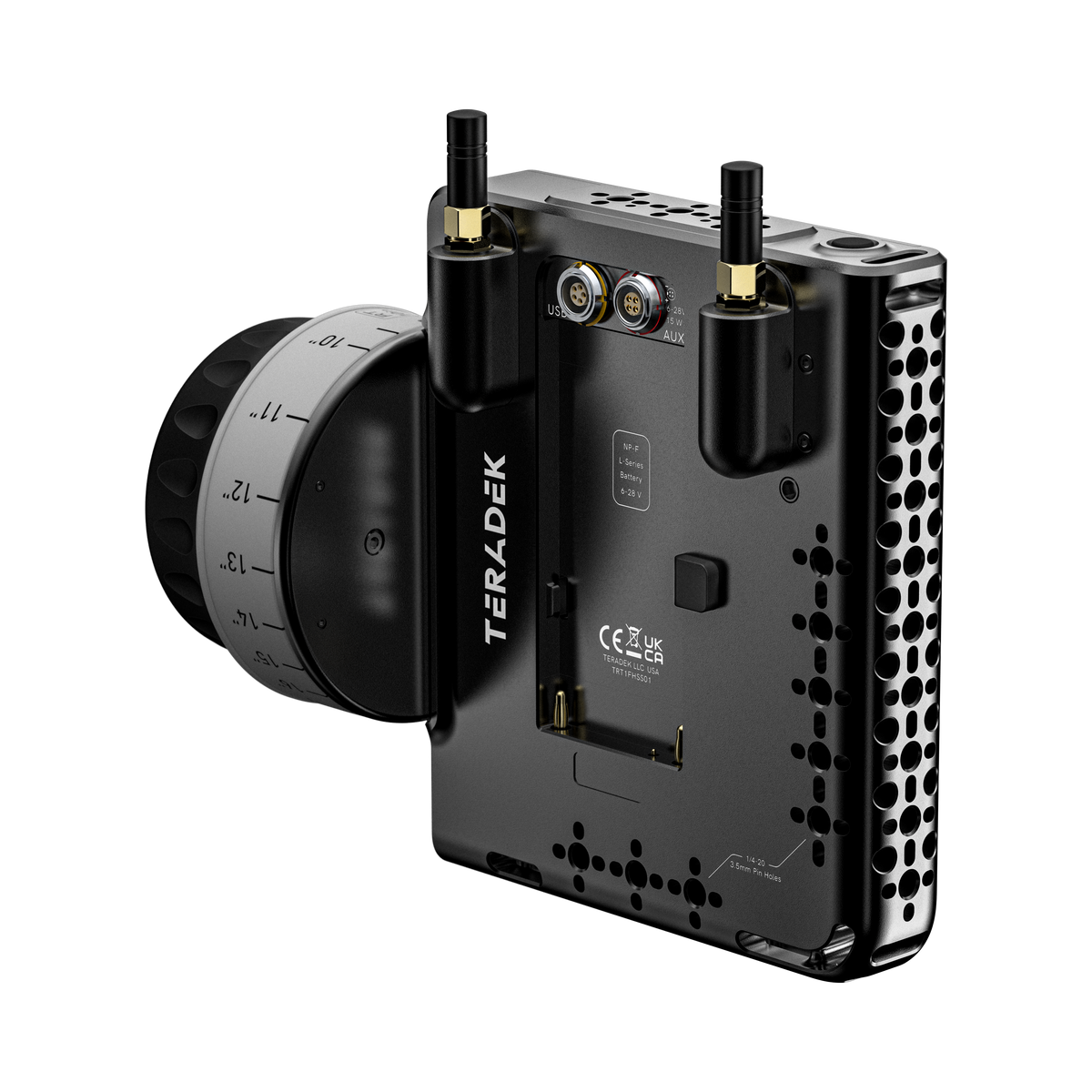

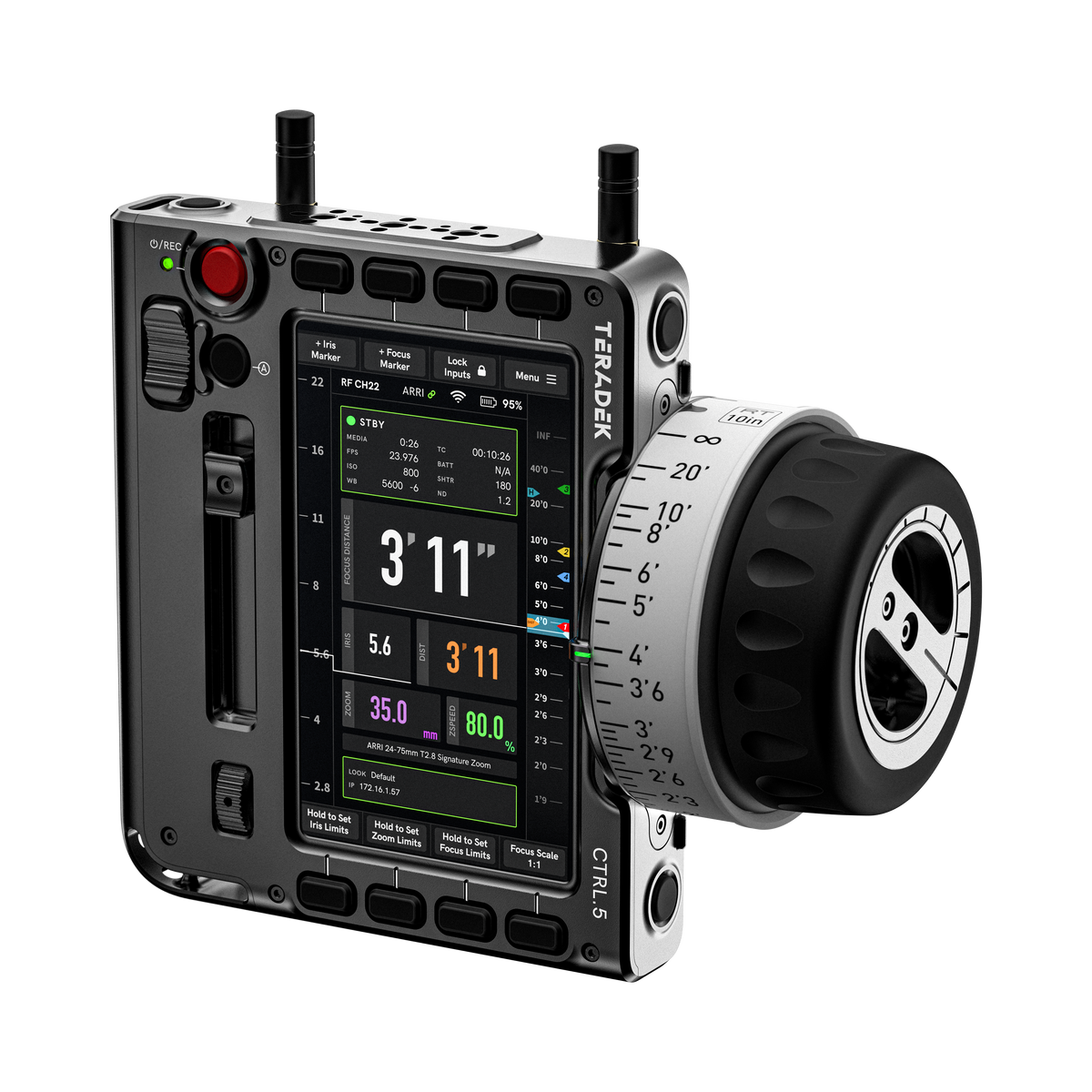

CTRL.5 raises the bar for wireless FIZ lens-control handsets with a 5-inch SmallHD Ultra-bright touchscreen powered by CTRL.OS, a task-specific evolution of SmallHD's PageOS. View critical lens data overlays while pulling focus without taking your eyes off the video feed. Calibrate lenses to pre-marked focus rings and access configurations at any time via the touchscreen or one of eleven programmable function buttons. The hand unit includes a multitude of mounting points for accessories. CTRL.5 is fully cross-compatible across the Teradek RT Lens Control Ecosystem.

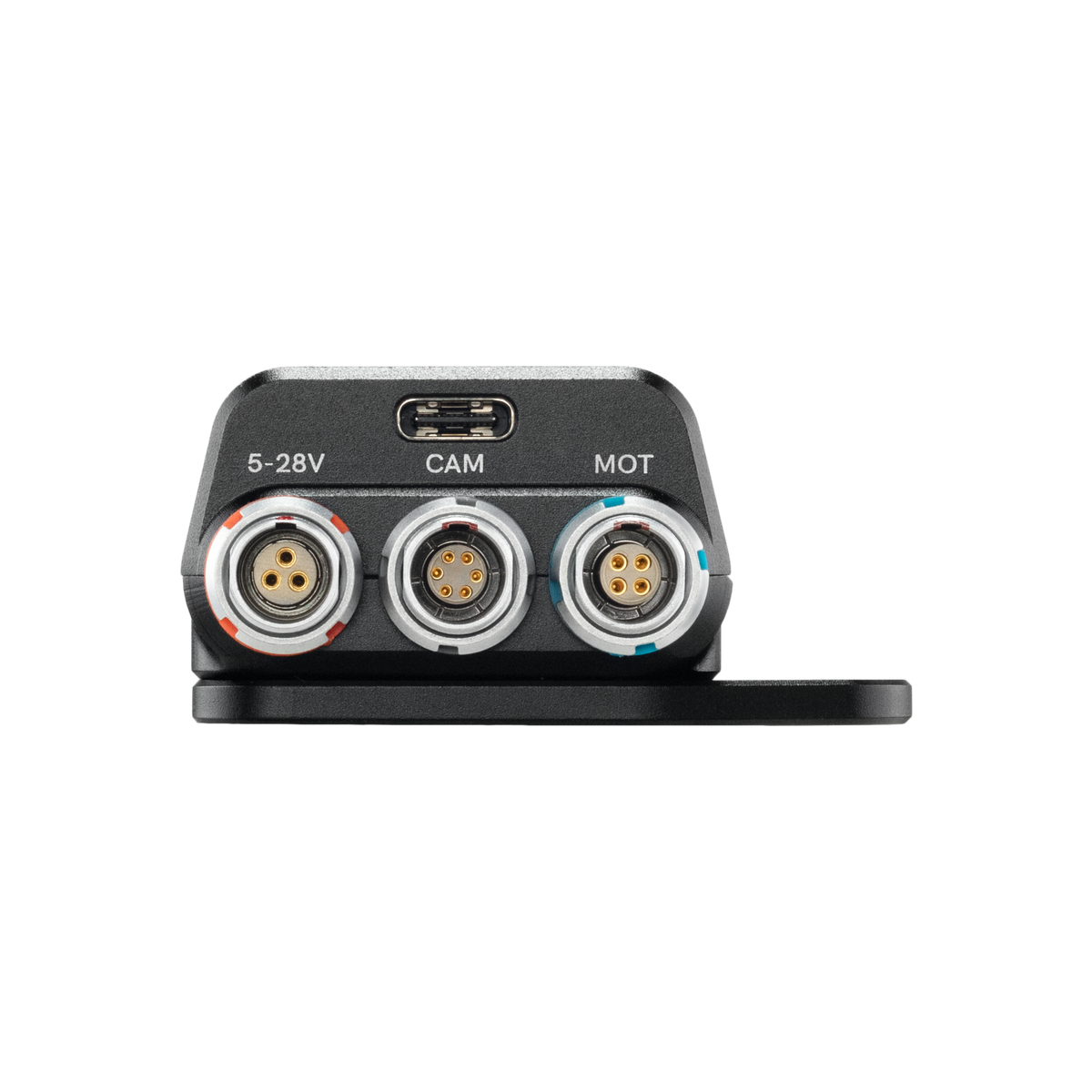

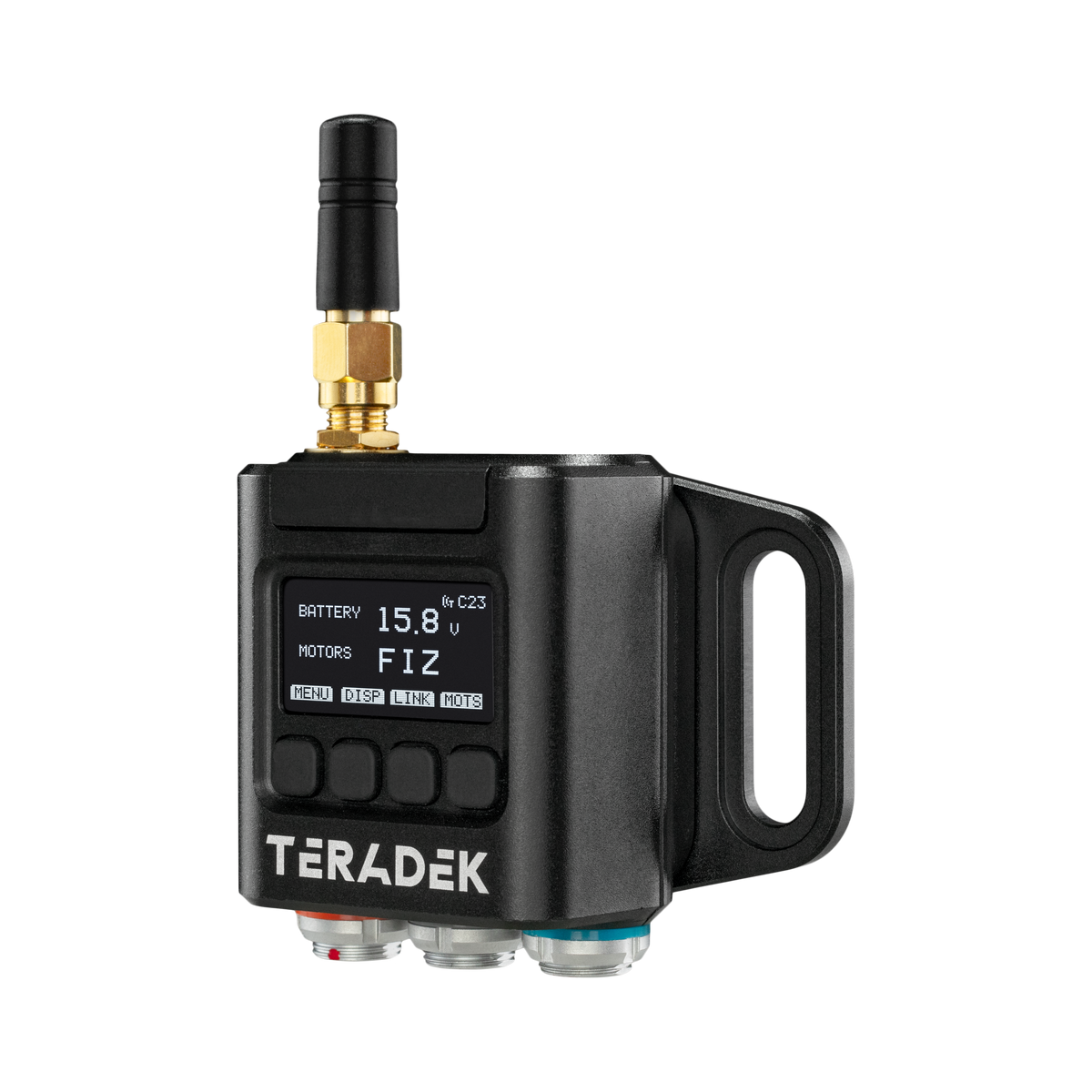

MDR.S is a compact three-axis lens control receiver with Bluetooth, weighing only 2.4 oz and 30% smaller than its predecessor MDR.X. It provides up to 3 channels of lens control, a camera control port for recording start/stop, a power port supporting up to 28V, FHSS wireless technology to prevent interference, an on-unit OLED display, a replaceable external antenna and a maximum line-of-sight range of 5,000 ft.

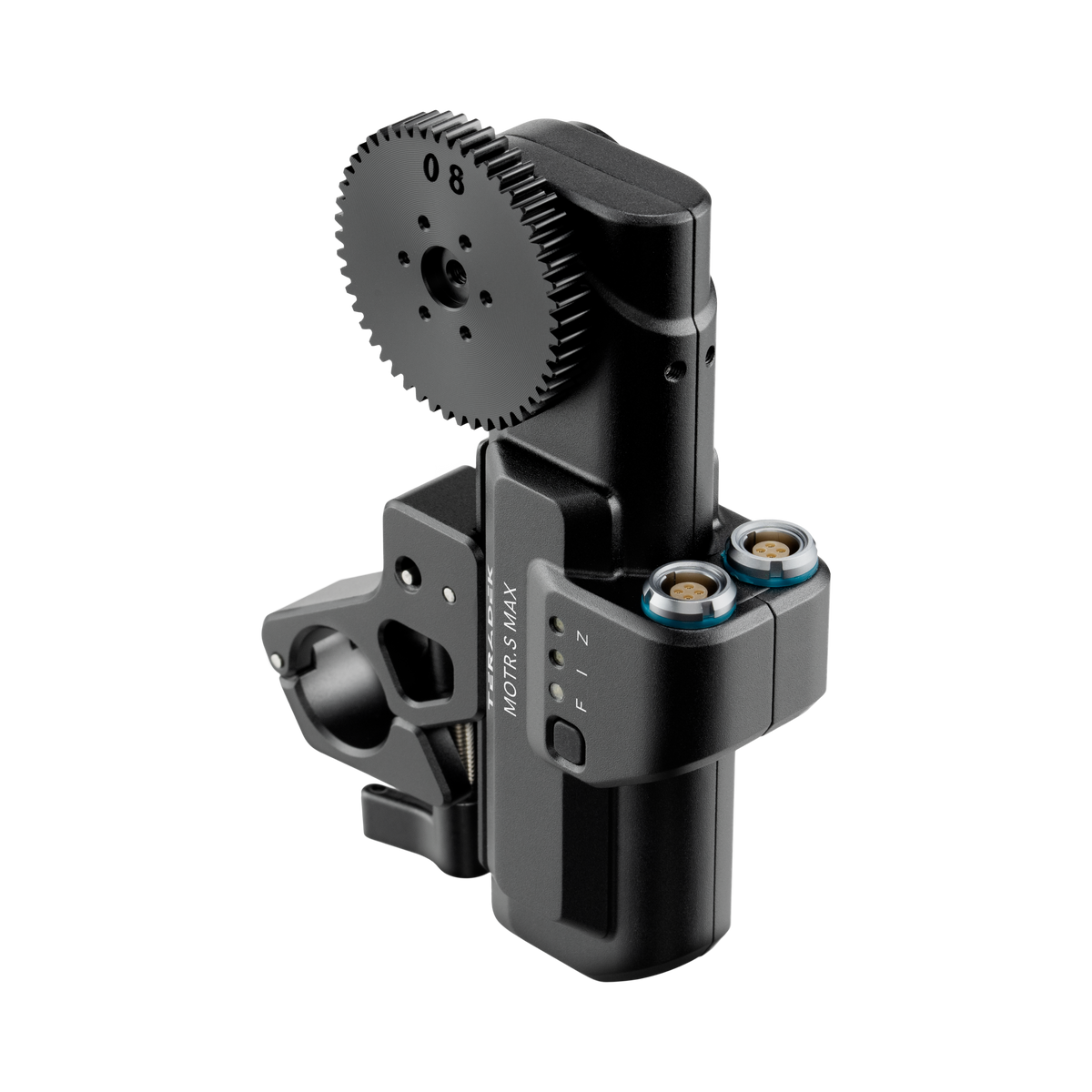

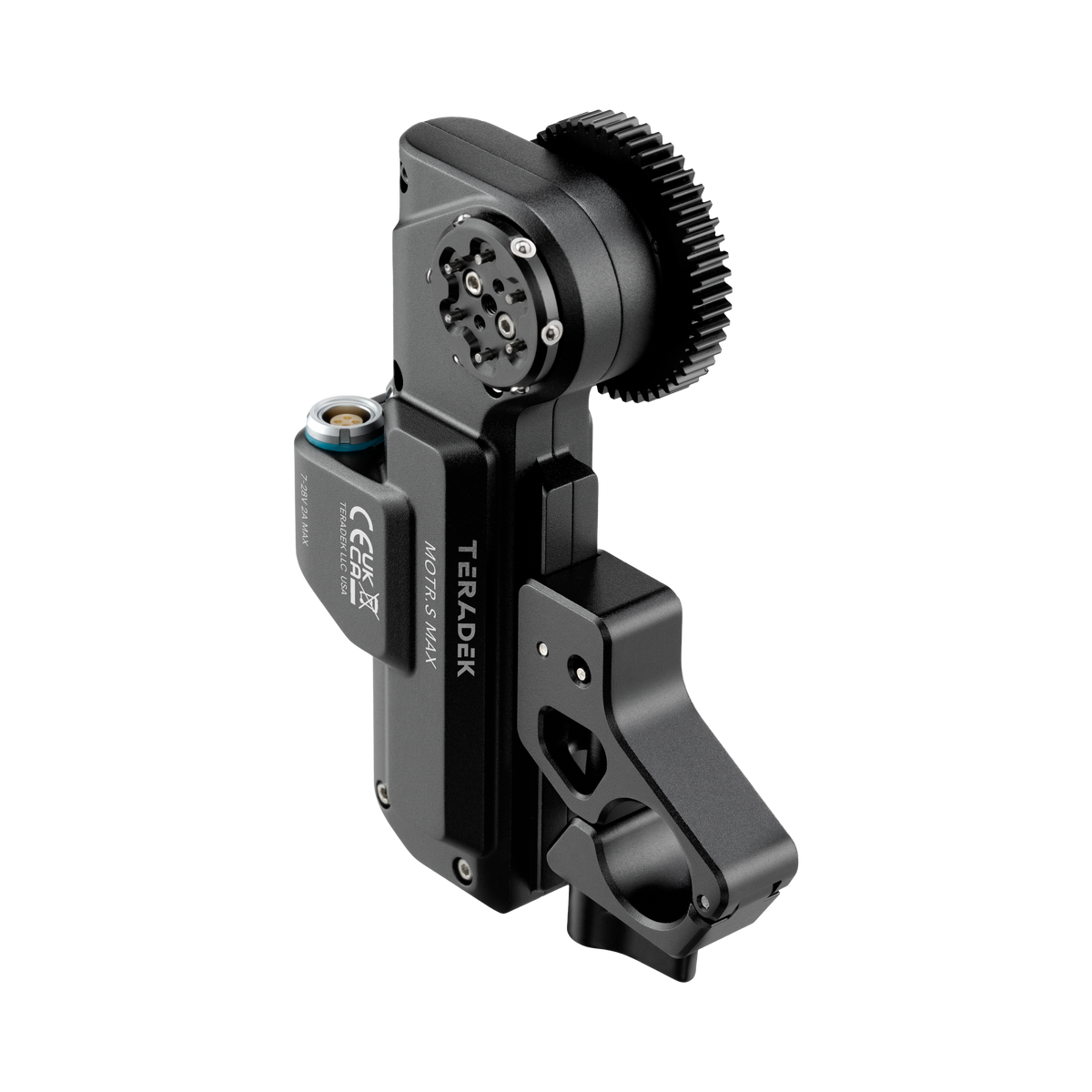

Teradek RT motors offer generous power and speed for driving even the heaviest lenses, giving you responsiveness and precision with every pull. The MOTR.S MAX provides 2 Nm of peak torque and operates nearly silently thanks to its brushless design.
Key Features
- 5-inch SmallHD Ultra-bright touchscreen handset powered by CTRL.OS
- View lens data overlays and calibrate to pre-marked focus rings
- MOTR.S MAX: 2 Nm peak torque, brushless and nearly silent
- Quick-release gear system, daisy-chainable motors
- Up to three motors per receiver
- Pre-marked focus rings (imperial and metric) and iris ring included
- Cross-compatible with the full Teradek RT ecosystem
- MDR.S receiver: ultra lightweight 2.4 oz, OLED display, Bluetooth for Teradek RT App for iOS, power port up to 28V
Specifications
| CTRL.5 Display |
5 inch Highbright SmallHD touchscreen |
| CTRL.5 Power Input |
NPF battery |
| CTRL.5 Connectors |
5-pin USB port and 4-pin AUX port |
| CTRL.5 Axes |
4 total: knob, slider, rocker, wheel |
| CTRL.5 Programmable Buttons |
11 |
| CTRL.5 Weight |
830 g |
| Wireless Range |
5,000 ft line of sight |
| MDR.S Channels |
Up to 3 channels of lens control |
| MDR.S Weight |
2.4 oz |
| MDR.S Power |
Up to 28V |
| MDR.S Wireless |
FHSS |
| MDR.S Display |
OLED |
| MDR.S Bluetooth |
Teradek RT App for iOS |
| MOTR.S MAX Peak Torque |
2 Nm |
| MOTR.S MAX Maximum Speed |
168 rotations per minute |
| MOTR.S MAX Power Input |
Up to 32V |
| MOTR.S MAX Construction |
All-aluminum with reinforced sockets, brushless motor |
Compatibility
- MDR.S is compatible with MOTR.S, MOTR.S MAX, MOTR.X and MK3.1 motors, and CTRL.5, CTRL.1 and CTRL.3 controllers
- Teradek TOF.1 rangefinder works with MDR.S
- Additional RT Motor Cables available in 20cm, 30cm or 60cm lengths for additional motors
In the Box
- 1 x CTRL.5 Handset
- 1 x MDR.S Receiver
- 1 x MOTR.S MAX Lens Motor
- 3 x RT Motor Cables (ST-ST: 0.2m, 0.4m, 0.6m)
- Pre-marked focus rings and iris strips
