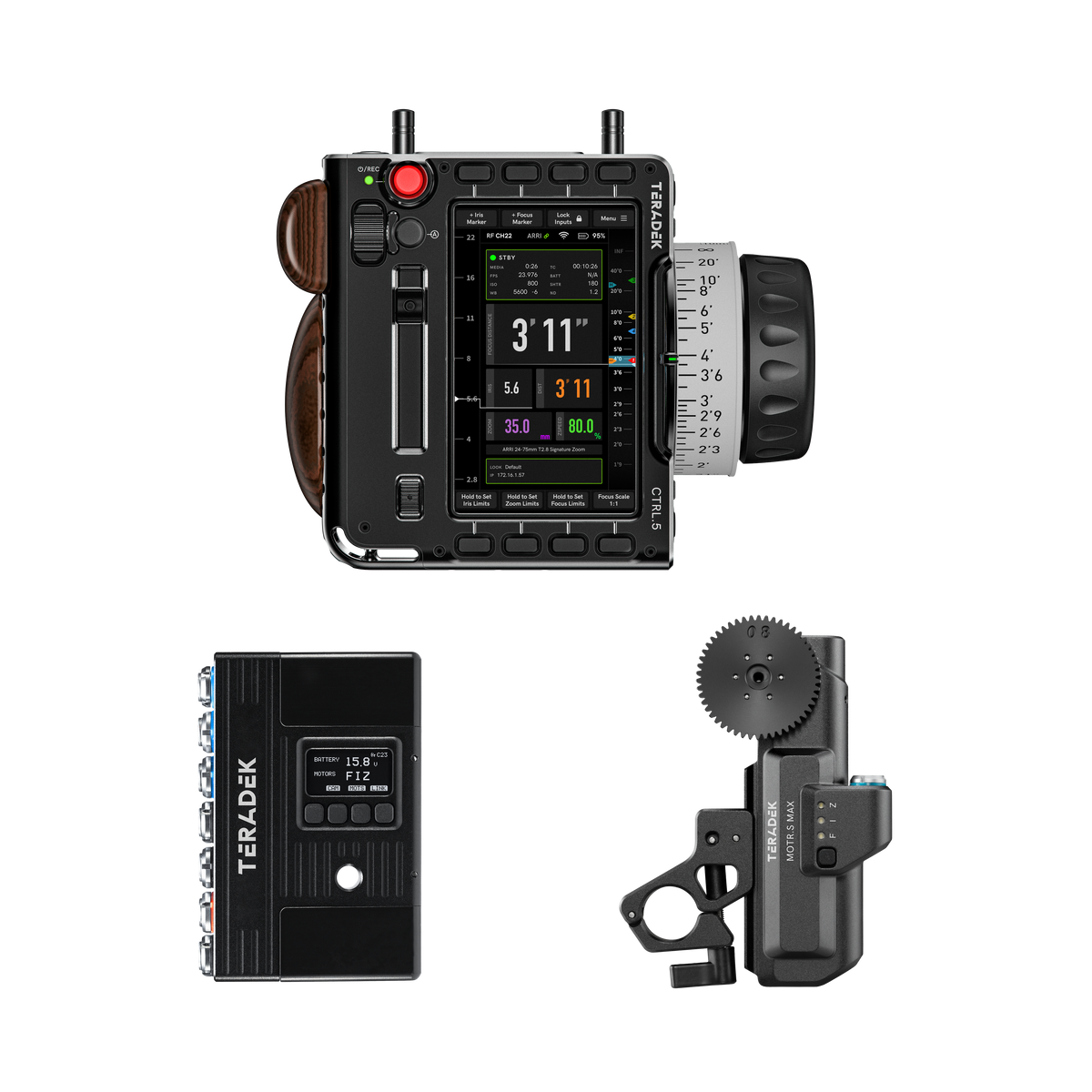

Teradek RT systems combine premium lens-control technology with smart design, allowing you to view and adjust critical lens data and functions directly on your CTRL.5 screen for unparalleled accuracy and dependability on set.

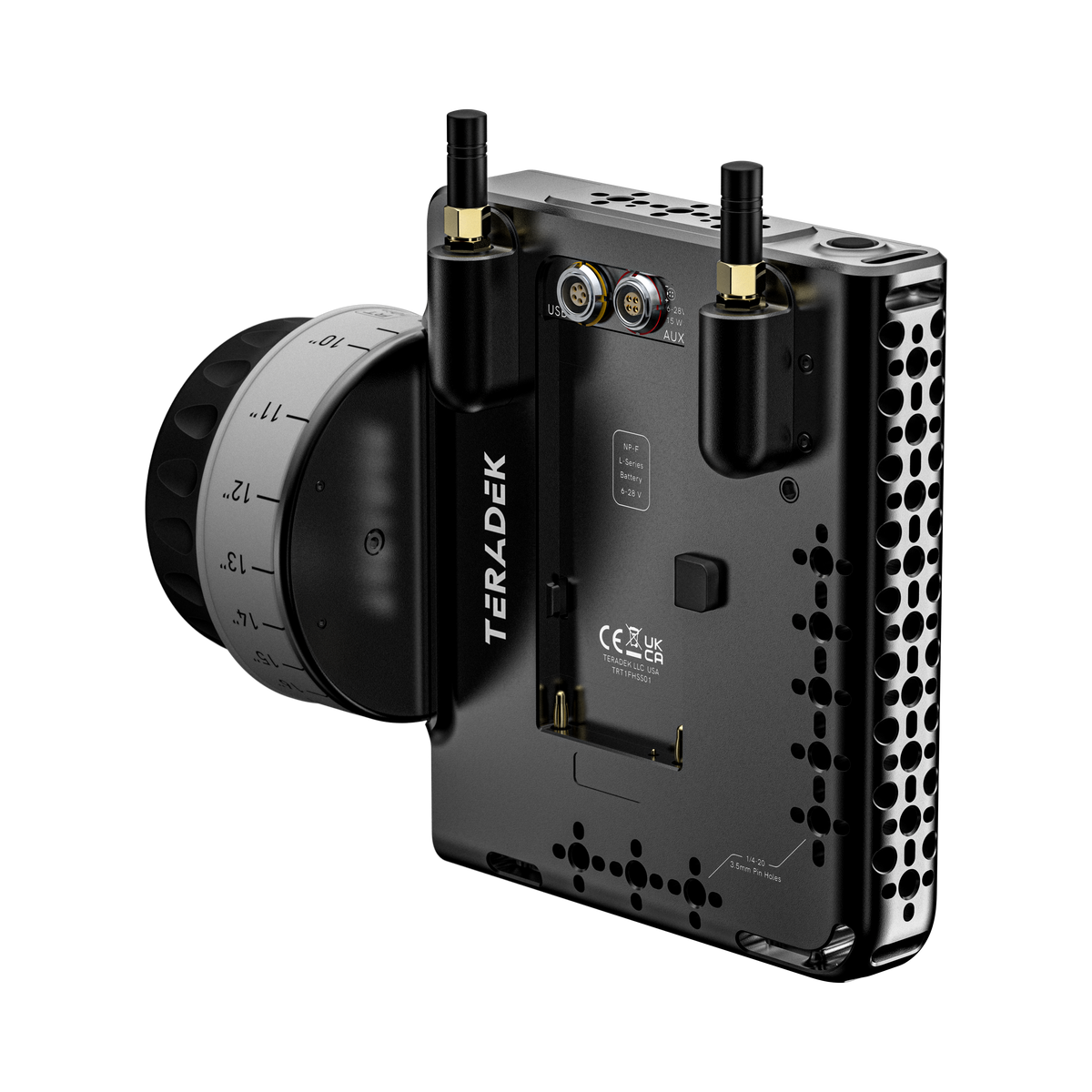

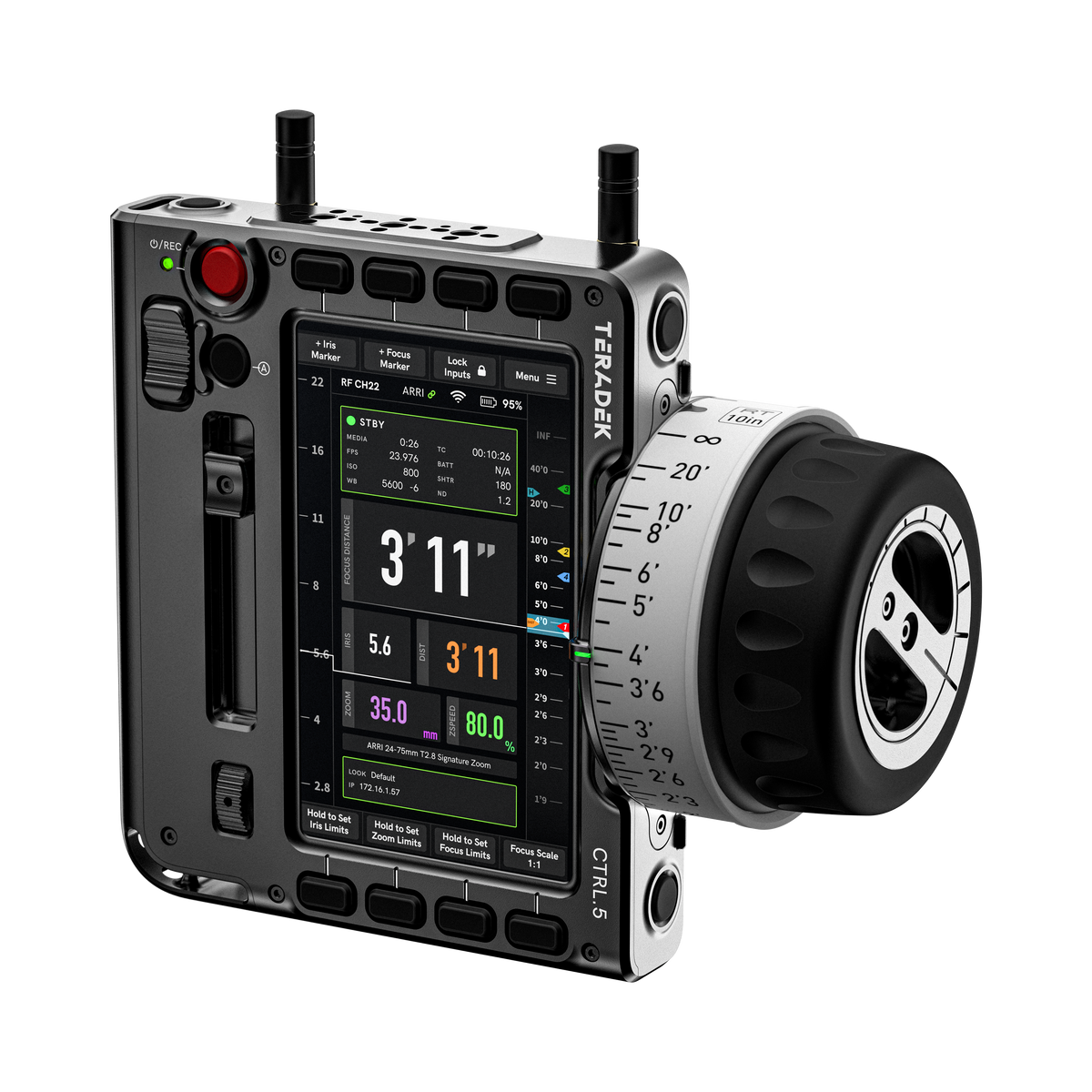

CTRL.5 raises the bar for wireless FIZ lens-control handsets with a 5-inch SmallHD Ultra-bright touchscreen powered by CTRL.OS, a task-specific evolution of SmallHD's PageOS. View critical lens data overlays while pulling focus without taking your eyes off the video feed. Calibrate lenses to pre-marked focus rings and access configurations at any time via the touchscreen or one of eleven programmable function buttons. The hand unit includes a multitude of mounting points for accessories. CTRL.5 is fully cross-compatible across the Teradek RT Lens Control Ecosystem.

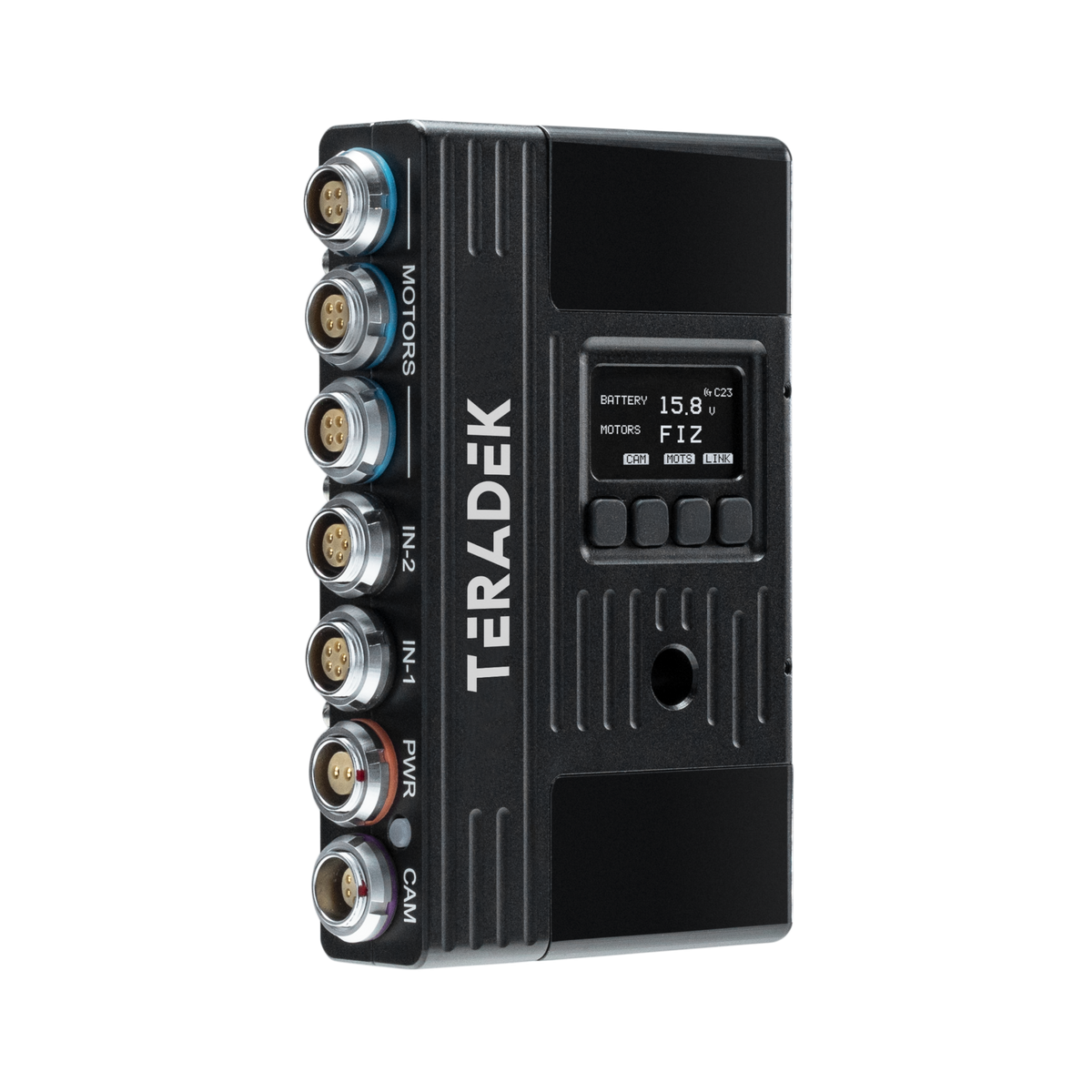

Teradek RT receivers are easy to mount, can connect to iOS devices via Bluetooth for configuration and control, and support up to three motors. The MDR.X offers robust multi-motor port capability with additional third-party rangefinder integrations (FocusBug and CineRT). The Teradek TOF.1 rangefinder works with both MDR.S and MDR.X.

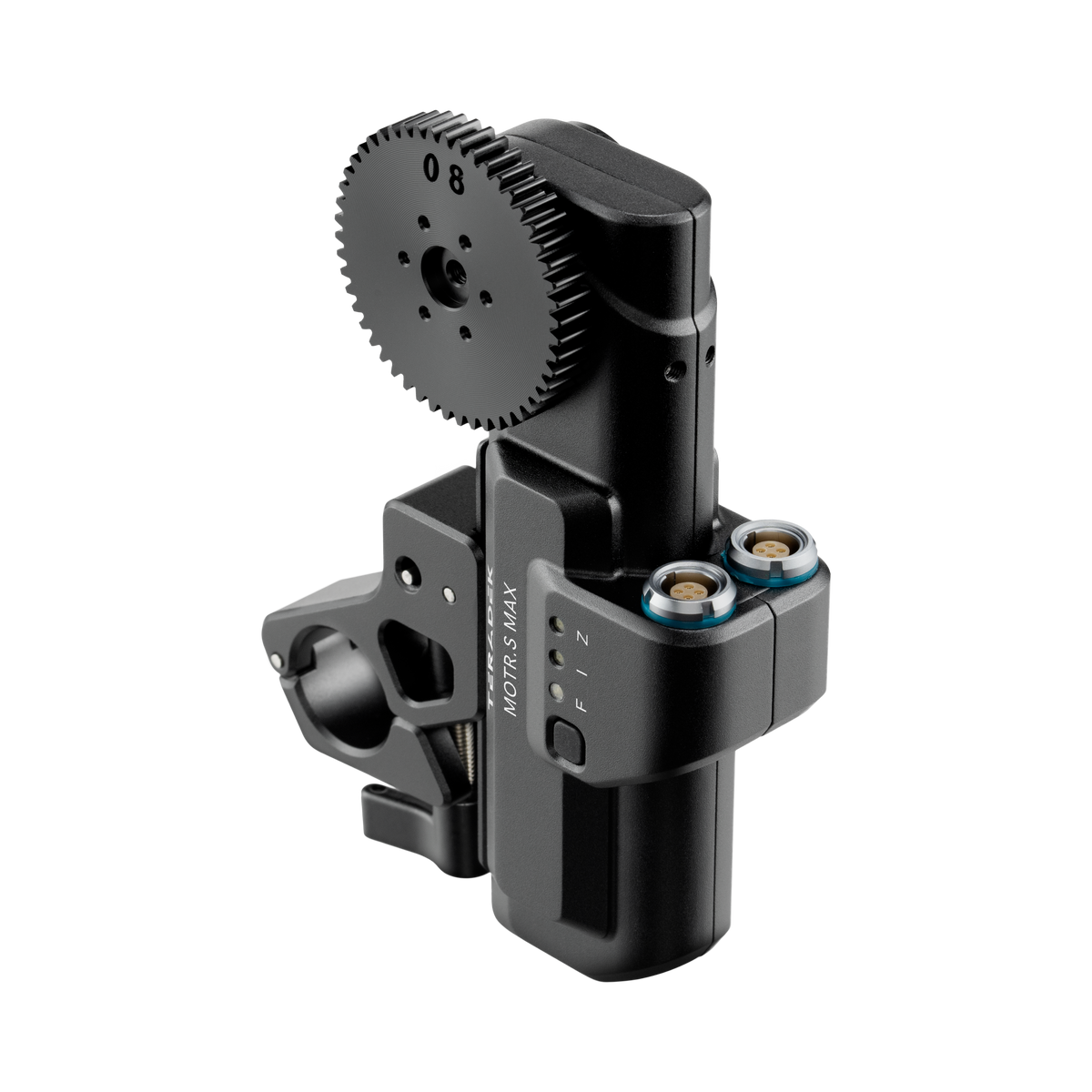

Teradek RT motors offer generous power and speed for driving even the heaviest lenses, giving you responsiveness and precision with every pull. The MOTR.S MAX provides 2 Nm of peak torque and operates nearly silently thanks to its brushless design.
Key Features
- 5-inch SmallHD Ultra-bright touchscreen handset powered by CTRL.OS
- View lens data overlays and calibrate to pre-marked focus rings
- MOTR.S MAX: 2 Nm peak torque, brushless and nearly silent
- Quick-release gear system, daisy-chainable motors
- Up to three motors per receiver
- Pre-marked focus rings (imperial and metric) and iris ring included
- Cross-compatible with the full Teradek RT ecosystem

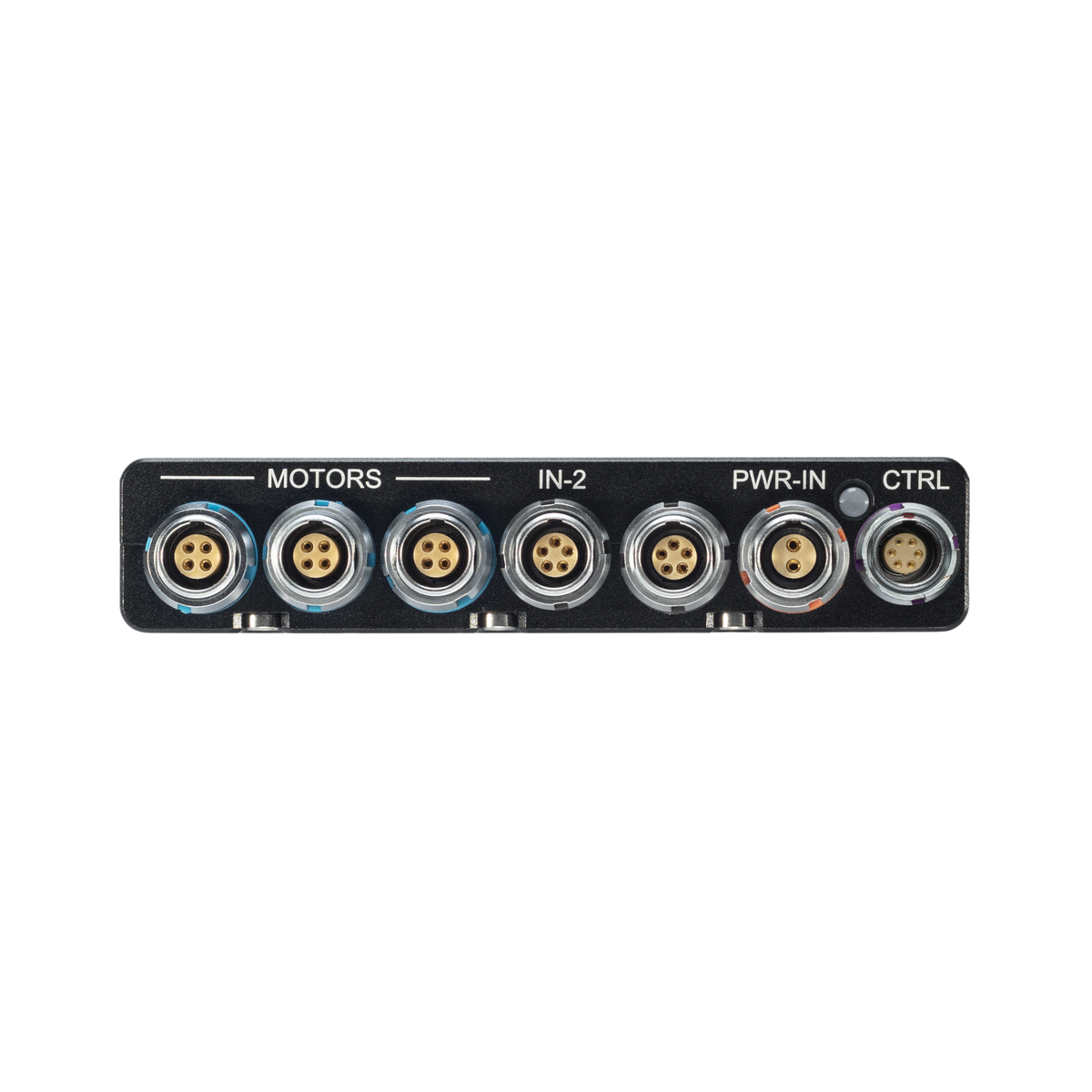

- MDR.X receiver with robust multi-motor ports and third-party rangefinder integration (FocusBug, CineRT)
Specifications
| CTRL.5 Display |
5 inch Highbright SmallHD touchscreen |
| CTRL.5 Power Input |
NPF battery |
| CTRL.5 Connectors |
5-pin USB port and 4-pin AUX port |
| CTRL.5 Axes |
4 total: knob, slider, rocker, wheel |
| CTRL.5 Programmable Buttons |
11 |
| CTRL.5 Weight |
830 g |
| Wireless Range |
5,000 ft line of sight |
| MOTR.S MAX Peak Torque |
2 Nm |
| MOTR.S MAX Maximum Speed |
168 rotations per minute |
| MOTR.S MAX Power Input |
Up to 32V |
| MOTR.S MAX Construction |
All-aluminum with reinforced sockets, brushless motor |
Compatibility
- Fully cross-compatible across the Teradek RT Lens Control Ecosystem
- MDR.X supports Teradek TOF.1, FocusBug and CineRT rangefinders
- Additional RT Motor Cables available in 20cm, 30cm or 60cm lengths for additional motors

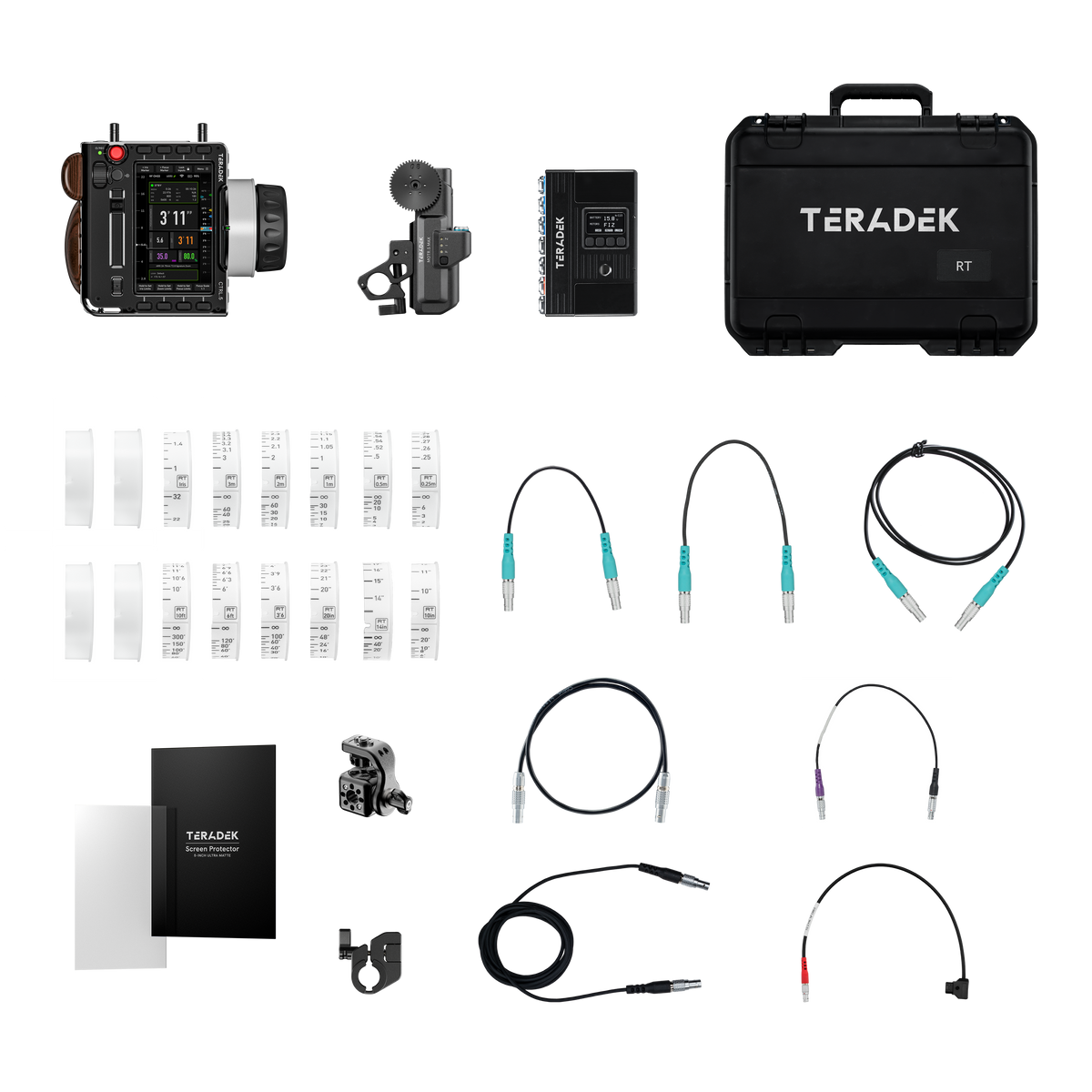

In the Box
- 1 x CTRL.5
- 1 x MDR.X
- 1 x MOTR.S MAX with Standard Bracket
- 1 x Compact Bracket for MOTR.S/MAX
- 1 x Blank Rings
- 1 x Pre-Marked Iris Ring
- 1 x Set of Pre-Marked Focus Rings, Imperial
- 1 x Set of Pre-Marked Focus Rings, Metric
- 1 x Thumb Screw for mounting MDR.X
- 1 x 5pin to 5pin USB Cable, Straight to Right Angle (12in / 0.3m)
- 1 x 2pin to P-Tap cable, 18in / 0.46m
- 1 x 2pin to 2pin cable, 18in / 0.46m
- 1 x USB-A to USB-Mini for MDR.X FW Updates
- 1 x Motor Cable 7.8 in / 0.2m
- 1 x Motor Cable 15.75 in / 0.4m
- 1 x Motor Cable 23.6 in / 0.6m
- 1 x 6pin CAM to 3pin R/S Cable for MDR.S/X
- 1 x Hinged Monitor Mount for CTRL.5
- 1 x Hand Strap for CTRL.5
- 1 x Neck Strap for CTRL.5
- 1 x Screen Protector for CTRL.5 (Matte)
- 1 x Palm Grip for CTRL.5 (Wood)
- 1 x Thumb Grip for CTRL.5 (Wood)
- 1 x Knob Guard for CTRL.5 (Wood)
- 1 x SKB Case with Custom Foam for CTRL.5
- 2 x 2.4 GHz Antenna (28.4mm length 0.56db rp-sma)
- 1 x Silicone Knob Grip, Black
