Teradek

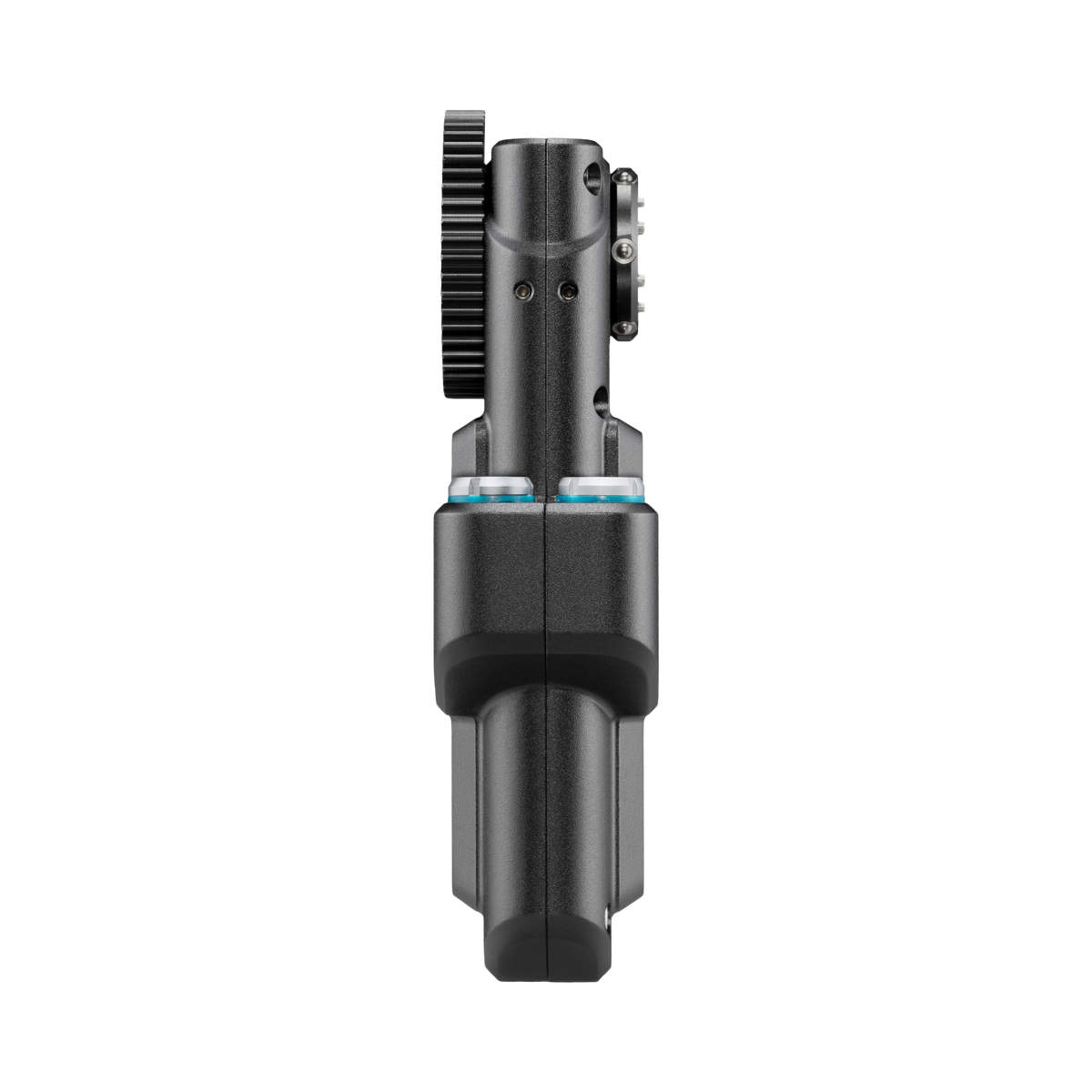

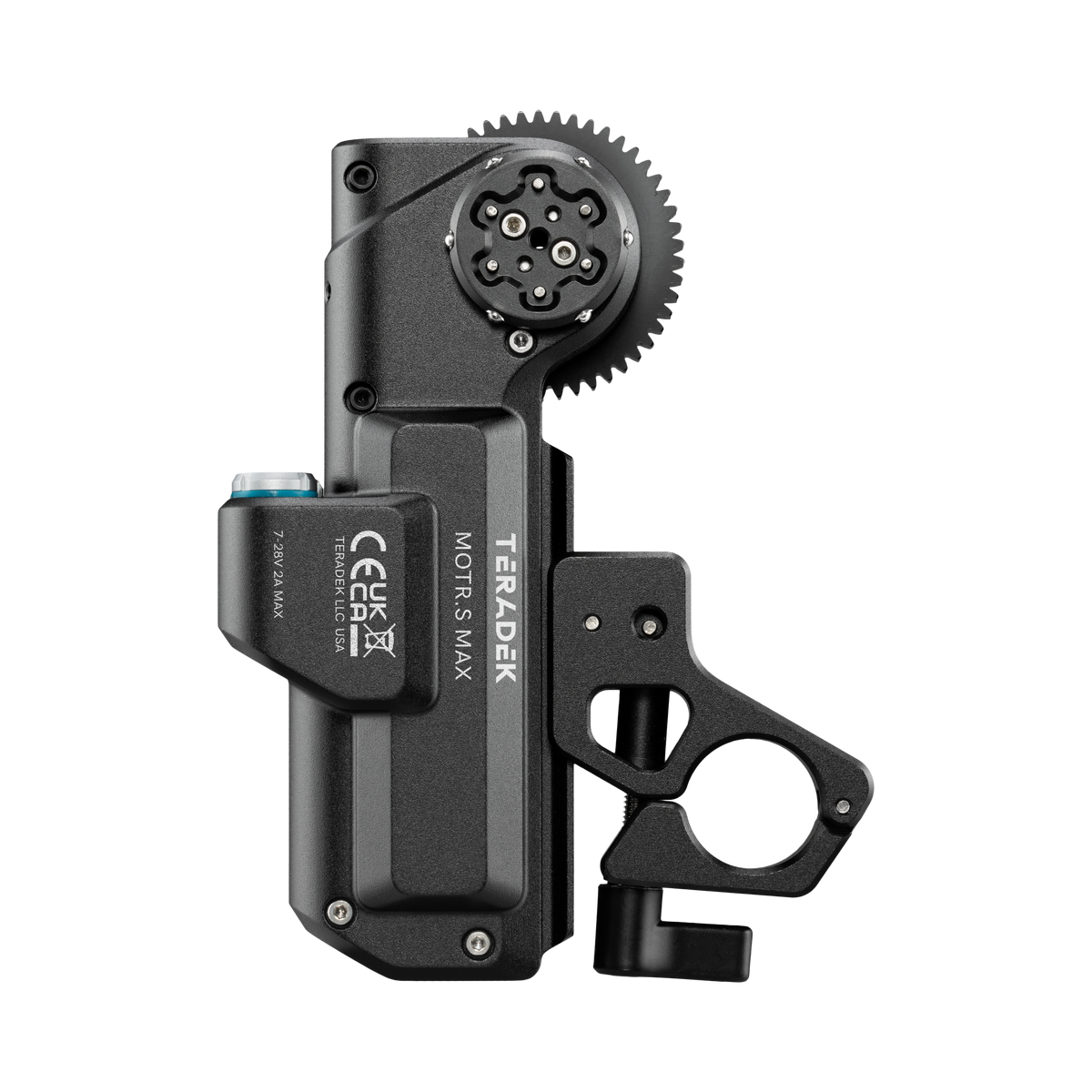

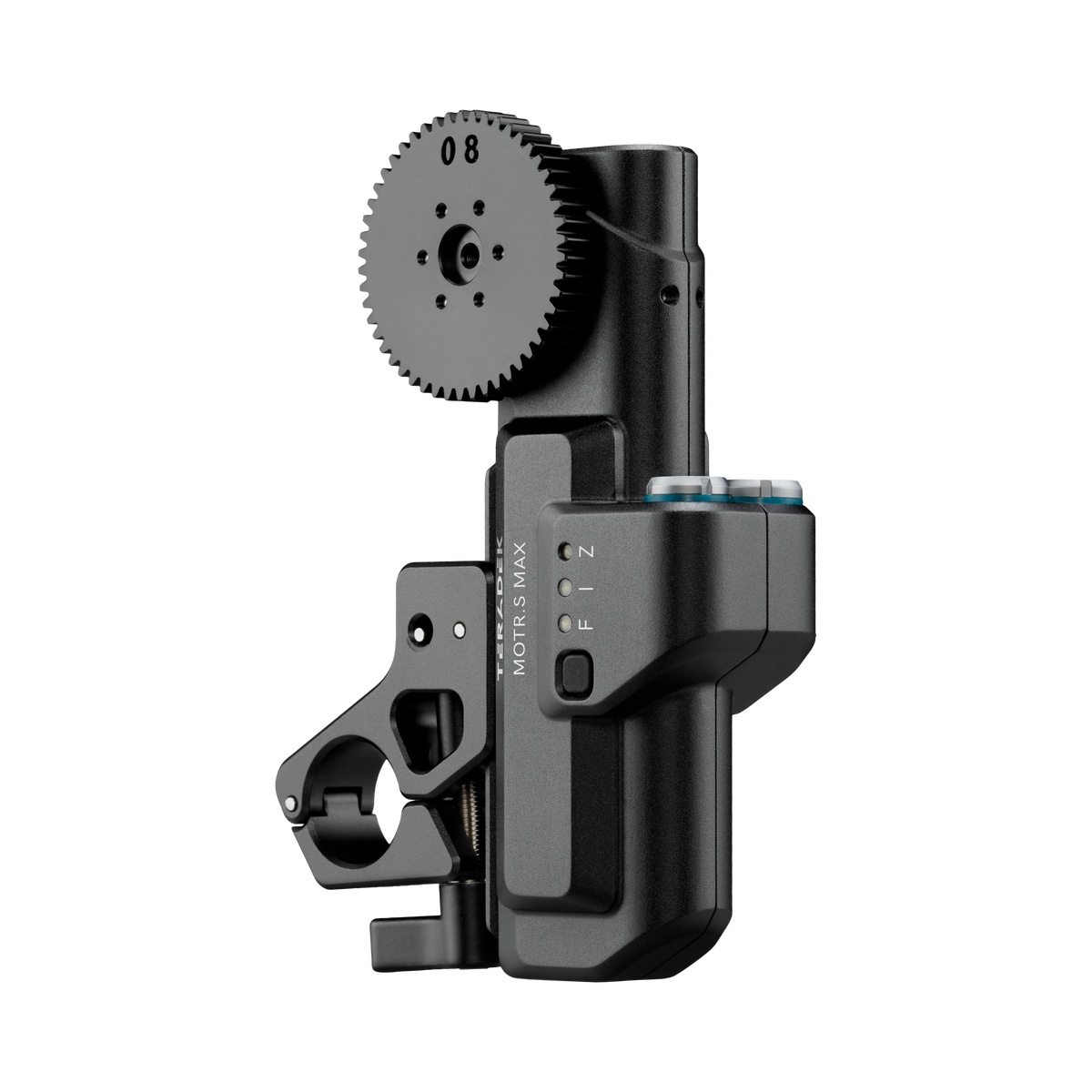

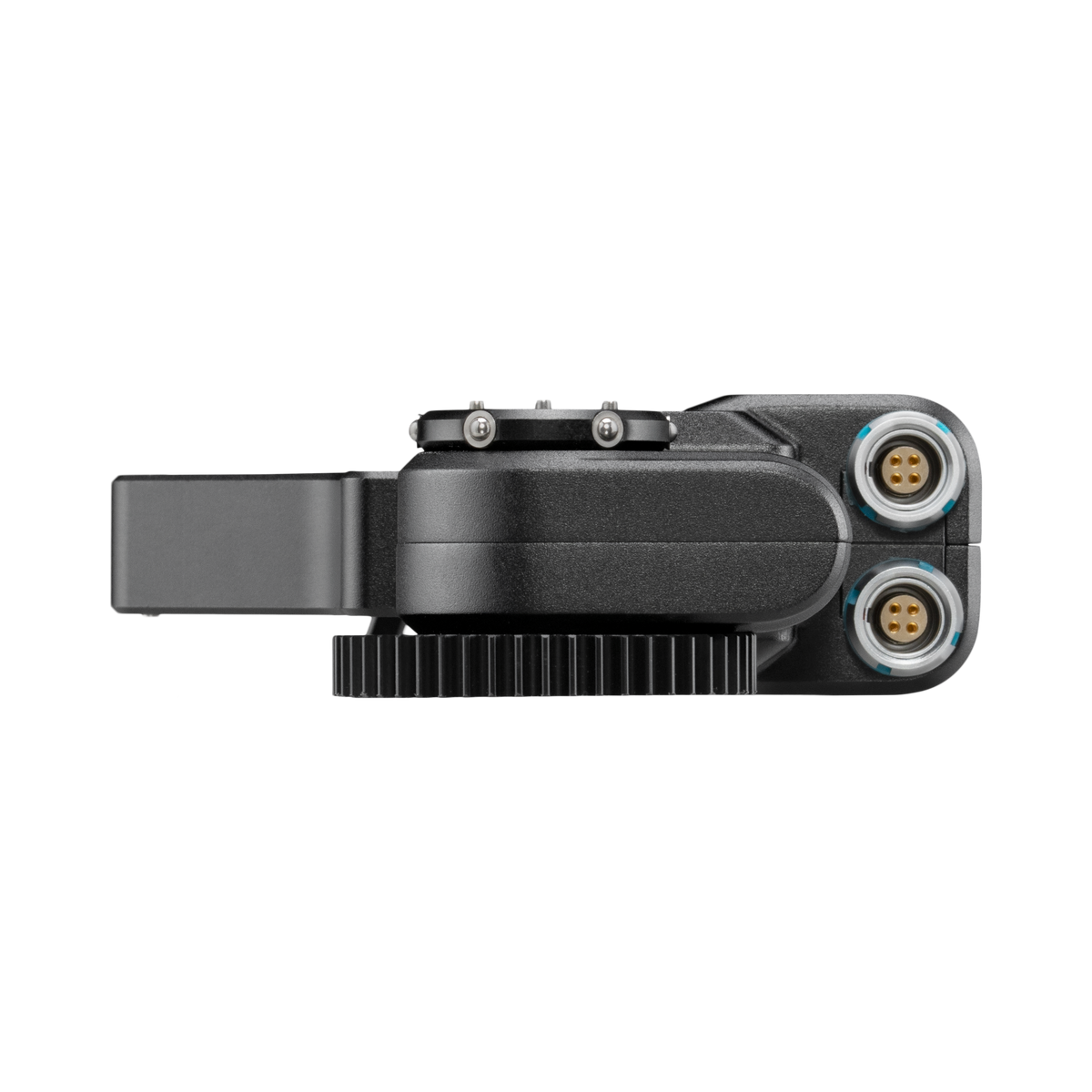

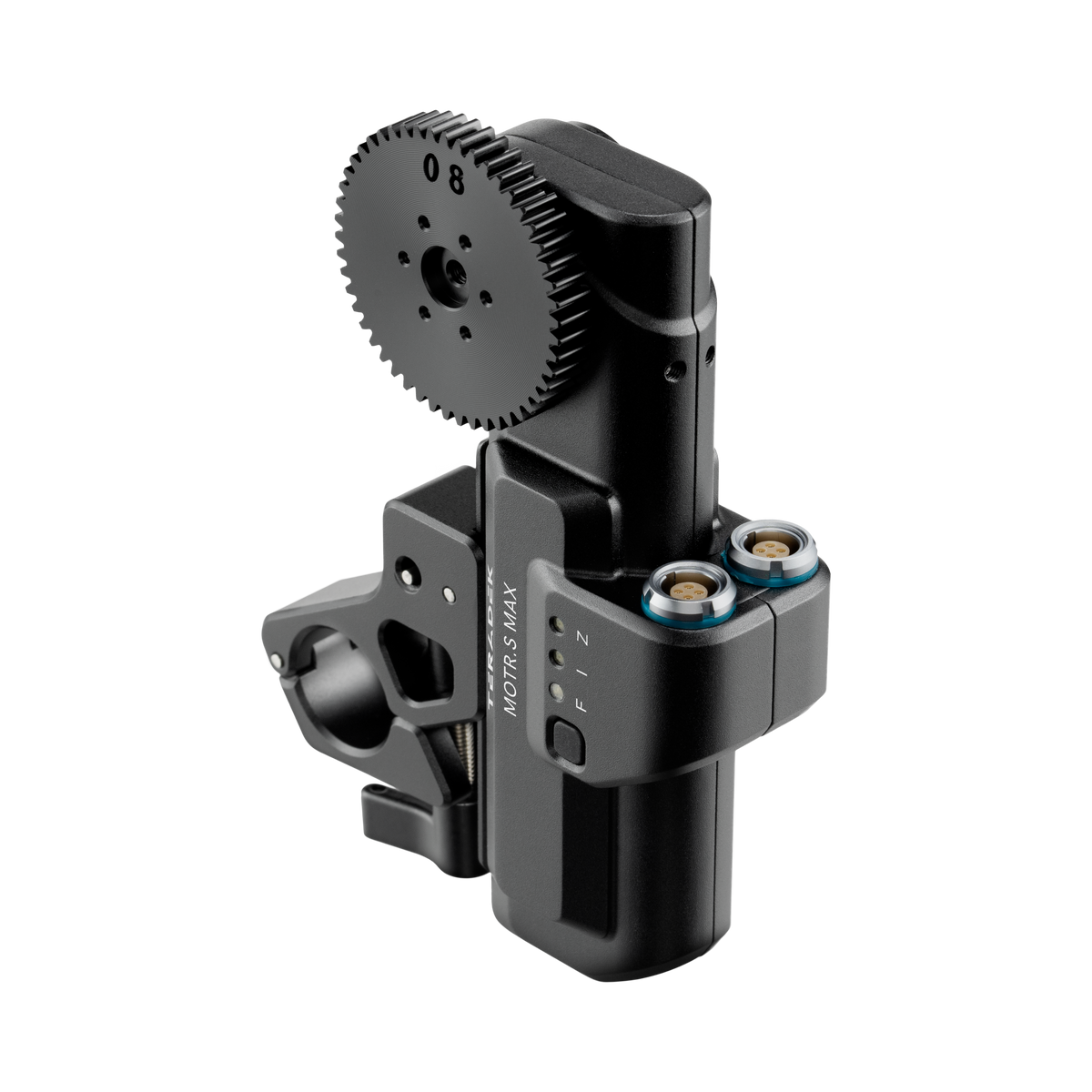

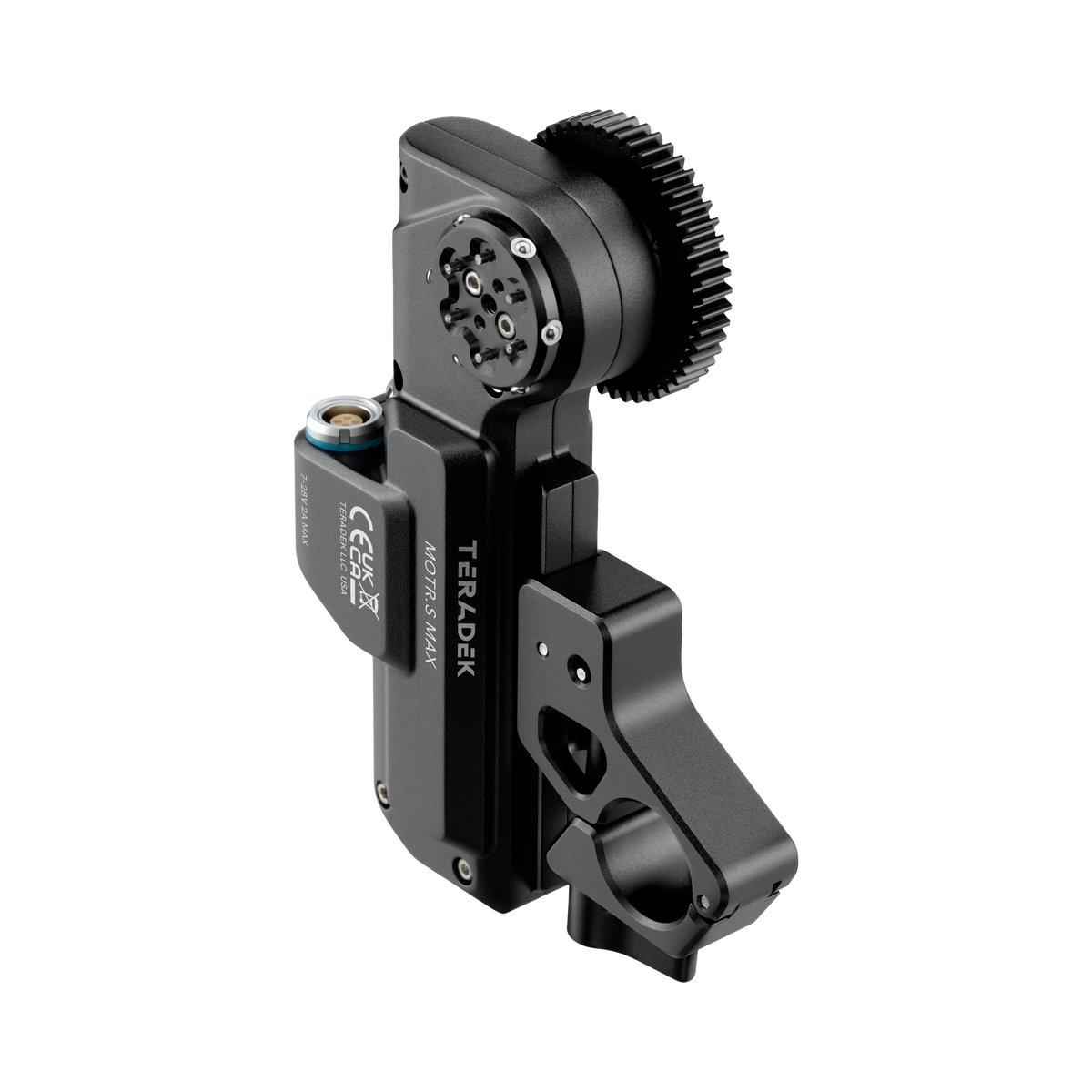

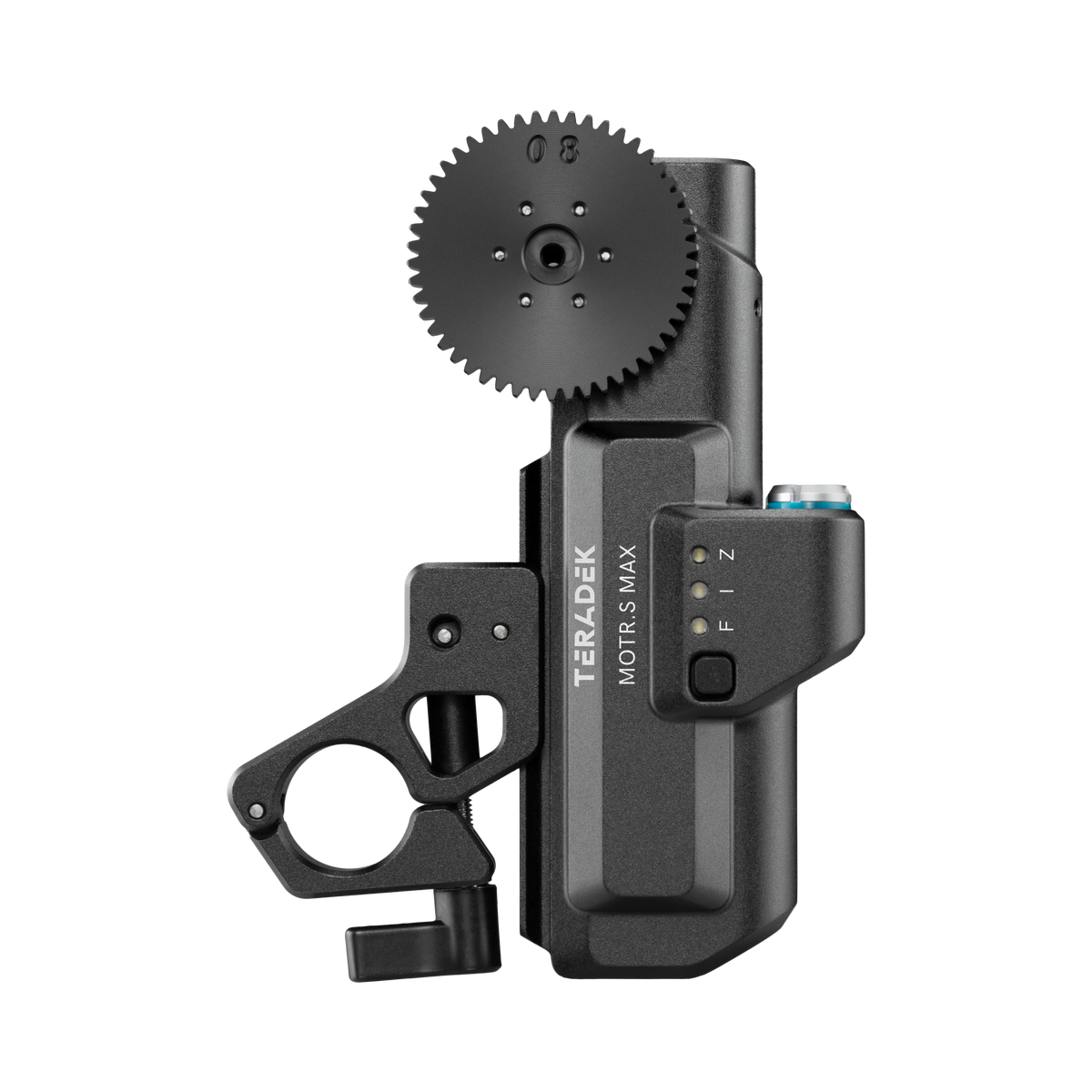

Teradek RT MOTR.S Max Lens Motor

$3,934.95 AUD
RRP inc GST /
SKU: 15-0053

For updated Stock on hand, please contact sales@blkflag.com.au otherwise we will email you ETA after confirmed order placement.

The MOTR.S MAX Lens Motor is the high-torque wireless lens-control solution for heavy-duty lenses with stiff, grinding gears. Completely redesigned from the ground up, MOTR.S MAX delivers 2 Nm of peak torque at up to 168 rotations per minute for precise focus-pulling on heavy-duty lenses. It features durable, all-aluminum construction and reinforced sockets, a quick-release gear for intuitive setup and quick transitions, and is daisy-chainable.

This add-on motor comes with one 0.8 gear. No motor cables are included.

The MOTR.S MAX lens motor can be purchased alongside our MOTR.S FIZ Kit and MOTR.S Single Channel Kit for full motor control of focus, iris, and/or zoom.

Gear Pitch: 0.8 Mod standard (others available)
Max Torque: 2 Nm peak, 2 Nm continuous
Max Speed: 168 rotations/minute
Construction: All aluminium
Mountability: Compatible with 19, 15 mm Rods
Dimensions (cm): 11.7 x 6.1 x 3 (298.4 x 149.9 x 78.7 mm)
Weight (kg): 0.221
Operating Voltage: 7-32V
Power Input: 0.1A idle. 2.5A peak
Connectors: 2x 0B.4 (chainable)
: -
Operating Temperature: –20°C to 50°C
1 x RT MOTR.S MAX
1 x 0.8 MOD Gear
1 x MOTR.S Bracket
