What you'd use it for
With Ace, precision meets dedication. Achieve finesse in every shot with fast counterbalance, and smooth drag adjustments. Lightweight and compact, with consistent performance, Ace is along for the journey. From urban jungles to the call of the wild, be ready for every opportunity that comes your way.
With Ace in your corner, stability and smoothness comes with every shot. It simplifies your setup with camera plate markers, stepped counterbalance and quick pan and tilt adjustments. Ace XL supports camera rigs weighing up to 8kg (17.6lbs), with nine steps of balance to quickly match your payload. A 104mm (4.1in) balance plate sliding range helps position accessorised cameras centrally and Sachtler drag gives smooth movement in any temperature. Ace XL also includes an illuminated level bubble to keep things straight in any location and detachable threaded stud for when you want to swap to a slider. This Ace XL system is light in weight but not in features, so go further, climb higher and capture that winning shot unplanned or in the heat of the moment.
Every package carries the same head and the same carry case, and every tripod in the range takes three 3/8” accessory mounting points on the bowl so you can add something extra to your rig like a Magic Arm, plus a carry handle so you’re always ready to chase down the shot.
Technical data
| Fluid head |
Ace XL Mk II |
| Payload |
Up to 8kg (17.6lbs) |
| Counterbalance |
Nine steps |
| Drag |
Sachtler drag, smooth movement in any temperature |
| Balance plate sliding range |
104mm (4.1in) |
| Levelling |
Illuminated level bubble |
| Slider mount |
Detachable threaded stud |
| Aluminium 75/2 tripod |
Lightweight 2-stage aluminium 75mm, portable without sacrificing strength |
| Carbon Fibre 75/2 tripod |
Ultra-lightweight 2-stage carbon fibre 75mm, keeps weight to a minimum without sacrificing strength |
| flowtech75 tripod |
2-stage carbon fibre flowtech, quick release brakes at the top, hinge lock that allows deployment without a spreader for ultra-low and high shots, magnetic leg lock for transport |
| Aluminium 75/2, mid level, 1018AM |
Ace XL Mk II head, 2-stage aluminium 75mm tripod, detachable flowtech-style mid-level spreader, carry case. System weight 4.4kg (9.7lbs) |

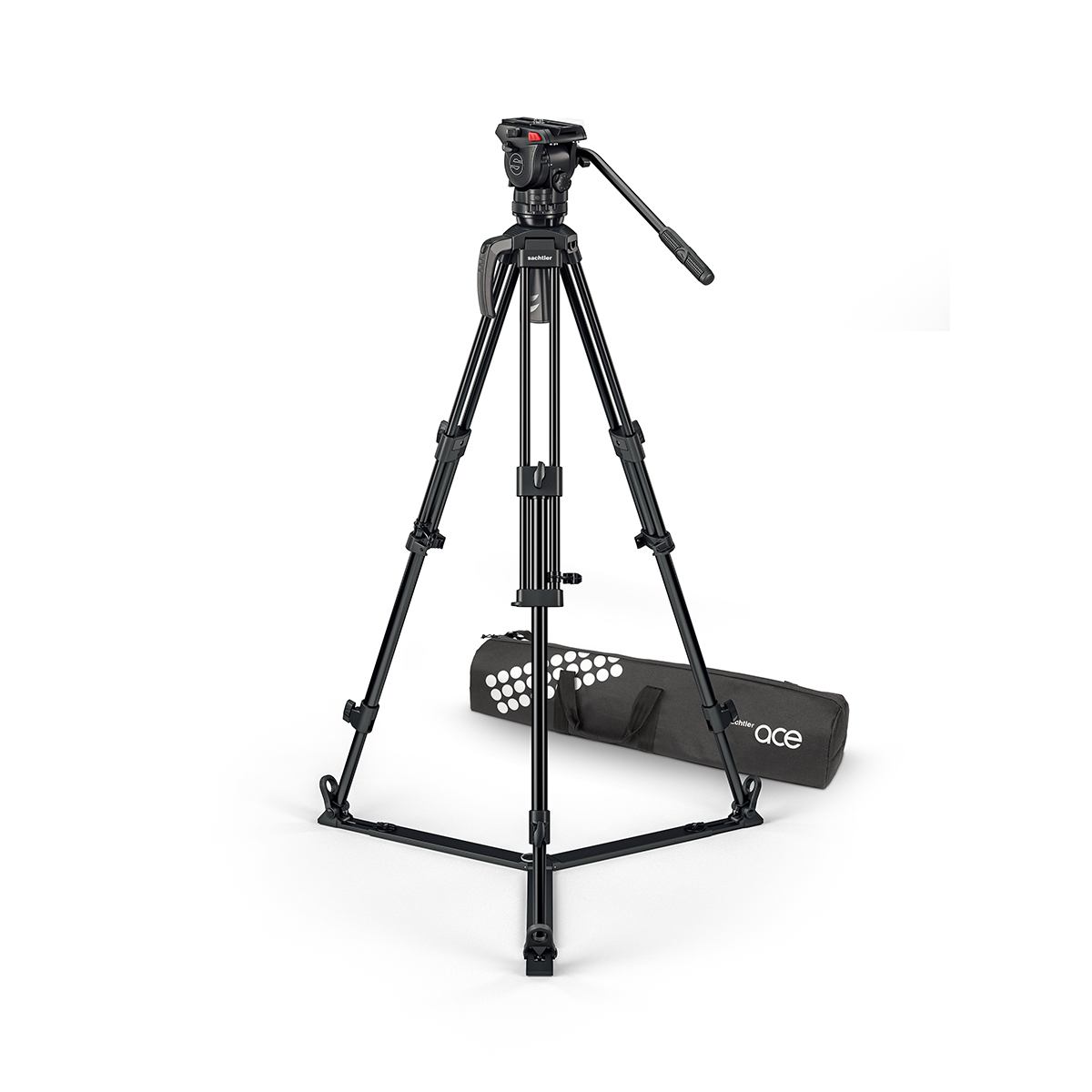

| Aluminium 75/2, ground, 1019AM |
Ace XL Mk II head, 2-stage aluminium 75mm tripod, detachable ground spreader, carry case. System weight 4.5kg (9.9lbs) |

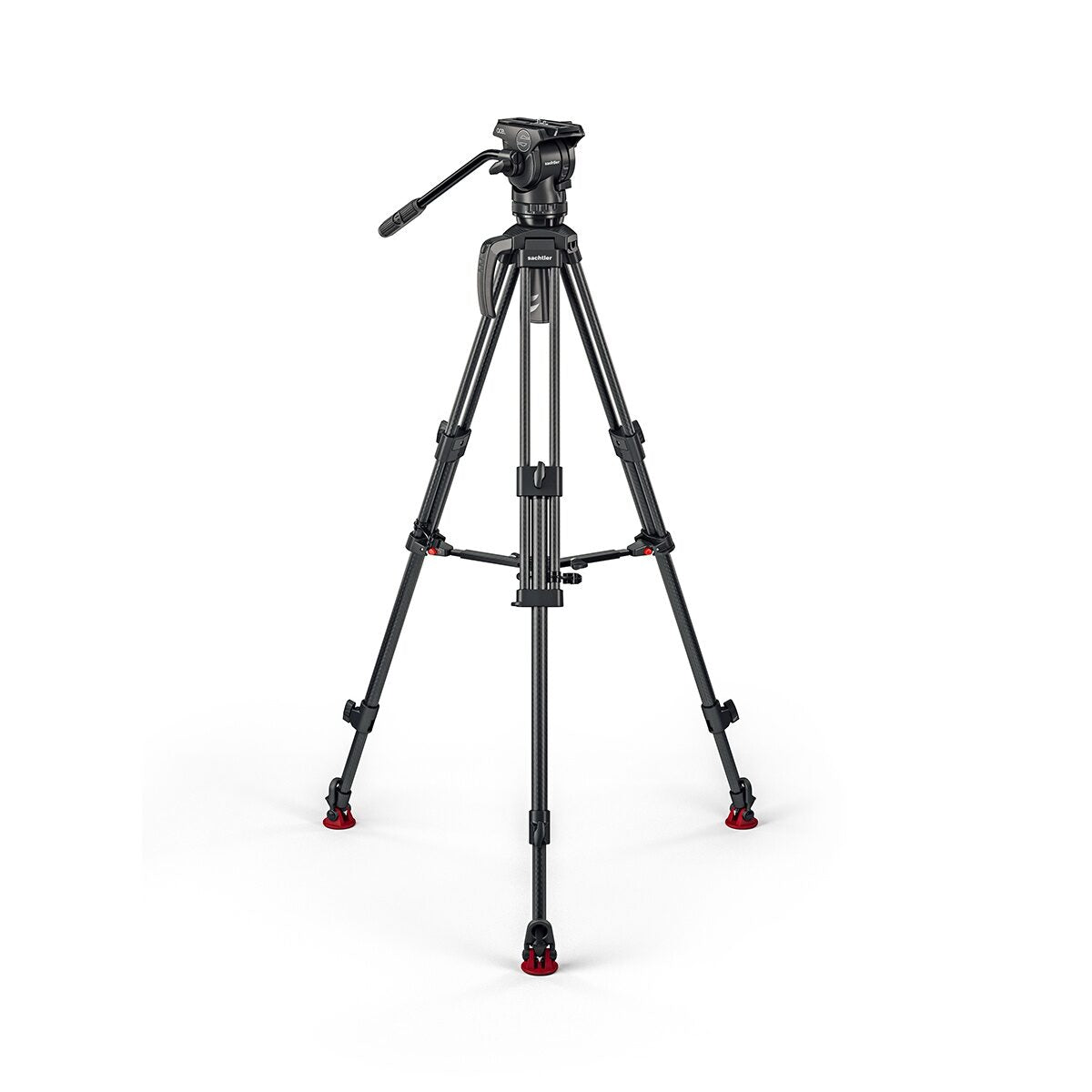

| Carbon Fibre 75/2, mid level, 1018CM |
Ace XL Mk II head, 2-stage carbon fibre 75mm tripod, detachable flowtech-style mid-level spreader, carry case. System weight 4.1kg (9lbs) |

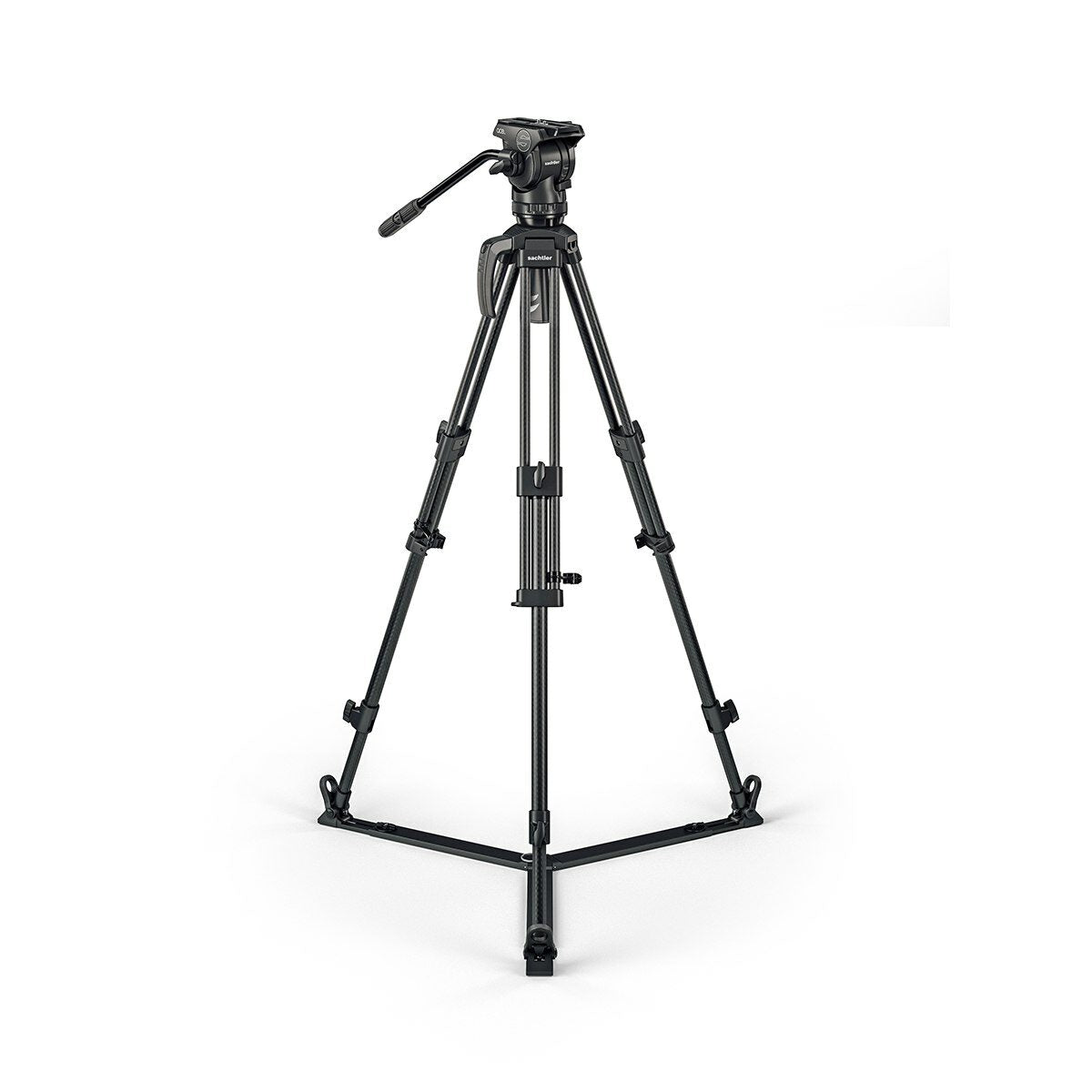

| Carbon Fibre 75/2, ground, 1019CM |
Ace XL Mk II head, 2-stage carbon fibre 75mm tripod, detachable ground spreader, carry case. System weight 4.2kg (9lbs) |

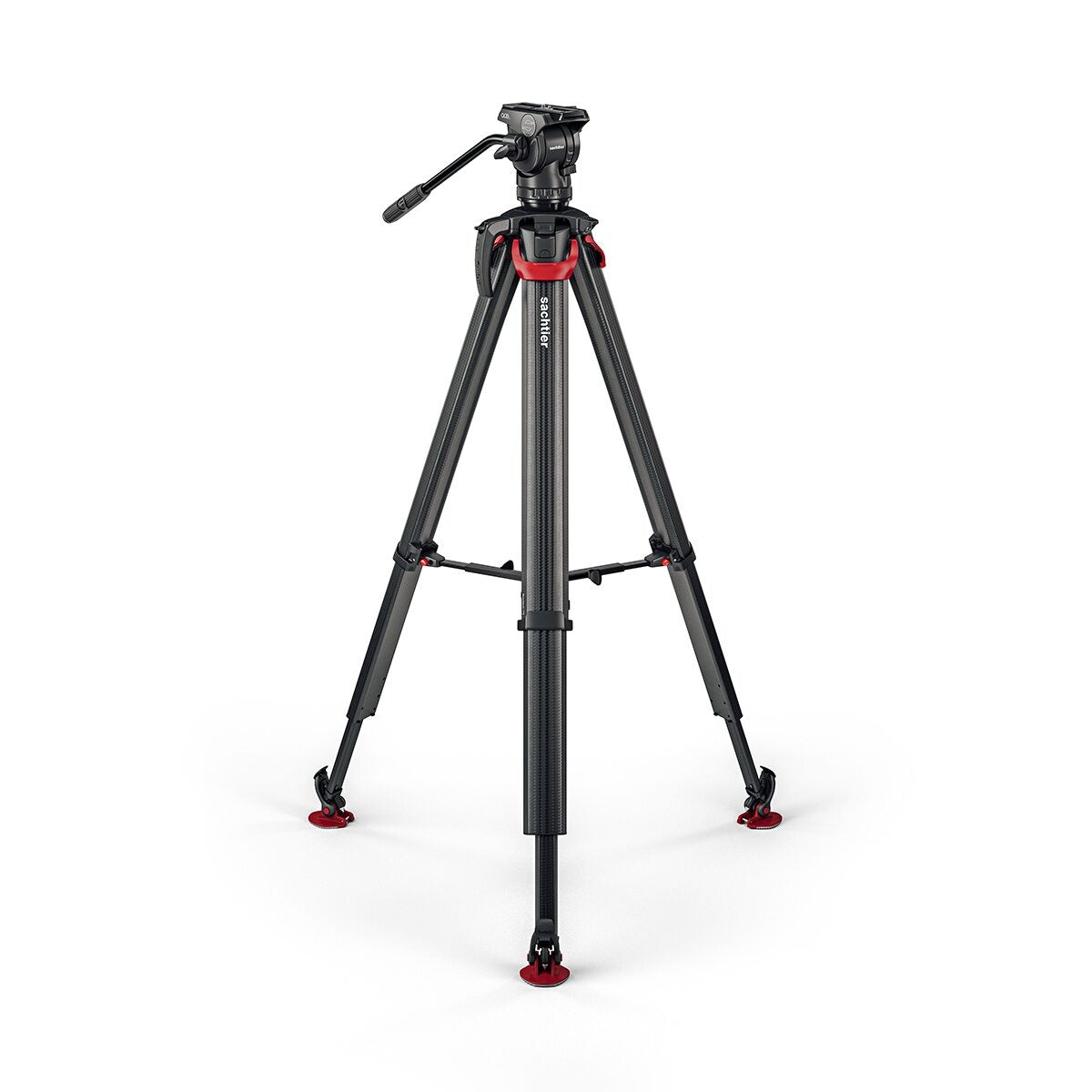

| flowtech75, mid level, 1016MS |
Ace XL Mk II head, 2-stage carbon fibre flowtech75 tripod, adjustable mid-level spreader, carry case. System weight 5.3kg (11.7lbs) |

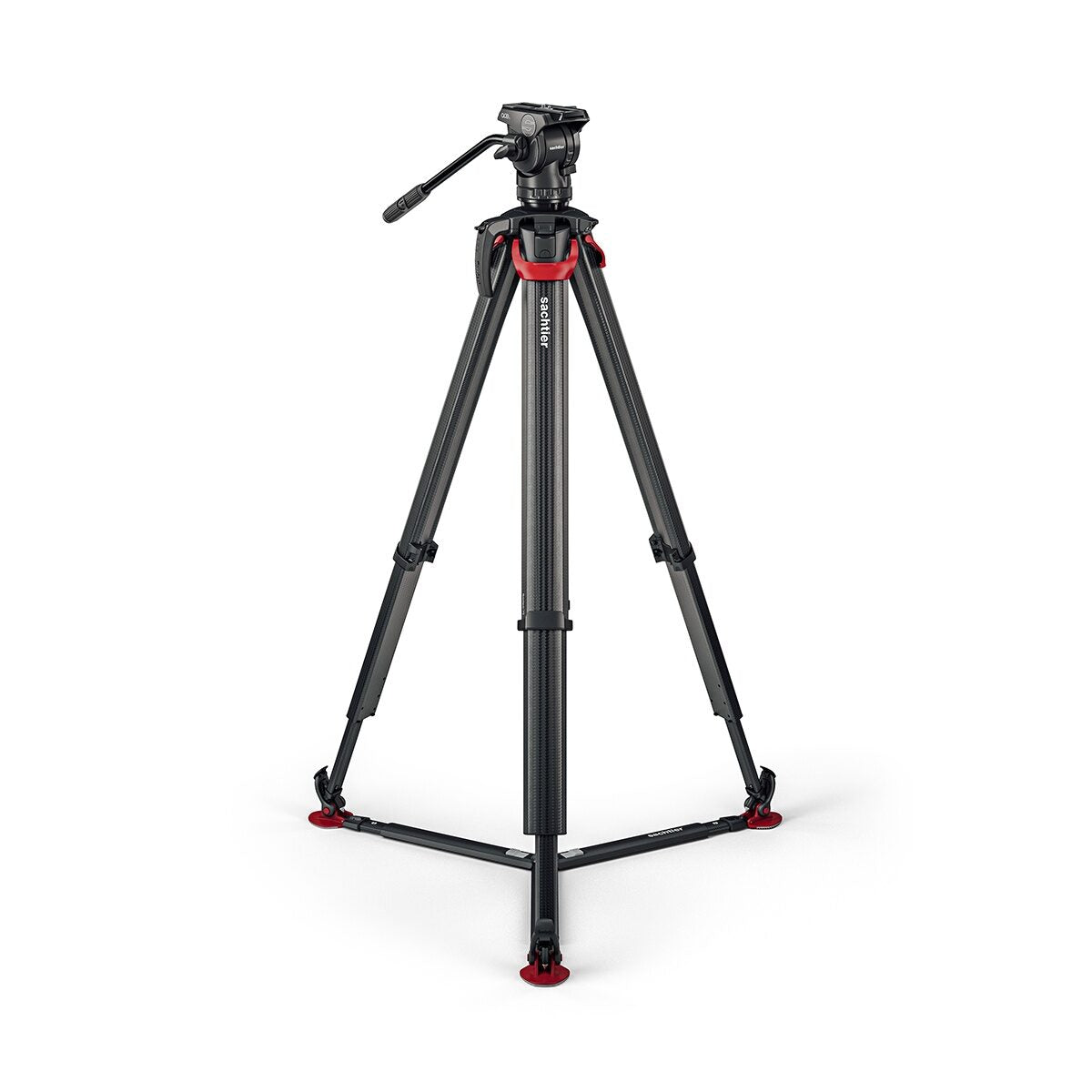

| flowtech75, ground, 1016GS |
Ace XL Mk II head, 2-stage carbon fibre flowtech75 tripod, detachable ground spreader, carry case. System weight 5.5kg (12.1lbs) |
| Part numbers |
1018AM, 1019AM, 1018CM, 1019CM, 1016MS, 1016GS |
Options
Choose Tripod first, then Spreader. Aluminium 75/2 is the lightweight 2-stage aluminium 75mm tripod, portable without sacrificing strength, and it is the value choice. Carbon Fibre 75/2 is the ultra-lightweight 2-stage version of the same tripod and keeps its weight to a minimum without sacrificing strength. flowtech75 is the 2-stage carbon fibre flowtech tripod, which Sachtler calls the world’s fastest: quick release brakes sit at the top of the legs so they can be deployed and adjusted in an instant, a hinge lock lets the tripod be deployed without a spreader for ultra-low and high shots, and a magnetic lock holds the legs together for transport.
Spreader sets what steadies the legs. Mid level gives stability no matter how rocky the road, and on the flowtech75 packages it is an adjustable mid-level spreader rather than the flowtech-style spreader fitted to the 75/2 tripods. Ground gives maximum stability wherever you are and is the usual choice on a flat floor. Every combination ships in a carry case.
Ace is built to earn its place on your journey. Designed with precision-engineered drag segments and rigorously tested materials, consistent performance is a given. That’s why Sachtler is trusted by professionals like you. Whatever path you choose to travel, Ace is your support system.
Figures published by Sachtler.
