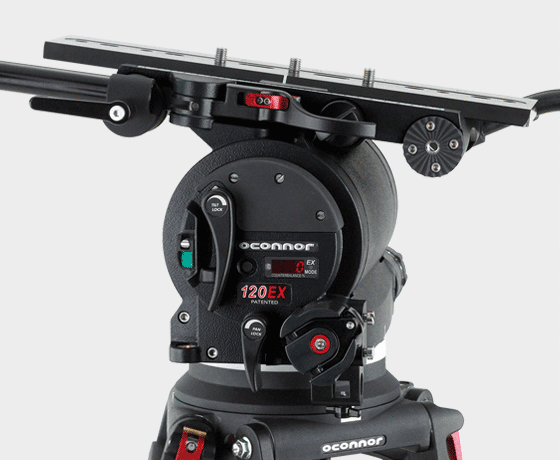

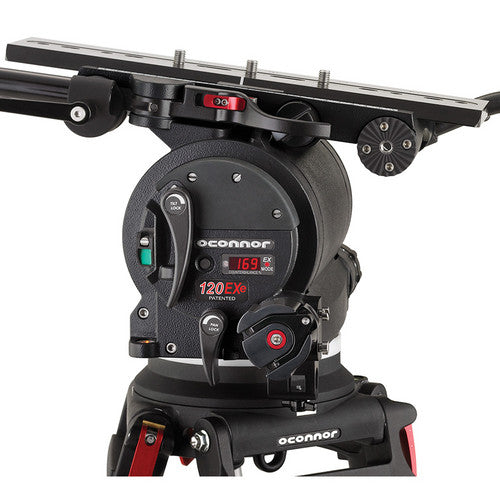

OConnor 120EXE Fluid Head Package
OConnor 120EXE Fluid Head Package
OConnor

OConnor 120EXE Fluid Head Package

$49,599.95
RRP inc GST /
Our SKU: C1226-0001

The OConnor 120EXe encoded fluid head is designed to provide high-precision pan and tilt position information for cinema-quality visual effects production, outputting position data via an external 19-pin Fischer connector for use with motion capture and pre-visualisation systems on set.

This package includes the 120EXe Fluid Head (Special Mitchell Only) with pan handle and extension, geared platform plate assembly and Mitchell tiedown with pan and tilt encoders, supporting payloads of 36.5-286 lb (16.5-129.4 kg) at a 6 in (152 mm) CoG above platform.

Model: 120EX & 120EXe
Capacity @ 8 in (203mm) minimum: 30 lbs (14 kg)
Capacity @ 8 in (203mm) +/-90 degrees: 120 lbs (54 kg)
Capacity @ 8 in (203mm) +/-80 degrees: 147 lbs (67 kg)
Capacity @ 8 in (203mm) +/-70 degrees: 188 lbs (85 kg)
Capacity @ 8 in (203mm) +/-60 degrees: 240 lbs (109 kg)
Handle(s): 30 degrees
Bases: Mitchell
Tilt: +90 / -90 degrees
Height: 9.8 in (24.8 cm)
Width: 13.5 in (34.3 cm)
Depth: 10.5 in (26.6 cm)
Weight: 34.1 lbs (15.5 kg)
120EXe digital output: high-resolution pan and tilt position data via external 19-pin Fischer connector, up to 1.8 million counts per revolution with companion encoder box
OConnor 120EXE Fluid Head (Special Mitchell Only)
Pan handle (2575-137)
Pan handle extension (2575-135)
Geared Platform Plate Assembly c/w Screws (C1225-1007)
Mitchell Tiedown (C1234-1018) with pan and tilt encoders
Payload: 36.5-286 lb (16.5-129.4 kg) at 6 in (152 mm) CoG above platform
