OConnor Ultimate 1040 Package
OConnor Ultimate 1040 Package
OConnor

OConnor Ultimate 1040 Package

$15,899.95
RRP inc GST /
Our SKU: C1265-0001

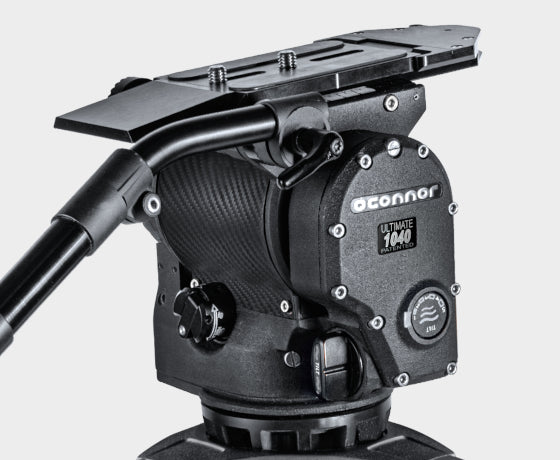

The Ultimate 1040 fluid head brings the same quality build and precision movement found in the larger OConnor 2575 and 2560 heads, enabling cinematographers to move easily from heavier to lighter payload camera setups without compromise. It features a stepless, ultra-smooth pan and tilt fluid drag along with the OConnor Sinusoidal Counterbalance system for true, accurate balance at any point in the tilt range, built from high-performance magnesium and aluminium alloys with stainless steel and genuine carbon fibre finishing.

This package includes the Ultimate 1040 Fluid Head with quick release, pan handle, ball base and tiedown, supporting payloads of 0-45 lb (0-20 kg) at a 5 in (127 mm) CoG above platform.

Model: 1040
Capacity @ 4 in (102mm) COG: 52 lbs (23.5 kg)
Capacity @ 5 in (127mm) COG: 45 lbs (20.4 kg)
Capacity @ 6 in (152mm) COG: 40 lbs (18.1 kg)
Capacity @ 8 in (203mm) COG: 32 lbs (14.5 kg)
Platform: Large Europlate Quick Release
Handle(s): 30 degrees
Bases: 100mm (Mitchell, 150mm, Quickfix and Ped mounts optional)
Tilt: +90 / -90 degrees
Height: 6.2 in (15.8 cm)
Width: 7.6 in (19.3 cm)
Depth: 4.6 in (11.7 cm) excluding quick release
Weight: 10.6 lbs (4.8 kg) includes quick release, plate and tiedown but excludes Pan Bar
OConnor Ultimate 1040 Fluid Head
Large Euro Quick Release with Camera Plate (1030-268)
Pan handle for 1030 range (1030-246)
Pan handle extension (2575-135)
100mm Ball Base (08365)
100mm FT Tiedown (S2052-1100)
Payload: 0-45 lb (0-20 kg) at 5 in (127 mm) CoG above platform
