OConnor Ultimate 2575E Package
OConnor Ultimate 2575E Package
OConnor

OConnor Ultimate 2575E Package

$34,899.95
RRP inc GST /
Our SKU: C1275-0001

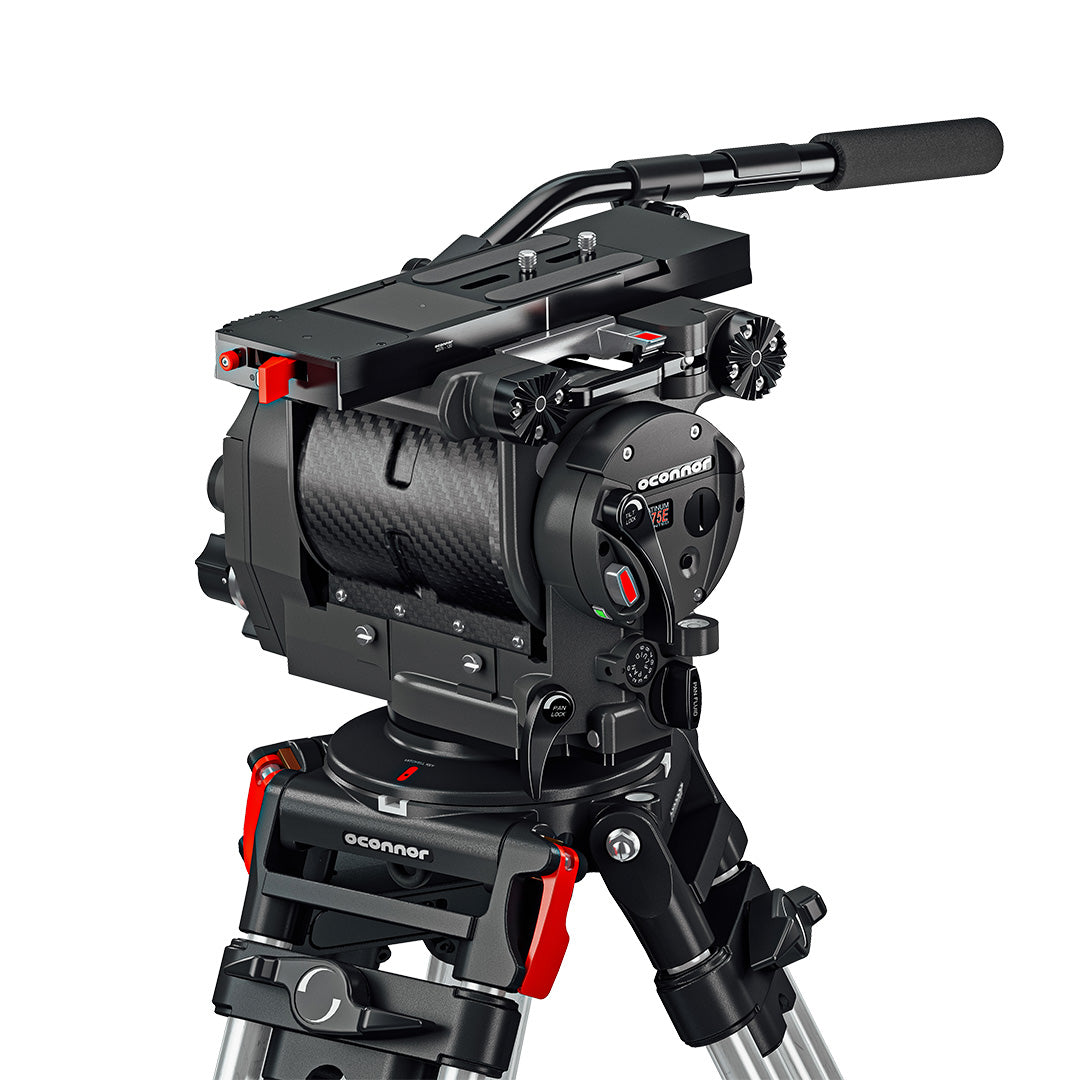

Marking 75 years since the first OConnor tripod was sold to Walt Disney, the 2575E Platinum Edition continues the legacy of the most popular fluid head in cinema history. It features OConnor's patented sinusoidal counterbalance system for true, accurate balance throughout the tilt range, combined with stepless, ultra-smooth pan and tilt fluid drag for ultimate control and stability in cinematic shooting.

This package includes the Ultimate 2575E Fluid Head with Euro style quick release, pan handle and extension, Mitchell base and 150mm ball base with tiedowns, supporting payloads of 0-105 lb (0-47.7 kg) at a 6 in (152 mm) CoG above platform.

Model: 2575E
Capacity @ 4 in (102mm): 133 lbs (60.5 kg)
Capacity @ 6 in (152mm): 105 lbs (47.7 kg)
Capacity @ 8 in (203mm): 87 lbs (39.5 kg)
Platform options: OConnor Plate, 120mm Euro Plate, Arri style Dovetail Plate
Handle options: 30 degrees, large 30 degrees, front
Bases: Mitchell, 150mm, Pedestal adaptor
Tilt: +90 / -90 degrees
Height: 8.4 in (21.3 cm)
Width: 12.4 in (31.5 cm)
Depth: 8.6 in (21.8 cm)
Weight (Head C1275-0002): 24 lb (10.9 kg)
Weight (Package C1275-0001): 30 lb (13.6 kg)
OConnor Ultimate 2575E Fluid Head (C1275-0002)
Euro Style Quick Release (2575-120)
Pan handle (2575-137)
Pan handle extension (2575-135)
Mitchell Base & tiedown (C1275-1010 & C1234-1018)
150mm ball base & tiedown (08414 & C1234-1017)
Payload: 0-105 lb (0-47.7 kg) at 6 in (152 mm) CoG above platform
