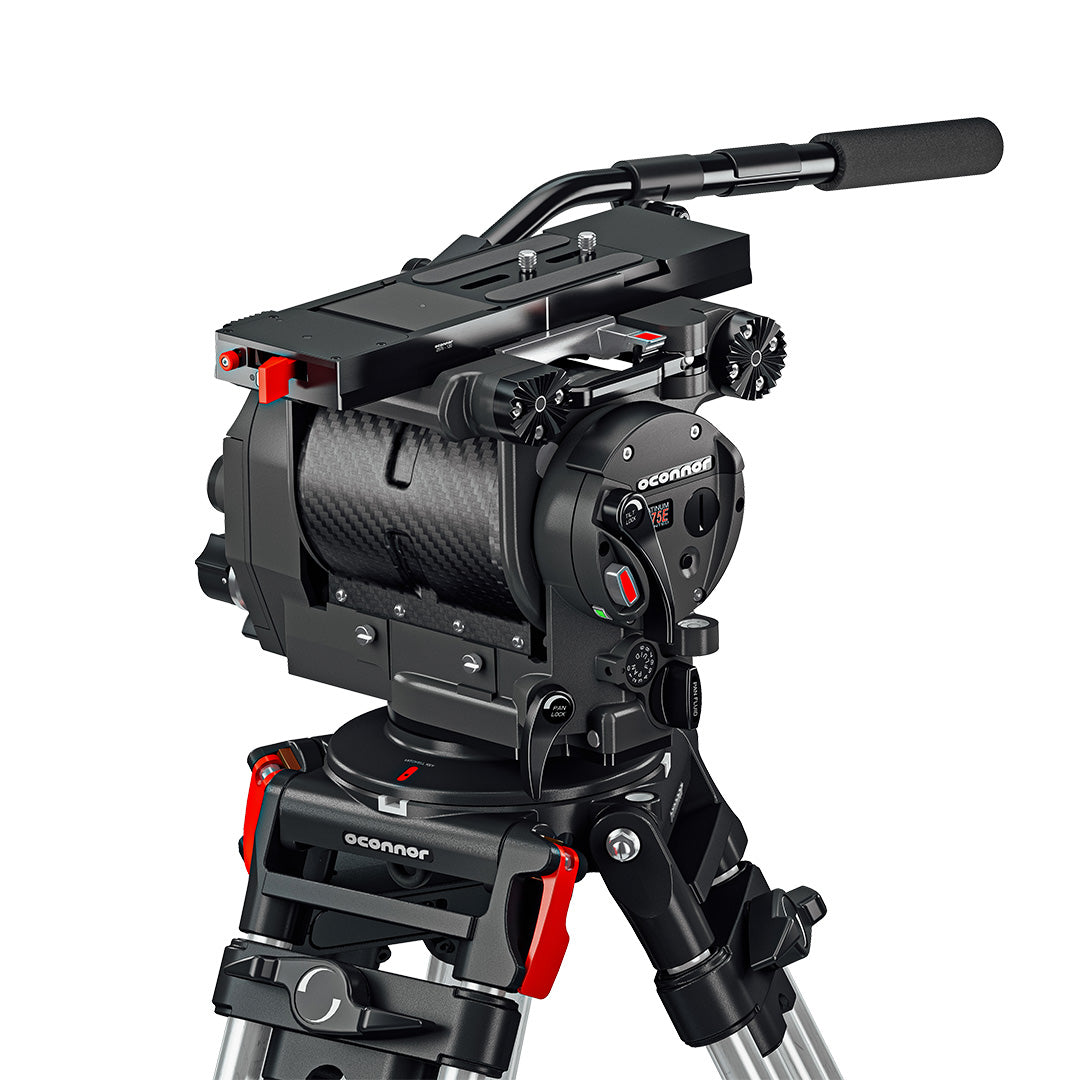

OConnor Ultimate 2575E Fluid Head
OConnor Ultimate 2575E Fluid Head
OConnor

OConnor Ultimate 2575E Fluid Head

$32,399.95
RRP inc GST /
Our SKU: C1275-0002

Marking 75 years since the first OConnor tripod was sold to Walt Disney, the 2575E Platinum Edition continues the legacy of the most popular fluid head in cinema history, featuring OConnor's patented sinusoidal counterbalance system and stepless, ultra-smooth pan and tilt fluid drag.

OConnor Ultimate 2575E Fluid Head (without base, pan bar or plate) 0-105 lb (0-47.7 kg) payload at 6 in (152 mm) CoG above platform

Model: 2575E
Capacity @ 4 in (102mm): 133 lbs (60.5 kg)
Capacity @ 6 in (152mm): 105 lbs (47.7 kg)
Capacity @ 8 in (203mm): 87 lbs (39.5 kg)
Platform options: OConnor Plate, 120mm Euro Plate, Arri style Dovetail Plate
Handle options: 30 degrees, large 30 degrees, front
Bases: Mitchell, 150mm, Pedestal adaptor
Tilt: +90 / -90 degrees
Height: 8.4 in (21.3 cm)
Width: 12.4 in (31.5 cm)
Depth: 8.6 in (21.8 cm)
Weight (Head C1275-0002): 24 lb (10.9 kg)
Weight (Package C1275-0001): 30 lb (13.6 kg)
