What you'd use it for
A soft face for the eyepiece so the operator is not pressed against hard rubber all day. The Ultrasuede microfiber is soft, absorbs moisture well and stays comfortable in heat and cold, which is what you want on a long handheld day or a job in the tropics. Keeping a few colours on the shelf is a cheap way to tell bodies and operators apart on a multi-camera shoot, and to swap a tired cushion out between hires.
Shapes

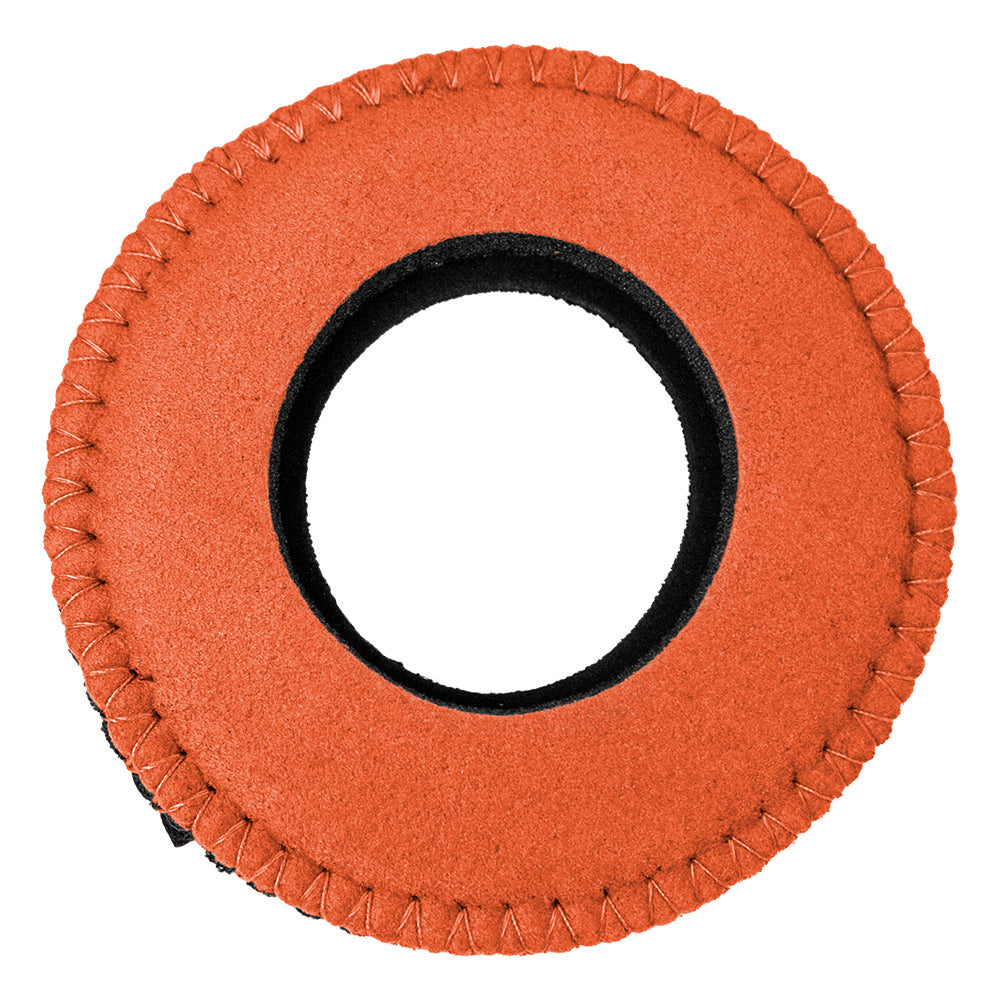

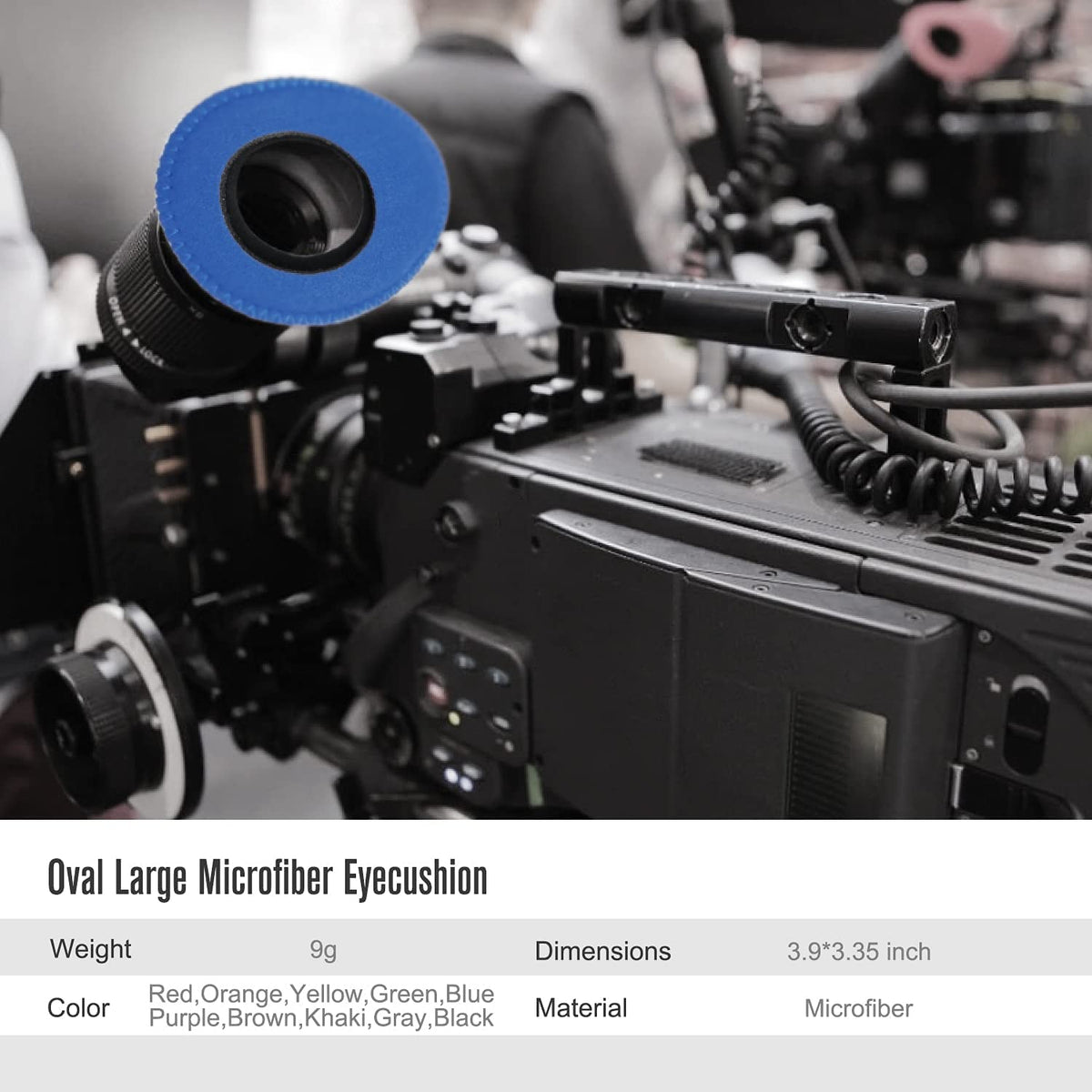

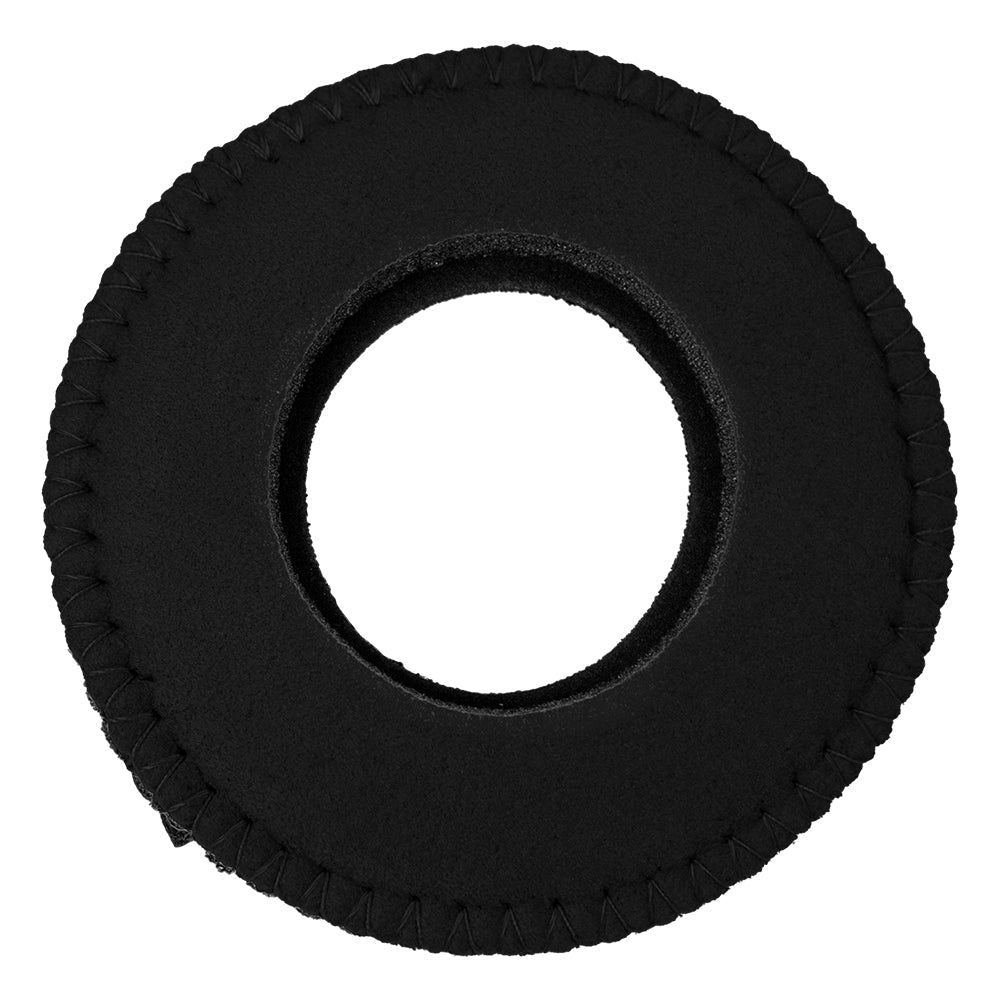

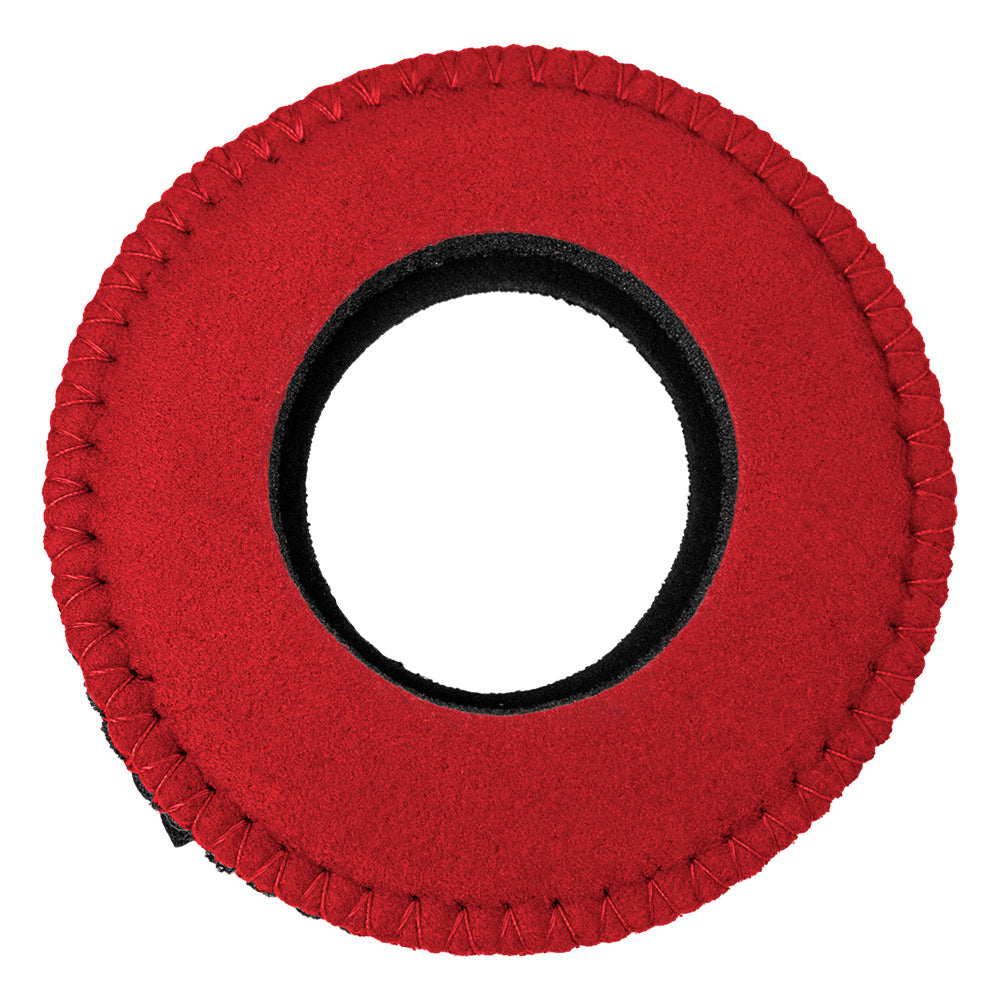

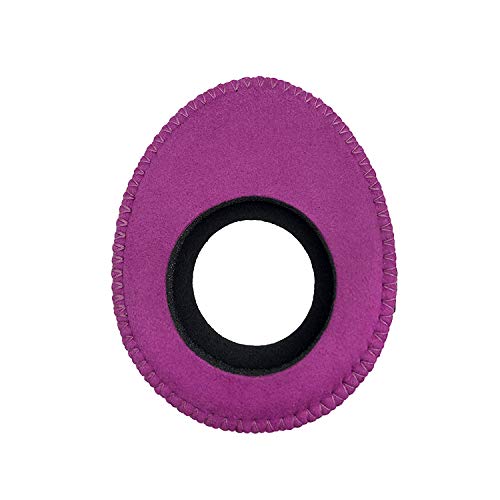

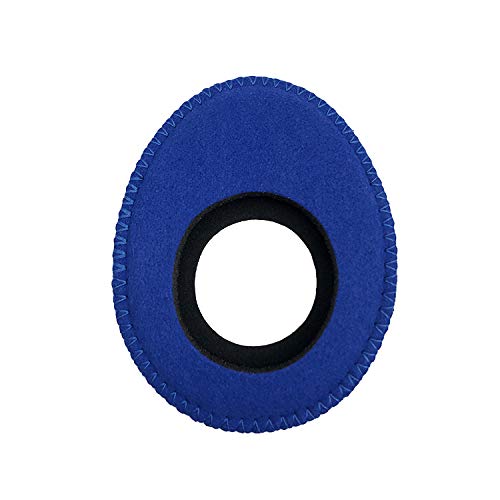

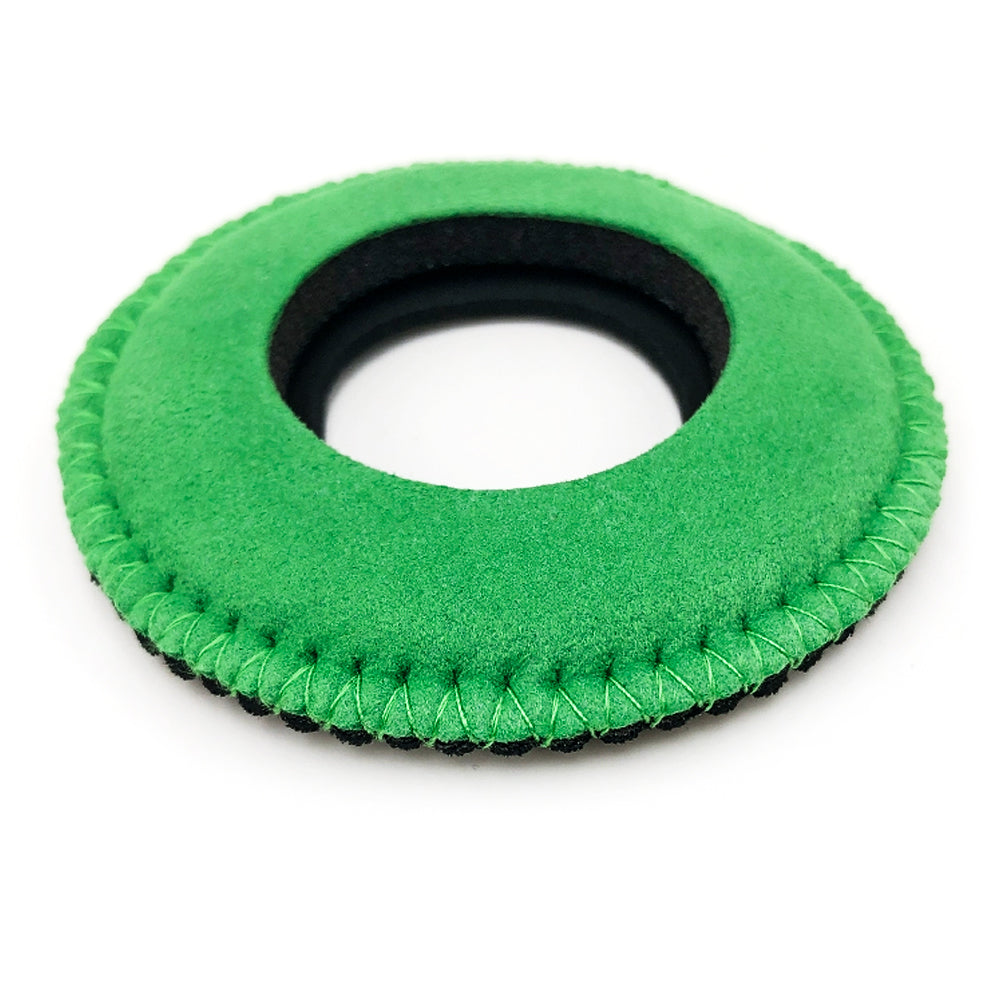

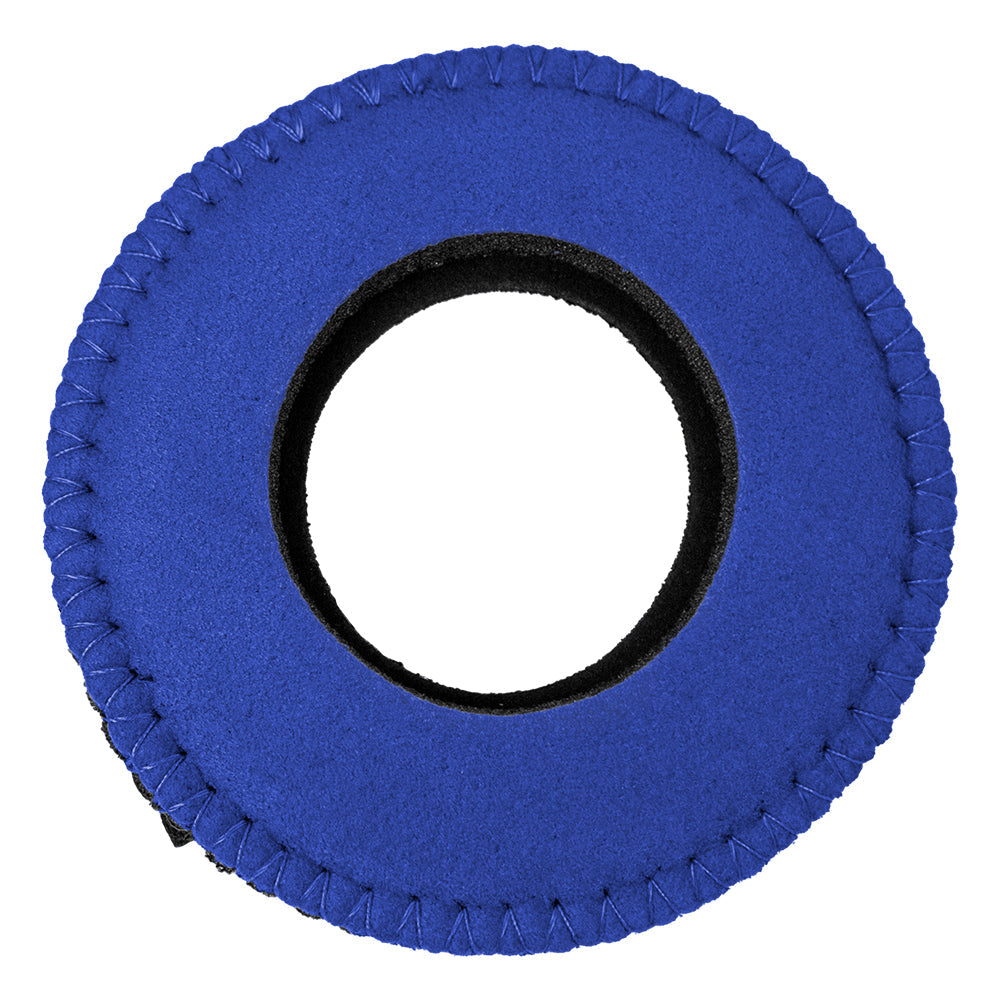

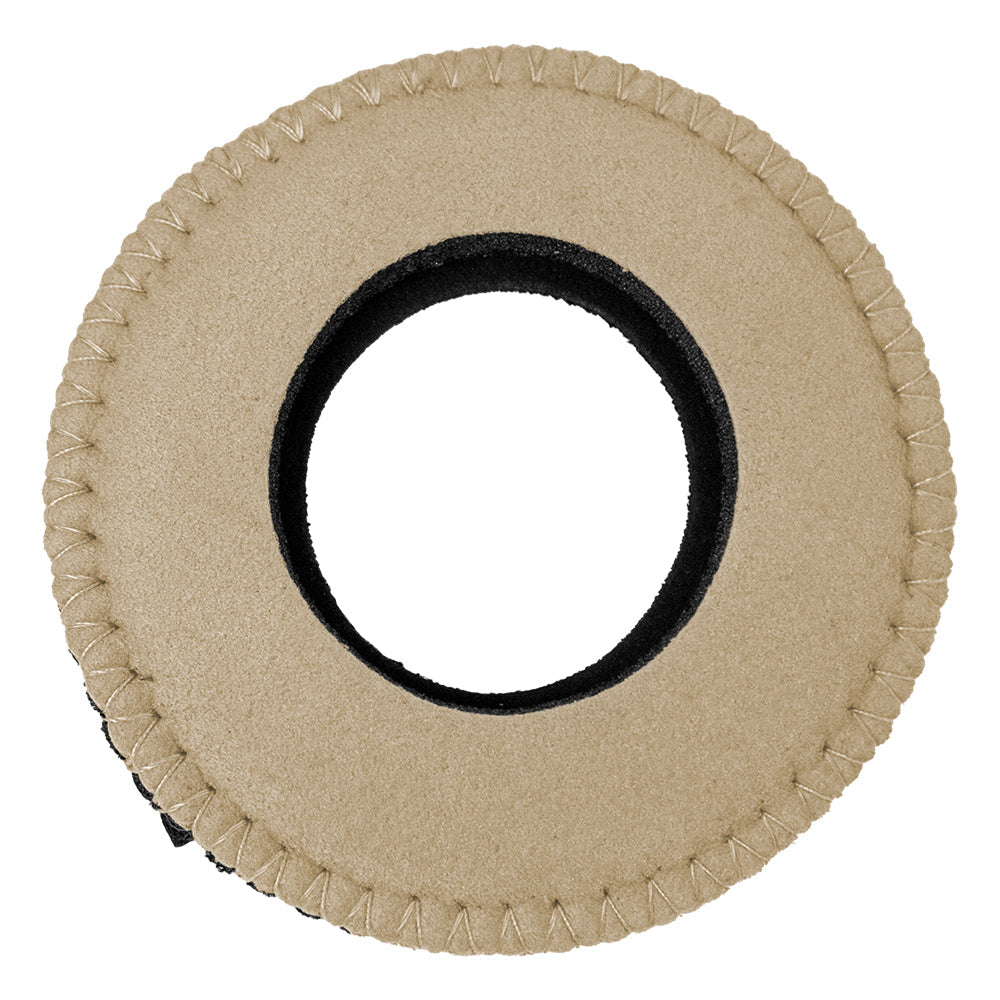

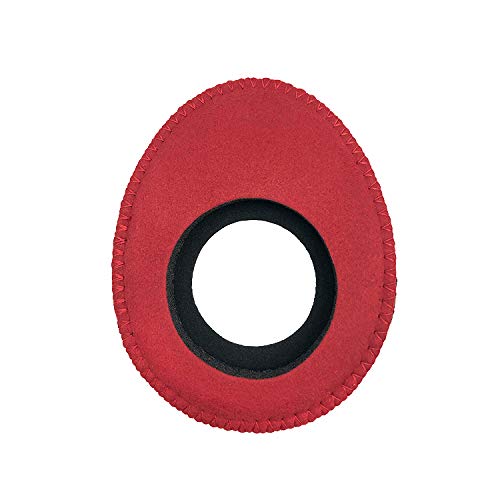

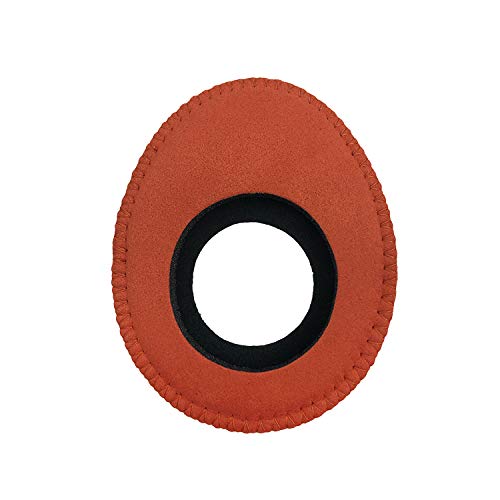

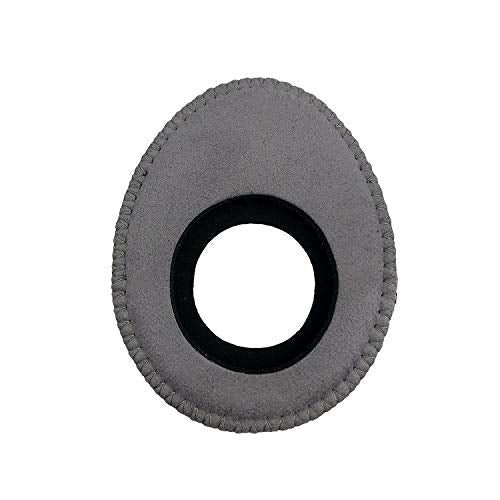

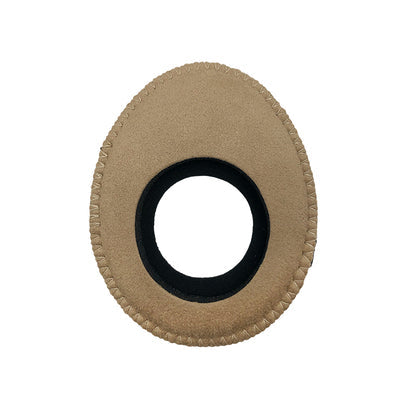

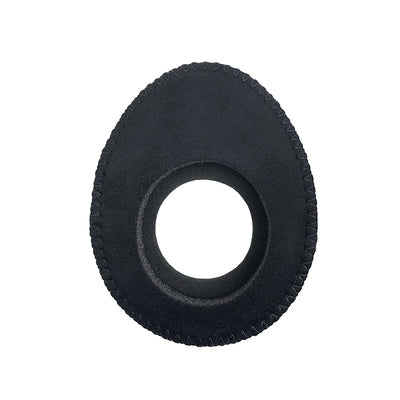

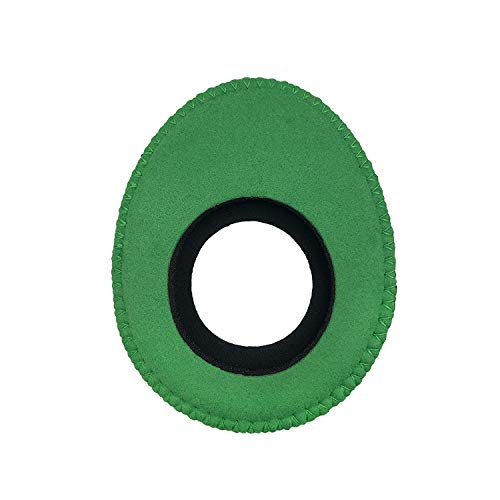

Oval is the large cushion, 100 x 86 mm outside with a 49 mm inside diameter, and OpenMoon publish a viewfinder fit list for it. Round is the small cushion at 77 x 77 mm. Check the fit list below before ordering, and if the viewfinder you are covering is not on it, measure the eyecup first.
Oval fit list published by OpenMoon
- ARRI Alexa, Alexa Mini and Amira
- Sony VENICE, PDW-F800, FS-100, FS-700, F55, F5, EX3 and EX1
- Canon C700
- JVC GY-100U
- Panasonic VariCam 27F, VariCam 4K, DVCPRO HD and DVX200 4K
- Many similar oval eyecups
Technical data
| Material |
Ultrasuede microfiber |
| Oval, outside dimensions |
100 x 86 mm, 4 x 3.4 in |
| Oval, inside diameter |
49 mm, 1.9 in |
| Round, dimensions |
77 x 77 mm |
| Oval colours |
Black, Grey, Brown, Khaki, Green, Blue, Dark Blue, Purple, Red, Orange, Yellow, Pink |
| Round colours |

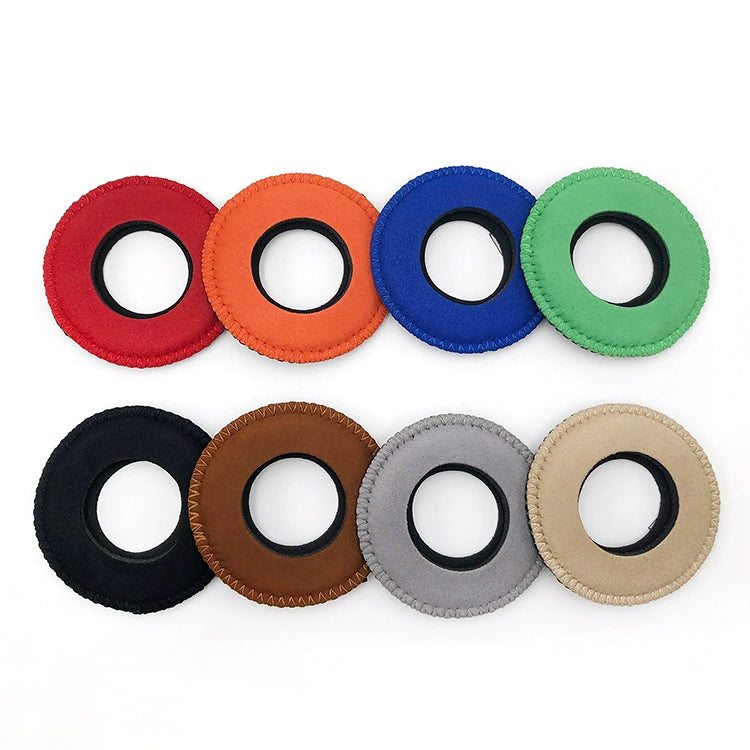

Black, Grey, Brown, Khaki, Green, Blue, Red, Orange |
Figures published by OpenMoon.
A viewfinder fit list for the round shape is not published by OpenMoon.
