What you'd use it for
The Video 18 fluid head has been helping people get amazing results all over the world for decades. It can support a payload of up to 22 kg and is a perfect fit for a wide range of video projects. This operational versatility is added to by 16-steps of counterbalance and seven steps of pan and tilt drag, which allows you to work intuitively safe in the knowledge that movement will always be smooth and seamless.
The Touch & Go quick release camera plate and sliding balance platform mean that once you’ve clicked your camera into place, the entire platform adjusts to balance your setup. The Sachtler Speedbalance technology provides lightning fast weight compensation, making the Video 18 S2 a time-saver as well as a reliable part of your gear.
ENG and EFP crews will love the Touch & Go function for speedy mounting and removal of the camera, robust temperature resistance, position for spare camera screws and self-illuminating levelling bubble. The Sachtler Video 18 is designed to work as fast as you do.
Technical data
| Fluid head |
Sachtler Video 18 S2 |
| Payload |
Up to 22 kg |
| Counterbalance |
16 steps, Sachtler Speedbalance |
| Pan and tilt drag |
Seven steps |
| Camera plate |
Touch & Go quick release, sliding balance platform |
| Levelling |
Self-illuminating levelling bubble |
| ENG 2 D |
Video 18 S2 head, Sachtler ENG 2 D dual extractible aluminium tripod. 100 mm bowl, 16 mm tube diameter, extended height 1.5 m, tripod payload up to 35 kg |
| ENG 2 Carbon Fibre |
Video 18 S2 head, Sachtler ENG 2 CF dual extractible carbon fibre tripod. 100 mm bowl, 22 mm tube diameter, 2.4 kg, transport length 70 cm, tripod payload 40 kg |
| ENG 2 MCF |
Video 18 S2 head, Sachtler ENG 2 CF dual extractible carbon fibre tripod. 100 mm bowl, 22 mm tube diameter, 2.4 kg, transport length 70 cm, tripod payload 40 kg |
| HD MCF |
Video 18 S2 head, Sachtler ENG 2 CF Heavy-Duty Carbon Fibre tripod with fast action clamps |
| ENG 2 D with Dolly |
Video 18 S2 head, Sachtler ENG 2 D dual extractible aluminium tripod, dolly. 100 mm bowl, 16 mm tube diameter, extended height 1.5 m, tripod payload up to 35 kg |
| SL HD MCF |
Video 18 S2 head, Sachtler SpeedLock Heavy-Duty Carbon Fibre tripod with patented three-step clamping system |
| Part numbers |
1861S2 ENG 2 D, 1862S2 ENG 2 Carbon Fibre, 1863S2 ENG 2 MCF, 1866S2 HD MCF, 1868S2 ENG 2 D with Dolly, 1867S2 SL HD MCF |
Options
Every configuration carries the same Video 18 S2 fluid head. The Configuration selector chooses the legs, and the values follow Sachtler's package naming: CF is carbon fibre, HD is heavy-duty and SL is SpeedLock.

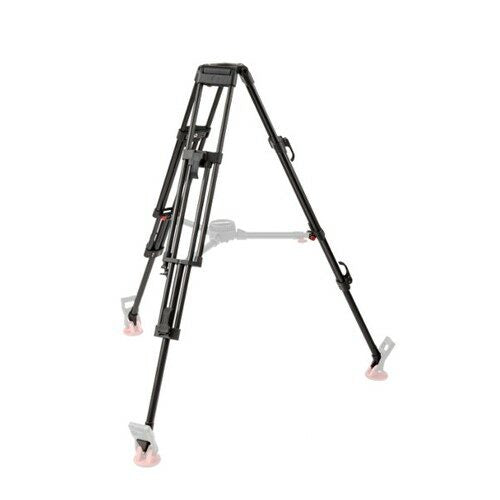

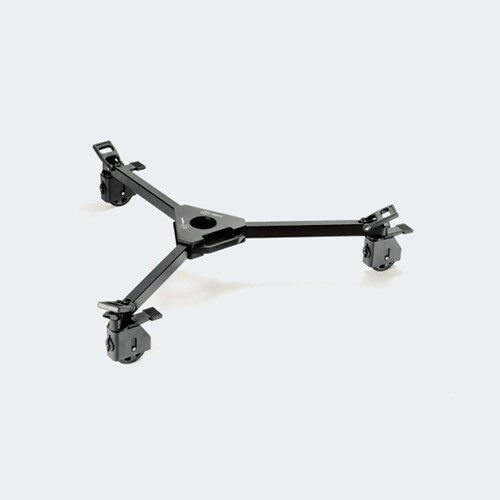

ENG 2 D (1861S2) and ENG 2 D with Dolly (1868S2) use the Sachtler ENG 2 D aluminium tripod, an alternative to EB carbon fibre tripods that gives you stability for payloads of up to 35 kg without giving up lightweight design and easy transportability. It is a dual extractible aluminium ENG tripod with a 16 mm tube diameter and a 100 mm bowl base, and its double extension delivers optimal stability with an extended height of 1.5 m. The quick clamping system locks the legs in seconds.

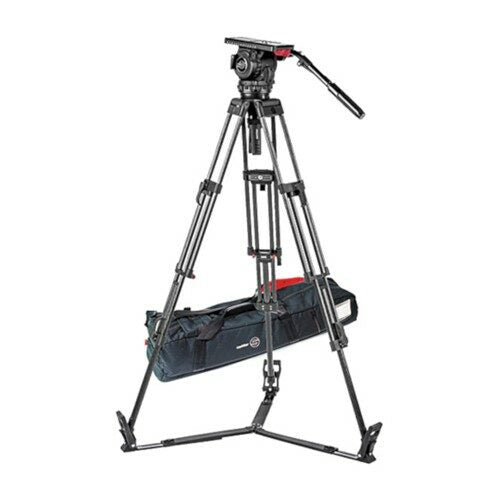

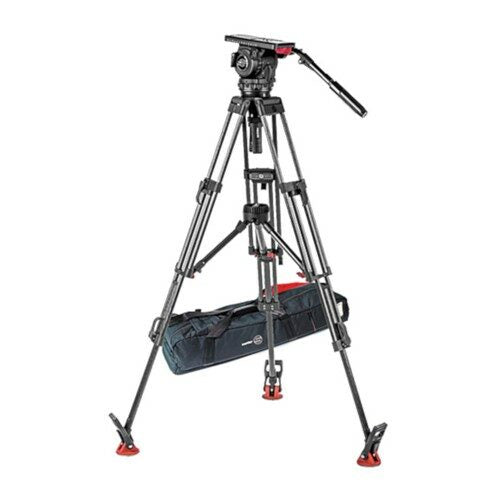

ENG 2 Carbon Fibre (1862S2) and ENG 2 MCF (1863S2) use the best-selling Sachtler dual-extractible ENG 2 CF carbon fibre tripod. Lightweight and twist-resistant, the one-piece carbon fibre design features a 100 mm bowl with a tube diameter of 22 mm, and the quick clamping system locks it in place securely in three quick movements. Dual extension boosts height range and carries a payload of 40 kg, at 2.4 kg and a transport length of 70 cm.
HD MCF (1866S2) uses the Sachtler ENG 2 CF Heavy-Duty Carbon Fibre Tripod, a durable and reliable design that is stable and twist resistant, with fast action clamps that make it simple to setup and start working safely. SL HD MCF (1867S2) uses the Sachtler SpeedLock Heavy-Duty Carbon Fibre Tripod, whose patented three-step clamping system locks the leg in place in seconds and allows smooth, secure adjustments, with the clamping connection forming a third tube to further help you stay balanced.
Figures published by Sachtler.
