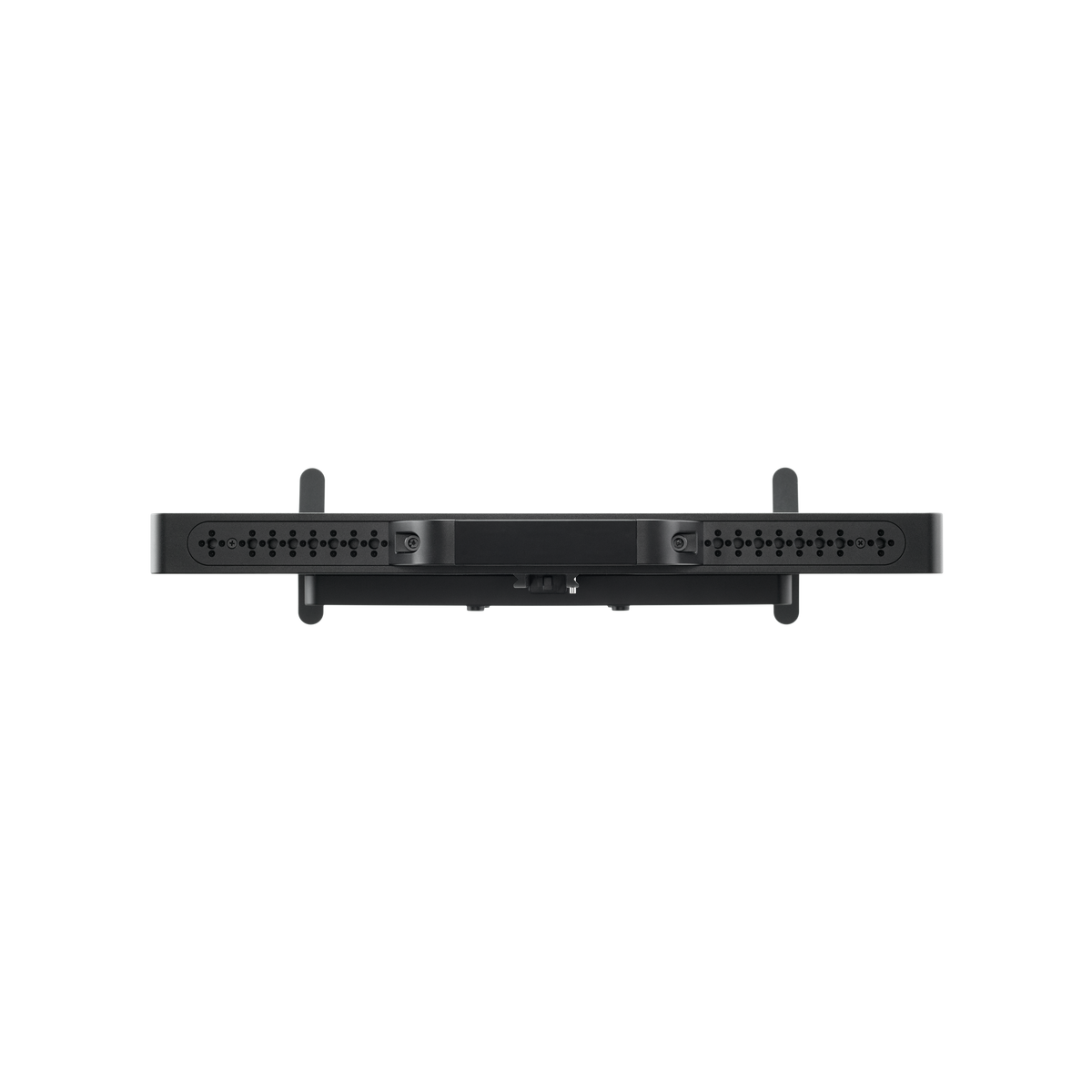

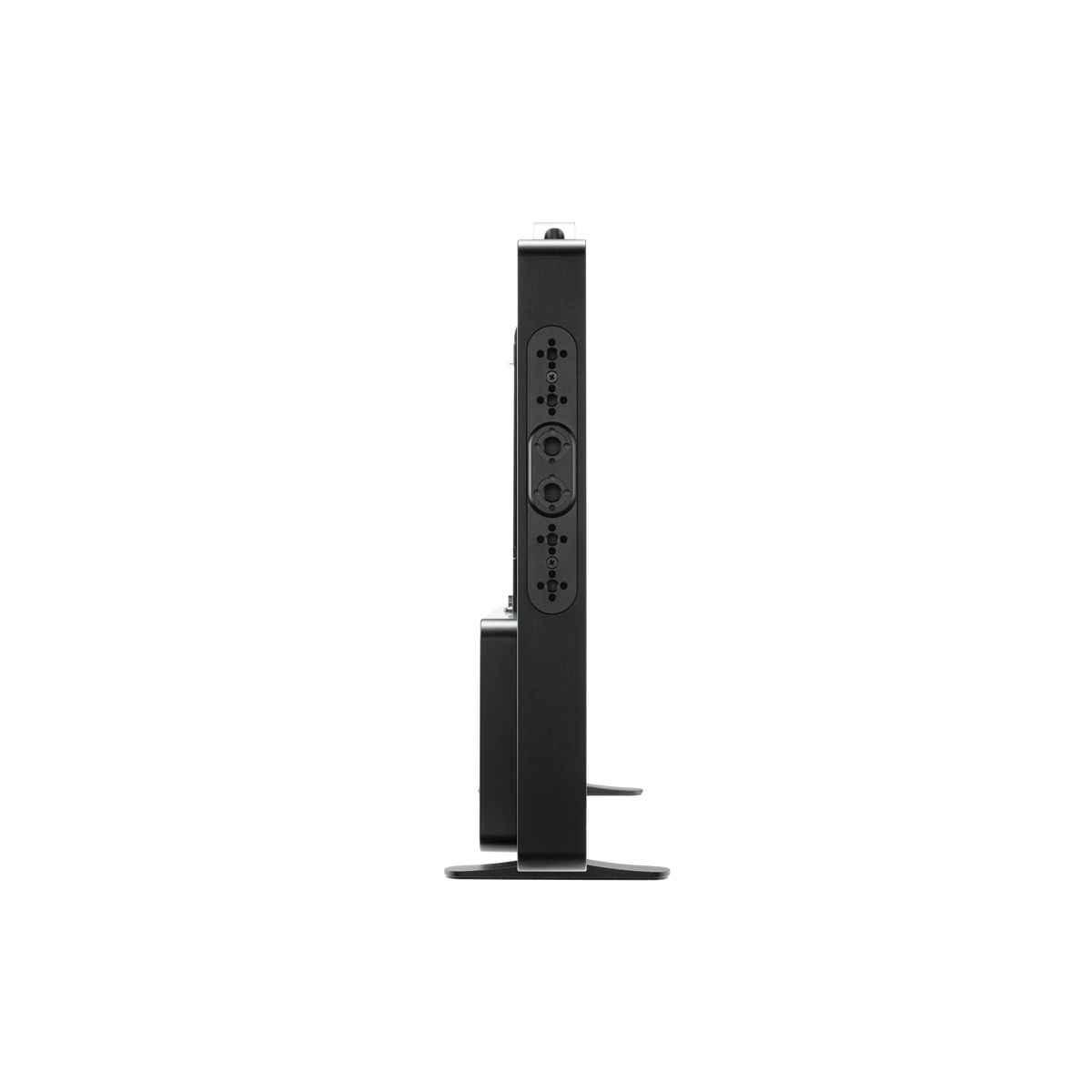

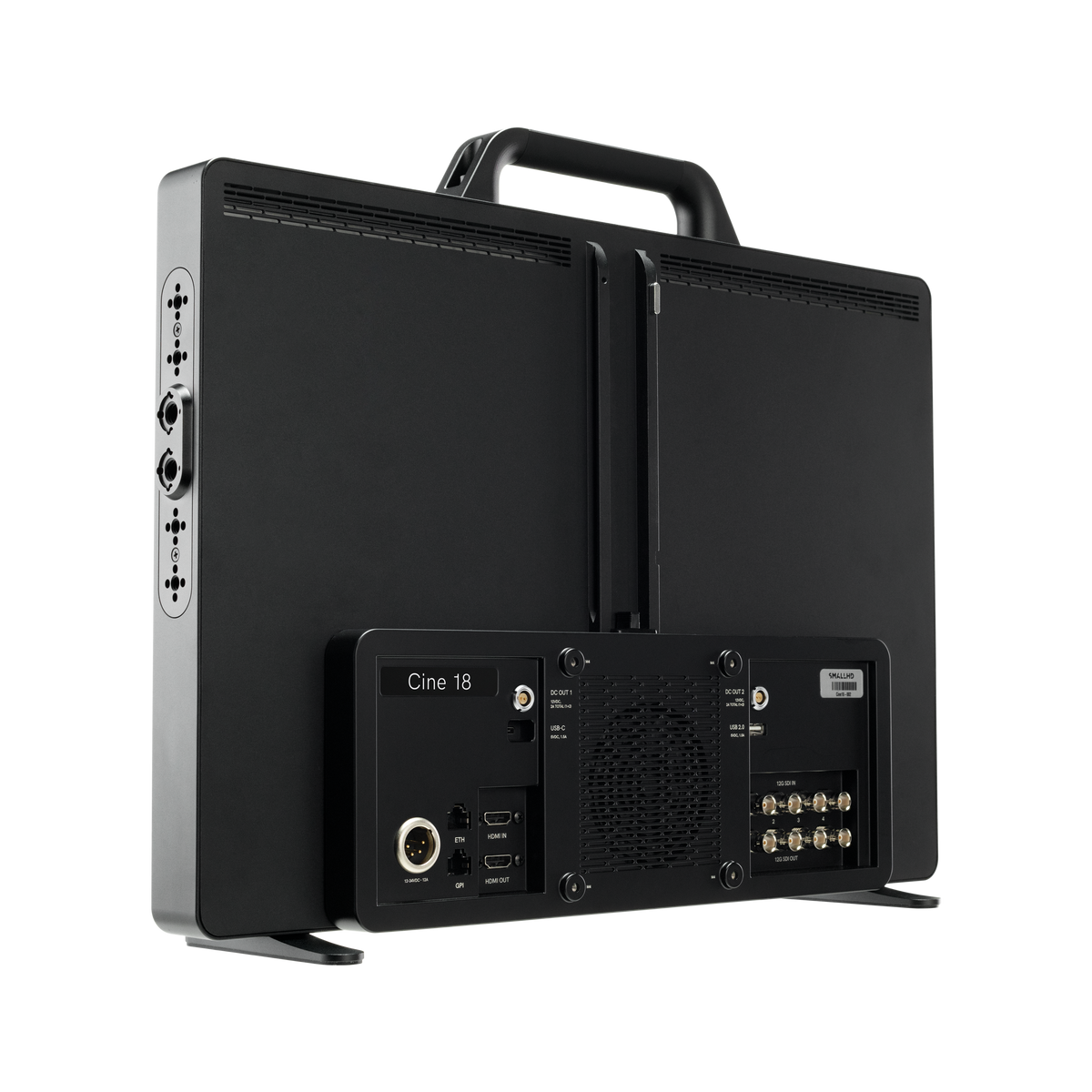

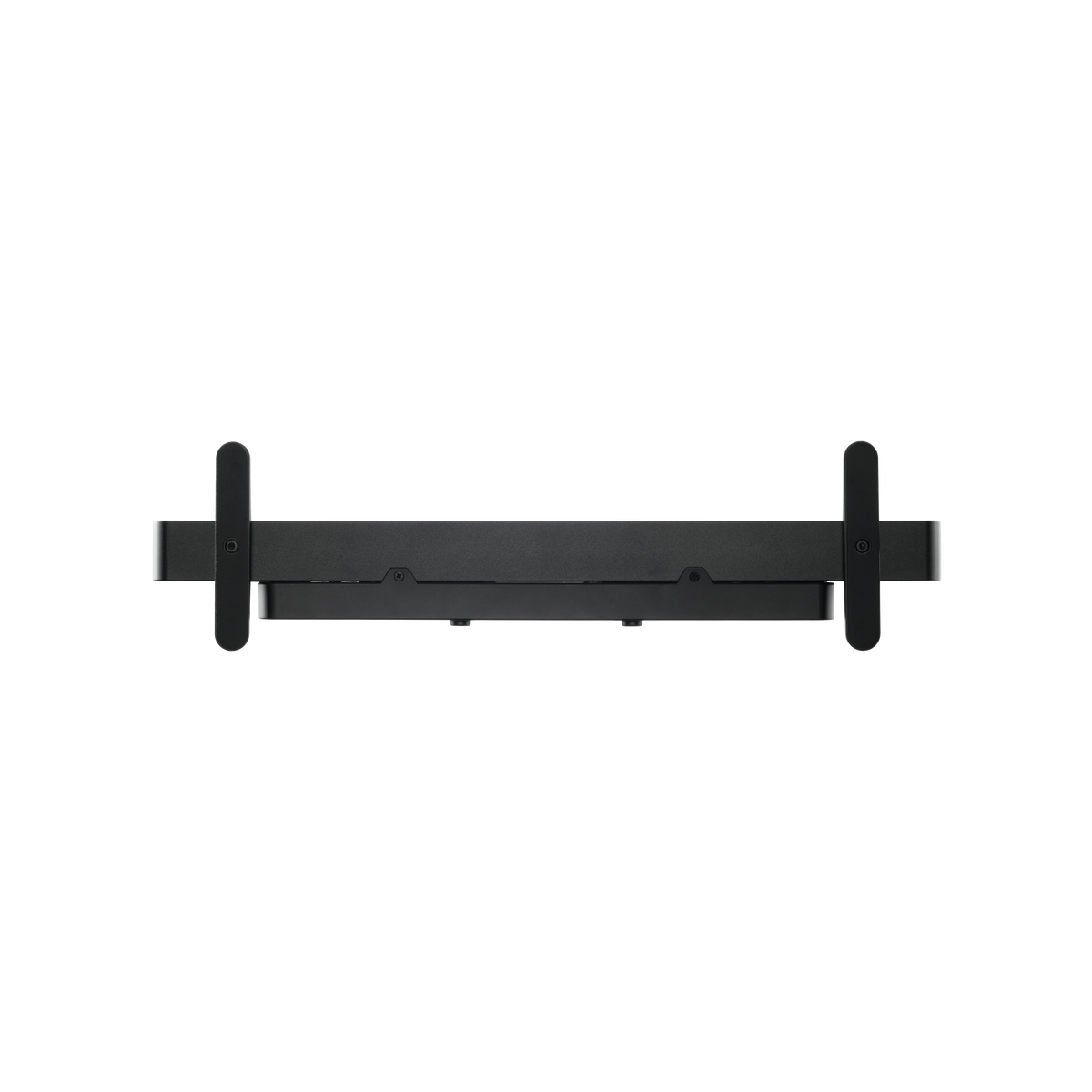

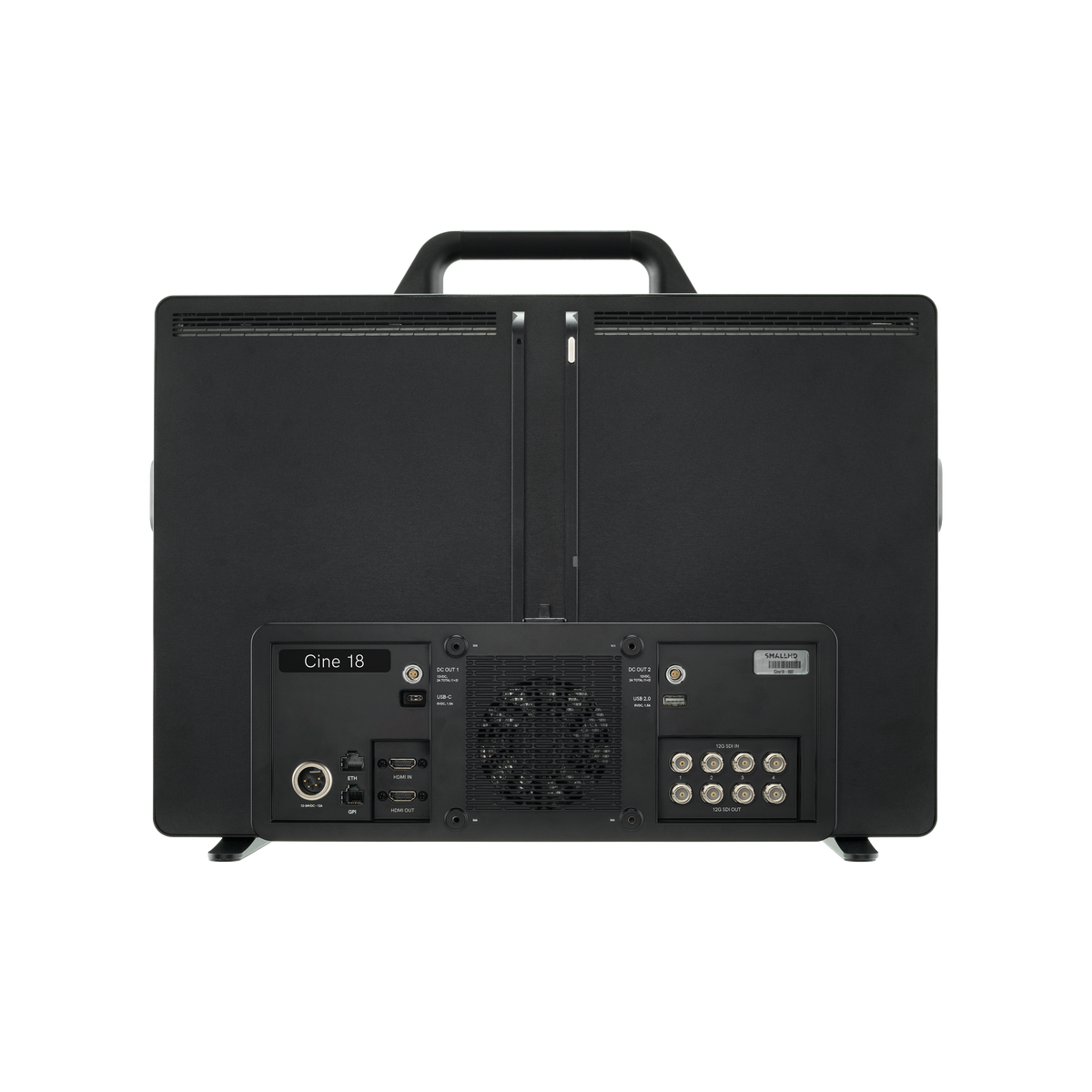

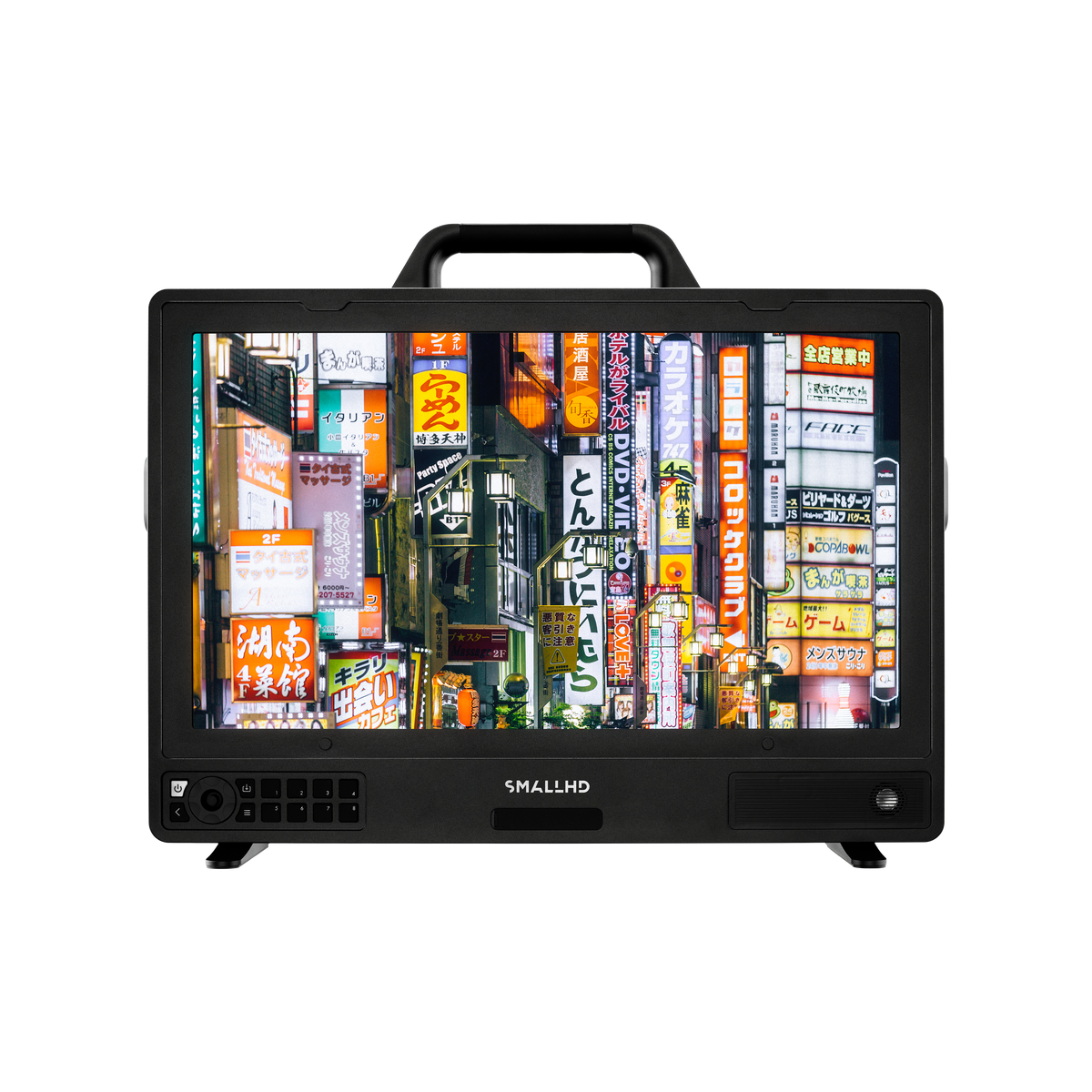

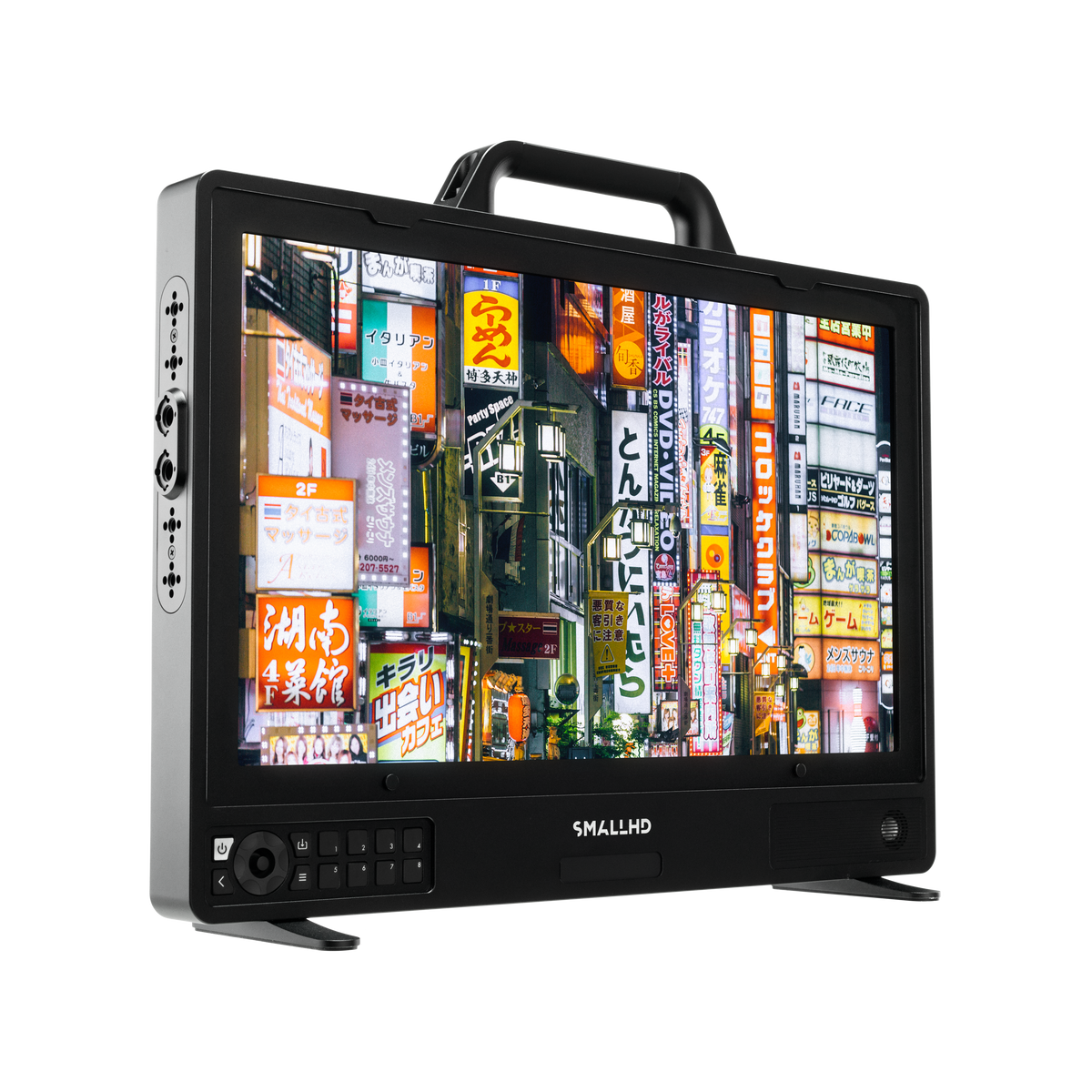

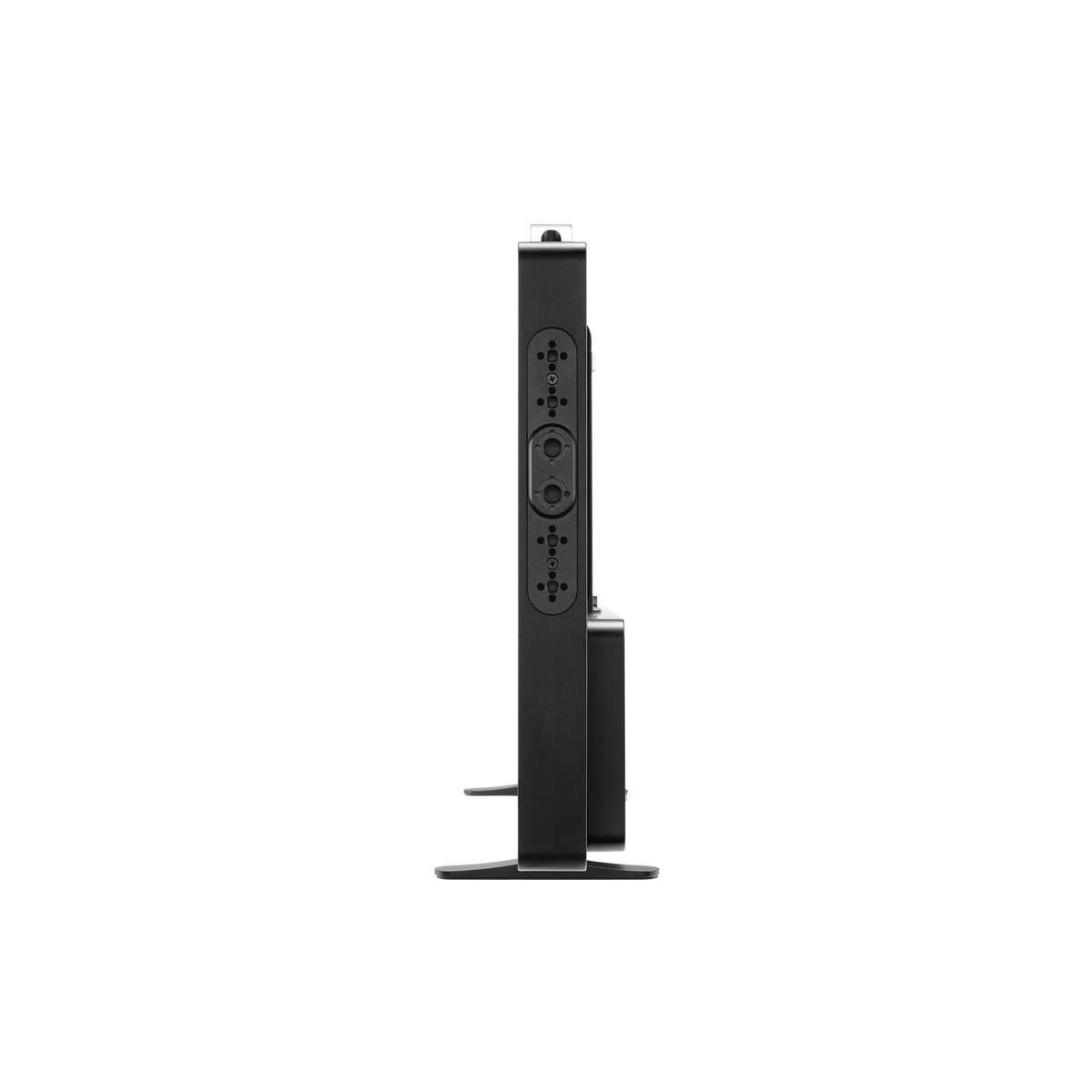

SmallHD Cine 18" 4K High-Bright Monitor
SmallHD Cine 18" 4K High-Bright Monitor
SmallHD Cine 18" 4K High-Bright Monitor
SmallHD Cine 18" 4K High-Bright Monitor
SmallHD Cine 18" 4K High-Bright Monitor
SmallHD Cine 18" 4K High-Bright Monitor
SmallHD Cine 18" 4K High-Bright Monitor
SmallHD Cine 18" 4K High-Bright Monitor
SmallHD Cine 18" 4K High-Bright Monitor
| Item Weight (kg): 5.06 | |
| Package Weight (kg): 9.525 | |
| Height (cm): 32.2 w/o feet and handle, 37.2 w/feet and handle | |
| Width (cm): 46.7 | |
| Length/Depth (cm): 6 w/o feet, 12 w/feet | |
| Compliance: FCC, IC, CE, UKCA, BIS, RCM, ROHS | |
| Operating Temperature: 0°C to 41°C | |
| Storage Temperature: -18°C to 49°C | |
| Screen Protection: Hardened | |
| Mount Points: Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 options | |
| Construction: Anodized Aluminum unibody | |
| Panel Type: IPS LCD | |
| Diagonal Size: 18.4" | |
| Resolution: 3840x2160 | |
| Pixel Density: 238 PPI | |
| Aspect Ratio: 16:9 | |
| Active Area: 408.96 (H) × 230.04(V) mm | |
| Max Brightness: 1100nits | |
| Contrast: 1300:1 | |
| Gamut: 100% Rec709, 98% DCI P3 | |
| Color Depth: 10-bit (8+2) | |
| Backlight Type: Edgelit | |
| Refresh Rate: Synchronizes with input from 48Hz to 60Hz | |
| Display Size: 18" | |
| Panel Resolution: 3840 x 2160 | |
| Color Bit Depth: 10-bit (8+2) | |
| 3G-SDI Input Types: DCI-2K up to 30fps; 1080p up to 60fps · 12-bit | |
| 6G-SDI Input Types: DCI-4K up to 30fps; 2160p up to 30fps; DCI-2K up to 60fps; 1080p up to 60fps · 12-bit | |
| 12G-SDI Input Types: DCI-4K up to 60fps; 2160p up to 60fps · 12-bit | |
| HD-SDI Input Types: 1080p up to 30fps; 1080i up to 60fps; 720p up to 60fps · 10-bit | |
| SD-SDI Input Types: SD up to 59.94fps · 10-bit | |
| HDMI Input Types: DCI-4K up to 60fps; 2160p up to 60fps; DCI-2K up to 60fps; 1080p up to 60fps · 12-bit | |
| Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels | |
| 3G-SDI Output Types: DCI-2K up to 30fps; 1080p up to 60fps · 12-bit | |
| 6G-SDI Output Types: DCI-4K up to 30fps; 2160p up to 30fps; DCI-2K up to 60fps; 1080p up to 60fps · 12-bit | |
| 12G-SDI Output Types: DCI-4K up to 60fps; 2160p up to 60fps · 12-bit | |
| HD-SDI Output Types: 1080p up to 30fps; 1080i up to 60fps; 720p up to 60fps · 10-bit | |
| SD-SDI Output Types: SD up to 59.94fps · 10-bit | |
| HDMI Output Types: DCI-4K up to 60fps; 2160p up to 60fps; DCI-2K up to 60fps; 1080p up to 60fps · 12-bit | |
| Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack and built in speaker | |
| SDI: 4x BNC 12G input and 4x BNC 12G output | |
| HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size) | |
| Audio: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels | |
| Power In: 4-pin XLR | |
| Power Out: 2x 2-pin locking (12VDC @ 2A Max), 1 USB type C (5V @ 1.5A max) | |
| USB: 2x USB A, 1x USB C | |
| Primary: RJ45 for GPI | |
| Record Capture: Image Capture Tool | |
| Connector Type: 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI | |
| Audio: 1x 3.5mm 3-pin Stereo Headphone Jack | |
| Ethernet: RJ45 | |
| Storage Media: 1x SD Card Slot | |
| Wireless: 2.4GHz WLAN | |
| WiFi: 2.4GHz WLAN | |
| Input: 1x XLR 4-pin 12 - 34VDC IN (210W max, 12V-34V, 18A max) | |
| Output: 2x 2pin (12V / 2A combined), 1x USB-A (2.4A) (Front), 1x USB-A (1.5A) (Rear), 1x USB-C (5V / 1.5A) (Rear) | |
| Battery Plate Included: No | |
| Battery Types: 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory) |
