SmallHD

SmallHD Cine 7

$4,364.95 AUD
RRP inc GST /
SKU: MON-Cine7

For updated Stock on hand, please contact sales@blkflag.com.au otherwise we will email you ETA after confirmed order placement.

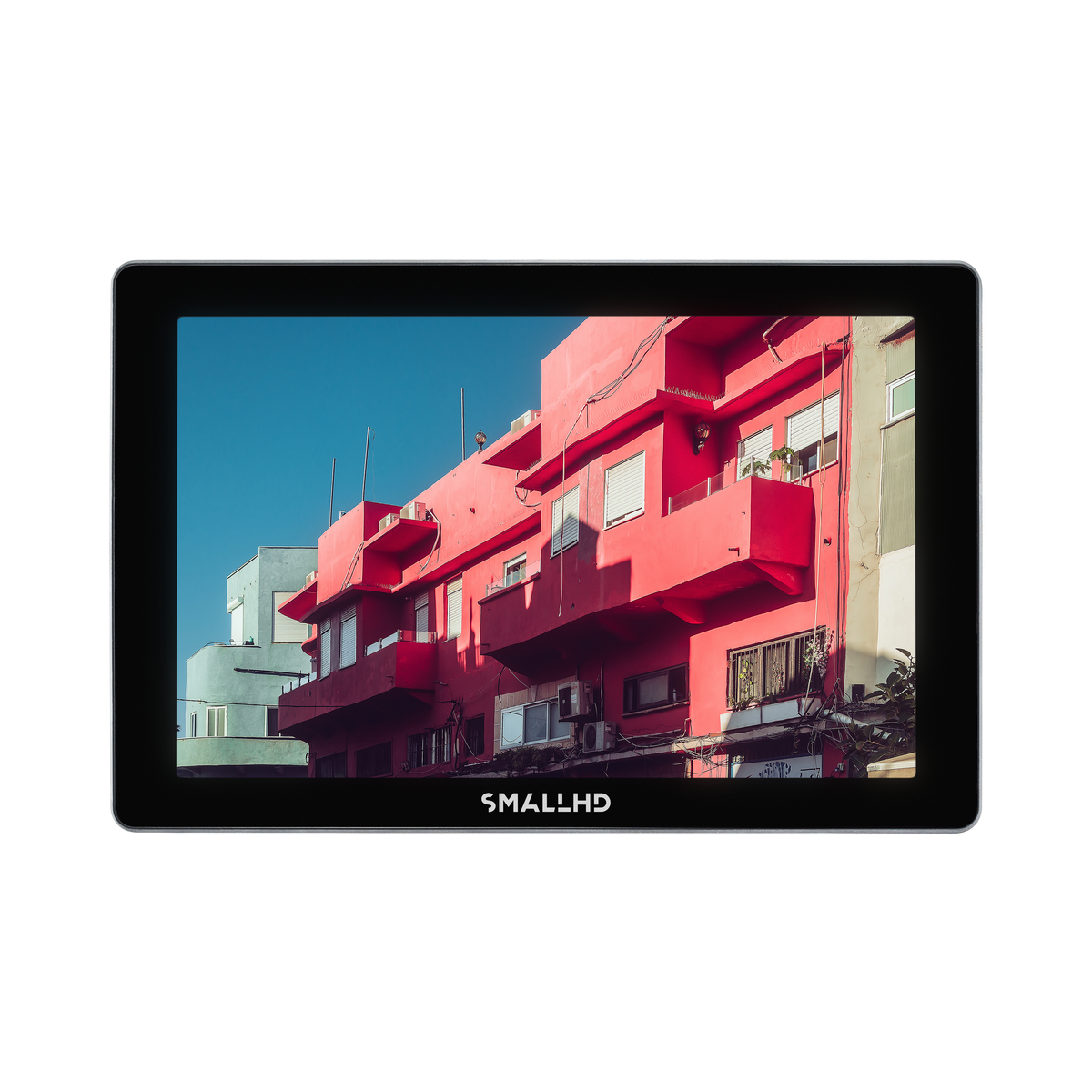

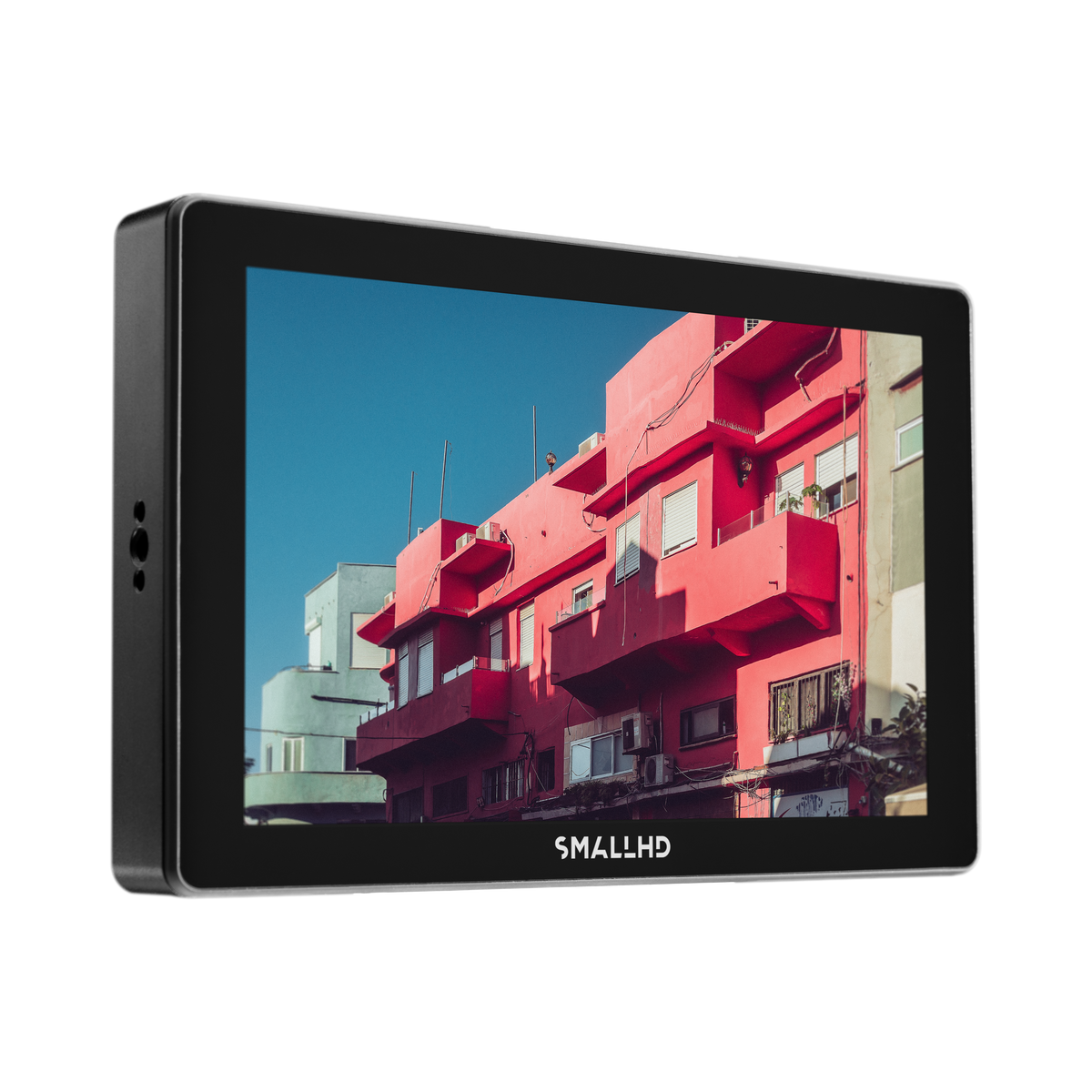

Cine 7 is a 7” on-camera HD monitor, offering a color accurate wide-gamut display and cinema camera control. View your production in full sunlight thanks to 1800 nits of brightness and save your favorite tools, functions, and setting pages in one tap with PageOS.

The Full HD 7-inch IPS LCD display with 1920x1200 resolution ensures a clear look at your production, while 10-bit color processing in 100% DCI-P3 offers color accuracy. This guarantees the image on screen reflects what’s being captured by the camera. No matter the time of day, environment, or sunlight, you’ll get a clear, glare-free view of your monitor thanks to 1800 nits of brightness.

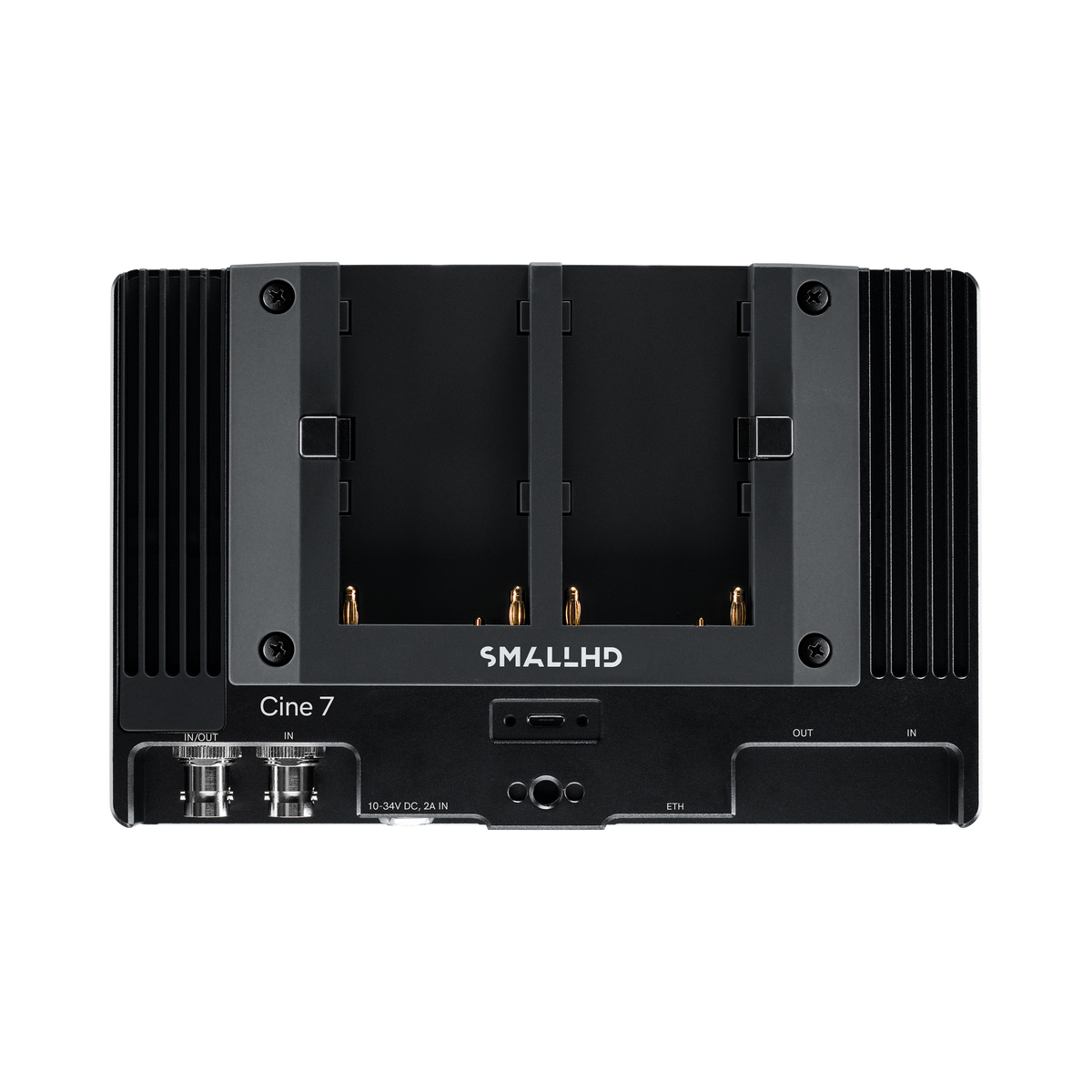

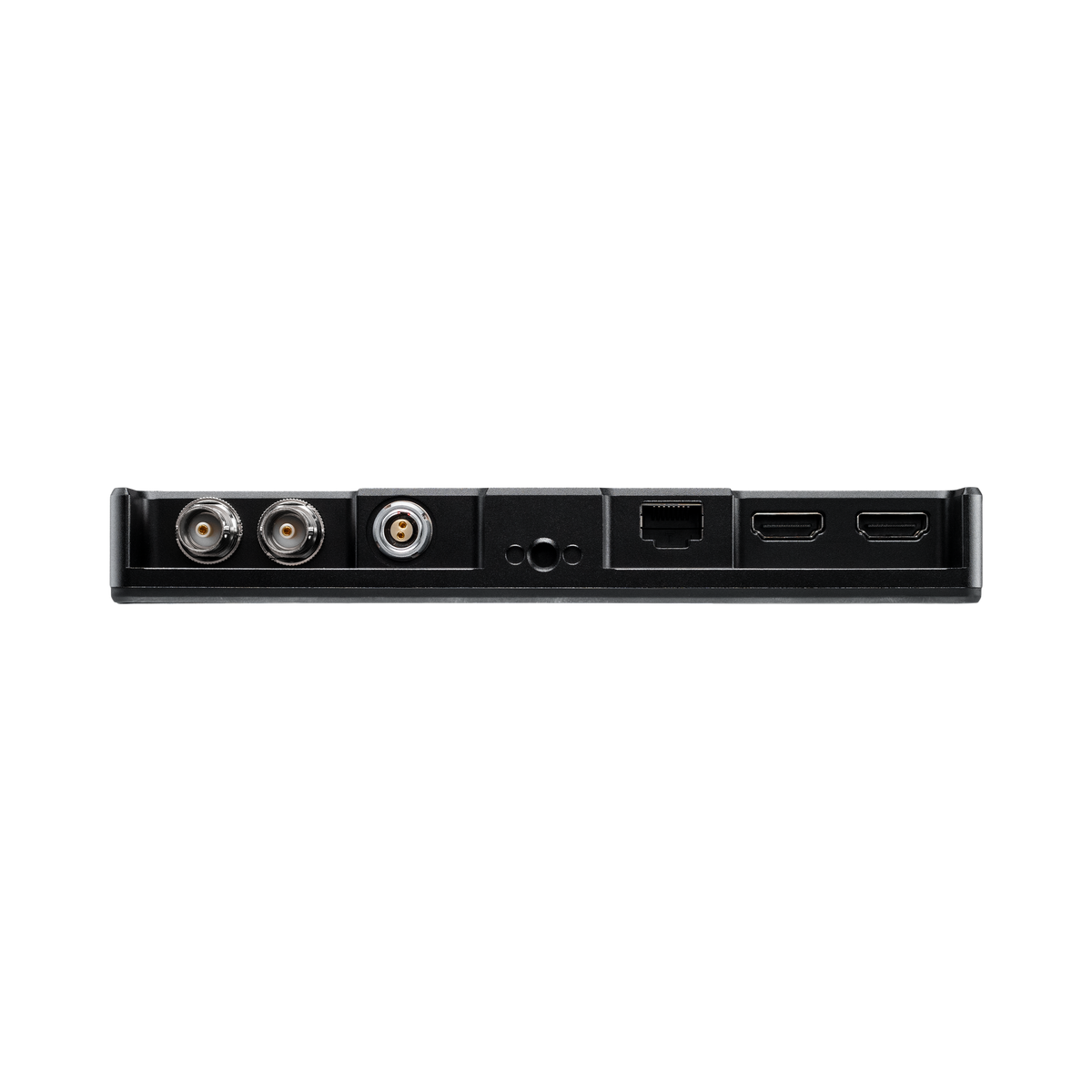

The Cine 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input with an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.

Meet Our Smart PageOS Software

With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more. Learn more about PageOS.

Cine 7 Compatibility

The Cine 7 monitor is compatible with the Bolt RX Monitor Module. Improve your handheld monitoring workflow with this optional hardware addition to your Cine 7 monitor. Receive cable-free 4K wireless video from any Bolt 4K or Bolt 6 transmitter at a distance of up to 1500ft.

Upgrade with Camera Control

Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED® DSMC2®, RED® KOMODO™, ARRI, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Item Weight (kg): 0.567
Package Weight (kg): 0.907
Height (cm): 11.9
Width (cm): 18
Length/Depth (cm): 3.6
Compliance: FCC, IC, CE, UKCA, BIS, RCM, ROHS
Operating Temperature: 0°C to 41°C
Storage Temperature: -18°C to 49°C
Screen Protection: Clear or Matte
Mount Points: 4x ¼-20 Mount Points (Left, Right, Bottom, and Back)
Construction: Anodized Aluminum unibody
Panel Type: IPS LCD with touch
Diagonal Size: 7.02"
Resolution: 1920x1200
Pixel Density: 323 PPI
Aspect Ratio: 16:10
Active Area: 94.5 X 151.2 mm
Max Brightness: 1800 NITs
Contrast: 1000:1
Gamut: 99.82% Rec709, 95.35% DCI P3
Color Depth: 10-bit Processing (8-bit panel)
Viewing Angle: 160
Backlight Type: LED
Adjustable Backlight: Yes
Refresh Rate: Synchronizes with input from 48Hz to 60Hz
Brightness: 1800 NITs
DCI-P3 Color: 100% DCI-P3 Coverage
3G-SDI Input Types: 1080p up to 60fps; 1080i up to 120fps · 10-bit
HD-SDI Input Types: 1080p up to 30fps; 1080i up to 60fps; 720p up to 60fps · 10-bit
SD-SDI Input Types: SD up to 59.94fps · 10-bit
HDMI Input Types: 2160p up to 30fps; 1080p up to 120fps · 12-bit
Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
3G-SDI Output Types: 1080p up to 60fps; 1080i up to 120fps · 10-bit
HD-SDI Output Types: 1080p up to 30fps; 1080i up to 60fps; 720p up to 60fps · 10-bit
SD-SDI Output Types: SD up to 59.94fps · 10-bit
HDMI Output Types: 2160p up to 30fps; 1080p up to 120fps · 12-bit
Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection and 1x 3.5mm 3-pin Stereo Headphone
SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio: HDMI & SDI - Monitor through Headphone Jack - Metering up to 8 channels
Power In: 2-pin Locking
USB: 1x USB 2.0 Micro-B receptacle
Primary: Touch Screen
Record Capture: Image Capture Tool
Ethernet: RJ45
Storage Media: 1x SD Card Slot
Connector: LEMO
Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
Battery Types: L-Series, V Mount, Gold Mount
Overload Protection: DC input: Reverse polarity
Battery Chemistry: Li-ion
Battery Charging Time: Monitor does not support the charging of batteries
Power Plug-in: LEMO
Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides: Preset Aspect Ratios & Customizable
DSLR Scale: Canon 5DMkii & Canon 7D
Custom Scale: Yes (Underscan Only)
Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate: Automatic or Manual Control
Image Flip: Automatic or Manual Control
Cross Conversion: Yes: HDMI → SDI & SDI → HDMI
Focus Assist: User Adjustable Color Style and Intensity
Peaking: User Adjustable Intensity
False Color: Rainbow, Arri Style, Custom with up to 10 nodes
Zebra: Dual - User Configurable
Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope: Yes
RGB Parade: Fully User Customizable
Histogram: Luma & RGB Style
Image Capture: Yes
Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import: via SD Card or USB Storage Device
Overlay: With Opacity Slider and Blink Setting
Audio Meters: HDMI & SDI up to 8 channel
Camera Control Compatibility: RED® KOMODO™ RED DSMC2® ARRI Sony VENICE
1 x Sony L Series Battery Bracket (Smart 7 Monitor Series)
