SmallHD Indie 7
SmallHD Indie 7
SmallHD Indie 7
SmallHD Indie 7
SmallHD Indie 7
SmallHD Indie 7
SmallHD Indie 7
| Item Weight (kg): 0.536 | |
| Package Weight (kg): 0.737 | |
| Height (cm): 11.9 | |
| Width (cm): 18 | |
| Length/Depth (cm): 3.6 | |
| Compliance: FCC, IC, CE, UKCA, RCM, BIS, ROHS | |
| Operating Temperature: 0°C to 41°C | |
| Storage Temperature: -18°C to 49°C | |
| Screen Protection: Clear or Matte | |

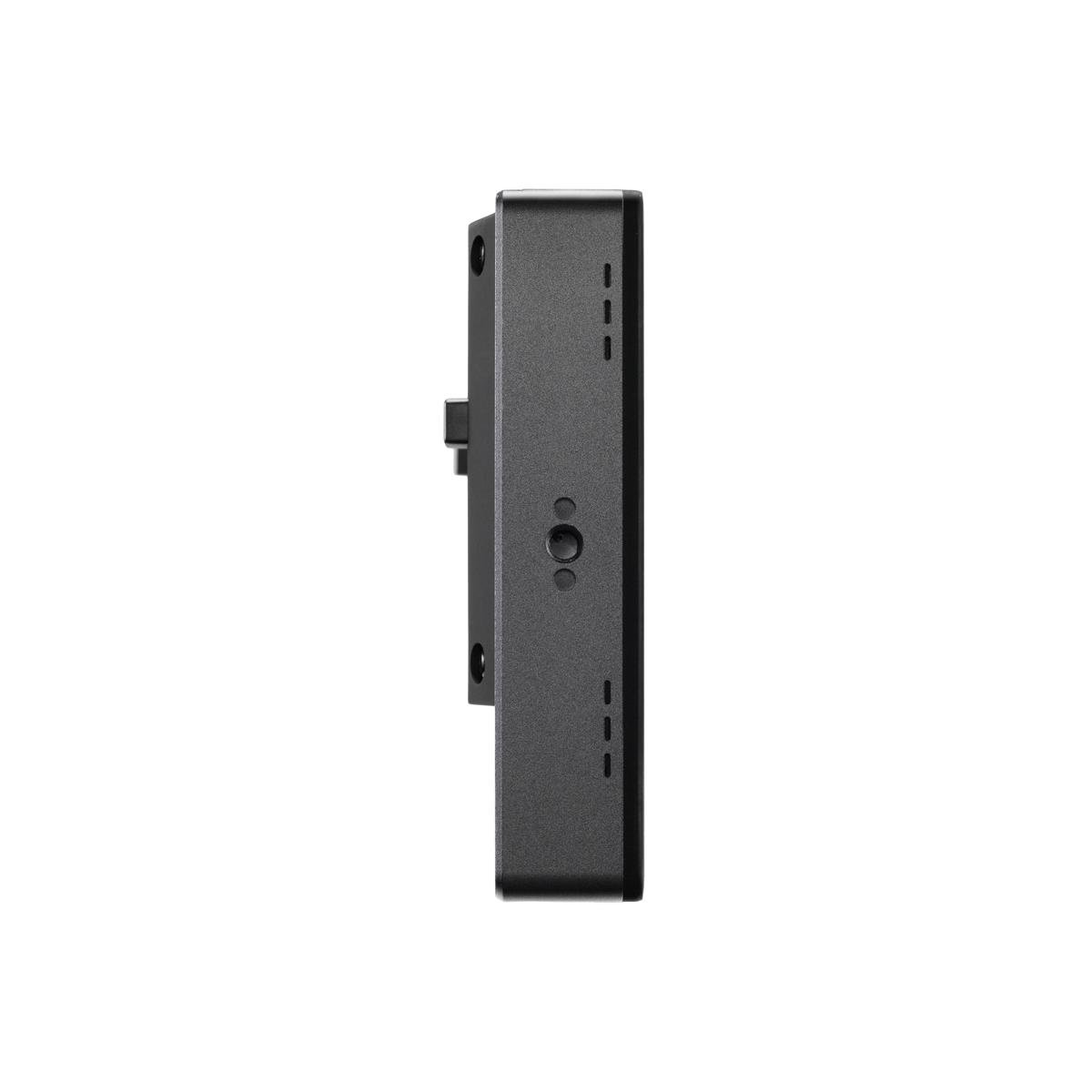

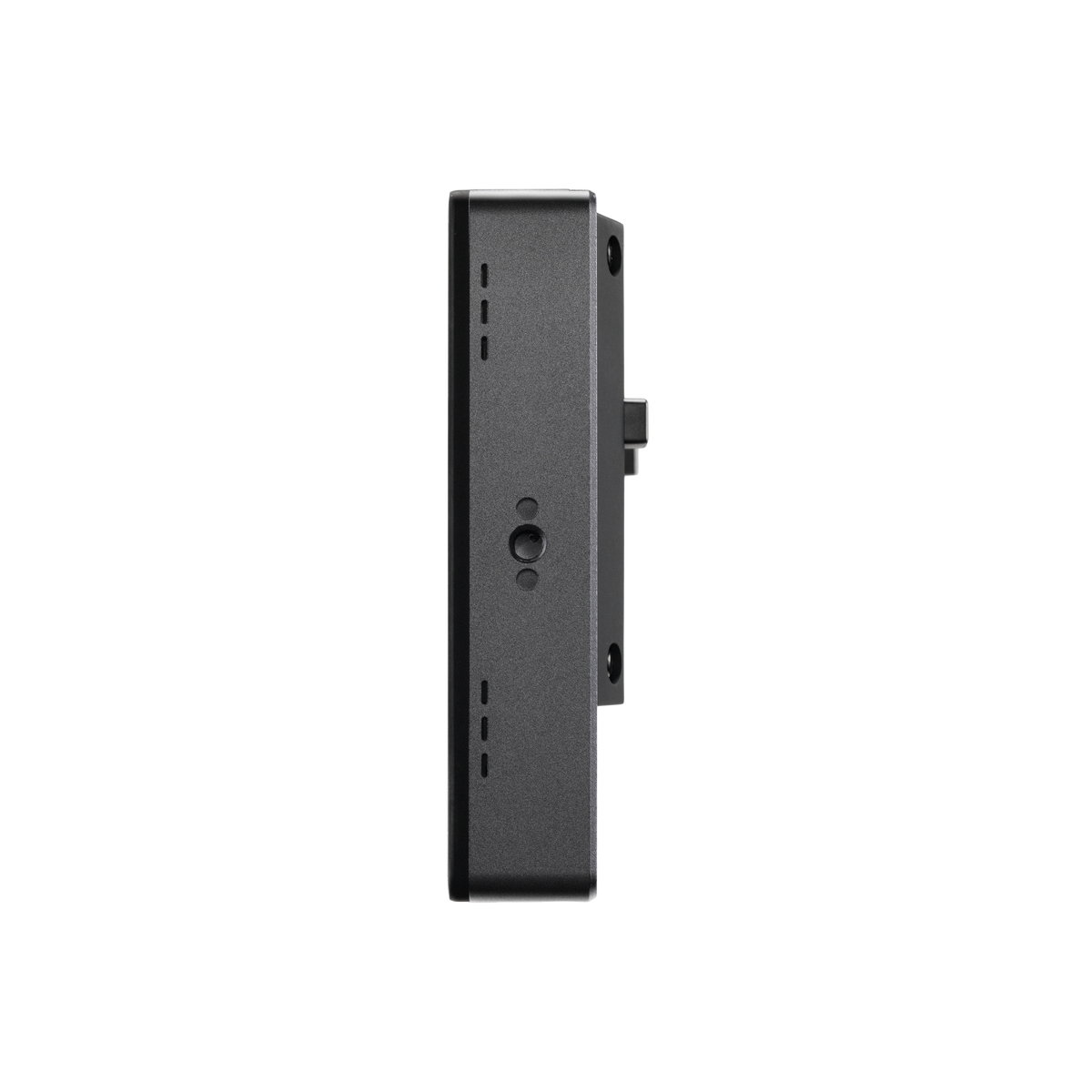

| Mount Points: 4x ¼-20 Mount Points (Left, Right, Bottom, and Back) | |
| Construction: Anodized Aluminum unibody | |

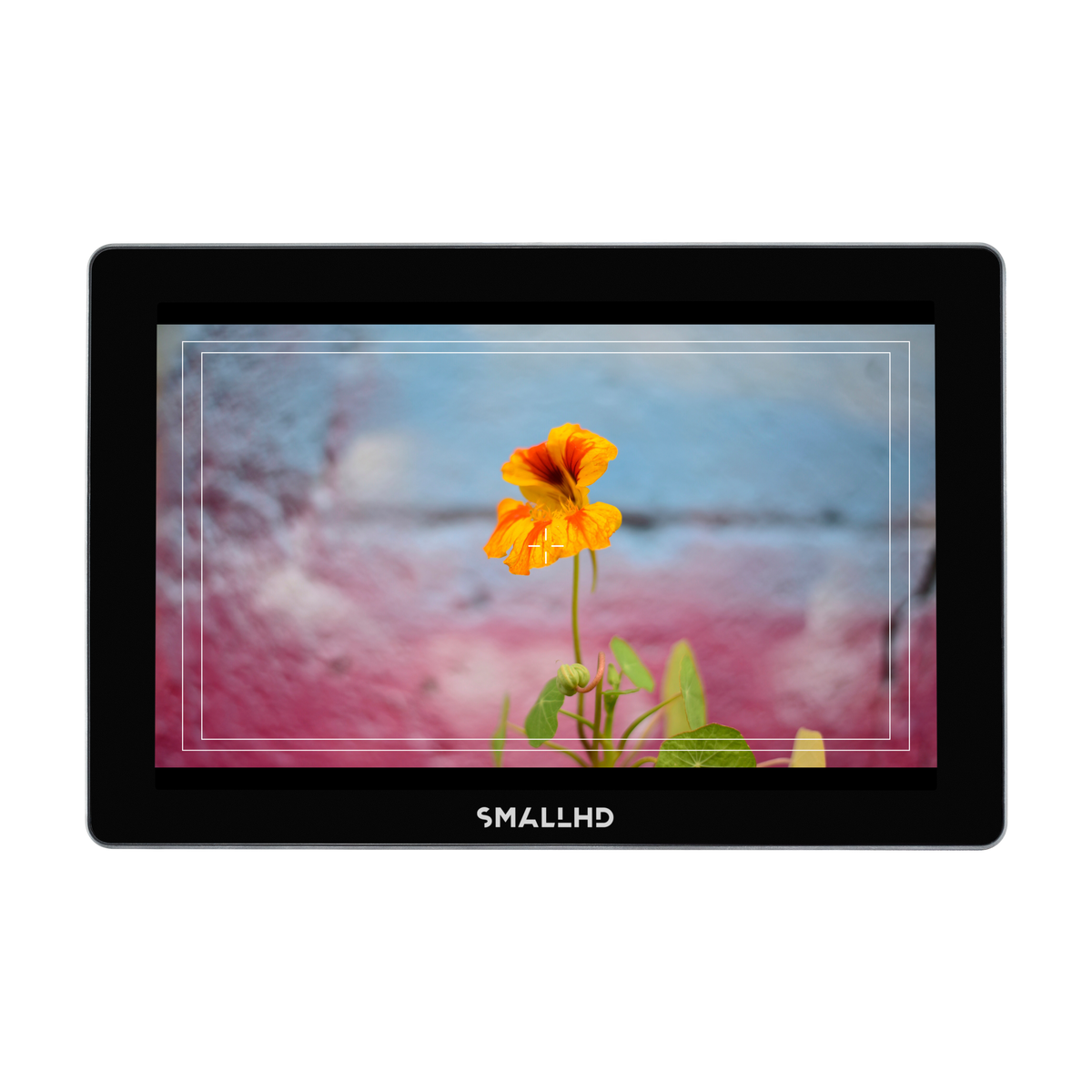

| Panel Type: IPS LCD with touch | |
| Diagonal Size: 7.02" | |
| Resolution: 1920x1200 | |
| Pixel Density: 323 PPI | |
| Aspect Ratio: 16:10 | |
| Active Area: 94.5 X 151.2 mm | |
| Max Brightness: 1000 Nits | |
| Contrast: 1000:1 | |
| Gamut: 95% Rec709 | |
| Color Depth: 10-bit Processing (8-bit panel) | |
| Viewing Angle: 160 | |
| Backlight Type: LED | |
| Adjustable Backlight: Yes | |
| Refresh Rate: Synchronizes with input from 48Hz to 60Hz | |
| Brightness: 1000 Nits | |
| DCI-P3 Color: 100% rec709 | |
| 3G-SDI Input Types: 1080p up to 60fps; 1080i up to 120fps · 10-bit | |
| HD-SDI Input Types: 1080p up to 30fps; 1080i up to 60fps; 720p up to 60fps · 10-bit | |
| SD-SDI Input Types: SD up to 59.94fps · 10-bit | |
| HDMI Input Types: 1080p up to 60fps · 12-bit | |
| Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels | |
| 3G-SDI Output Types: 1080p up to 60fps; 1080i up to 120fps · 10-bit | |
| HD-SDI Output Types: 1080p up to 30fps; 1080i up to 60fps; 720p up to 60fps · 10-bit | |
| SD-SDI Output Types: SD up to 59.94fps · 10-bit | |
| HDMI Output Types: 2160p up to 30fps; 1080p up to 120fps; 1080i up to 120fps; 720p up to 240fps · 12-bit | |
| Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection and 1x 3.5mm 3-pin Stereo Headphone | |

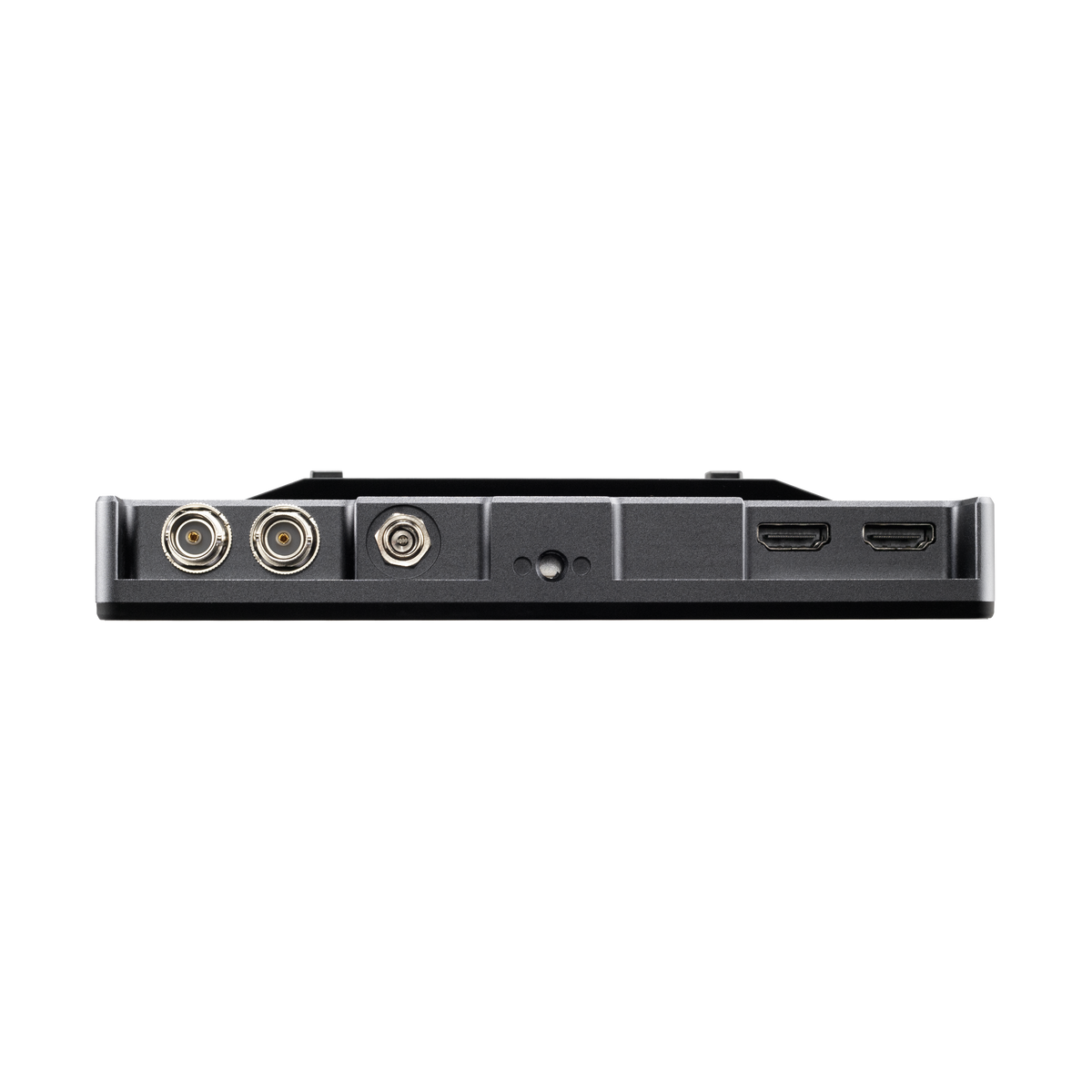

| SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output | |
| HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size) | |
| Audio: HDMI & SDI - Monitor through Headphone Jack - Metering up to 8 channels | |
| Power In: Barrel, 2.0mm ID, 5.5mm OD (center pin positive) | |
| USB: 1x USB 2.0 Micro-B receptacle | |
| Primary: Touch Screen | |
| Record Capture: Image Capture Tool | |
| Storage Media: 1x SD Card Slot | |
| Connector: Barrel, 2.0mm ID, 5.5mm OD (center pin positive) | |
| Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max | |
| Consumption: 17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel) | |

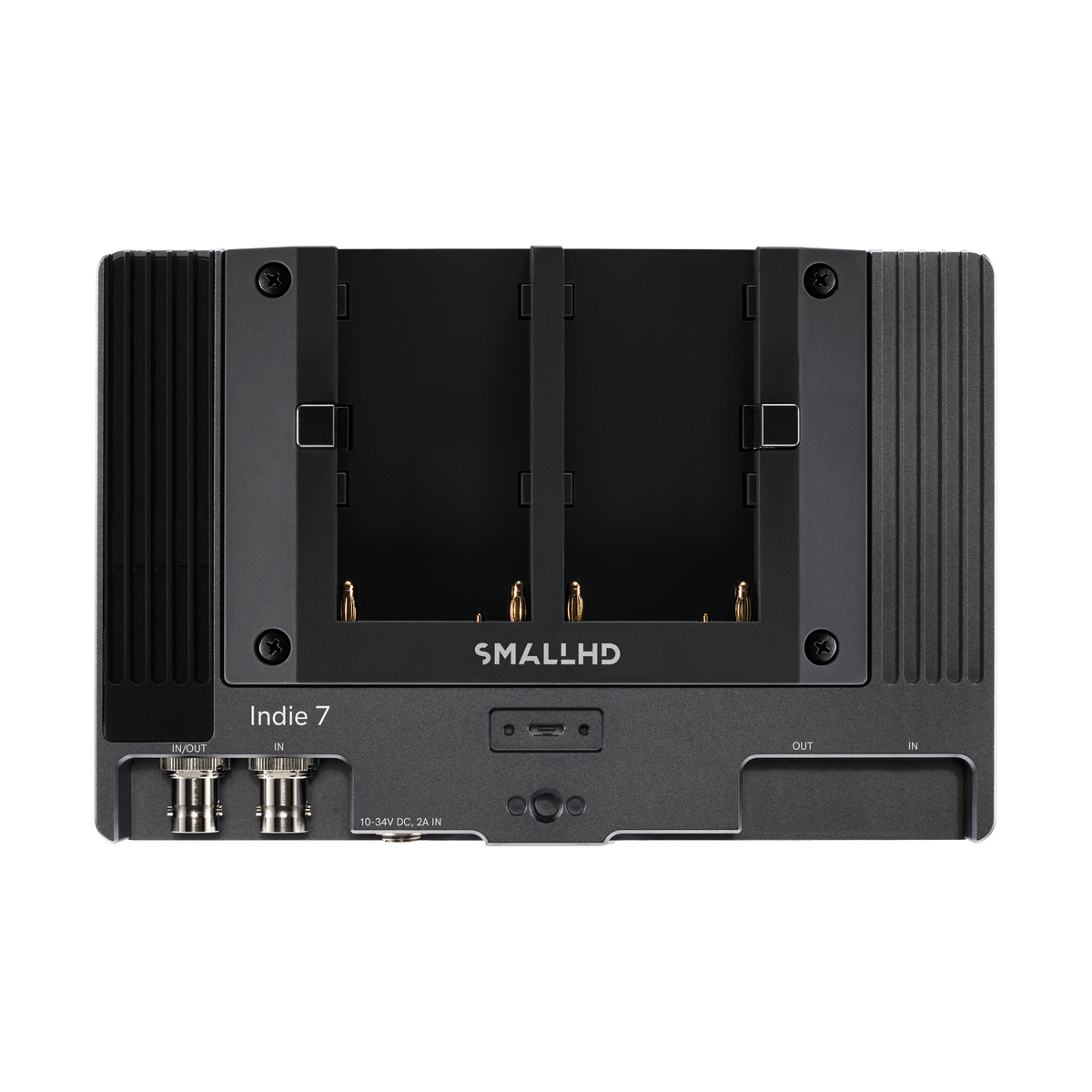

| Battery Plate Included: L-Series standard (V Mount or Gold Mount optional accessories) | |
| Power Supply: Recommend DC 12~15V at ~2.5 amp or greater | |
| Battery Types: L-Series, V Mount, Gold Mount | |
| Overload Protection: DC input: Reverse polarity | |
| Battery Chemistry: Li-ion | |
| Battery Charging Time: Monitor does not support the charging of batteries | |
| Power Plug-in: Barrel Connector | |
| Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom | |
| Frame Guides: Preset Aspect Ratios & Customizable | |
| DSLR Scale: Canon 5DMkii & Canon 7D | |
| Custom Scale: Yes (Underscan Only) | |
| Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x | |
| Image Rotate: Automatic or Manual Control | |
| Image Flip: Automatic or Manual Control | |
| Cross Conversion: Yes: HDMI → SDI & SDI → HDMI | |
| Focus Assist: User Adjustable Color Style and Intensity | |
| Peaking: User Adjustable Intensity | |
| False Color: Rainbow, Arri Style, Custom with up to 10 nodes | |
| Zebra: Dual - User Configurable | |
| Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting | |
| Vectorscope: Yes | |
| RGB Parade: Fully User Customizable | |
| Histogram: Luma & RGB Style | |
| Image Capture: Yes | |
| Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu | |
| LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page. | |
| LUT Import: via SD Card or USB Storage Device | |
| Overlay: With Opacity Slider and Blink Setting | |
| Audio Meters: HDMI & SDI up to 8 channel | |
| Camera Control Compatibility: RED® KOMODO™ RED DSMC2® |
