SmallHD

SmallHD Quantum 27

$21,824.95 AUD
RRP inc GST /
SKU: 16-2702

For updated Stock on hand, please contact sales@blkflag.com.au otherwise we will email you ETA after confirmed order placement.

Quantum 27 utilizes Nobel Prize-winning quantum dot nanoparticles in a unique OLED panel design that directly emits narrow-spectrum RGB light evenly in all directions, providing peak luminance of up to 1000 nits and extending color gamut coverage to over 97% of DCI-P3, offering pristine images with an exceptionally wide color volume and viewing angle.

Quantum 27 boasts a resolution of 3840 x 2160 (UHD), 10-bit color processing, 1,500,000:1 contrast ratio, four 12G/6G/3G/HD-SDI inputs and outputs. The Unibody Smart Chassis offers multiple interchangeable mounting points, DC power input and 2-pin power output, 100mm VESA Mount, Dovetail mounting rail for batteries and other accessories, and new built-in WiFi support for wireless remote monitor control. Quantum 27 ships ready for color-critical studio and broadcast desktop use and includes optional top handle and cheese plate inserts for on-set mobility and accessory attachments.

Quantum 27 features a new, more powerful central processor with an entirely custom-designed architecture running PageOS, SmallHD’s unique operating system. PageOS is an intuitive and highly customizable page-based monitoring interface with extensive tools for video engineering workflows, and numerous third-party software integrations.

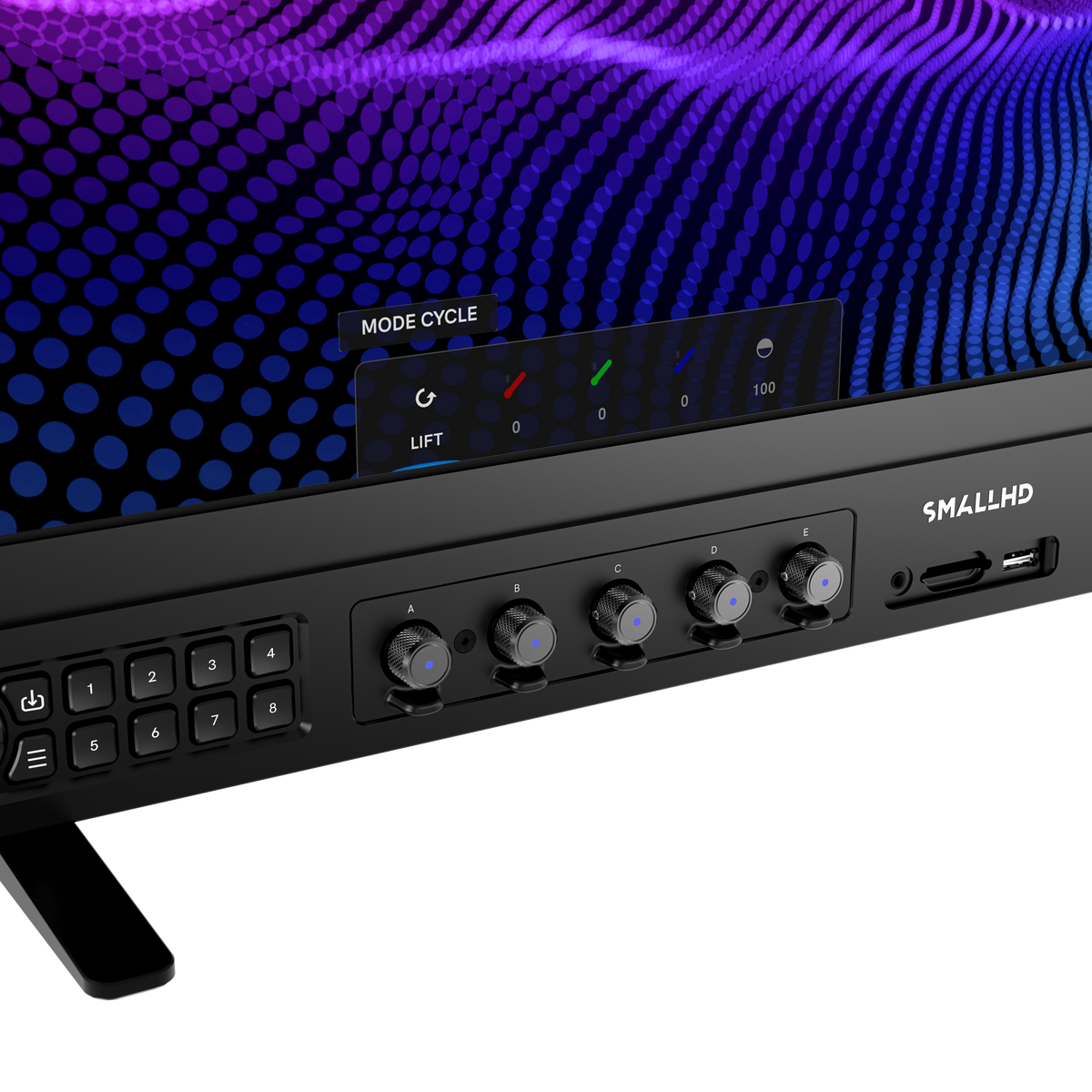

The Quantum 27 also includes dial control functionality, making it even easier to control and navigate PageOS. These tactile dials offer touch-activated illumination to identify programmed functions with long-push, short-push, rotary, and capacitive-touch features, letting you change different tools, settings, and functions on the fly and giving you more ways than ever to customize your workflow.

Item Weight (kg): 8.39
Package Weight (kg): 16.329
Height (cm): 43.3 w/o feet and handle, 48.2 w/feet and handle
Width (cm): 67.5
Length/Depth (cm): 7 w/o feet and w/dials, 16 w/feet
Compliance: FCC, IC, CE, UKCA, MIC, RCM, ROHS
Operating Temperature: 0°C to 41°C
Storage Temperature: -18°C to 49°C
Screen Protection: Glass Hardened
Mount Points: Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 options
Construction: Anodized Aluminum unibody
Panel Type: Quantum Dot OLED
Diagonal Size: 26.5"
Resolution: 3840x2160
Pixel Density: 165 PPI
Aspect Ratio: 16:9
Active Area: 589.97(H) x 332.93(V) mm
Max Brightness: Up to 1000nits
Contrast: 1,500,000:1
Gamut: 97% DCI-P3
Color Depth: True 10-bit
Backlight Type: QD-OLED
Refresh Rate: Synchronizes with input from 48Hz to 60Hz
3G-SDI Input Types: DCI-2K up to 30fps; 1080p up to 60fps · 12-bit
6G-SDI Input Types: DCI-4K up to 30fps; 2160p up to 30fps; DCI-2K up to 60fps; 1080p up to 60fps · 12-bit
12G-SDI Input Types: DCI-4K up to 60fps; 2160p up to 60fps · 12-bit
HD-SDI Input Types: 1080p up to 30fps; 1080i up to 60fps; 720p up to 60fps · 10-bit
SD-SDI Input Types: SD up to 59.94fps · 10-bit
HDMI Input Types: DCI-4K up to 60fps; 2160p up to 60fps; DCI-2K up to 60fps; 1080p up to 60fps · 12-bit
Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
3G-SDI Output Types: DCI-2K up to 30fps; 1080p up to 60fps · 12-bit
6G-SDI Output Types: DCI-4K up to 30fps; 2160p up to 30fps; DCI-2K up to 60fps; 1080p up to 60fps · 12-bit
12G-SDI Output Types: DCI-4K up to 60fps; 2160p up to 60fps · 12-bit
HD-SDI Output Types: 1080p up to 30fps; 1080i up to 60fps; 720p up to 60fps · 10-bit
HDMI Output Types: DCI-4K up to 60fps; 2160p up to 60fps; DCI-2K up to 60fps; 1080p up to 60fps · 12-bit
Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack and built in speaker

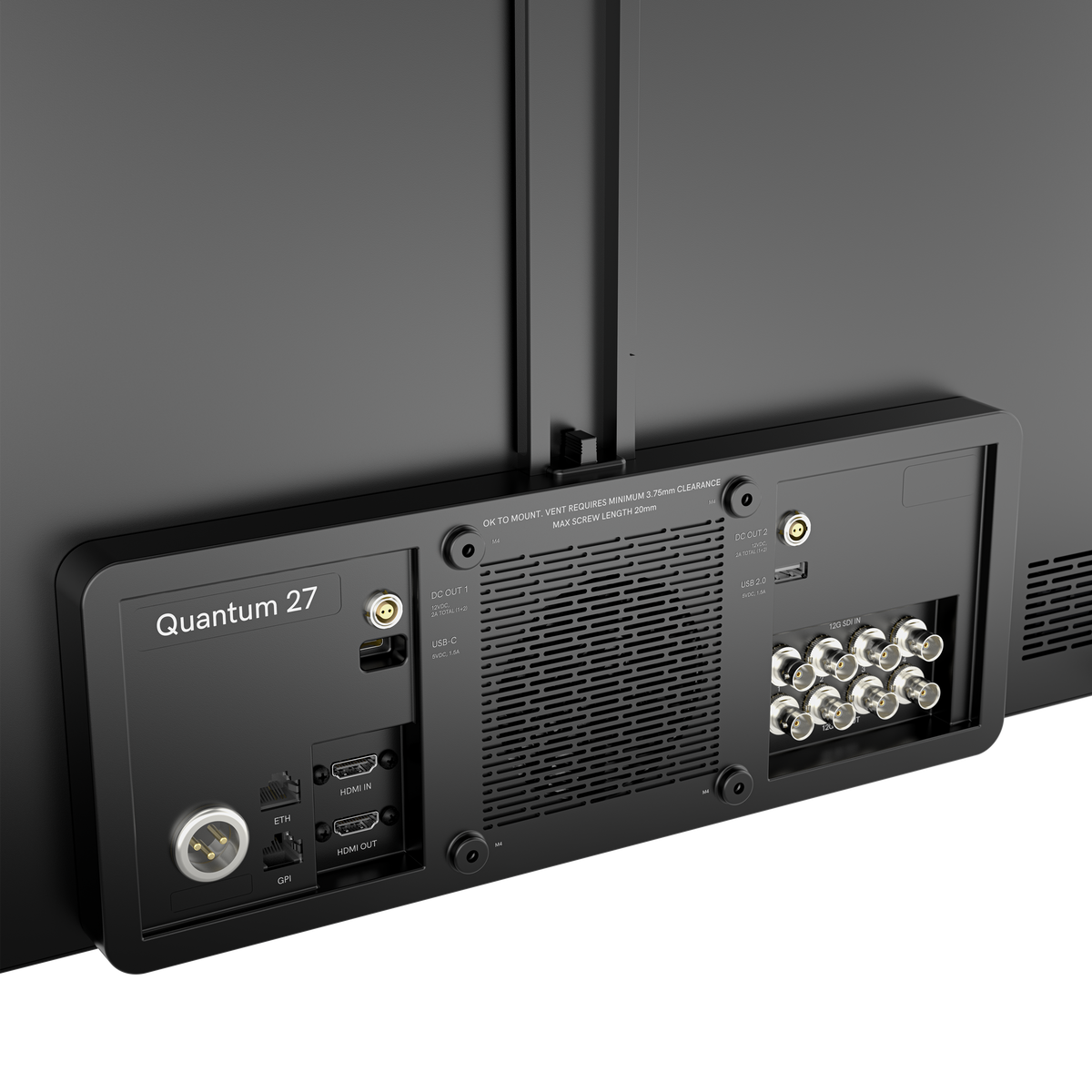

SDI: 4x BNC 12G input and 4x BNC 12G output
HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels
Power In: 3-pin LXR
Power Out: 2x 2-pin locking (12VDC @ 2A Max), 1 USB type C (5V @ 1.5A max)
USB: 2x USB A, 1x USB C
Primary: RJ45 for GPI
Record Capture: Image Capture Tool
Wireless: 2.4GHz WLAN
Connector Type: 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI
Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet: RJ45
Storage Media: 1x SD Card Slot
WiFi: 2.4GHz WLAN
Monitoring I/O: 1x SD Card Slot 1x RJ45 Ethernet 1x RJ45 GPI, 1x WiFi antenna port
Input: 1x 3-pin XLR (142W max, 25V-34V, 12A max)
Output: 2x 2pin (12V / 2A combined), 1x USB-A (2.4A) (Front), 1x USB-A (1.5A) (Rear), 1x USB-C (5V / 1.5A) (Rear)
Consumption: 22-34V, 169W Monitor Only, 266W Max
Battery Plate Included: No
Battery Types: 1x Dual-GM/VM Batt.Plate (26V) (sold as accessory)
LUTS: 33pt 3D-LUT on output/input
1 x Power Supply Unit for Quantum 32
1x Transport Screen Protector for Quantum 32
1x Combination Cheese Stick for SmallHD 4K Monitors (3/8 & 1/4-20)
1x 1/4 20" Cheese Stick for SmallHD 4K Monitors
1x SmallHD Replacement Antenna
