SmallHD Ultra 5
SmallHD Ultra 5
SmallHD Ultra 5
SmallHD Ultra 5
SmallHD Ultra 5
SmallHD Ultra 5
SmallHD Ultra 5
SmallHD Ultra 5
| Item Weight (kg): 0.505 | |
| Package Weight (kg): 1.361 | |
| Height (cm): 8.6 | |
| Width (cm): 15 | |
| Length/Depth (cm): 3.5 | |
| Compliance: FCC, IC, CE, UKCA, RCM, BIS, ROHS | |
| Operating Temperature: 0°C to 41°C | |
| Storage Temperature: -18°C to 49°C | |
| Screen Protection: Clear or Matte | |
| Mount Points: 6x 1/4-20 Mounting Points (3 Bottom, Left, Right, Top) | |
| Construction: Anodized Aluminum unibody | |
| User Function Buttons: Joystick Back-Button 3x Custom-Function Buttons | |
| Panel Type: IPS LCD with touch | |
| Diagonal Size: 4.97" | |
| Resolution: 1920 x 1080 | |
| Pixel Density: 443 PPI | |
| Aspect Ratio: 16:9 | |
| Active Area: 61.88 x 110.02 mm | |
| Max Brightness: 3000nits | |
| Contrast: 1000:1 | |
| Gamut: 97% Rec709 | |
| Backlight Type: Edgelit | |
| Refresh Rate: Synchronizes with input from 48Hz to 60Hz | |
| 3G-SDI Input Types: 1080p up to 60fps; 1080i up to 120fps · 10-bit | |
| HD-SDI Input Types: 1080p up to 30fps; 1080i up to 60fps; 720p up to 60fps · 10-bit | |
| SD-SDI Input Types: SD up to 59.94fps · 10-bit | |
| HDMI Input Types: 2160p up to 30fps; 1080p up to 120fps · 12-bit | |
| Audio Input Types: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels | |
| 3G-SDI Output Types: 1080p up to 60fps; 1080i up to 120fps · 10-bit | |
| HD-SDI Output Types: 1080p up to 30fps; 1080i up to 60fps; 720p up to 60fps · 10-bit | |
| SD-SDI Output Types: SD up to 59.94fps · 10-bit | |
| HDMI Output Types: 2160p up to 30fps; 1080p up to 120fps · 12-bit | |
| Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection and 1x 3.5mm 3-pin Stereo Headphone | |

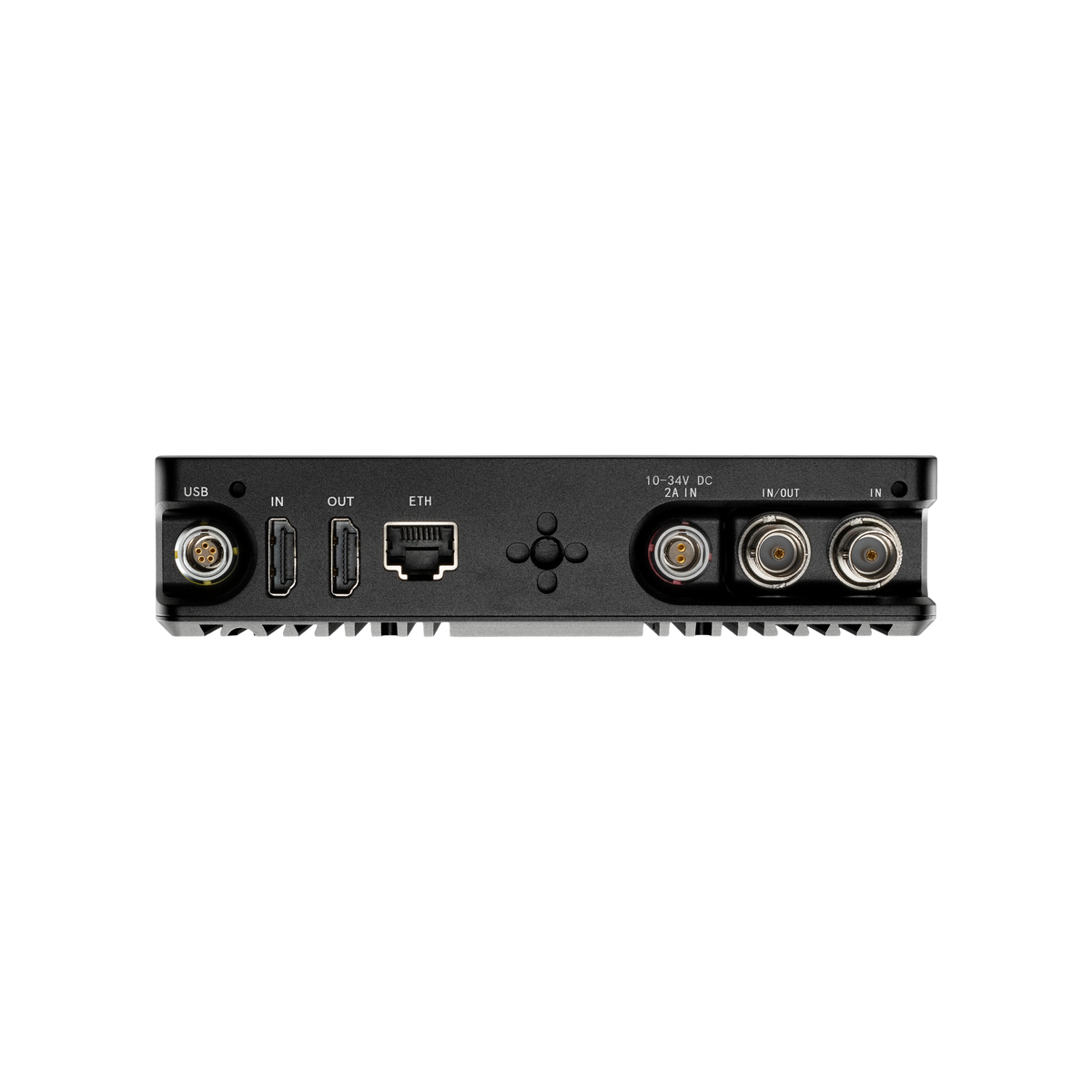

| SDI: 1x BNC 3G input and 1x BNC 3G selectable input/output | |
| HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size) | |
| Audio: HDMI & SDI - Monitor through Headphone Jack - Metering up to 8 channels | |
| Power In: 2-pin Locking | |
| USB: 5-pin locking USB 2.0 | |
| Record Capture: Image Capture Tool | |
| Connector Type: 1x RJ45 Ethernet | |
| Ethernet: RJ45 | |
| Storage Media: 1x SD Card Slot | |
| Input: 2-pin Locking Power Input (10-34V DC, 2.1A) | |
| Pixel Zoom: Yes | |
| Focus Assist: Yes | |
| Peaking: Yes | |
| False Color: Customizable False Color Overlays | |
| Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon) | |
| Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input | |
| Camera Control Compatibility: Camera Control for ARRI Camera Control for Sony VENICE Camera Control for RED® DSMC2™ Camera Control for RED® RCP2™ Cameras (KOMODO®, DSMC3™) |
