Ace Micro TX is our smallest wireless video transmitter yet. Share up to 4Kp30 uncompressed wireless video with up to six RXs at ranges up to 500' (150m). It is cross-compatible with all Bolt 4K, Bolt 6, Bolt 7, and Ace 750 systems thanks to a shared BB3 chipset, which enables operation over 6GHz and 5GHz frequencies and delivers video with less than 1 millisecond of latency, over 70 times less latency than Wi-Fi-based solutions.
Ace Micro TX is designed to support a wide range of wireless video workflows with a single USB-C connection.
Connect directly to cameras that support DisplayPort Alt Mode (DP Alt Mode) over USB-C, including Blackmagic URSA Cine and PYXIS, for the most simplified cable management solution available.

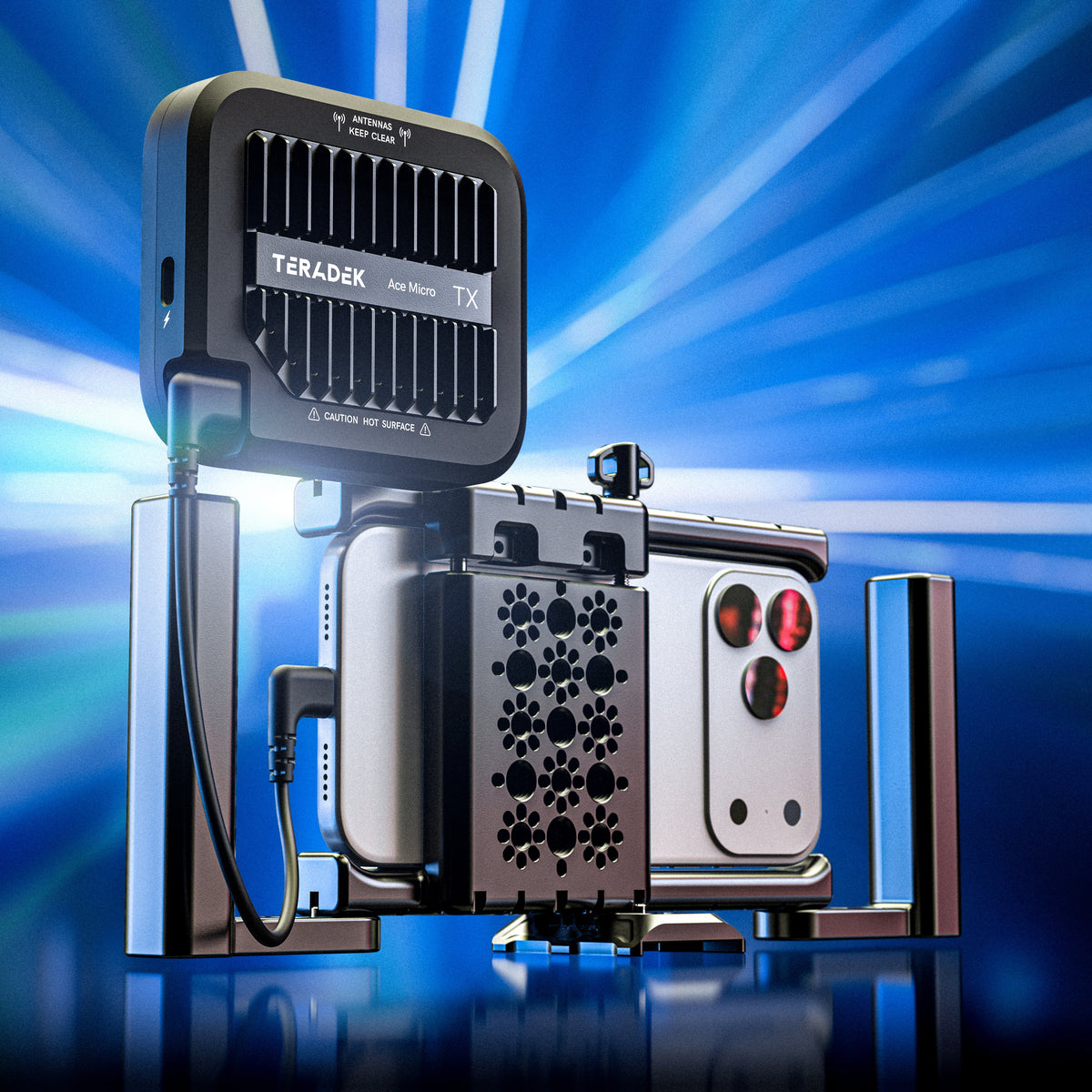

For the first time, Ace Micro TX transforms your iPhone into a professional wireless camera. Simply mount the TX, connect via USB-C, and transmit wireless video using your preferred camera app. Seamlessly integrate your iPhone into an existing Teradek wireless video ecosystem. External USB power required.

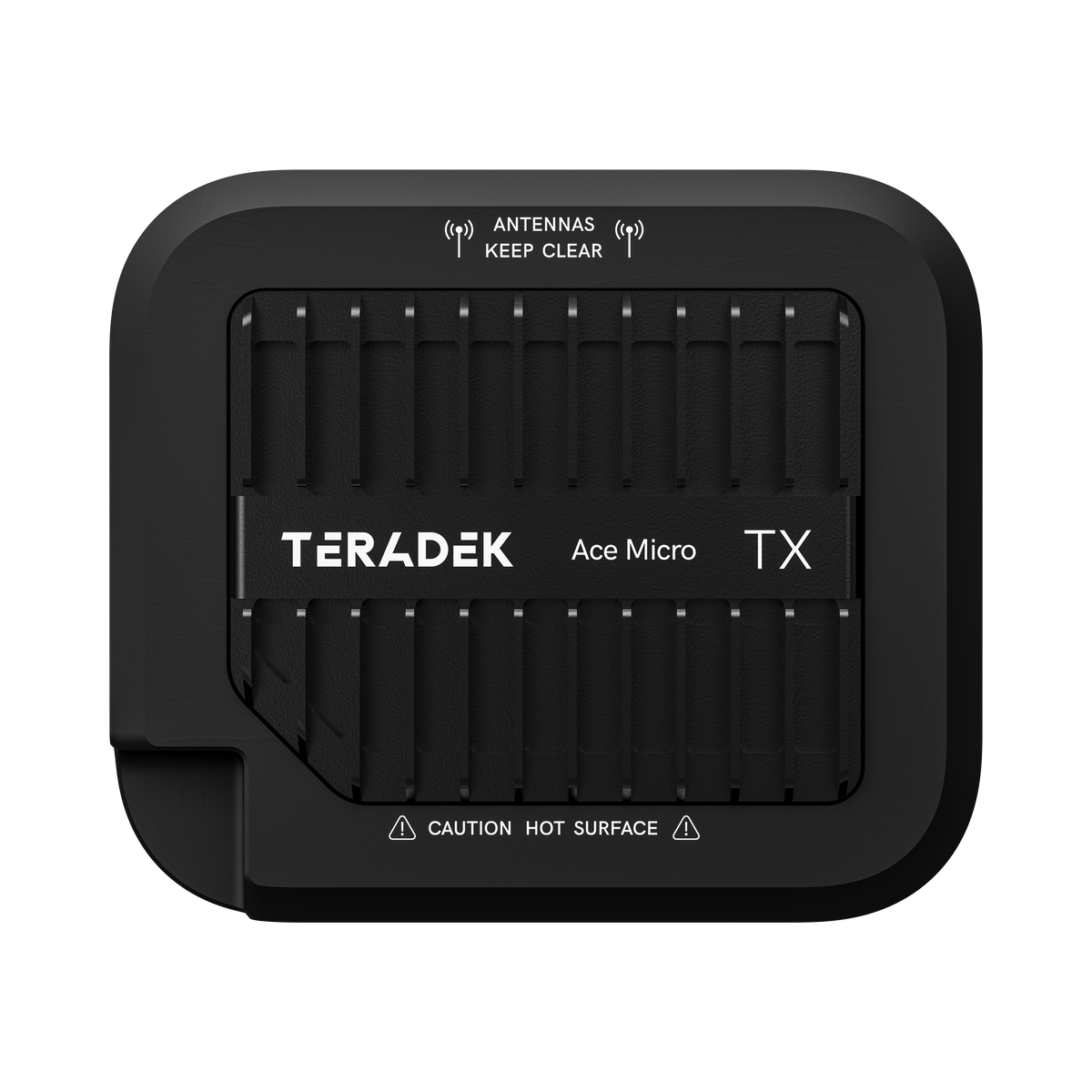

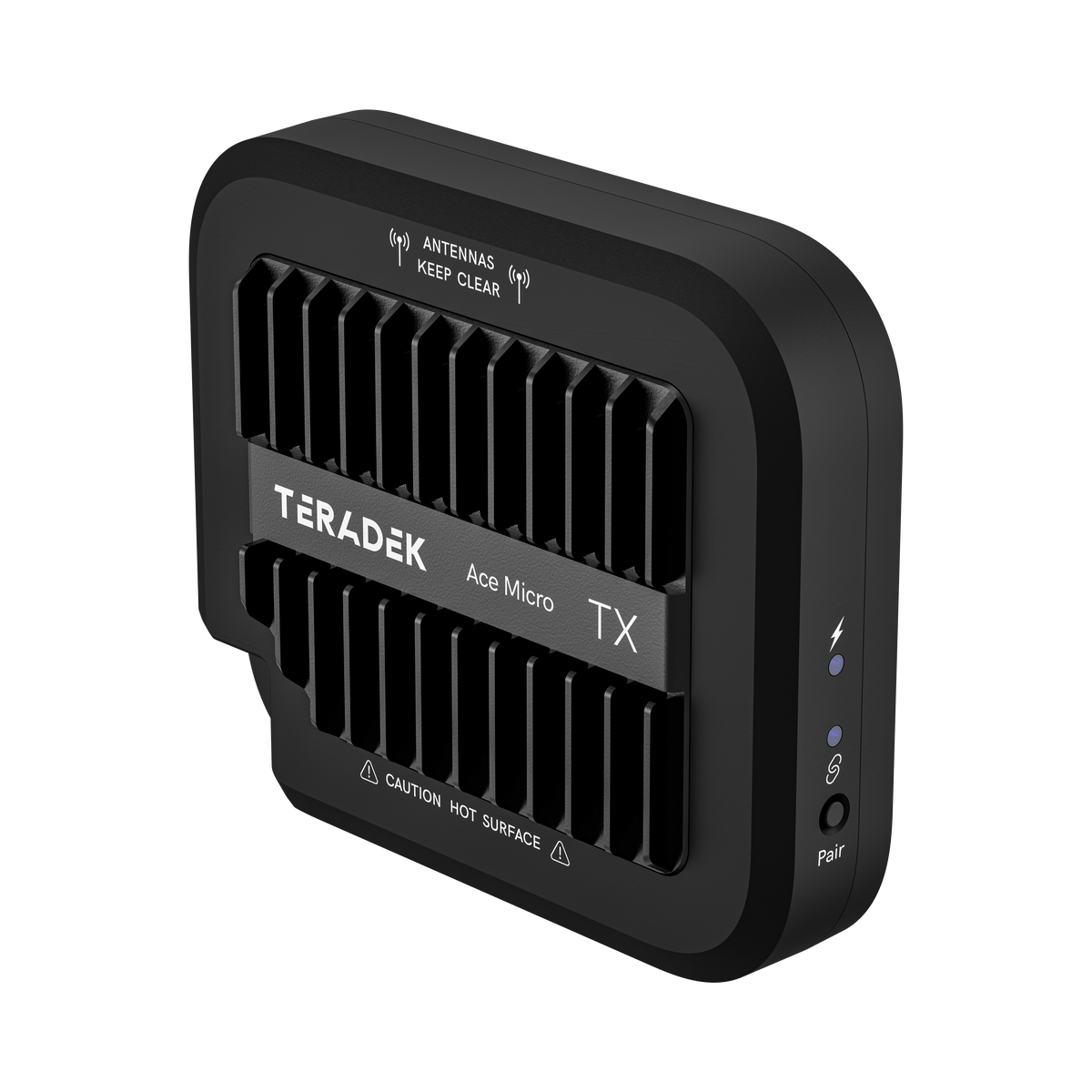

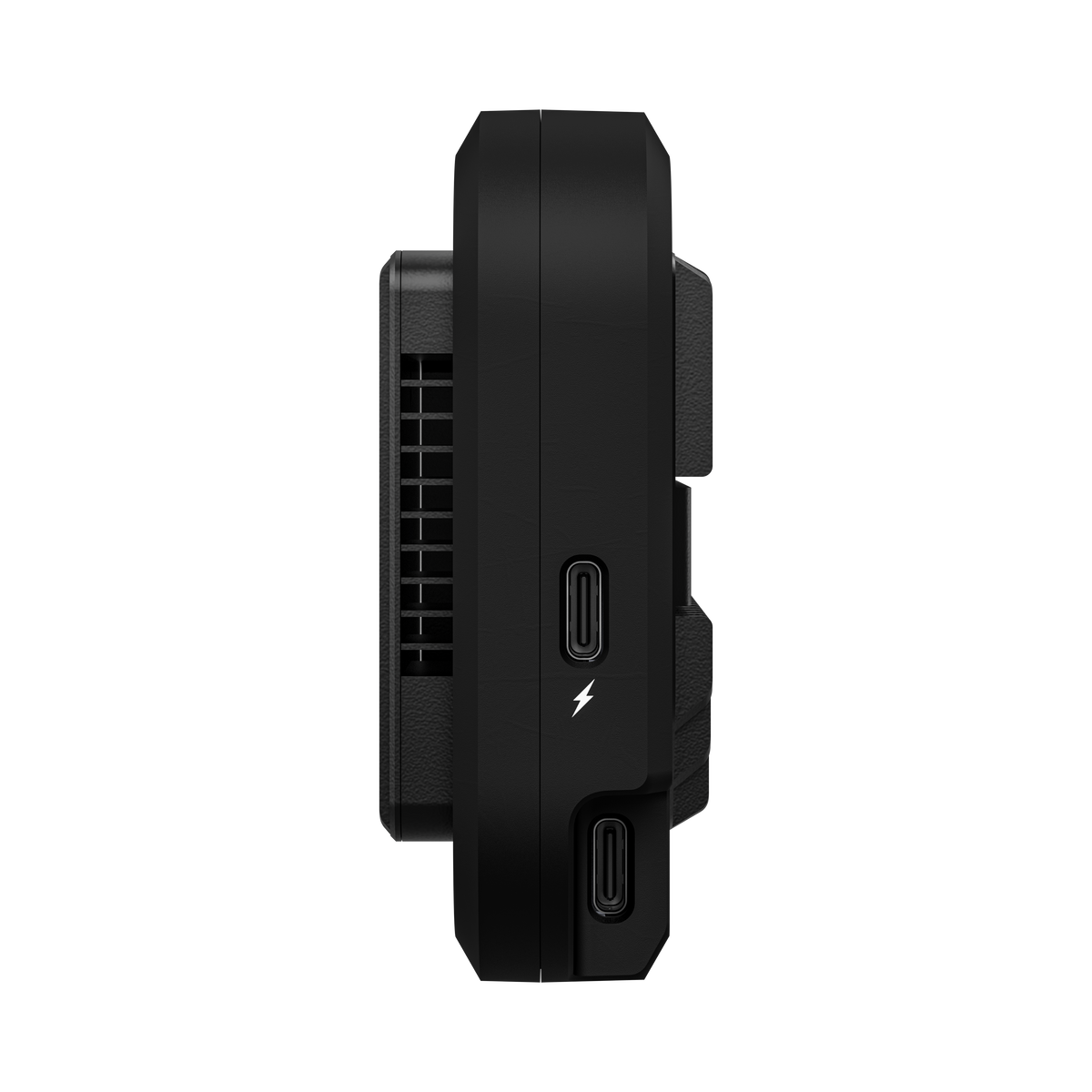

Compact hardware includes internal antennas, a quick-pairing button, and LED indicators for power and link status, M3 and M2.5 mounting points for horizontal or vertical workflows, and a USB-C port that consolidates power, video, and communication into a single cable for a streamlined setup. A secondary USB-C offers an additional, pass through power option. Ace Micro automatically detects and selects the 5GHz or 6GHz RF channel with the least interference and employs Auto-Frequency Switching to maintain optimal signal quality. Ace Micro meets all radio frequency regulations and comes with the industry's best encryption and security features.
Key Features
- Range up to 500ft (150m)
- Less than 1 millisecond of latency, over 70 times less than Wi-Fi-based solutions
- Share video with up to six receivers
- Cross-compatible with Bolt 4K, Bolt 6, Bolt 7 and Ace 750 systems (shared BB3 chipset)
- Single USB-C connection for power, video and communication
- DisplayPort Alt Mode over USB-C for cameras such as Blackmagic URSA Cine and PYXIS
- Turns an iPhone into a professional wireless camera via USB-C
- Secondary USB-C for pass-through power

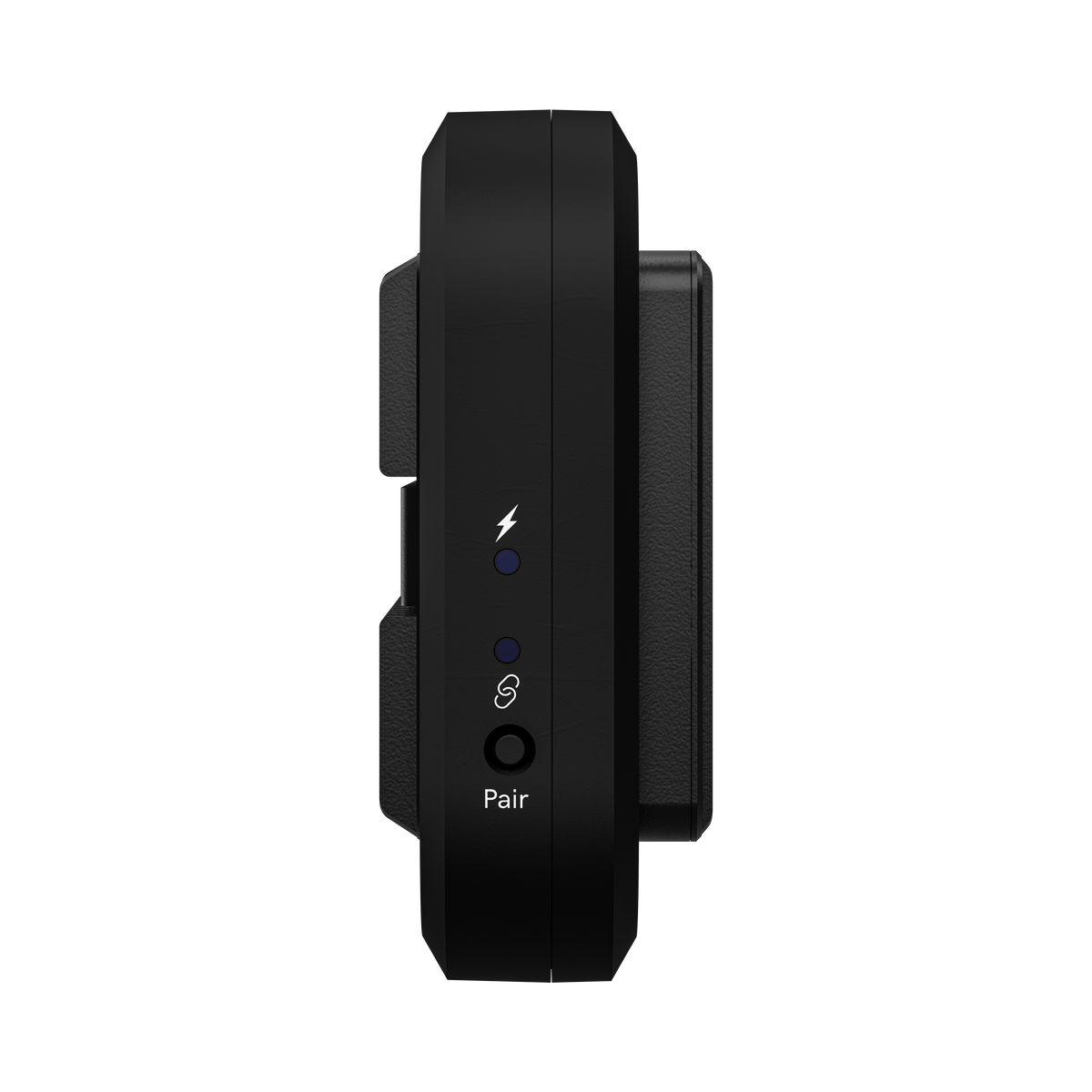

- Internal antennas, quick-pairing button, power and link LED indicators

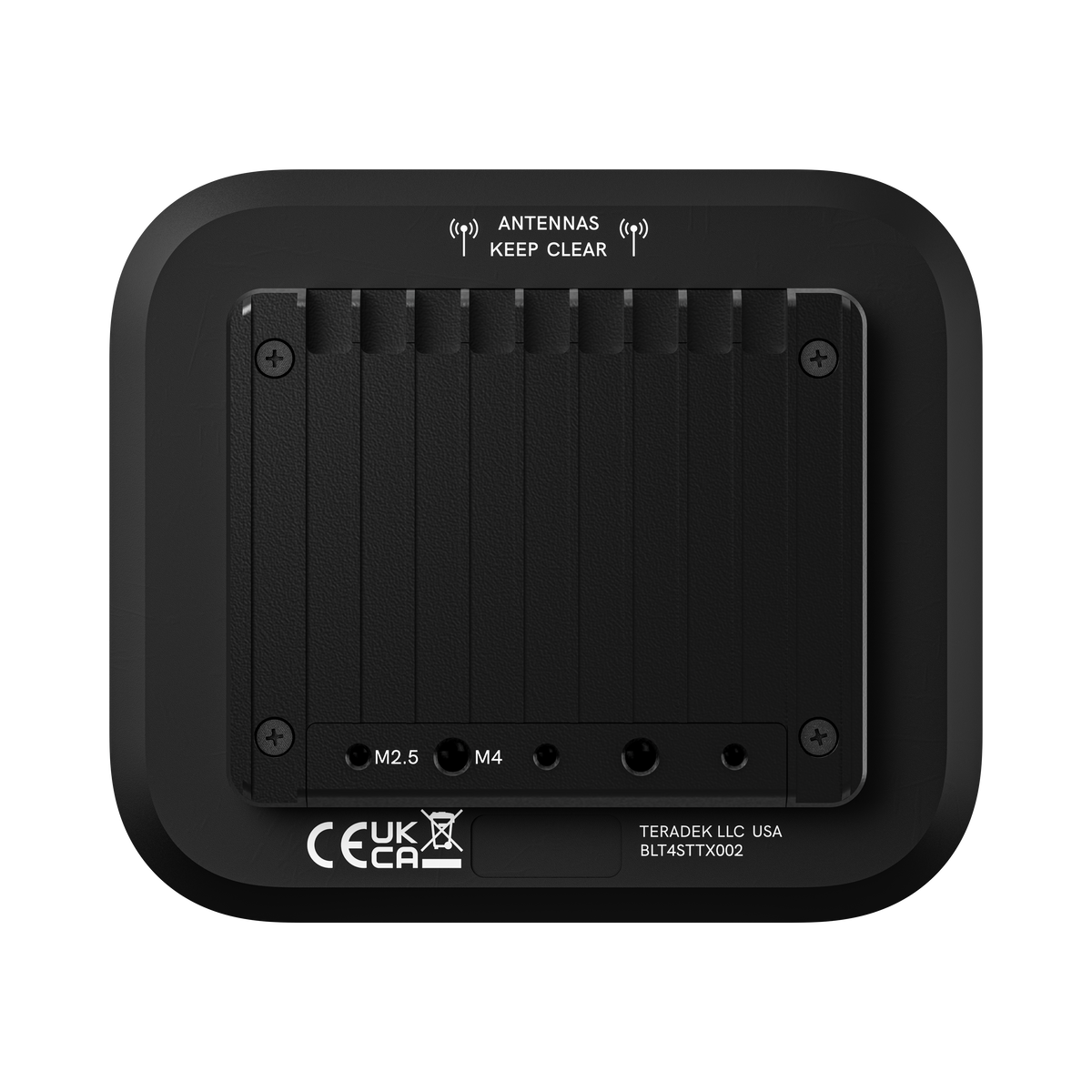

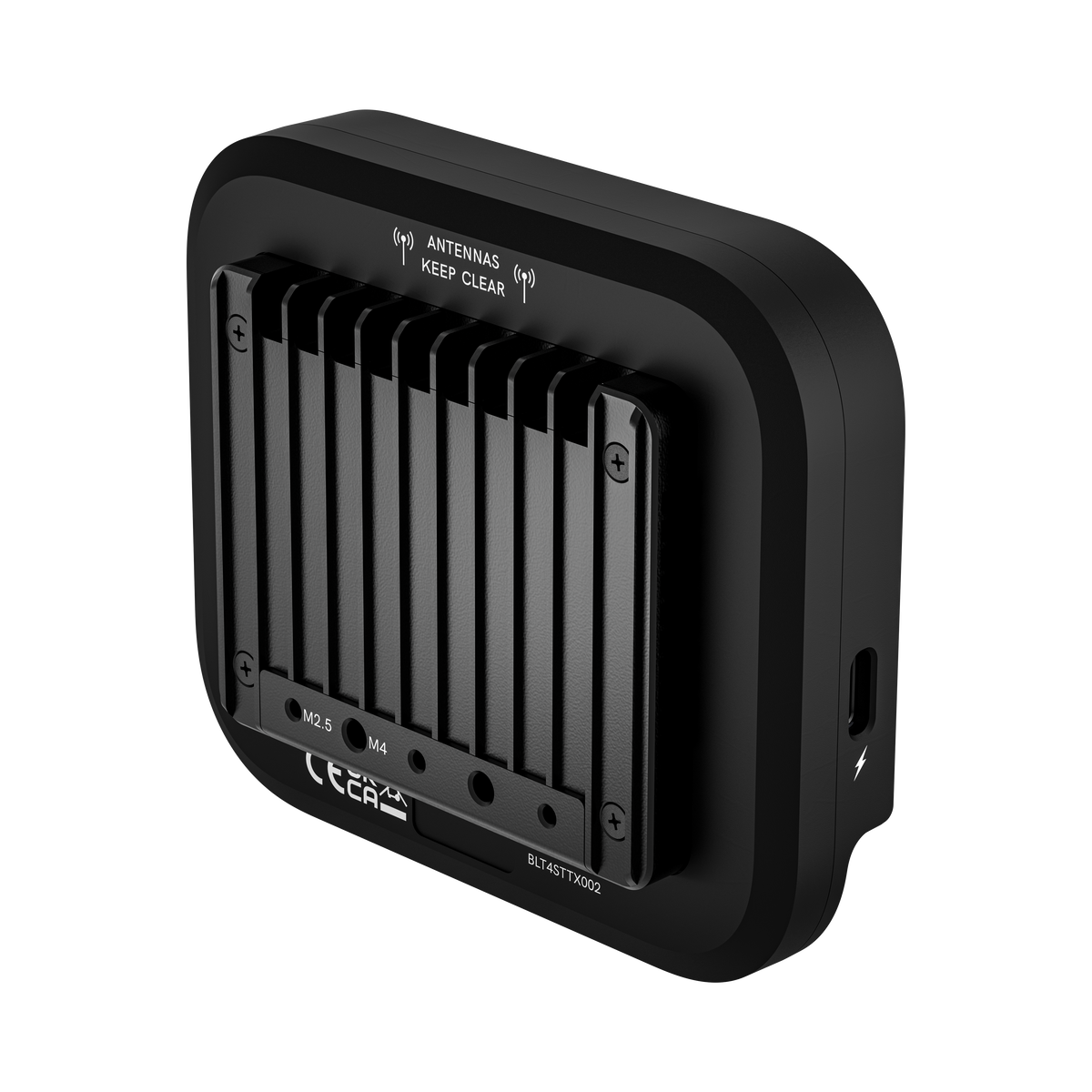

- M3 and M2.5 mounting points for horizontal or vertical mounting
- Automatic 5GHz/6GHz channel selection with Auto-Frequency Switching
- Industry-leading encryption and security
Specifications
| Max Resolution |
Up to 4Kp30, uncompressed |
| Range |
Up to 500ft (150m) |
| Latency |
Less than 1 ms |
| Frequency Bands |
5GHz and 6GHz, automatic channel selection with Auto-Frequency Switching |
| Receivers |
Up to 6 RX |
| Video Input |
USB-C (DisplayPort Alt Mode) |
| Power |
External USB power via USB-C; secondary USB-C pass-through power |
| Antennas |
Internal |
| Controls / Indicators |
Quick-pairing button; power and link status LEDs |
| Mounting |
M3 and M2.5 mounting points |
| Chipset |
BB3 |
Compatibility
- Bolt 4K, Bolt 6, Bolt 7 and Ace 750 receivers
- Cameras supporting DisplayPort Alt Mode over USB-C, including Blackmagic URSA Cine and PYXIS
- iPhone (USB-C) using your preferred camera app; external USB power required
In the Box
- 1 x Ace Micro TX
- 2 x USB-C right-angle cables (12in and 18in)
- 1 x Wooden Camera Bolt-On Accessory Plate Adapter (RA, M4)
