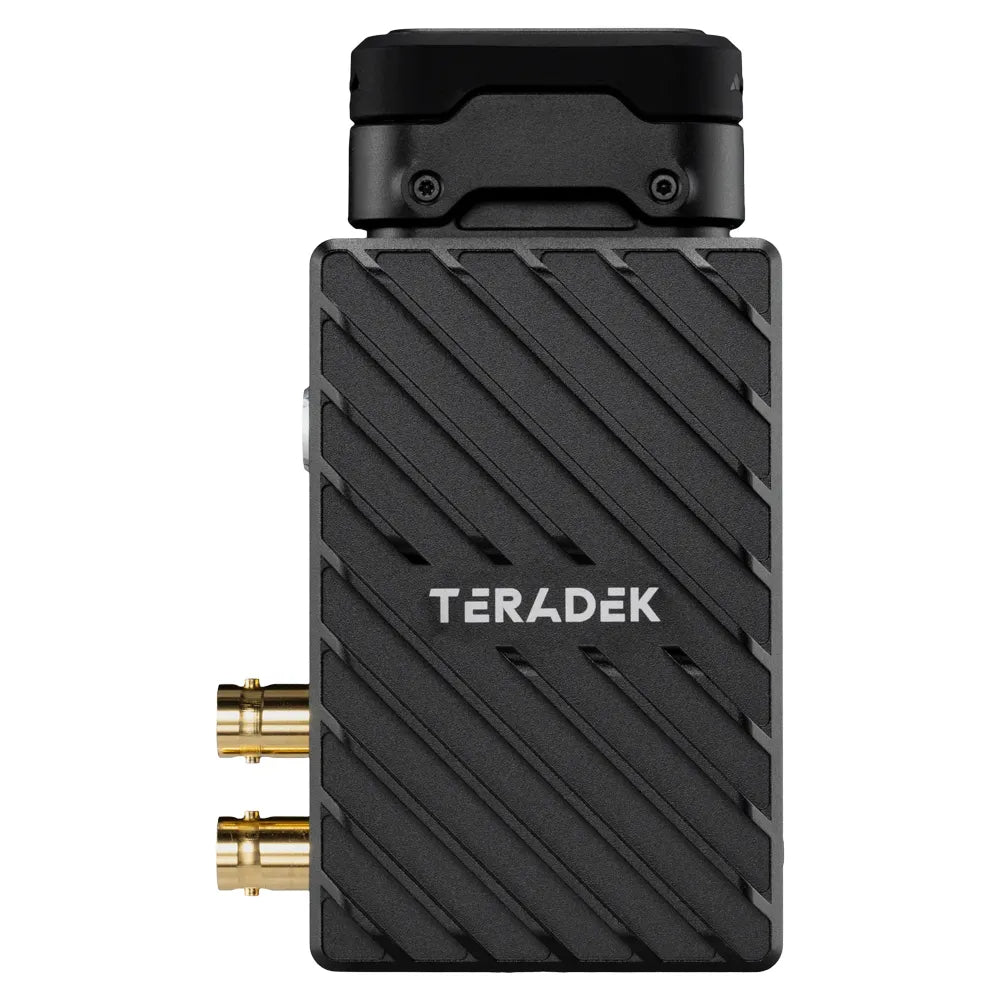

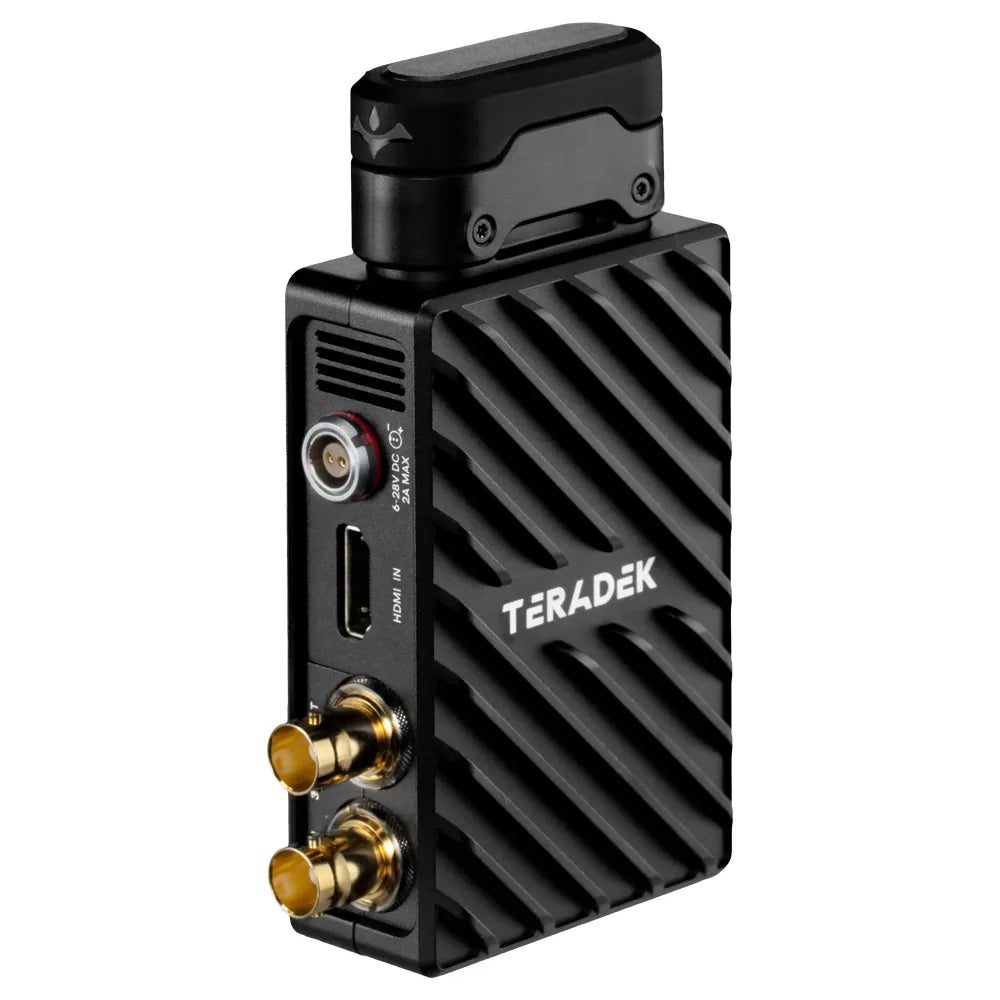

Bolt 6 LT TX is a wireless video transmitter that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek's patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
The Transmitter is cross-compatible with the entire Bolt 4K Series, including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules, giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter.

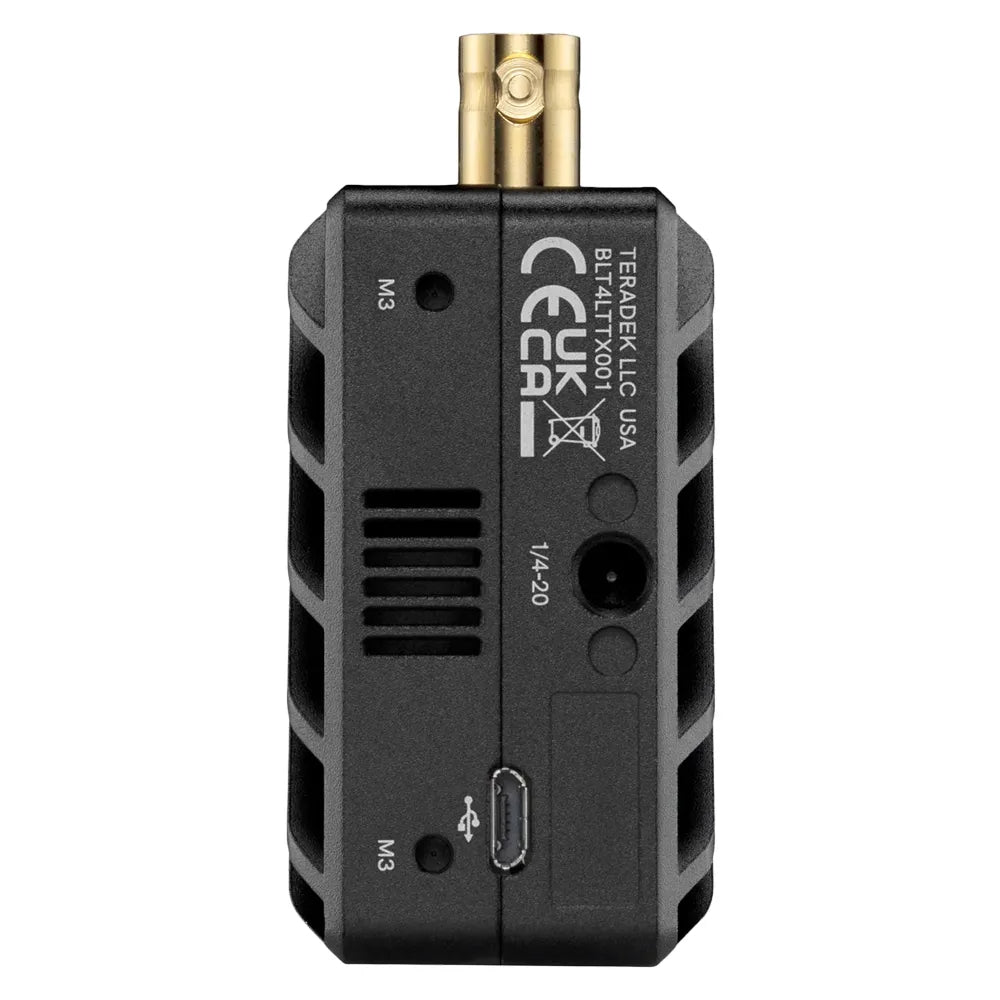

This internal antenna version features permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor, with 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
Built-in AES-256 encryption protects your video, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera. Bolt Manager desktop software or the Bolt app for iOS or Android (via Bluetooth) provide a spectrum analyser, channel selection tools, and remote configuration.
Key Features
- Up to 1080p60 10-bit 4:2:2 HDR over 3G-SDI, or 4K30 over HDMI
- Zero-delay (<0.001 sec) wireless video over 5GHz and 6GHz frequencies
- Up to 1500ft (457m) line of sight range
- Permanent internal antennas for a compact, durable form factor
- Connect one transmitter to up to 6 receivers
- AES-256 encryption with RSA-1024 key exchange
- HDMI to SDI cross conversion and SDI loop output on TX
- Supports metadata, timecode and start/stop flags from most cameras
- Bolt App (iOS/Android via Bluetooth) and Bolt Manager desktop app with spectrum analyser and remote configuration
- Cross-compatible with Bolt 4K series receivers (5GHz)
Specifications
| SDI Ancillary Data Support |
Supports reading metadata, timecode, and start/stop flags from most camera manufacturers |
| Color Sampling |
SDI: YCbCr 4:2:2, 10-bit; HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit |
| Delay TX to RX |
<0.001 sec |
| Supported Resolutions |
4Kp23.98/24/25/29.97/30 (HDMI only); 1080p23.98/24/25/29.97/30/50/59.94/60; 1080psf23.98/24/25/29.97/30; 1080i50/59.94/60; 720p50/59.94/60 |
| Video Compression |
Visually Lossless |
| Audio |
48kHz 24-bit PCM; Embedded SDI/HDMI audio (2 channel) |
| Configuration Interfaces |

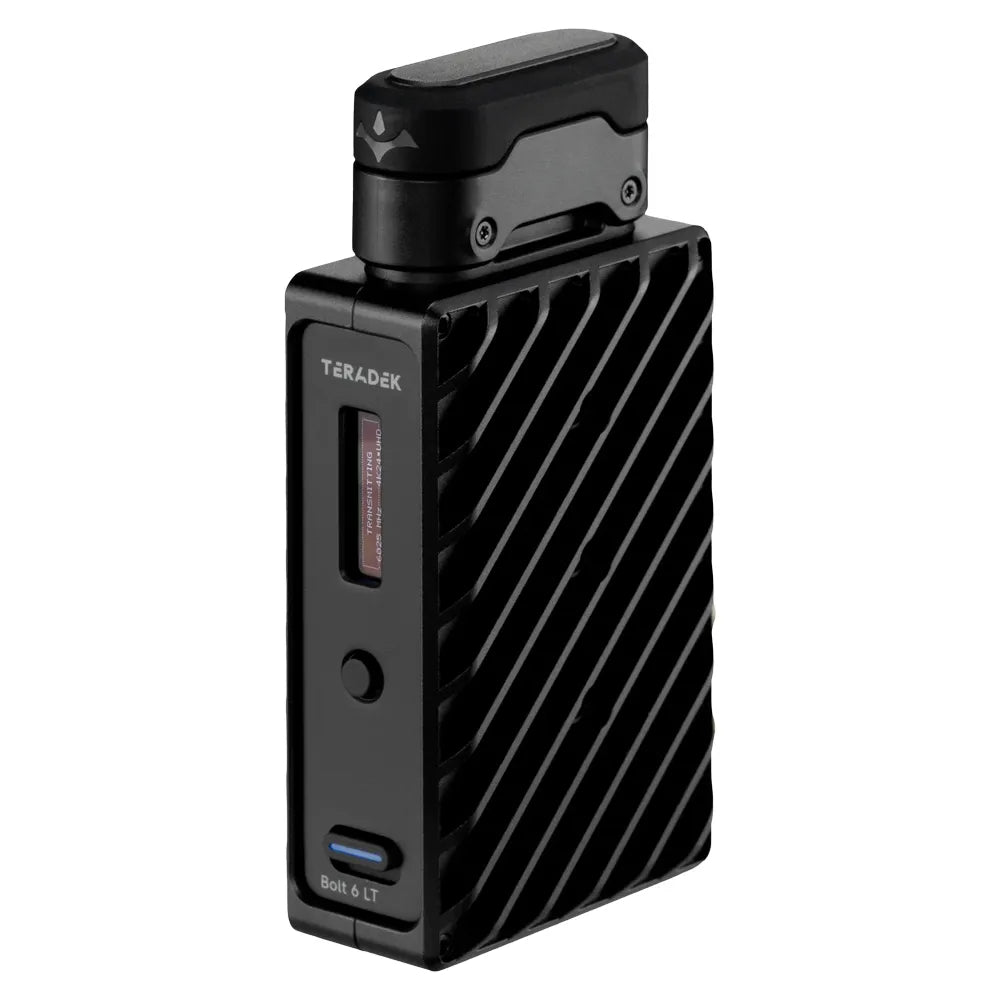

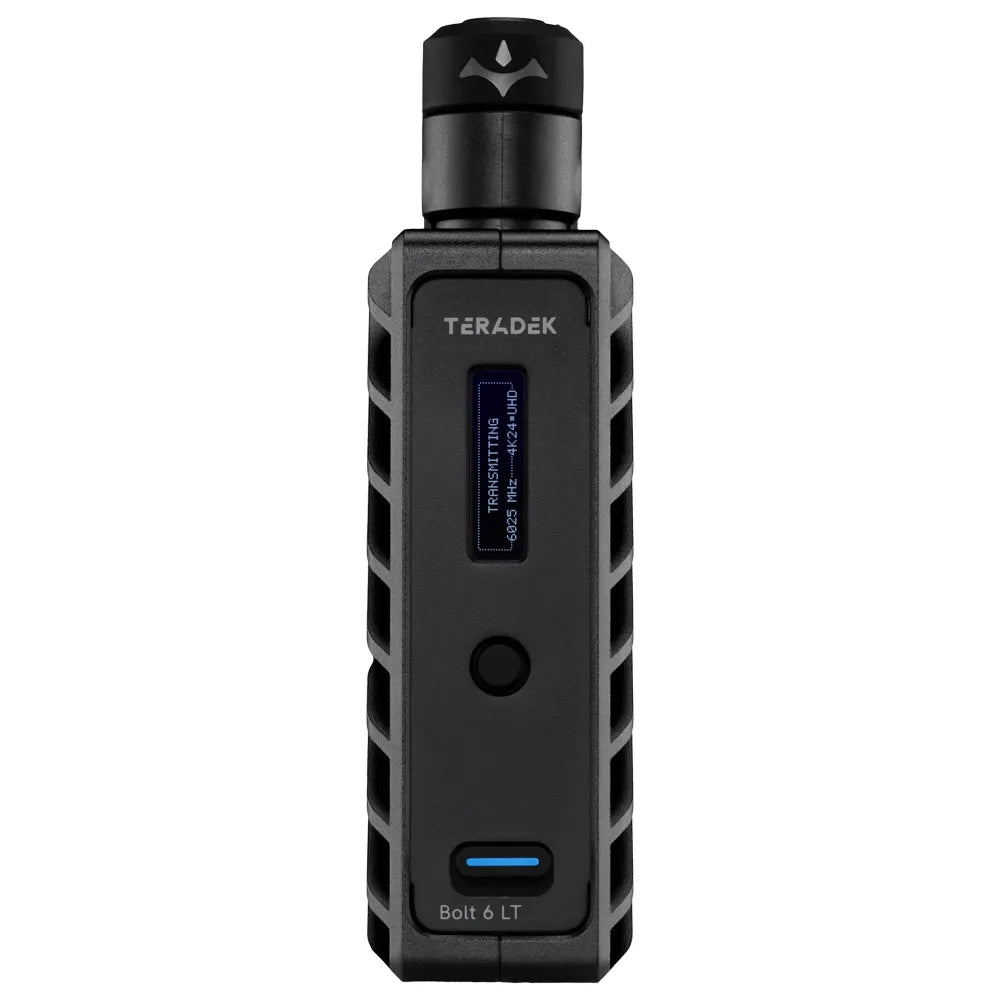

OSD with Menu, Joystick Navigation |
| Switches |
On/Off Switch |
| Mobile App |
Bolt App |
| Desktop App |
Bolt Manager application for macOS & Windows |
| Bluetooth |
2.4 GHz |
| Antennas |
Internal |
| DFS Frequencies |
5.270 to 5.670 GHz |
| Non-DFS Frequencies |
5.190 to 5.230 GHz, 5.755 to 5.795 GHz, 5.945 to 6.425 GHz |
| RF Channel Selection |
Auto, Manual |
| Encryption |
AES-256, RSA-1024 key exchange |
| RF Power |
23 dBm EIRP |
| Range |
Up to 1500ft (457m), line of sight |
| Unicast/Multicast |
One Transmitter to up to 6 Receivers |
| Noise Rejection |
Coexists with WiFi and 5GHz cordless phones; up to 6 sets in same location |
| Interoperability |
Can transmit to Bolt 4K XT and Bolt 4K LT receivers (6GHz requires Bolt 6 receivers) |
| Power Input |
2-Pin Circular locking Connector, 6-28 VDC |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Warranty |
12 Months |

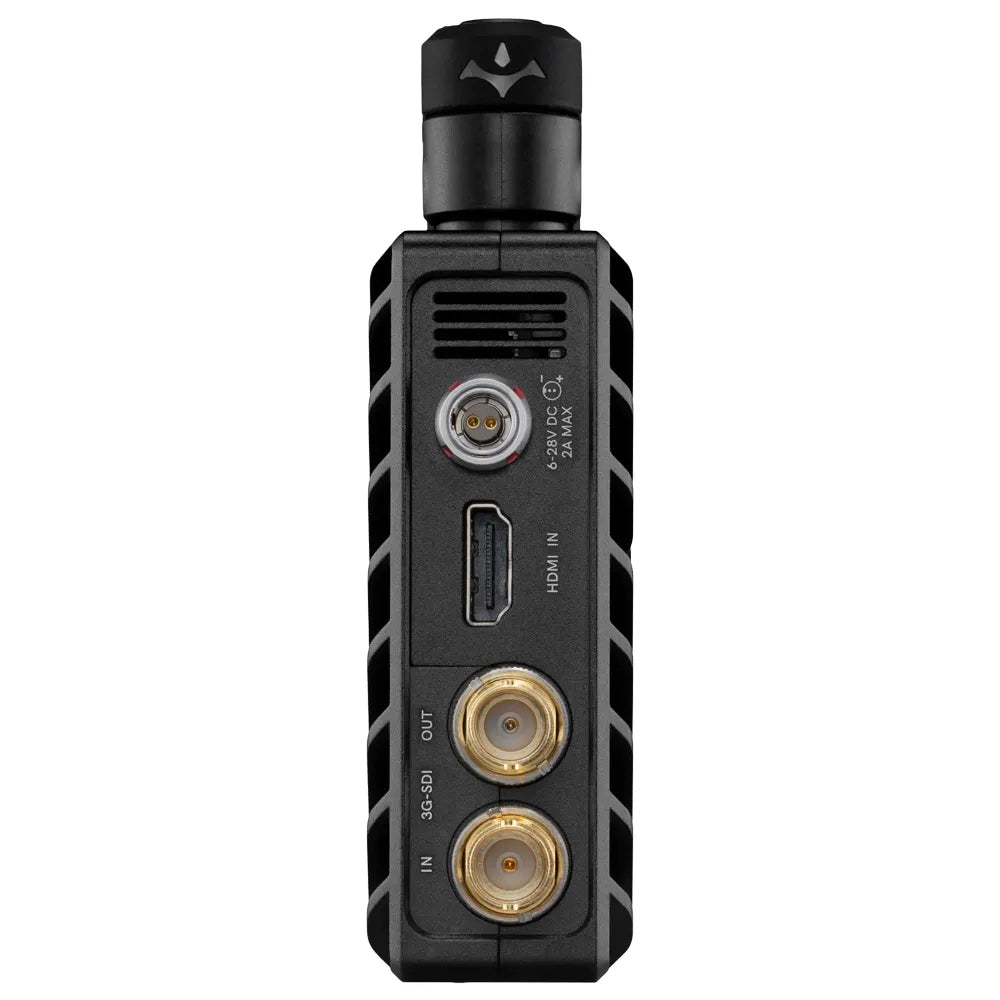

| TX Video Inputs |
1x 3G-SDI BNC SMPTE 424M/75Ω; 1x HDMI 1.4b Type-A |
| TX Video Outputs |
1x 3G-SDI BNC SMPTE 424M/75Ω (loop) |
| TX Input Cross Conversion |
HDMI to SDI (4Kp23.98-30 HDMI input scaled/looped as 1080p23.98-30 SDI) |
| TX Dimensions |
2.8 x 4.7 x 1.3 in |
| TX Weight |
7.5 oz (212 g) |
| TX Nominal Power Consumption |
9 W |
| TX Mounting |
1/4"-20 and M3 holes |
Compatibility
- Bolt 6 LT, Bolt 6 XT and Bolt 6 receivers/transmitters (5GHz and 6GHz)
- Bolt 4K series receivers including Bolt 4K, Bolt 4K LT and Bolt 4K Monitor Modules (5GHz only)
- RF-X Auto-Switcher
- Bolt App (iOS/Android) and Bolt Manager (macOS/Windows)
In the Box
- 1 x Bolt 6 LT 1500 TX Internal Antenna
- 1 x 2pin to P-Tap Cable (18in)
- 1 x 2pin to AC Adapter 18W (6ft)
- 1 x Ultra Thin HDMI Male to Male Cable (18in)
- 1 x SDI Cable (10in)
- 1 x USB-C 2.0 Male to Male Cable (1m)
