Bolt 6 LT is a wireless video transmission system that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek's patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 LT Sets offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode.
This internal antenna version features permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.
Looking for even more robust signal connection when in the most challenging RF environments? Try using RF-X Auto-Switcher, built specifically for Teradek Bolt RXs to secure the best possible signal every time.
Deluxe kits also include Gold Mount battery plates.
Key Features
- Up to 1080p60 10-bit 4:2:2 HDR over 3G-SDI, or 4K30 over HDMI
- Zero-delay (<0.001 sec) wireless video over 5GHz and 6GHz frequencies
- Up to 1500ft (457m) line of sight range
- Permanent internal antennas for a compact, durable form factor
- Connect one transmitter to up to 6 receivers
- AES-256 encryption with RSA-1024 key exchange
- HDMI to SDI cross conversion and SDI loop output on TX
- Supports metadata, timecode and start/stop flags from most cameras
- Bolt App (iOS/Android via Bluetooth) and Bolt Manager desktop app with spectrum analyser and remote configuration
- Cross-compatible with Bolt 4K series receivers (5GHz)
- Deluxe set includes Gold Mount battery plates
Specifications
| SDI Ancillary Data Support |
Supports reading metadata, timecode, and start/stop flags from most camera manufacturers |
| Color Sampling |
SDI: YCbCr 4:2:2, 10-bit; HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit |
| Delay TX to RX |
<0.001 sec |
| Supported Resolutions |
4Kp23.98/24/25/29.97/30 (HDMI only); 1080p23.98/24/25/29.97/30/50/59.94/60; 1080psf23.98/24/25/29.97/30; 1080i50/59.94/60; 720p50/59.94/60 |
| Video Compression |
Visually Lossless |
| Audio |
48kHz 24-bit PCM; Embedded SDI/HDMI audio (2 channel) |
| Configuration Interfaces |
OSD with Menu, Joystick Navigation |
| Switches |
On/Off Switch |
| Mobile App |
Bolt App |
| Desktop App |
Bolt Manager application for macOS & Windows |
| Bluetooth |
2.4 GHz |
| Antennas |
Internal |
| DFS Frequencies |
5.270 to 5.670 GHz |
| Non-DFS Frequencies |
5.190 to 5.230 GHz, 5.755 to 5.795 GHz, 5.945 to 6.425 GHz |
| RF Channel Selection |
Auto, Manual |
| Encryption |
AES-256, RSA-1024 key exchange |
| RF Power |
23 dBm EIRP |
| Range |
Up to 1500ft (457m), line of sight |
| Unicast/Multicast |
One Transmitter to up to 6 Receivers |
| Noise Rejection |
Coexists with WiFi and 5GHz cordless phones; up to 6 sets in same location |
| Interoperability |
Can transmit to Bolt 4K XT and Bolt 4K LT receivers (6GHz requires Bolt 6 receivers) |
| Power Input |
2-Pin Circular locking Connector, 6-28 VDC |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Warranty |
12 Months |

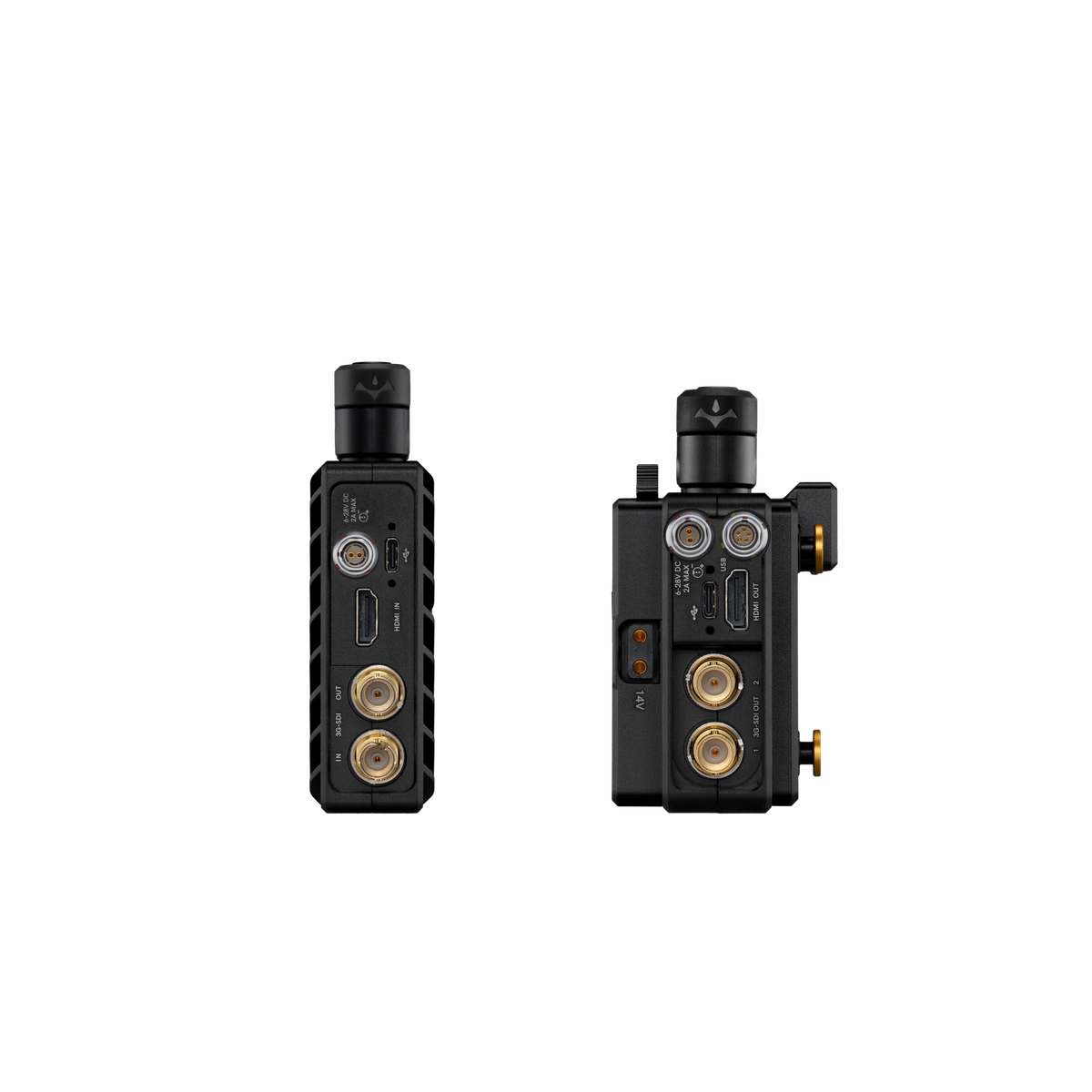

| TX Video Inputs |
1x 3G-SDI BNC SMPTE 424M/75Ω; 1x HDMI 1.4b Type-A |
| TX Video Outputs |
1x 3G-SDI BNC SMPTE 424M/75Ω (loop) |
| TX Input Cross Conversion |
HDMI to SDI (4Kp23.98-30 HDMI input scaled/looped as 1080p23.98-30 SDI) |
| TX Dimensions |
2.8 x 4.7 x 1.3 in |
| TX Weight |
7.5 oz (212 g) |
| TX Nominal Power Consumption |
9 W |
| TX Mounting |
1/4"-20 and M3 holes |
| RX Video Outputs |
1x 3G-SDI BNC SMPTE 424M/75Ω; 1x HDMI 1.4b Type-A |
| RX Dimensions |
4.8 x 4.2 x 1 in (122.4 x 106.2 x 27.1 mm) |
| RX Weight |
0.67 lb (304 g) |
| RX Nominal Power Consumption |
11 W |
| RX Mounting |
3/8"-16 and 1/4"-20 holes |
Compatibility
- Bolt 6 LT, Bolt 6 XT and Bolt 6 receivers/transmitters (5GHz and 6GHz)
- Bolt 4K series receivers including Bolt 4K, Bolt 4K LT and Bolt 4K Monitor Modules (5GHz only)
- RF-X Auto-Switcher
- Bolt App (iOS/Android) and Bolt Manager (macOS/Windows)

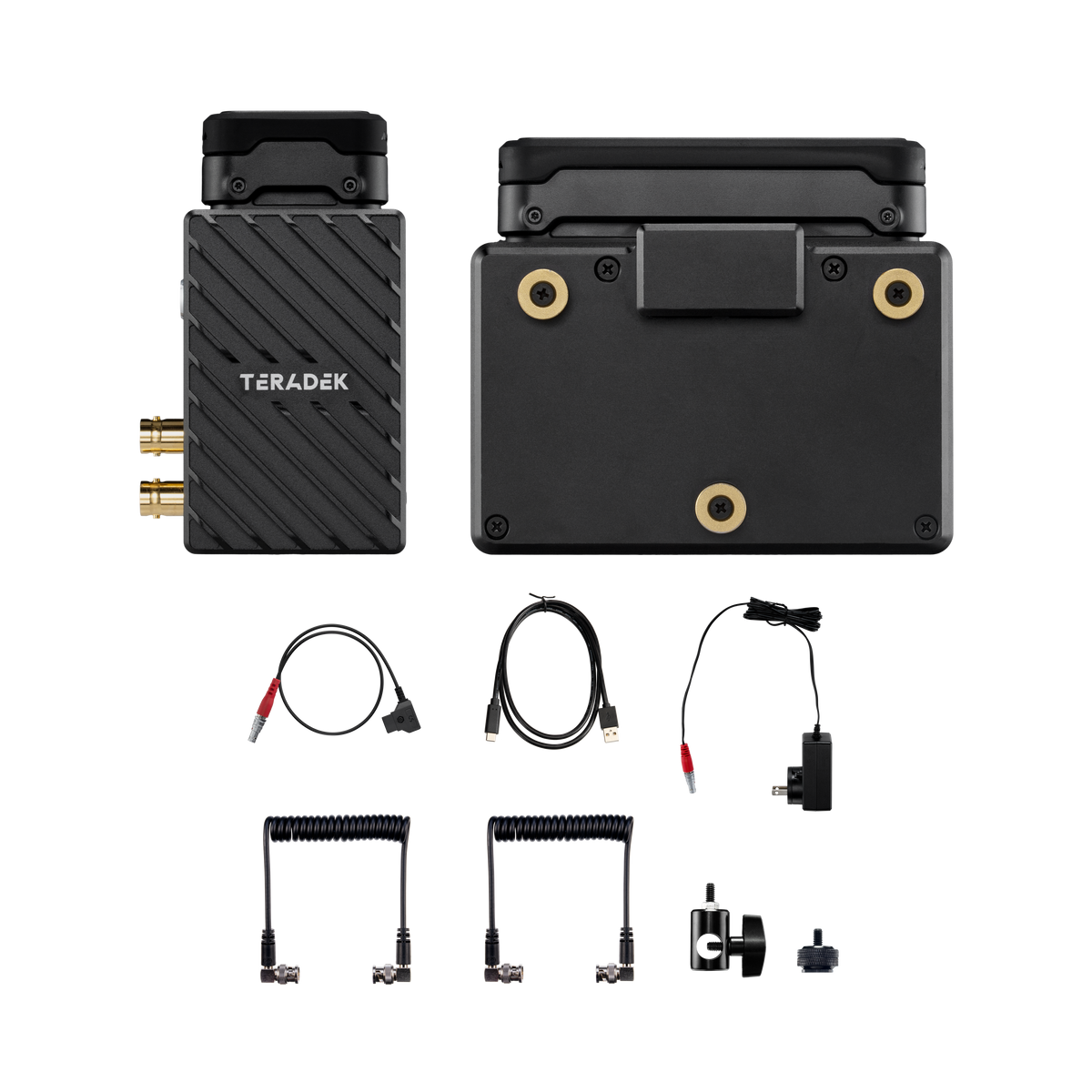

In the Box

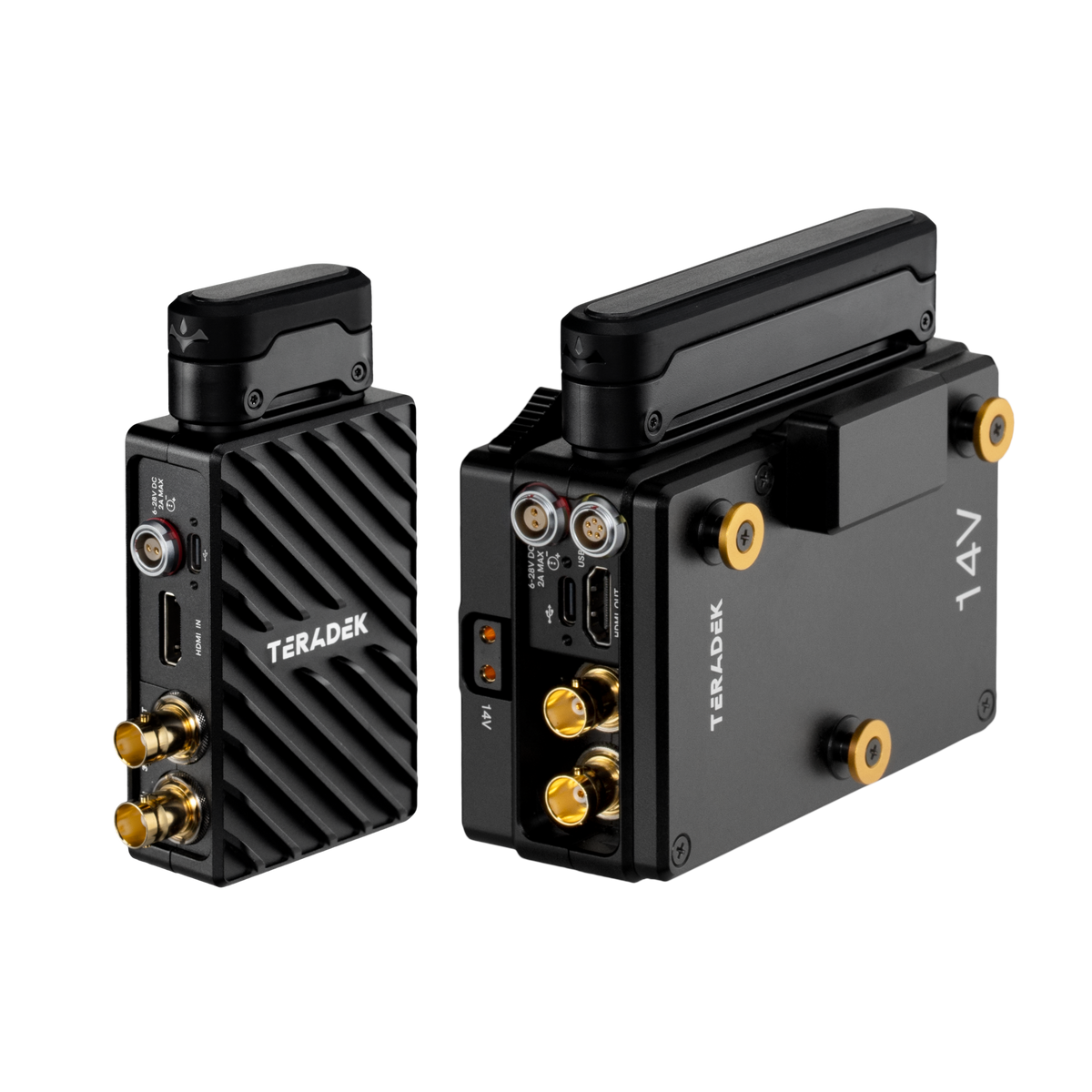

- 1 x Bolt 6 LT 1500 TX Internal Antenna
- 1 x Bolt 6 LT 1500 RX Internal Antenna
- Gold Mount battery plates
- Power, HDMI, SDI and USB-C cables
