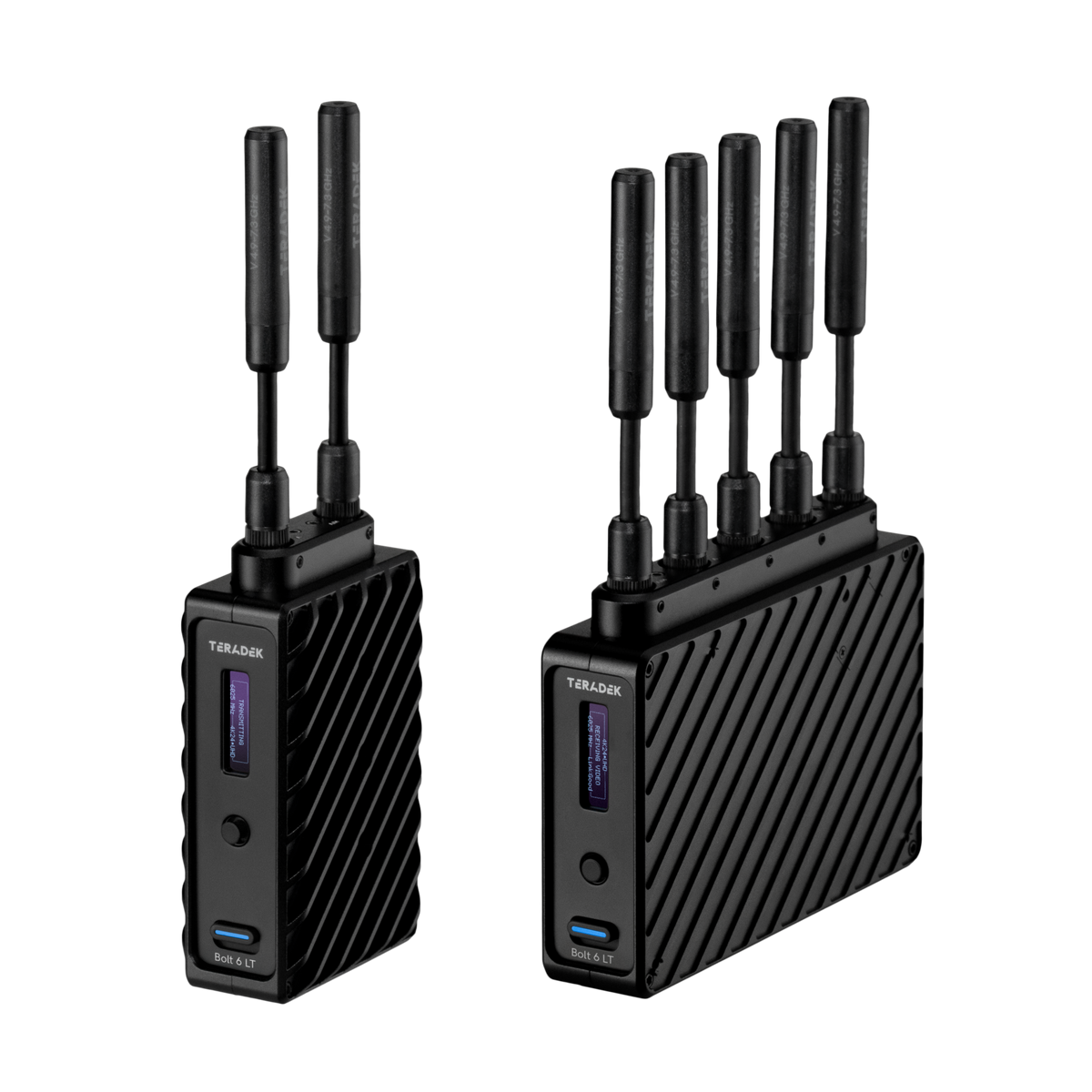

Teradek Bolt 6 LT 1500 TX/RX

$10,959.95 AUD - $14,069.95 AUD

RRP inc GST /

SKU: 10-2270SKU: 10-2270-GSKU: 10-2270-V

Select an option to add this to your cart.

Configuration : No Mount : Gold Mount : V-Mount

For updated Stock on hand, please contact sales@blkflag.com.au otherwise we will email you ETA after confirmed order placement.

Bolt 6 LT is a wireless video transmission system that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies. External Antenna models now ship with new flexible V-antennas.

Bolt 6 LT Sets offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.

The 750 model includes V (vertical) antennas. 1500 and MAX models include both V antennas and H (horizontal) antennas. H antennas are designed to maximize signal robustness in the most challenging RF environments.

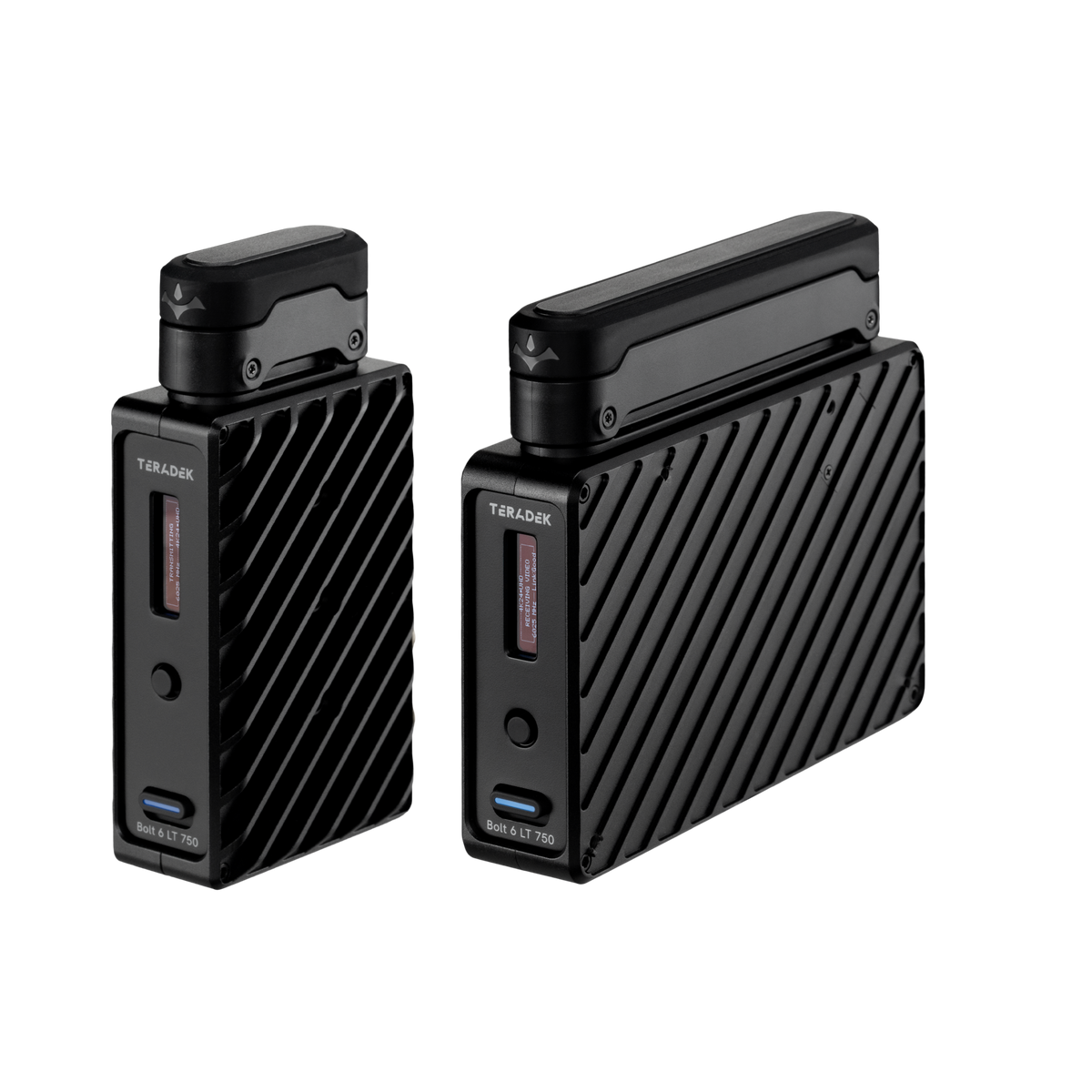

Optionally, the 750 model of Bolt 6 LT can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.

Kit options include the Transmitter and Receiver by themselves or within a Deluxe kit that also includes Gold or V-Mount Battery plates.

Looking for even more robust signal connection when in the most challenging RF environments? Try using RF-X Auto-Switcher, built specifically for Teradek Bolt RXs to secure the best possible signal every time.

Read the Bolt 6 Internal Antenna FAQ to learn more about the optional built-in internal antennas.

— No Mount —
Antenna Ports: Transmitter: 2 x RP-SMA Female Receiver: 5 x RP-SMA Female

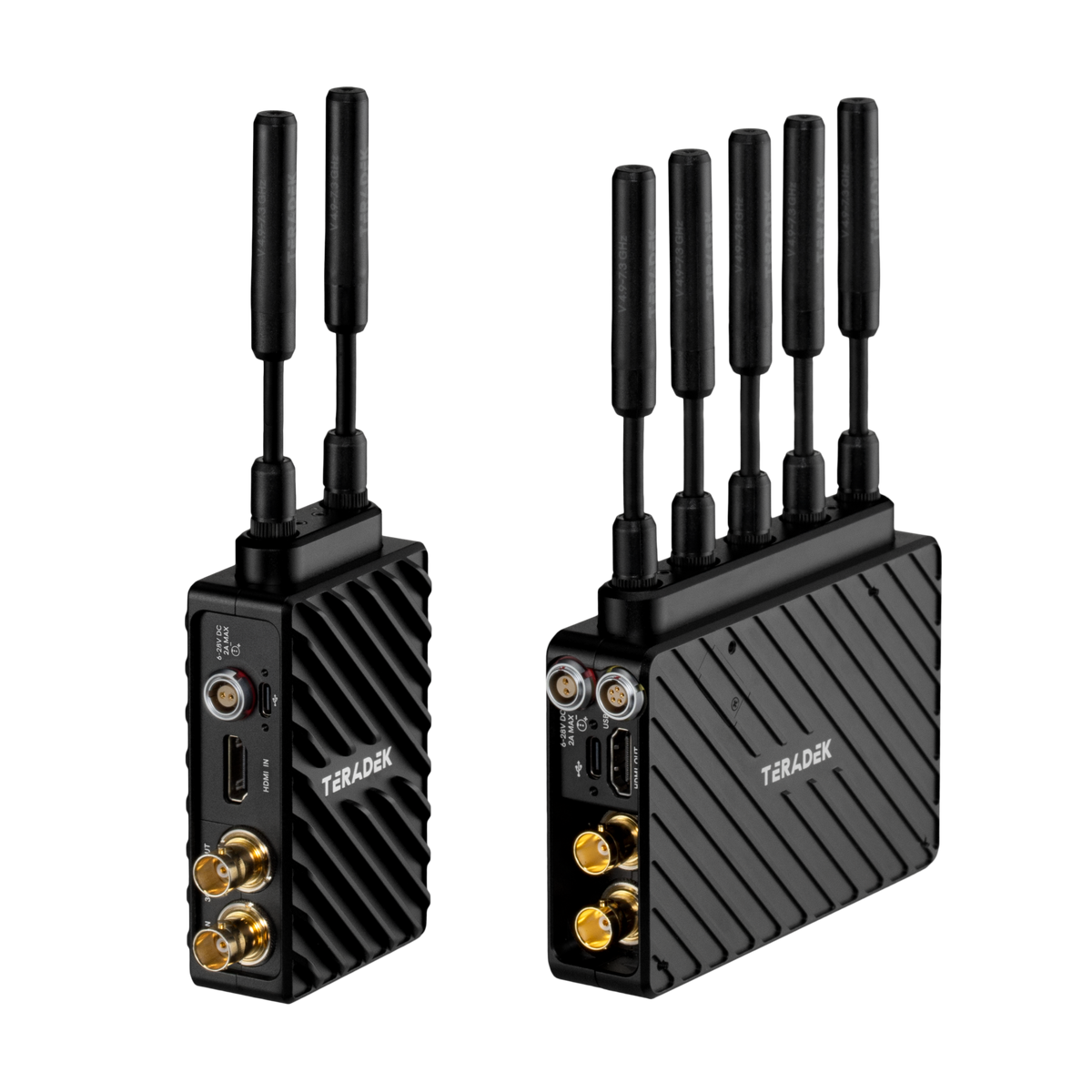

Video: Transmitter: 1 x HDMI Type A (HDMI 1.4b) Input Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 1 x HDMI Type A (HDMI 1.4b) Output Receiver: 1 x BNC (3G-SDI) Output
Embedded Audio: HDMI: 2-Channel SDI: 2-Channel
Audio: None
Power: Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O: Transmitter/Receiver: 1 x Micro-USB Input
Encryption: 256-Bit AES
Wireless Range: 1500' / 457.2 m (Line-of-Sight)
Channel Bandwidth: 40 MHz
Frequency Range: Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: None
Bluetooth: Yes
Video Format: HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz
Timecode Support: Yes
DC Input Power: 6 to 28 VDC
Power Consumption: Transmitter: 9 W Receiver: 11 W
Mounting: 1 x 1/4"-20 Female
IP Rating: None
Operating Temperature: 0 to 40°C
Material of Construction: Aluminum, Polycarbonate
Dimensions (cm): Transmitter: 10.3 x 6 x 3.3 Receiver: 12.2 x 9.4 x 2.7
Weight (kg): 0.206

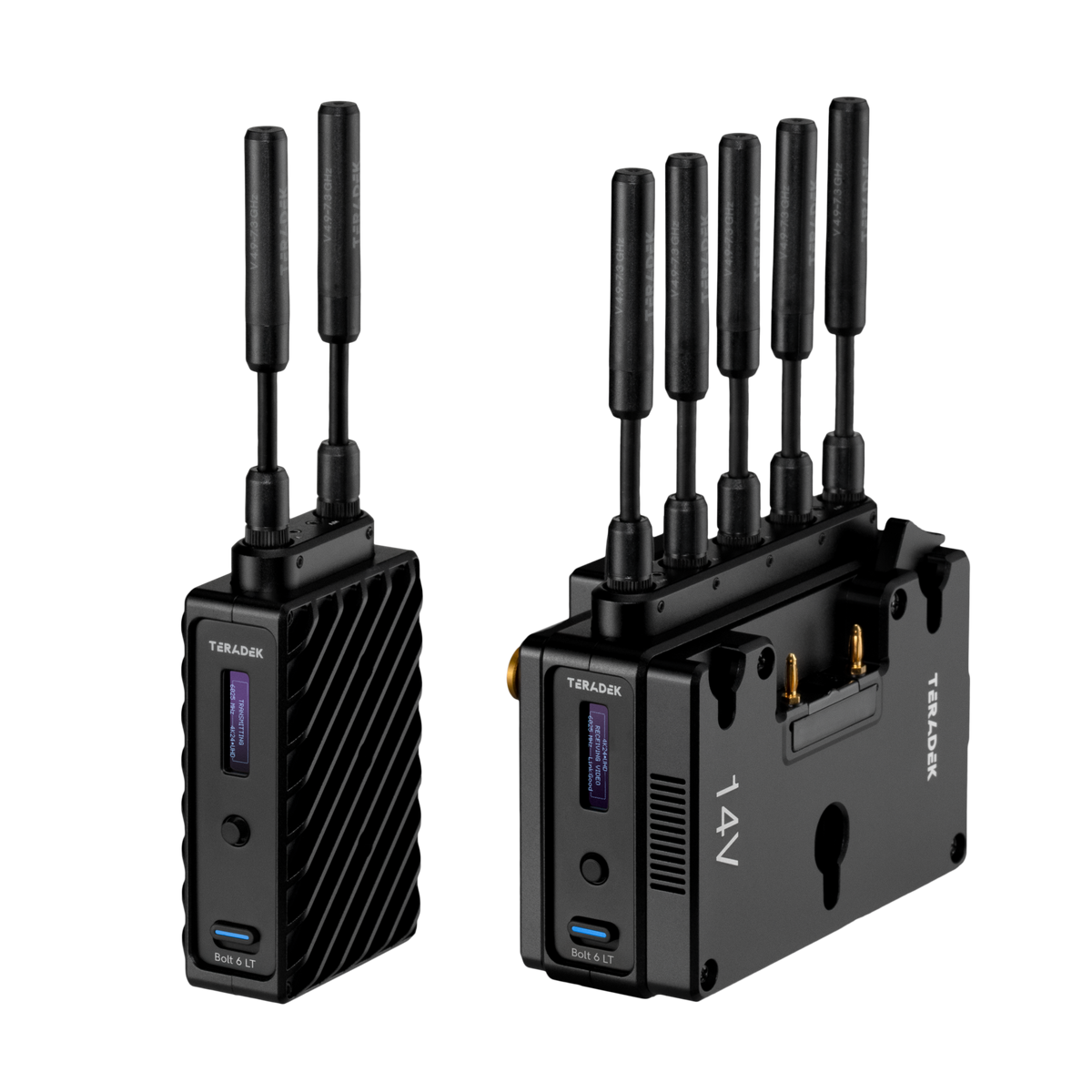

— Gold Mount —
Antenna Ports: Transmitter: 2 x RP-SMA Female Receiver: 5 x RP-SMA Female
Video: Transmitter: 1 x HDMI Type A Input Transmitter: 1 x BNC (3G-SDI) Input Receiver: 1 x HDMI Type A Output Receiver: 1 x BNC Output
Embedded Audio: SDI: 2-Channel HDMI: 2-Channel
Audio: None
Power: Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O: Transmitter/Receiver: 1 x Micro-USB Input
Encryption: 256-Bit AES
Wireless Range: 1500' / 457.2 m (Line-of-Sight)
# of Channels: 13 (40 MHz) 25 (20 MHz)
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range: Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: None
Bluetooth: Yes
Video Format: HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 59.94/50 480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression: Uncompressed
Timecode Support: Yes
DC Input Power: 28 VDC
Battery Type: Receiver: 1 x Gold Mount
Power Consumption: Transmitter: 9 W Receiver: 11 W
Mounting: 1 x 1/4"-20 Female 1 x 3/8"-16 Female
IP Rating: None
Operating Temperature: 0 to 40°C
Material of Construction: Aluminum, Polycarbonate
Dimensions (cm): Transmitter: 10.3 x 6 x 3.3 Receiver: 12.2 x 9.4 x 2.7
Weight (kg): 0.206

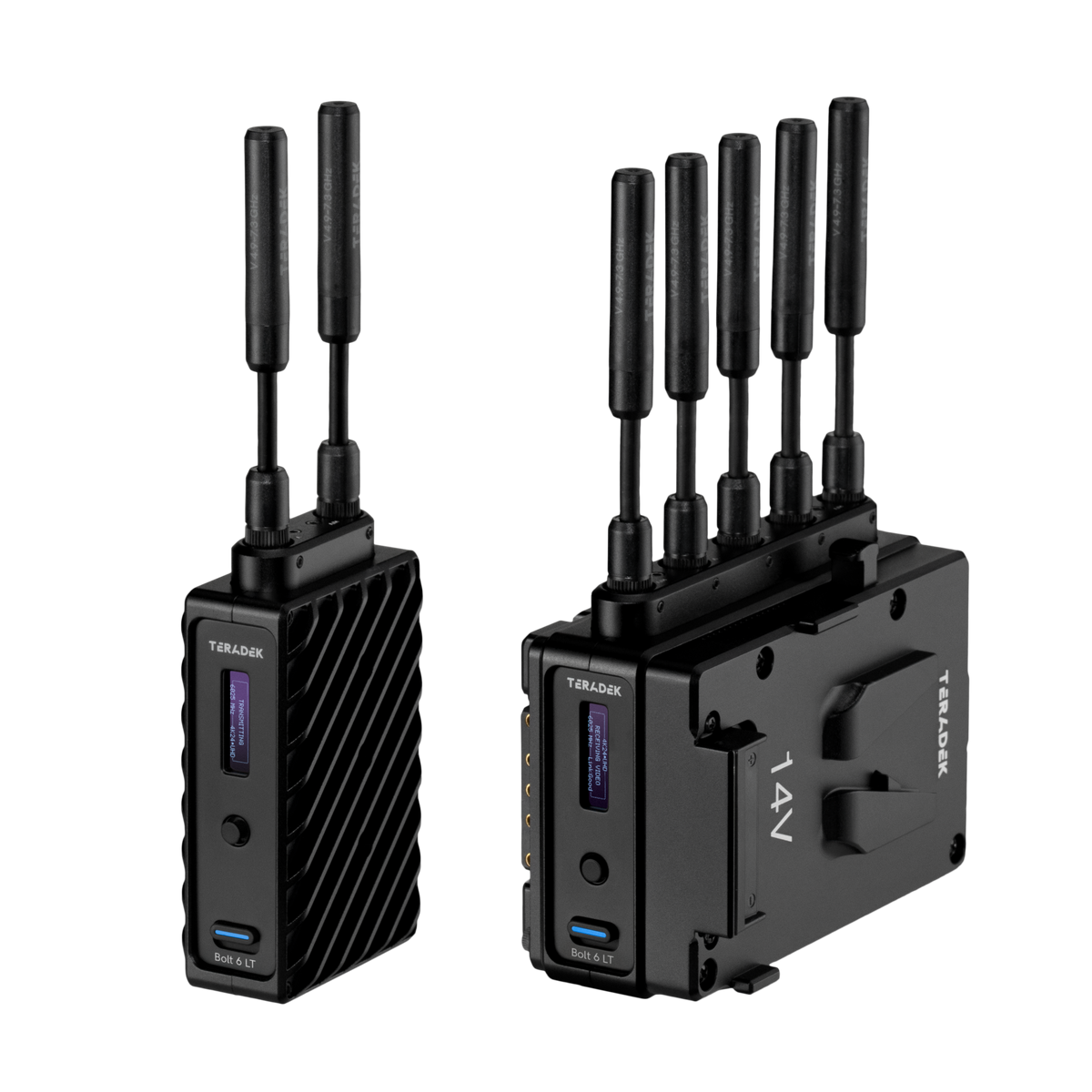

— V-Mount —
Antenna Ports: Transmitter: 2 x RP-SMA Female Receiver: 5 x RP-SMA Female
Video: Transmitter: 1 x HDMI Type A Input Transmitter: 1 x BNC (3G-SDI) Input Receiver: 1 x HDMI Type A Output Receiver: 1 x BNC Output
Embedded Audio: SDI: 2-Channel HDMI: 2-Channel
Audio: None
Power: Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O: Transmitter/Receiver: 1 x Micro-USB Input
Encryption: 256-Bit AES
Wireless Range: 1500' / 457.2 m (Line-of-Sight)
# of Channels: 13 (40 MHz) 25 (20 MHz)
Channel Bandwidth: 40 MHz, 20 MHz
Frequency Range: Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
Latency: < 0.01 ms
RF Power: 23 dBm
Wi-Fi: None
Bluetooth: Yes
Video Format: HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 59.94/50 480i: 59.94
Audio Format: 2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression: Uncompressed
Timecode Support: Yes
DC Input Power: 28 VDC
Battery Type: Receiver: 1 x V-Mount
Power Consumption: Transmitter: 9 W Receiver: 11 W
Mounting: 1 x 1/4"-20 Female 1 x 3/8"-16 Female
IP Rating: None
Operating Temperature: 0 to 40°C
Material of Construction: Aluminum, Polycarbonate
Dimensions (cm): Transmitter:10.3 x 6 x 3.3 Receiver: 12.2 x 9.4 x 2.7
Weight (kg): 0.206

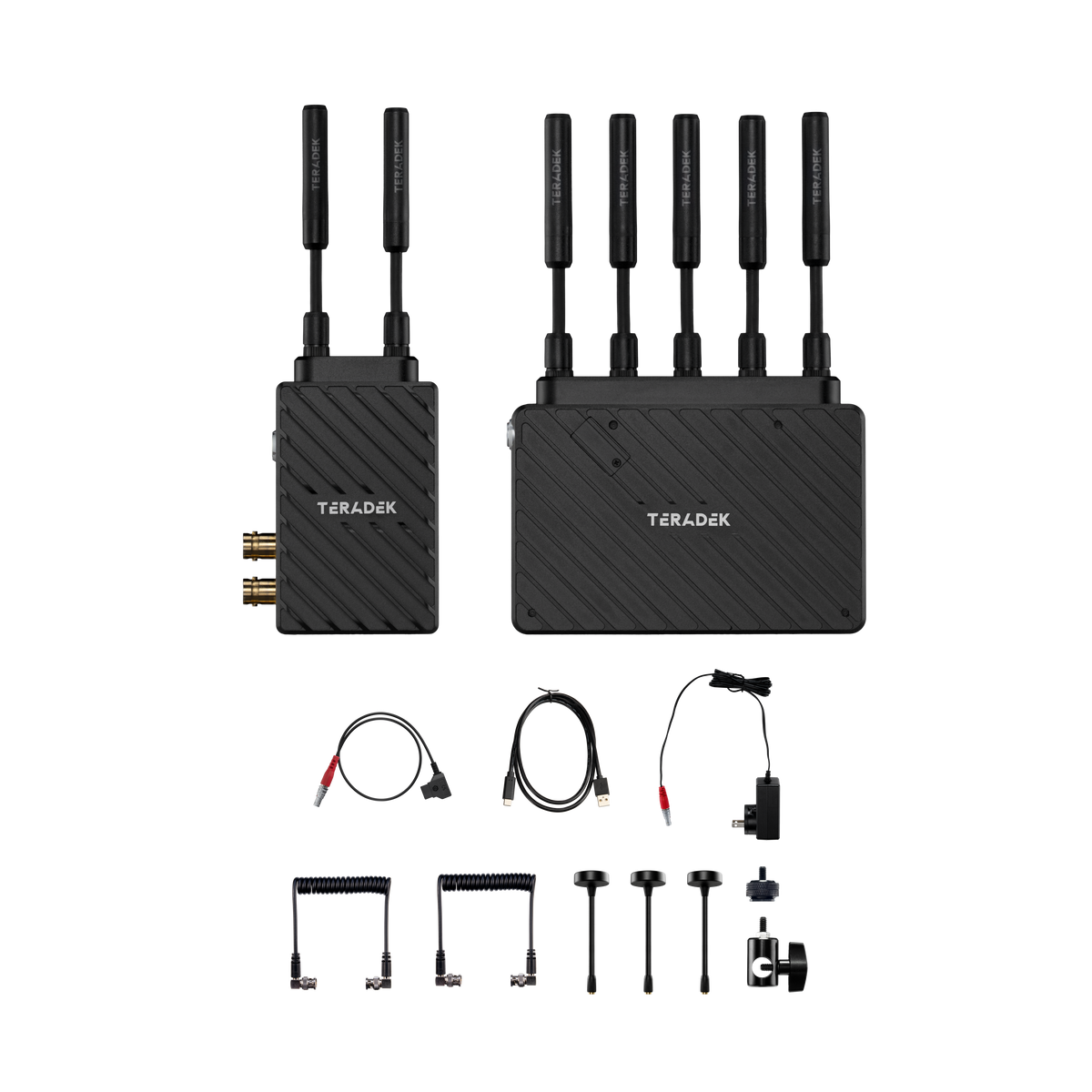

— No Mount —
1 x Bolt 6 LT 1500 TX
1 x Bolt 6 LT 1500 RX
7 x Teradek 6G V Antenna (2dBi 4.9-7.3Ghz RP-SMA)
3 x Teradek 6G Flexible H Antenna "Mushroom" (2dBi 4.9-7.3Ghz RP-SMA)
1 x Lightstand Adapter 1/4-20in
1 x Hot Shoe Adaptor
1 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
2 x SDI - BNC to BNC Cable, 10in
1 x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable

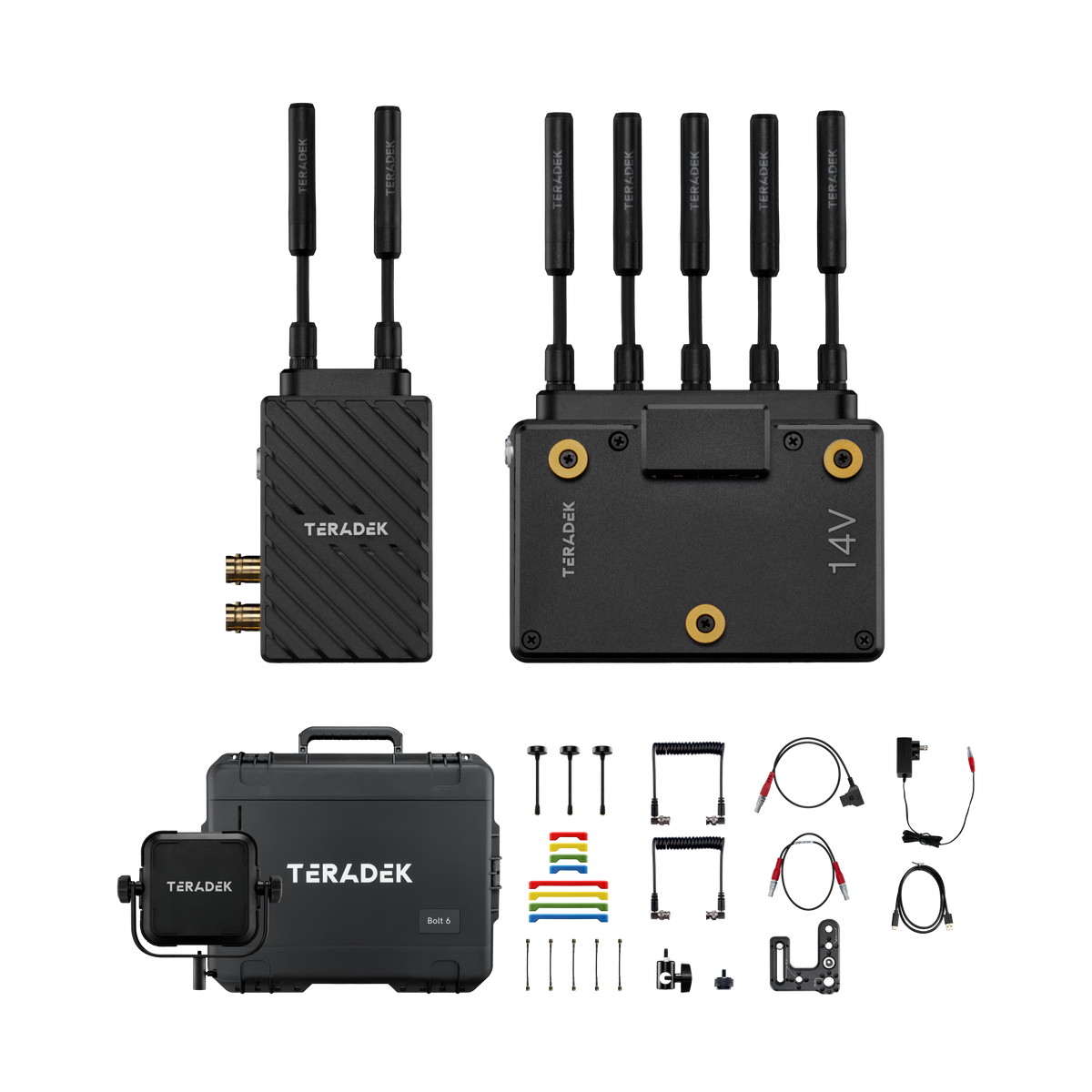

— Gold Mount —
1 x Bolt 6 LT 1500 TX
1 x Bolt 6 LT 1500 RX Gold Mount
7 x Teradek 6G V Antenna (2dBi 4.9-7.3Ghz RP-SMA)
3 x Teradek 6G Flexible H Antenna "Mushroom" (2dBi 4.9-7.3Ghz RP-SMA)
1 x Antenna Array
1 x Lightstand Adapter 1/4-20in
1 x Hot Shoe Adaptor
1 x 2pin Conn. to PowerTap - 18in/46cm Cable
1 x 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
5 x RP-SMA Female to RP-SMA Female 4in/10cm Cable
2 x SDI - BNC to BNC Cable, 10in
1 x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
1 x Wooden Camera - Teradek Offset Mount for Bolt 4K LT TX
1 x Teradek Case XL - Bolt 6 LT TX/4RX and Antenna Array
3 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
1 x Bolt 6 LT TX Color Band (Red Rubber)
1 x Bolt 6 LT TX Color Band (Yellow Rubber)
1 x Bolt 6 LT TX Color Band (Green Rubber)
1 x Bolt 6 LT TX Color Band (Blue Rubber)
1 x Bolt 6 LT RX Color Band (Red Rubber)
1 x Bolt 6 LT RX Color Band (Yellow Rubber)
1 x Bolt 6 LT RX Color Band (Green Rubber)
1 x Bolt 6 LT RX Color Band (Blue Rubber)

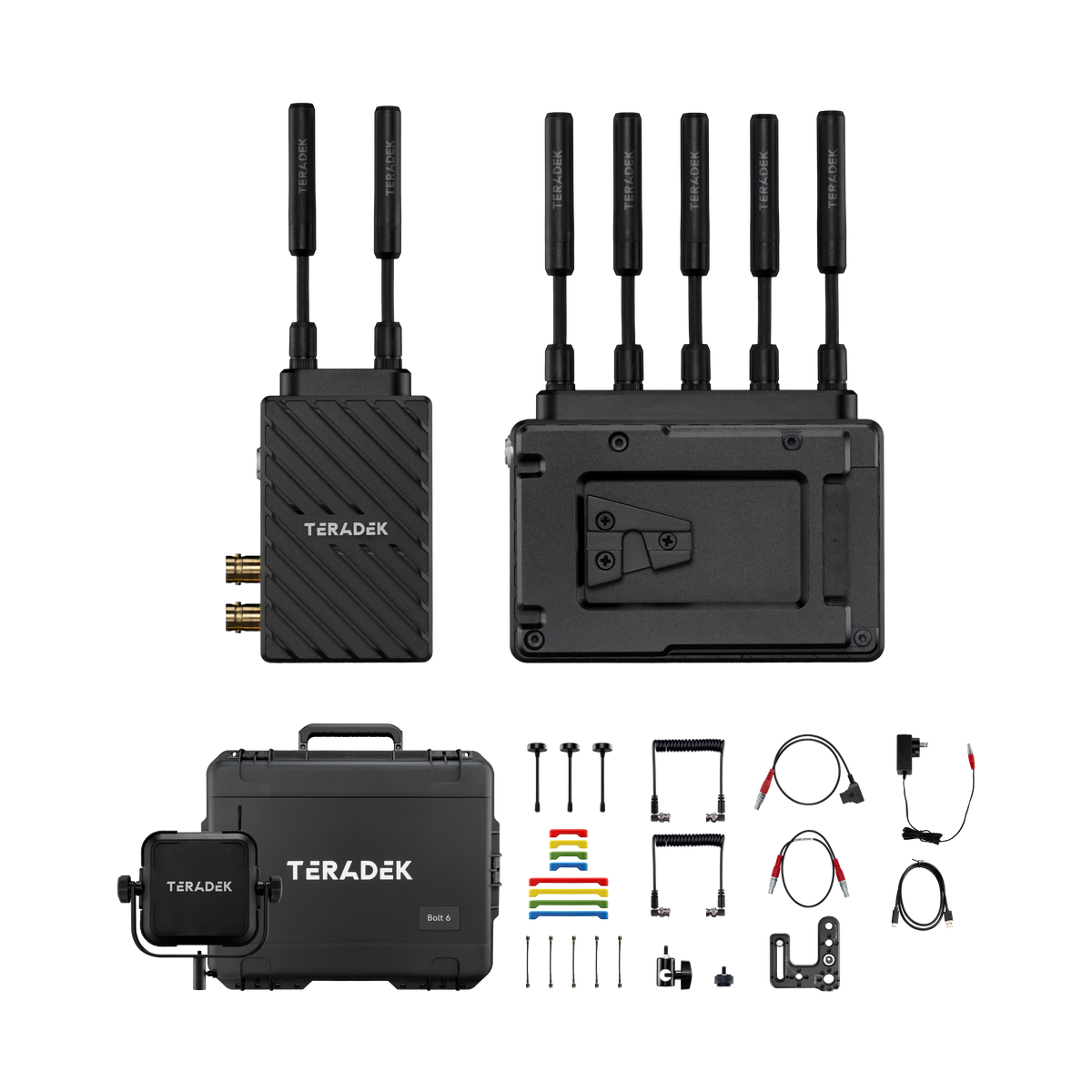

— V-Mount —
1 x Bolt 6 LT 1500 TX
1 x Bolt 6 LT 1500 RX V-Mount
7 x Teradek 6G V Antenna (2dBi 4.9-7.3Ghz RP-SMA)
3 x Teradek 6G Flexible H Antenna "Mushroom" (2dBi 4.9-7.3Ghz RP-SMA)
1 x Antenna Array
1 x Lightstand Adapter 1/4-20in
1 x Hot Shoe Adaptor
1 x 2pin Conn. to PowerTap - 18in/46cm Cable
1 x 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
5 x RP-SMA Female to RP-SMA Female 4in/10cm Cable
2 x SDI - BNC to BNC Cable, 10in
1 x PSU 2pin Conn. to 18W AC Adapter (Int) - 6ft Cable
1 x Wooden Camera - Teradek Offset Mount for Bolt 4K LT TX
1 x Teradek Case XL - Bolt 6 LT TX/4RX and Antenna Array
3 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
1 x Bolt 6 LT TX Color Band (Red Rubber)
1 x Bolt 6 LT TX Color Band (Yellow Rubber)
1 x Bolt 6 LT TX Color Band (Green Rubber)
1 x Bolt 6 LT TX Color Band (Blue Rubber)
1 x Bolt 6 LT RX Color Band (Red Rubber)
1 x Bolt 6 LT RX Color Band (Yellow Rubber)
1 x Bolt 6 LT RX Color Band (Green Rubber)
1 x Bolt 6 LT RX Color Band (Blue Rubber)
