Teradek Bolt 6 Monitor Module 750 RX
Teradek Bolt 6 Monitor Module 750 RX
Teradek Bolt 6 Monitor Module 750 RX
Teradek Bolt 6 Monitor Module 750 RX
Teradek Bolt 6 Monitor Module 750 RX
Teradek Bolt 6 Monitor Module 750 RX
Teradek Bolt 6 Monitor Module 750 RX
Teradek Bolt 6 Monitor Module 750 RX

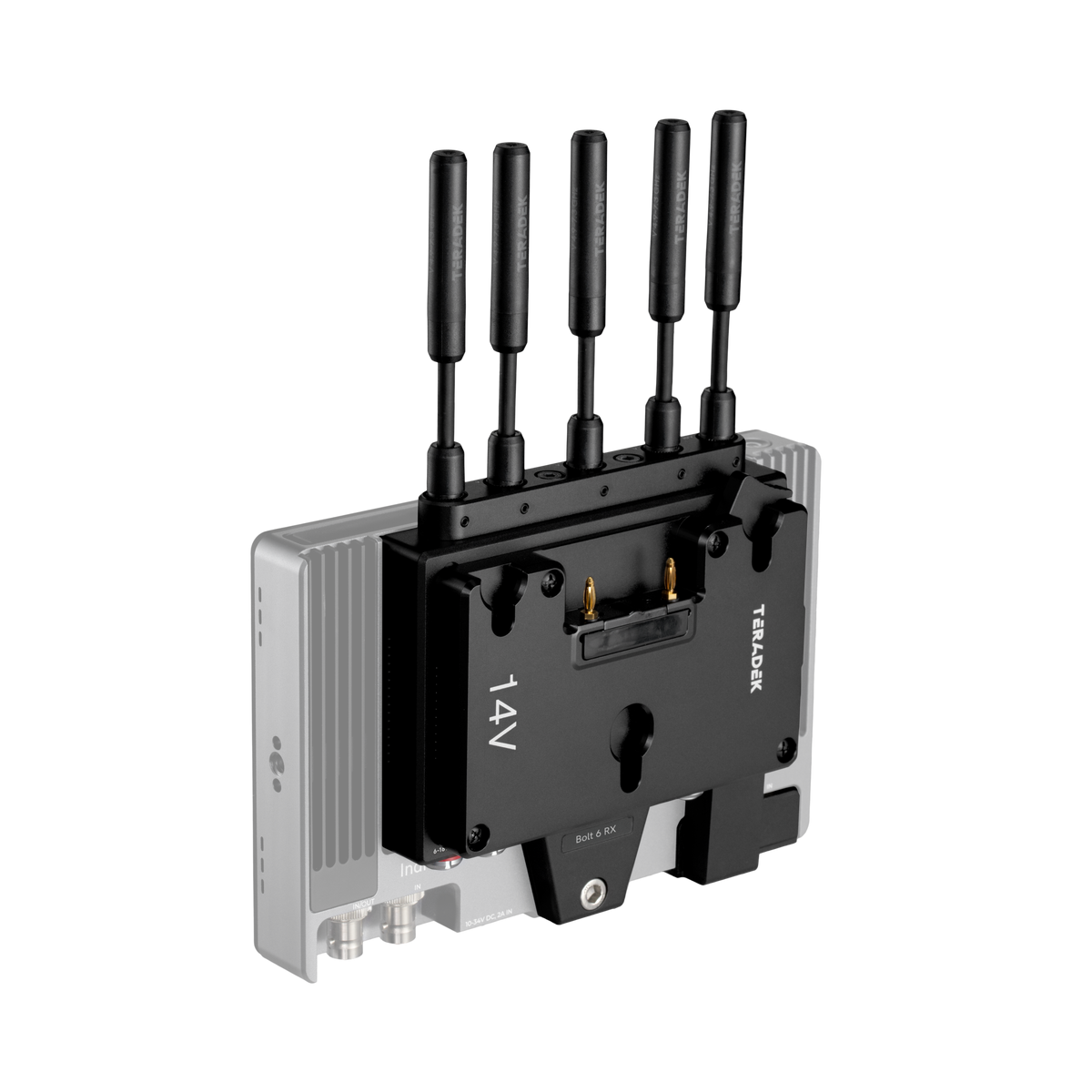

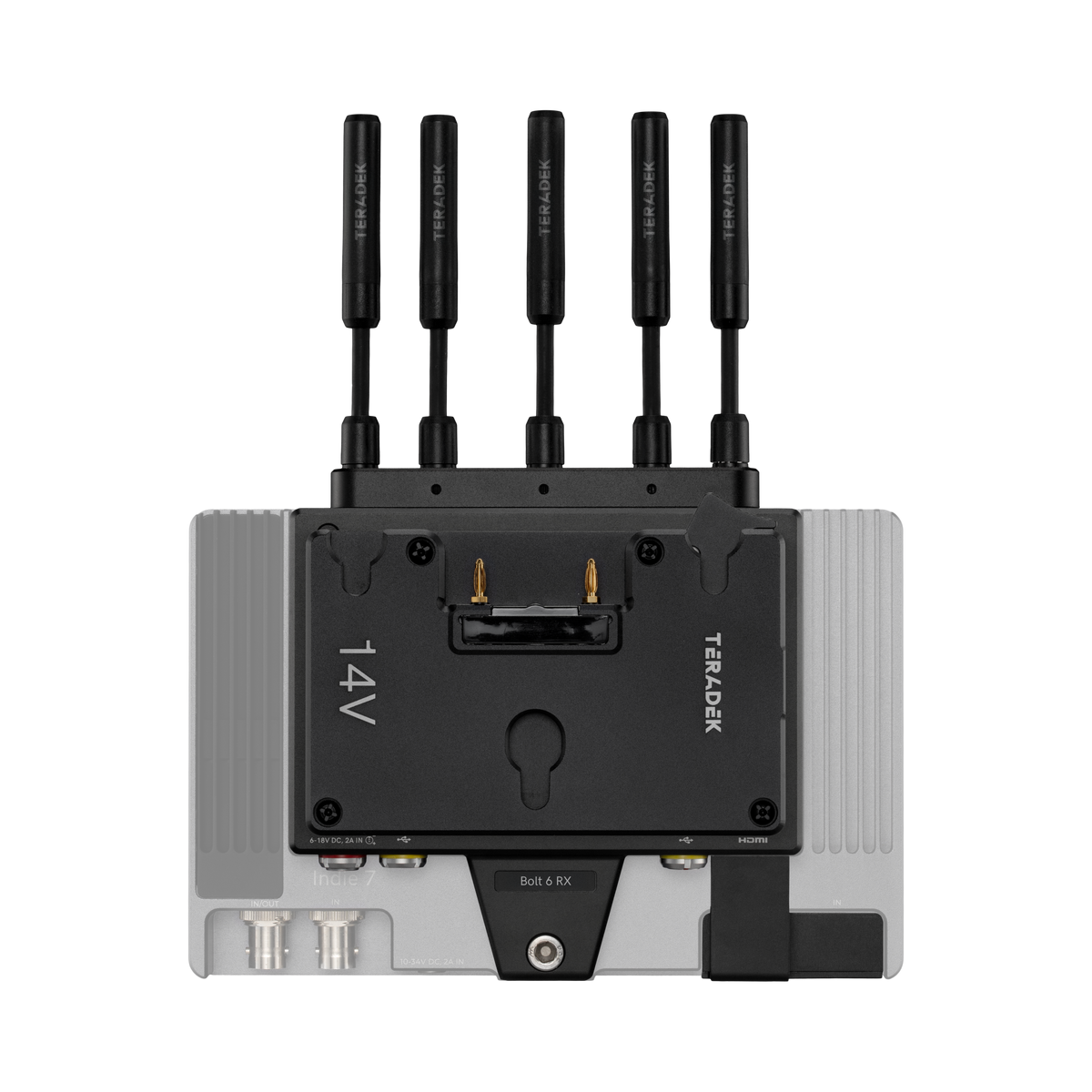

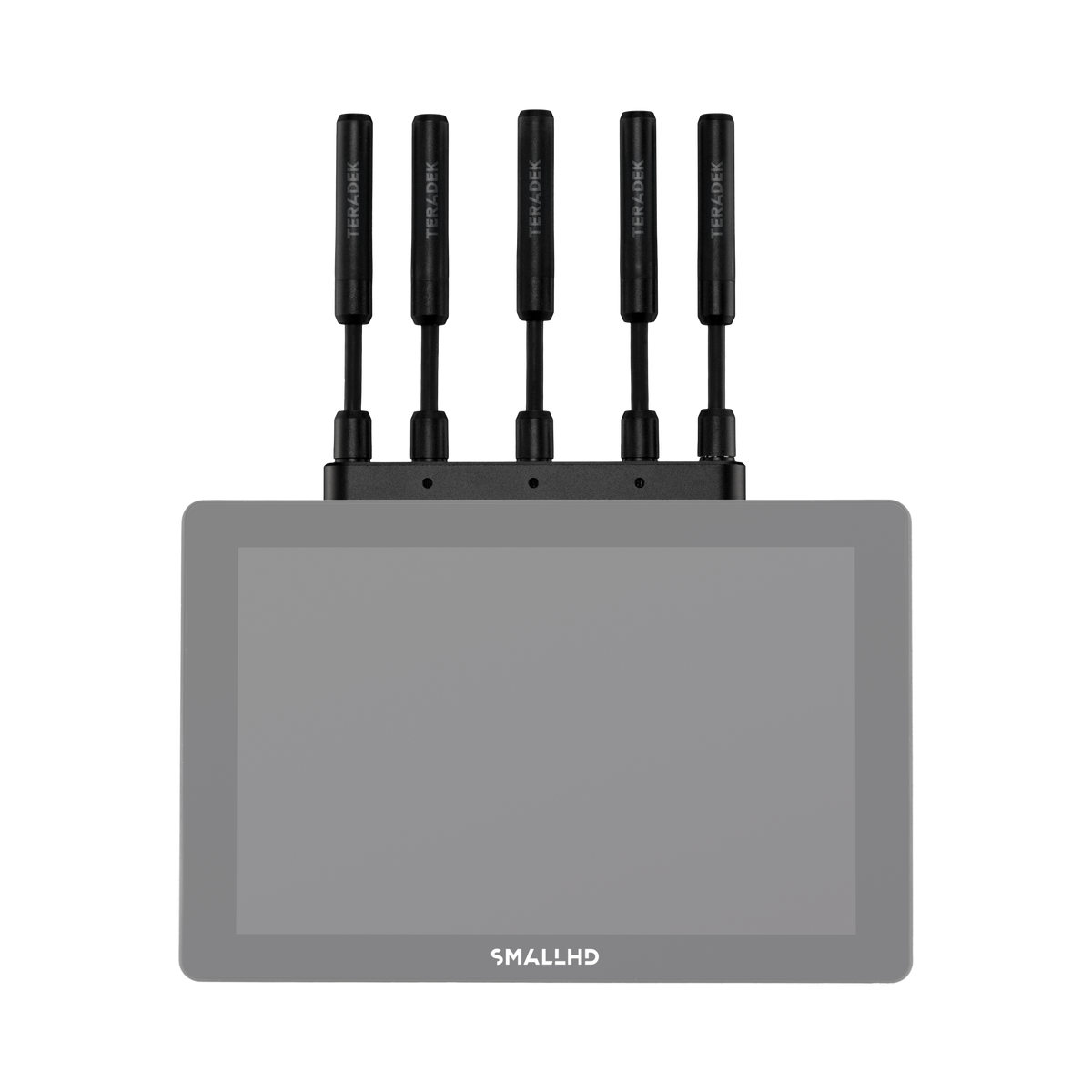

| — Gold Mount (7" Monitor Module) — | |
| Video Outputs: 1 x HDMI 1.4b Type-A receptacle | |
| SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. | |
| Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit | |
| Delay (TX to RX): <0.001sec | |
| Supported Resolutions: 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 | |
| Video Compression: Visually Lossless | |
| Color Correction: None | |
| Audio Compression: 48kHz 24-bit PCM | |
| Audio Output: Embedded HDMI Audio Output (2 Channel) | |
| Dimensions (cm): 12.2 x 9.4 x 2.7 | |
| Weight (kg): 0.292 | |
| Construction: Milled Aluminum(Chassis) and regulation-compliant PCB | |
| Mountability: SmallHD 7" Monitor | |
| Configuration Interfaces: SmallHD Monitor UI | |
| Mobile App: Bolt App | |
| USB Interface Functionality: SmallHD Monitor UI 2x 5pin Locking Connector CCU (Host) | |
| Bluetooth: Via SmallHD Monitor | |
| Antennas: 5 External 2 dBi antennas (included) | |
| Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz | |
| RF Channel Selection: Auto, Manual | |
| Encryption: AES-256, RSA-1024 key exchange | |
| RF Power: 21 dbm EIRP | |
| Range: Up to 750 ft, line of sight | |
| Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers | |
| Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location | |
| Interoperability (Compatibility): Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device) | |
| Power Input: 2-Pin Circular locking Connector 6-18 VDC | |
| Battery: None, optional Sony/Canon dual battery plate | |
| Nominal Power Consumption: 6 Watts | |
| Operating Temperature: 0-40℃ | |

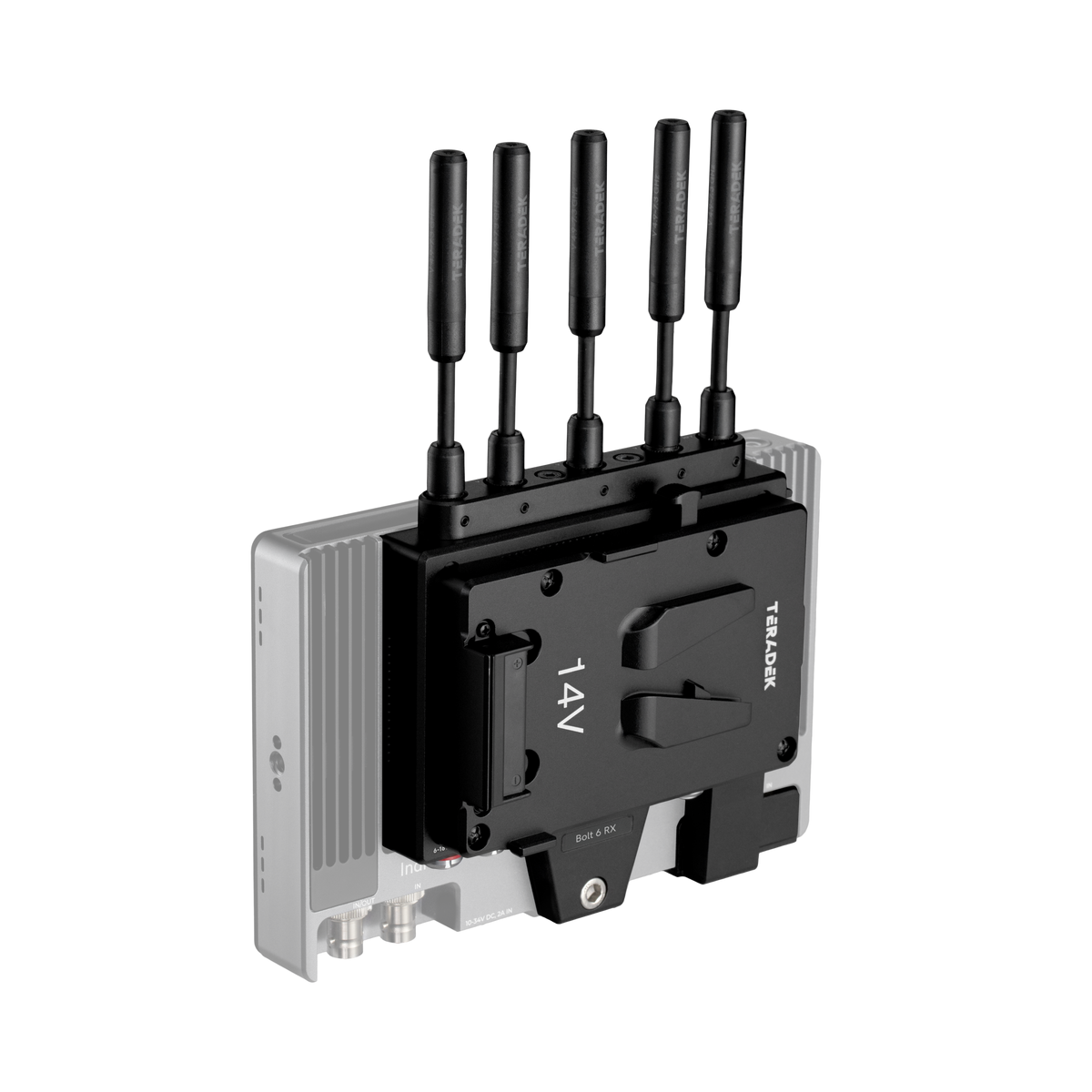

| — V-Mount (7" Monitor Module) — | |
| Video Outputs: 1 x HDMI 1.4b Type-A receptacle | |
| SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. | |
| Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit | |
| Delay (TX to RX): <0.001sec | |
| Supported Resolutions: 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 | |
| Video Compression: Visually Lossless | |
| Color Correction: None | |
| Audio Compression: 48kHz 24-bit PCM | |
| Audio Output: Embedded HDMI Audio Output (2 Channel) | |
| Dimensions (cm): 12.2 x 9.4 x 2.7 | |
| Weight (kg): 0.292 | |
| Construction: Milled Aluminum(Chassis) and regulation-compliant PCB | |
| Mountability: SmallHD 7" Monitor | |
| Configuration Interfaces: SmallHD Monitor UI | |
| Mobile App: Bolt App | |
| USB Interface Functionality: SmallHD Monitor UI 2x 5pin Locking Connector CCU (Host) | |
| Bluetooth: Via SmallHD Monitor | |
| Antennas: 5 External 2 dBi antennas (included) | |
| Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz | |
| RF Channel Selection: Auto, Manual | |
| Encryption: AES-256, RSA-1024 key exchange | |
| RF Power: 21 dbm EIRP | |
| Range: Up to 750 ft, line of sight | |
| Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers | |
| Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location | |
| Interoperability (Compatibility): Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device) | |
| Power Input: 2-Pin Circular locking Connector 6-18 VDC | |
| Battery: None, optional Sony/Canon dual battery plate | |
| Nominal Power Consumption: 6 Watts | |
| Operating Temperature: 0-40℃ | |

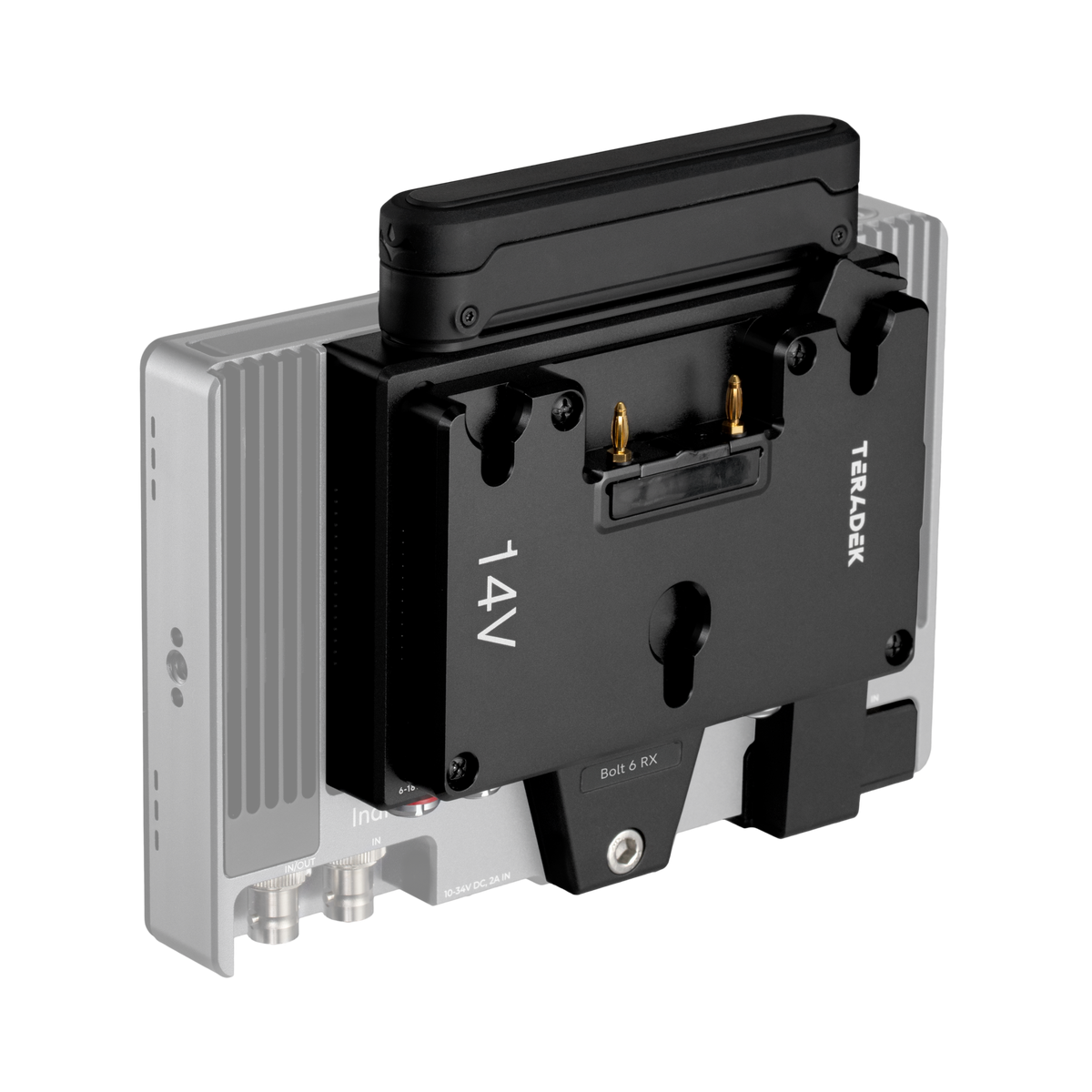

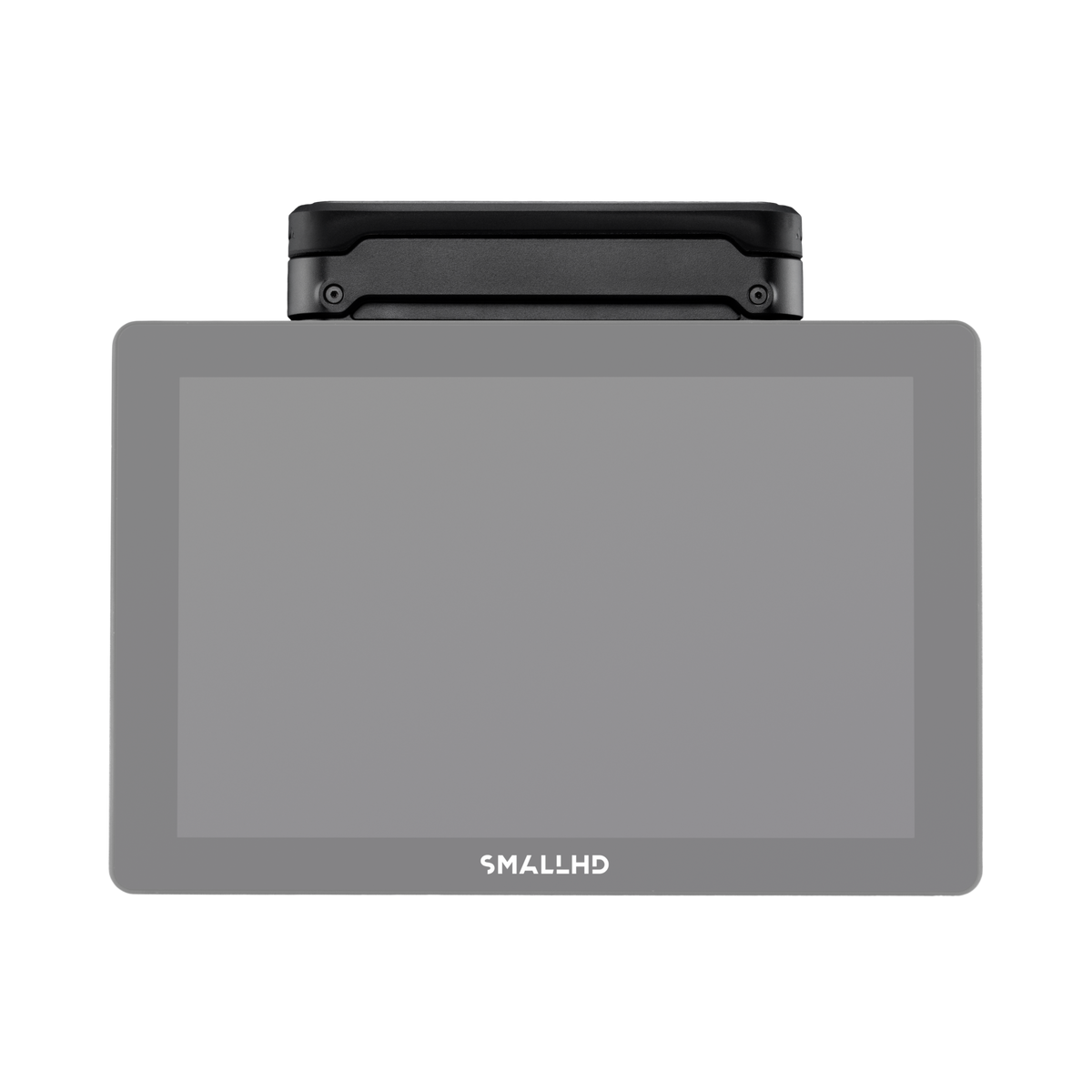

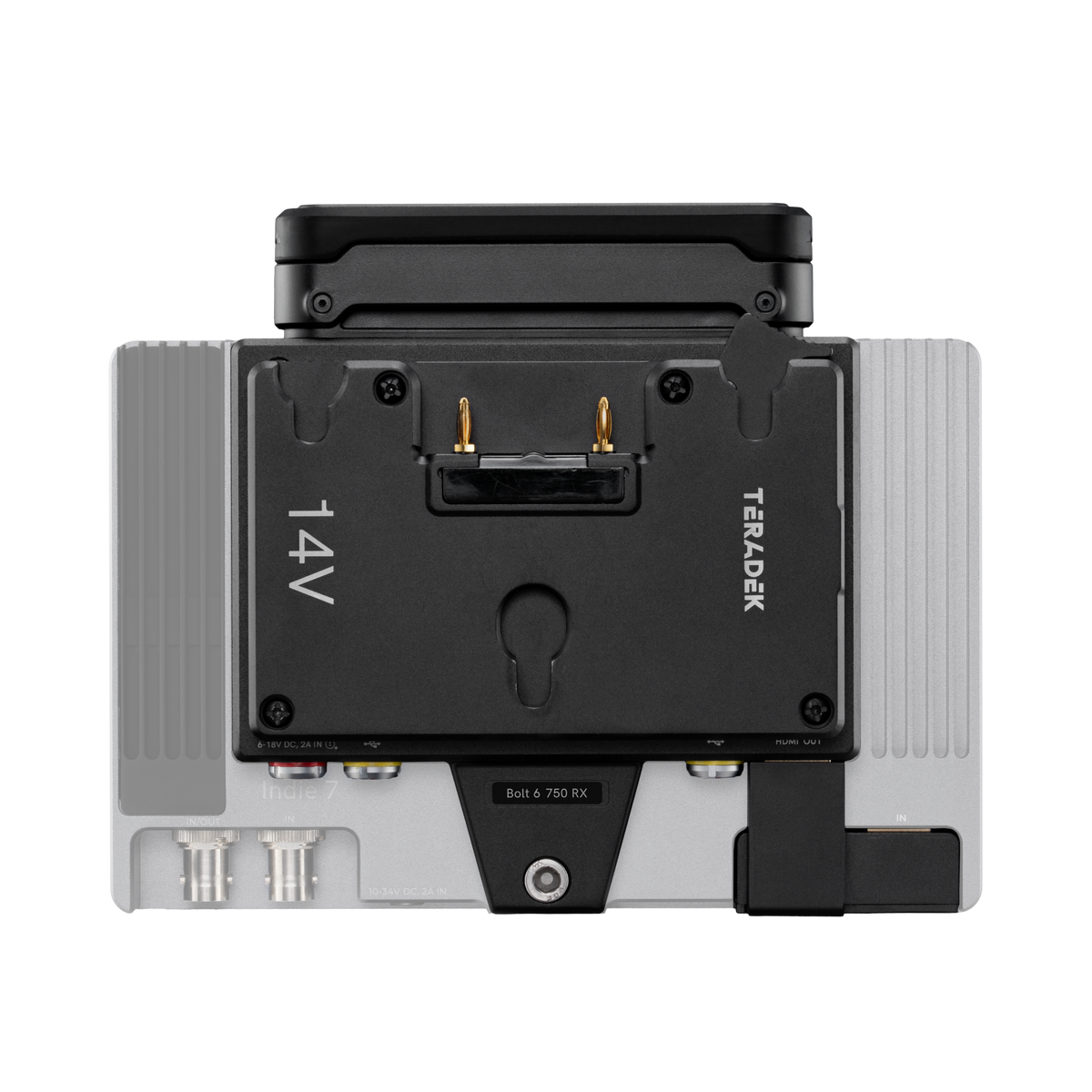

| — Gold Mount, Internal Antenna (7" Monitor Module) — | |
| Video Outputs: 1 x HDMI 1.4b Type-A receptacle | |
| SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. | |
| Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit | |
| Delay (TX to RX): <0.001sec | |
| Supported Resolutions: 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 | |
| Video Compression: Visually Lossless | |
| Color Correction: None | |
| Audio Compression: 48kHz 24-bit PCM | |
| Audio Output: Embedded HDMI Audio Output (2 Channel) | |
| Dimensions (cm): 12.2 x 9.4 x 2.7 | |
| Weight (kg): 0.292 | |
| Construction: Milled Aluminum(Chassis) and regulation-compliant PCB | |
| Mountability: SmallHD 7" Monitor | |
| Configuration Interfaces: SmallHD Monitor UI | |
| Mobile App: Bolt App | |
| USB Interface Functionality: SmallHD Monitor UI 2x 5pin Locking Connector CCU (Host) | |
| Bluetooth: Via SmallHD Monitor | |
| Antennas: 5x Internal 2dBi antennas | |
| Wireless: DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz | |
| RF Channel Selection: Auto, Manual | |
| Encryption: AES-256, RSA-1024 key exchange | |
| RF Power: 21 dbm EIRP | |
| Range: Up to 750 ft, line of sight | |
| Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers | |
| Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location | |
| Interoperability (Compatibility): Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device) | |
| Power Input: 2-Pin Circular locking Connector 6-18 VDC | |
| Battery: None, optional Gold or V mount battery plate | |
| Nominal Power Consumption: 6 Watts | |
| Operating Temperature: 0-40℃ | |

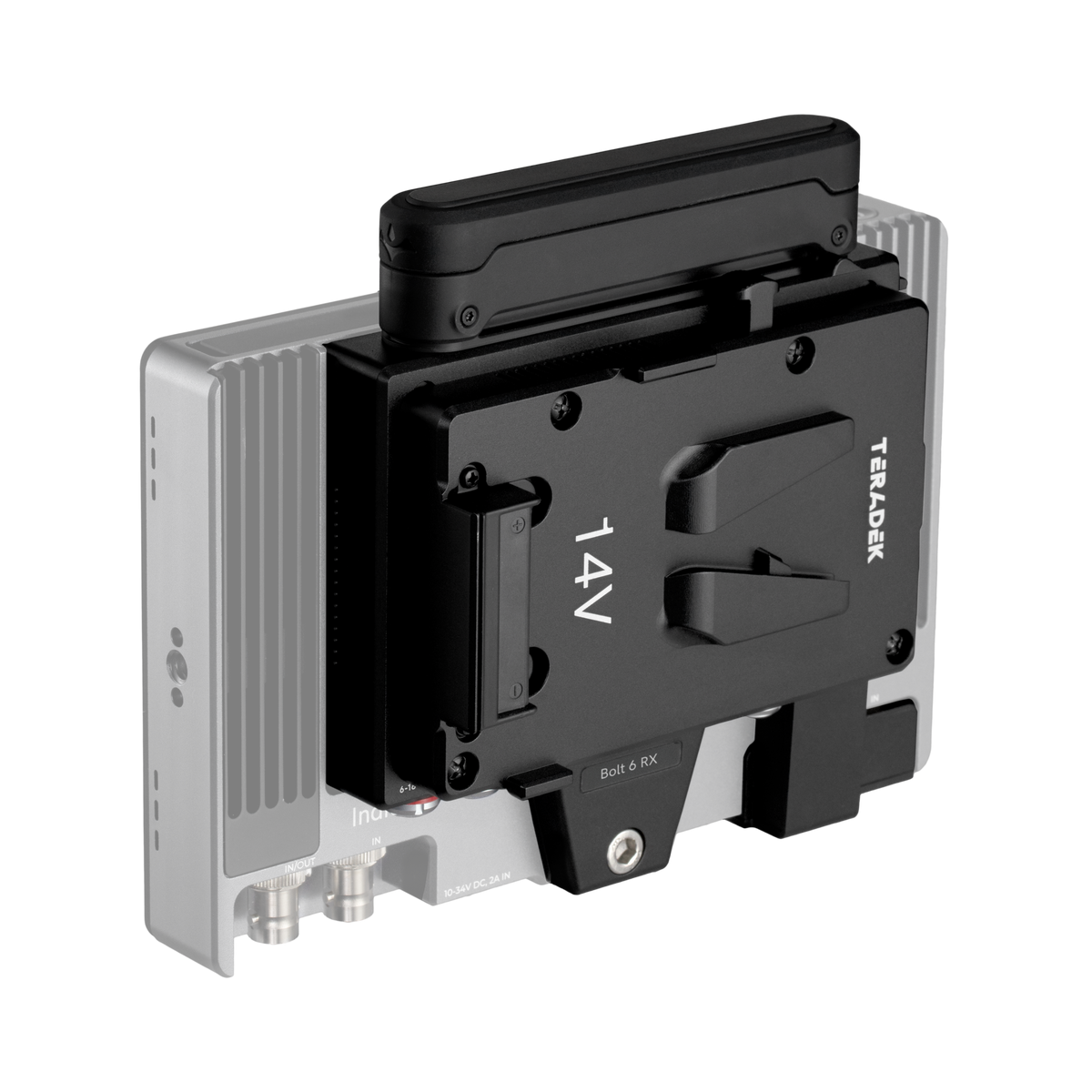

| — V-Mount, Internal Antenna (7" Monitor Module) — | |
| Video Outputs: 2 x HDMI 1.4b Type-A receptacle | |
| SDI Ancillary Data Support: Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. | |
| Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit | |
| Delay (TX to RX): <0.001sec | |
| Supported Resolutions: 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 | |
| Video Compression: Visually Lossless | |
| Color Correction: None | |
| Audio Compression: 48kHz 24-bit PCM | |
| Audio Output: Embedded HDMI Audio Output (2 Channel) | |
| Dimensions (cm): 12.2 x 9.4 x 2.7 | |
| Weight (kg): 0.292 | |
| Construction: Milled Aluminum(Chassis) and regulation-compliant PCB | |
| Mountability: SmallHD 7" Monitor | |
| Configuration Interfaces: SmallHD Monitor UI | |
| Mobile App: Bolt App | |
| USB Interface Functionality: SmallHD Monitor UI 2x 5pin Locking Connector CCU (Host) | |
| Bluetooth: Via SmallHD Monitor | |
| Antennas: 5x Internal 2dBi antennas | |
| Wireless: DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz | |
| RF Channel Selection: Auto, Manual | |
| Encryption: AES-256, RSA-1024 key exchange | |
| RF Power: 22 dbm EIRP | |
| Range: Up to 750 ft, line of sight | |
| Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers | |
| Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location | |
| Interoperability (Compatibility): Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device) | |
| Power Input: 2-Pin Circular locking Connector 6-18 VDC | |
| Battery: None, optional Gold or V mount battery plate | |
| Nominal Power Consumption: 7 Watts | |
| Operating Temperature: 0-40℃ |
