Teradek Bolt 6 XT 10K RX

$18,274.95 AUD

RRP inc GST /

SKU: 10-2324-GSKU: 10-2324-V

Select an option to add this to your cart.

Configuration : Gold Mount : V-Mount

For updated Stock on hand, please contact sales@blkflag.com.au otherwise we will email you ETA after confirmed order placement.

Bolt 6 10K RX is a zero-delay video receiver, offering a remarkable wireless range of up to 10,000 feet (3 kilometers) over 5 or 6GHz frequencies. Compatible with both Bolt 7, Bolt 6, and Bolt 4K transmitters, it integrates seamlessly into any existing Bolt system.

Delivering visually lossless 4Kp60 4:2:2 video via two 12G-SDI outputs, the Bolt 6 10K RX ensures professional-grade image quality. Its enhanced directional antenna is specifically designed for superior RF performance, minimizing interference by focusing signal reception and benefiting from robust internal shielding.

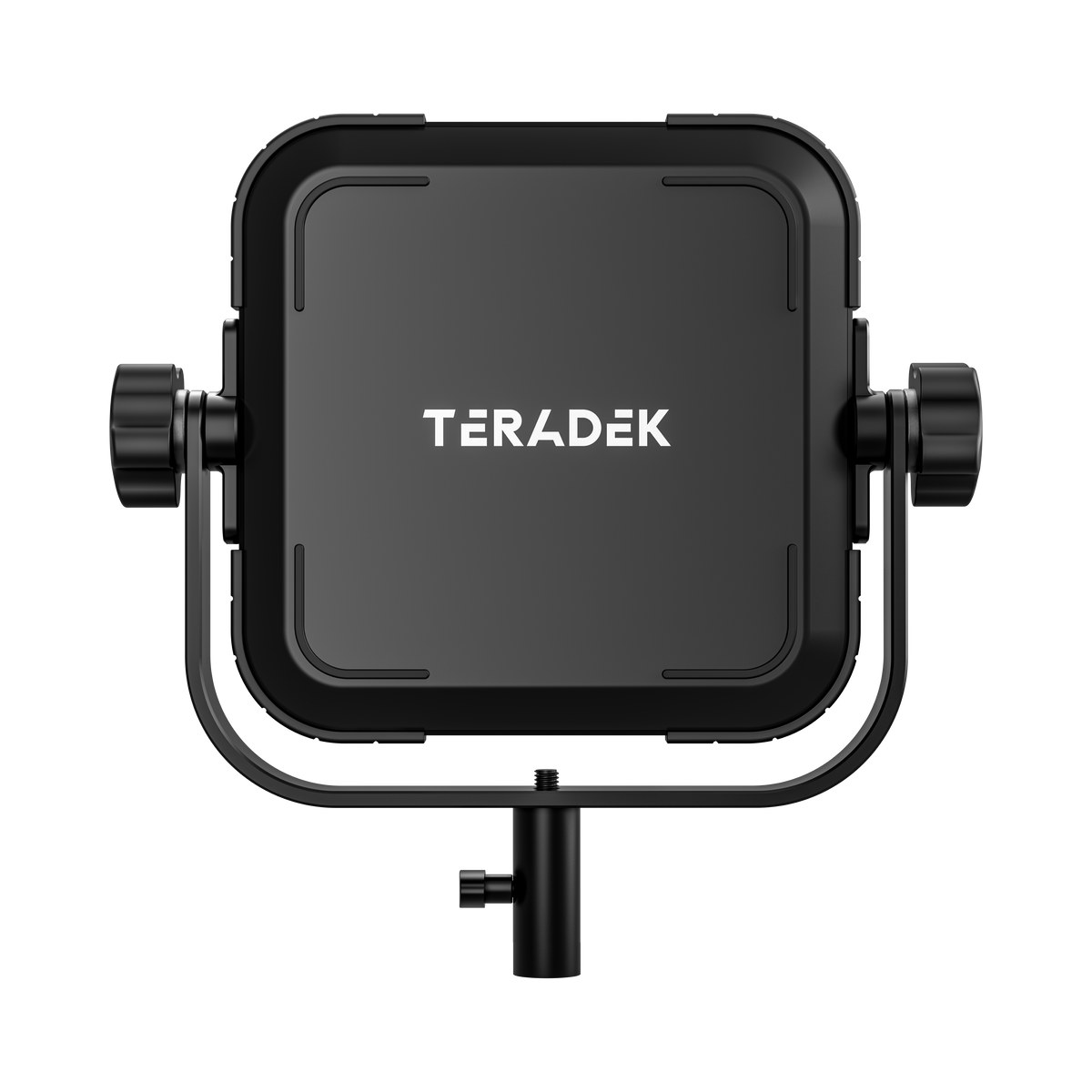

Its all-in-one enclosure design not only boosts range and reliability in challenging RF environments but it also eliminates the hassle of external antenna cables. This results in a much cleaner setup, expediting deployment from its case onto a c-stand. To maximize range, enable Broadcast Mode on both Bolt 6 XT or LT TX.

Control your setup with ease using the Bolt App, which simplifies device pairing, allows fine-tuned frequency adjustments, and includes a built-in spectrum analyzer for advanced RF diagnostics.

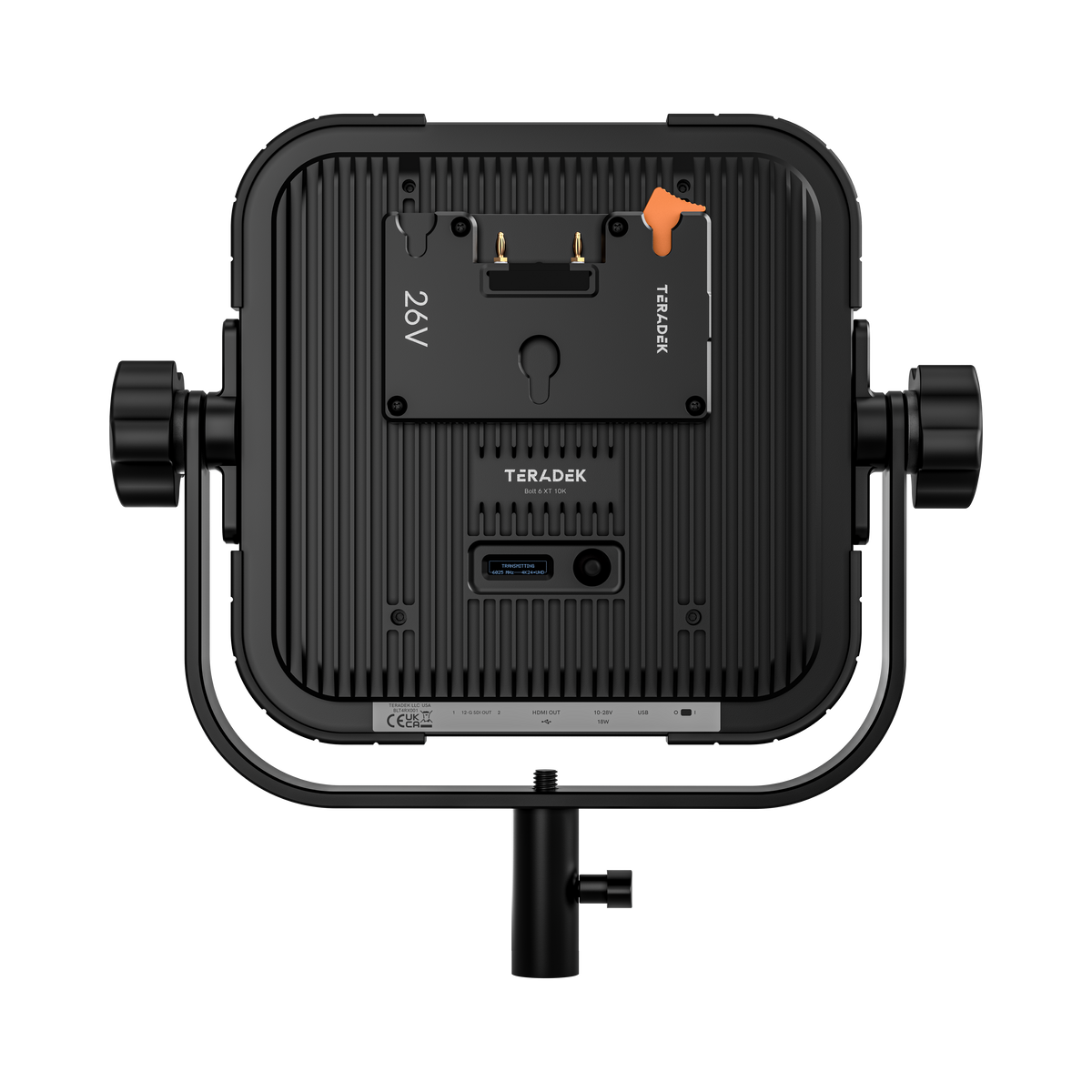

The Gold Mount version of the Bolt 6 10K RX is compatible with 14V and 26V batteries.

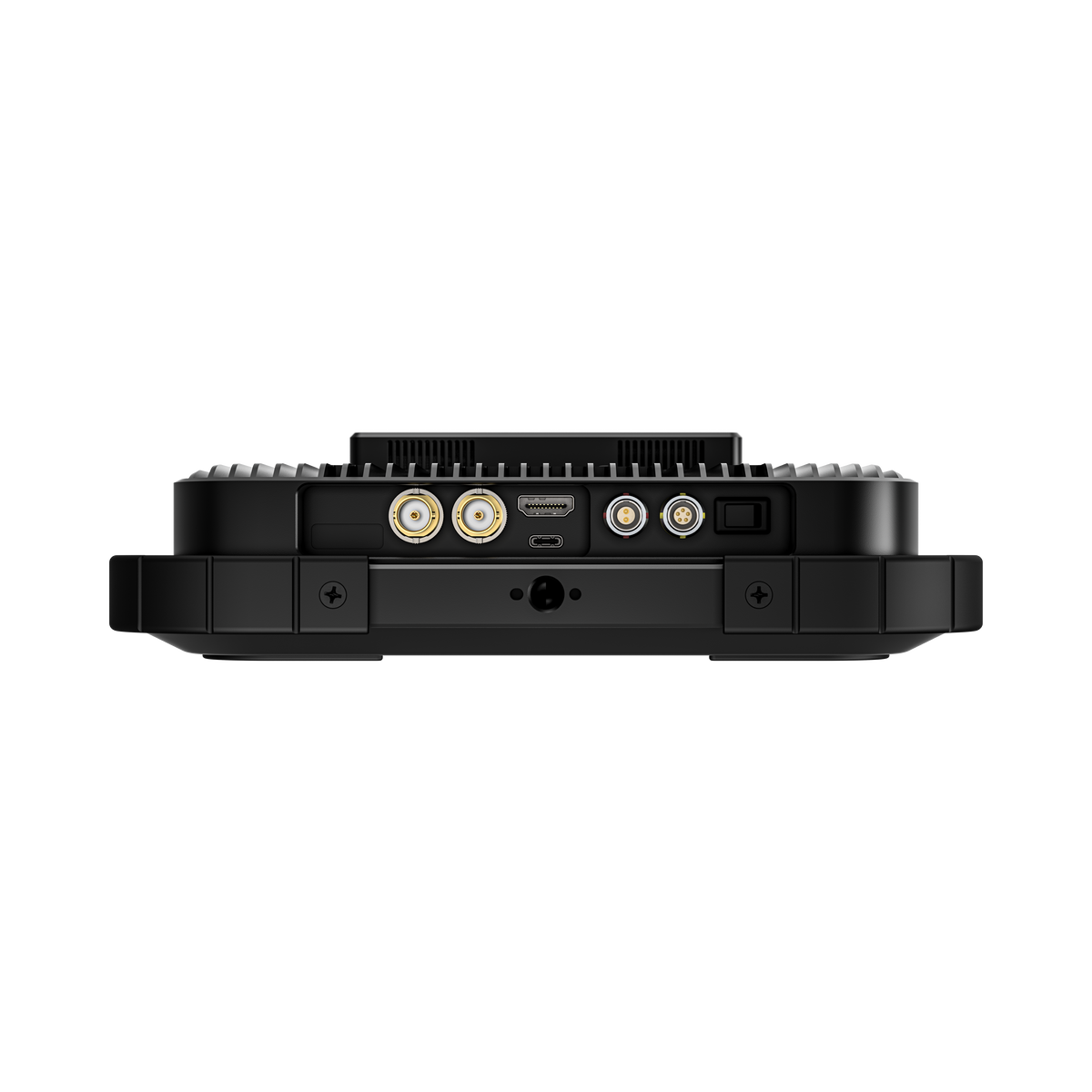

Video Outputs: 1x 12G-SDI SMPTE 2082-1 standard/75 Ω (BNC x 1) 1x HDMI 2.0 Type-A receptacle
SDI Ancillary Data Support: Supports timecode and start/stop flags from most camera manufacturers. Additional SDI metadata support for Arri and Sony cameras.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
Delay (TX to RX): <0.001sec (without format conversions)
Output Video Processing: Yes (deinterlacer, frame rate converter, scaler, 1D/3D LUTs)
Other Tools: Spectrum Analyzer, Test Pattern Generator
Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression: Visually lossless
Test Pattern Generator Support: Yes
Spectrum Analyzer: Yes
Video format Conversion Support: Yes
Color Correction: 17x17x17 3D LUT (Supports 10-bit color), 1D LUT330.47 x 55.4 x 322.36 mm / 13.011 x 2.18 x 12.69 inch
Audio Format: 48kHz 24-bit PCM
Audio Output: Embedded SDI/HDMI Audio Output (2 Channel)
Dimensions (cm): 33 x 5.6 x 32.3 (838.2 x 139.7 x 817.9 mm)
Weight (kg): 2.014
Construction: Milled aluminum (chassis), polyurethane antenna cover with rubber shock protection regulation-compliant PCB
Configuration Interfaces: OSD with Menu Joystick Navigation
Switches: On/Off Switch
Mobile App: Bolt App (iOS and Android)
Desktop App: Bolt Manager app (OSX and Windows)
USB Interface Functionality: Upgrade via USB-C, 5-pin locking connector CCU
Bluetooth Compatibility: Yes
Antennas: Integrated directional array panel antenna, 4.9-7.3GHz
Wireless: DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
Bluetooth: 2.4GHz
RF Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
RF Power: 21 dBm EIRP (max power)
Range: Up to 10000ft [1524m] using broadcast mode with a Bolt 6 MAX TX, Approx. 5000ft. with broadcast disabled
Unicast / Multicast: 750/1500/MAX: Can connect one transmitter to up to 6 receivers MAX (with Broadcast Mode enabled): Can connect one transmitter to unlimited receivers
Noise Rejection: Coexists with Wi-Fi and 5GHz cordless phones, and operate up to 6 sets in the same location
Power Input: 2-Pin locking connector 10-28 VDC
Battery: None, optional Gold or V-mount battery plate
Nominal Power Consumption: 18 Watts
Operating Temperature: 0~40 deg-C

— Gold Mount —
1 x Bolt 6 XT 10K RX, Gold Mount Plate
1 x 10K Yoke Mount (sold as 11-0825)
1 x 2pin Locking Connector to AC Power
1 x USB-A to USB-C cable

— V-Mount —
1 x Bolt 6 XT 10K RX, V-Mount Plate
1 x 10K Yoke Mount (sold as 11-0825)
1 x 2pin Locking Connector to AC Power
1 x USB-A to USB-C cable
