Teradek

Teradek Bolt 6 XT Max 12G SDI/HDMI Wireless TX

$13,334.95 AUD
RRP inc GST /
SKU: 10-2321-GSKU: 10-2321-V

Select an option to add this to your cart.

For updated Stock on hand, please contact sales@blkflag.com.au otherwise we will email you ETA after confirmed order placement.

Bolt 6 XT TX is a wireless video transmitter that supports up to 4K60 10-bit 422 HDR video over SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

Bolt 6 XT TX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode.

The Transmitter is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

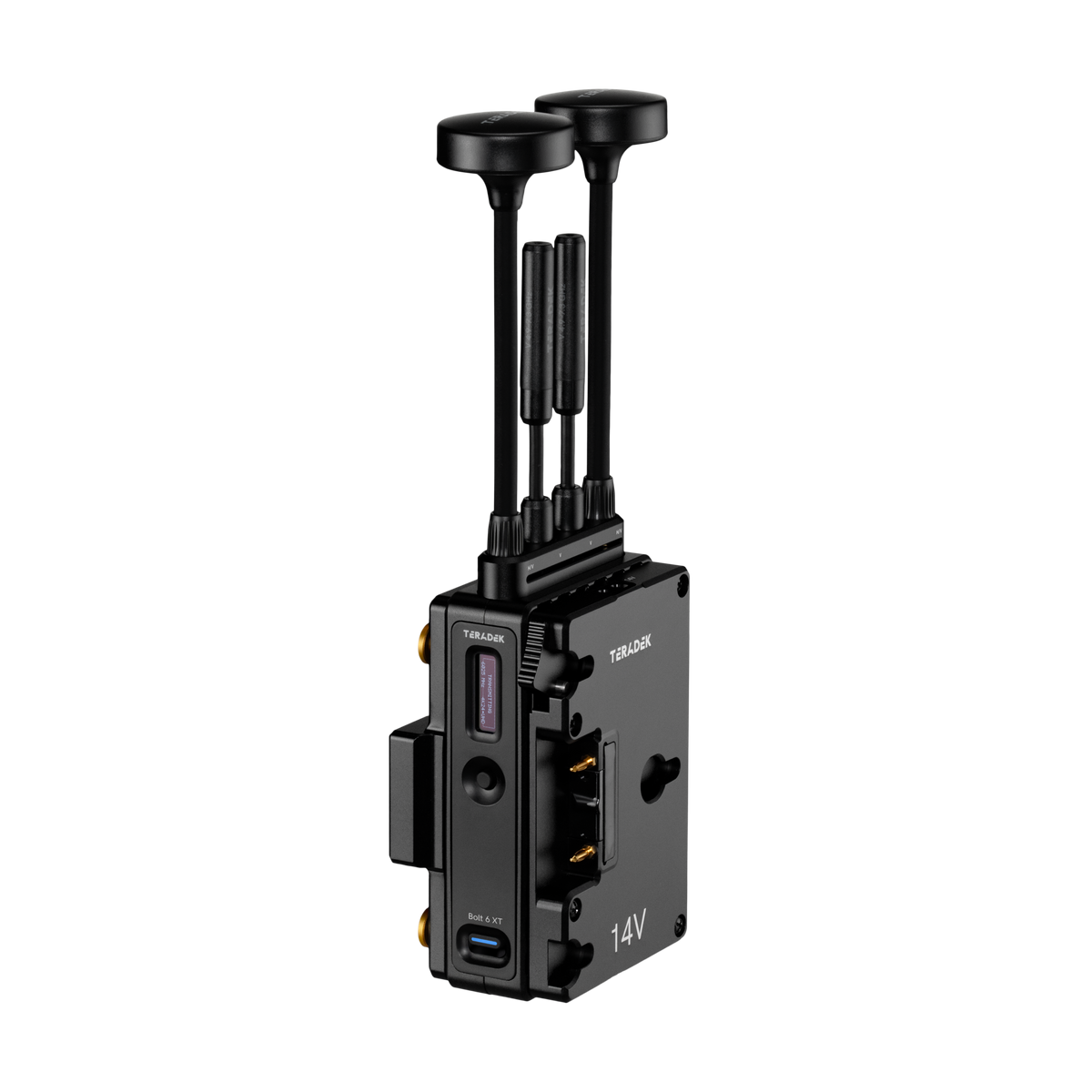

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Looking for even more robust signal connection when in the most challenging RF environments? Try using RF-X Auto-Switcher, built specifically for Teradek Bolt RXs to secure the best possible signal every time.

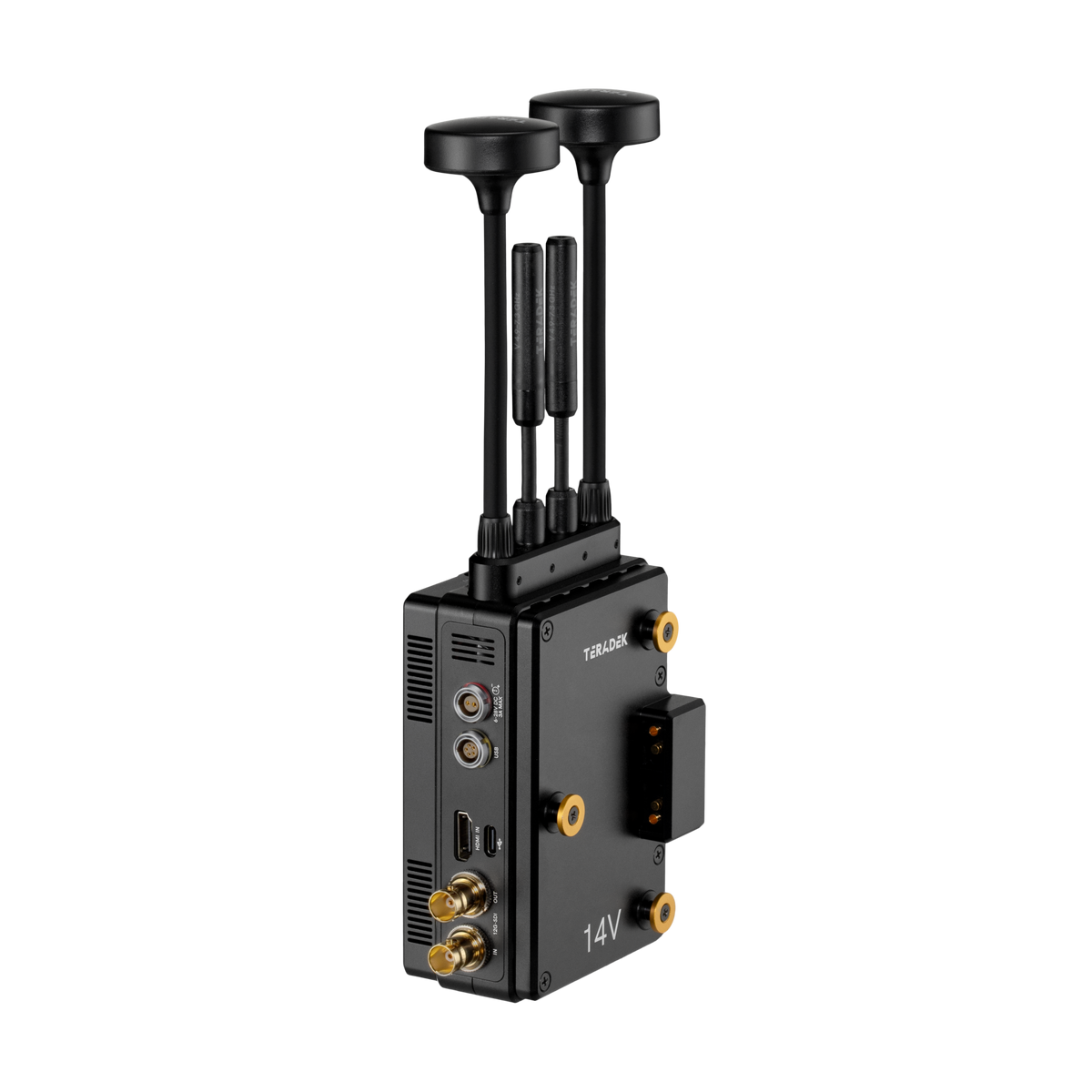

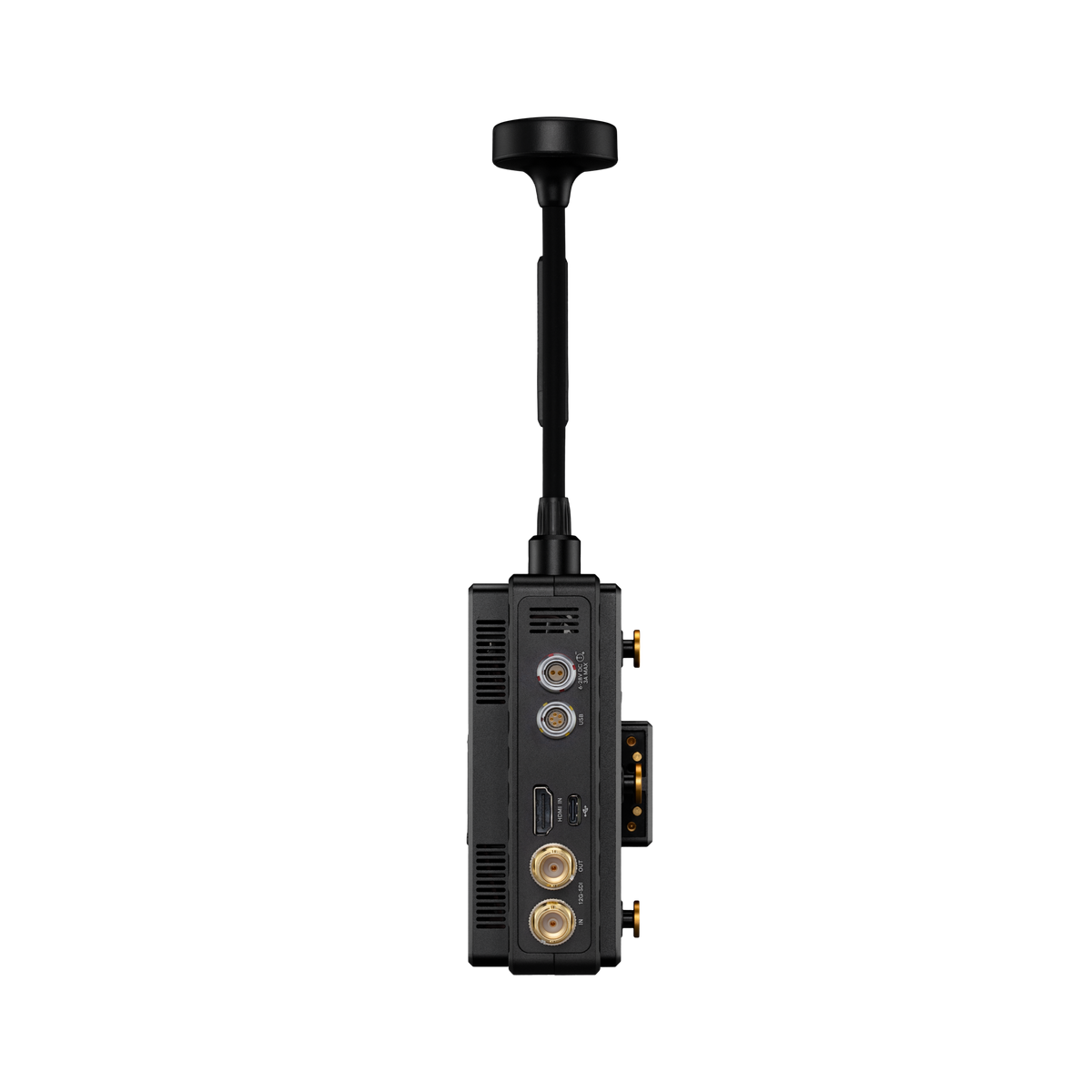

Video Inputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1) 1 x HDMI 2.0 Type-A receptacle
Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
SDI Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling: SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay (TX to RX): <0.001sec
Input Cross Conversion: Yes, HDMI to SDI
Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression: Visually Lossless
Color Correction: None
Audio Compression: 48kHz 24-bit PCM
Audio Input: Embedded SDI/HDMI Audio Input (2 Channel)
Dimensions (cm): 13.2 x 9.1 x 2.7
Weight (kg): 0.344
Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability: Multiple mounting options with 1/4"x20 and M3 holes
Configuration Interfaces: OSD with Menu, Joystick Navigation
Switches: On/Off Switch
USB Interface Functionality: Upgrade via USB-C 5pin Locking Connector CCU
Bluetooth: 2.4 GHz
Antennas: 4 External 2dBi antennas (included)
Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
RF Channel Selection: Auto, Manual
Encryption: AES-256, RSA-1024 key exchange
RF Power: 23 dbm EIRP
Range: Up to 5000 ft, line of sight
Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers
Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Power Input: 2-Pin Circular locking Connector 6-28 VDC
Battery: None, optional Sony/Canon dual battery plate
Battery Runtime: 20 Watts
Operating Temperature: 0-40℃

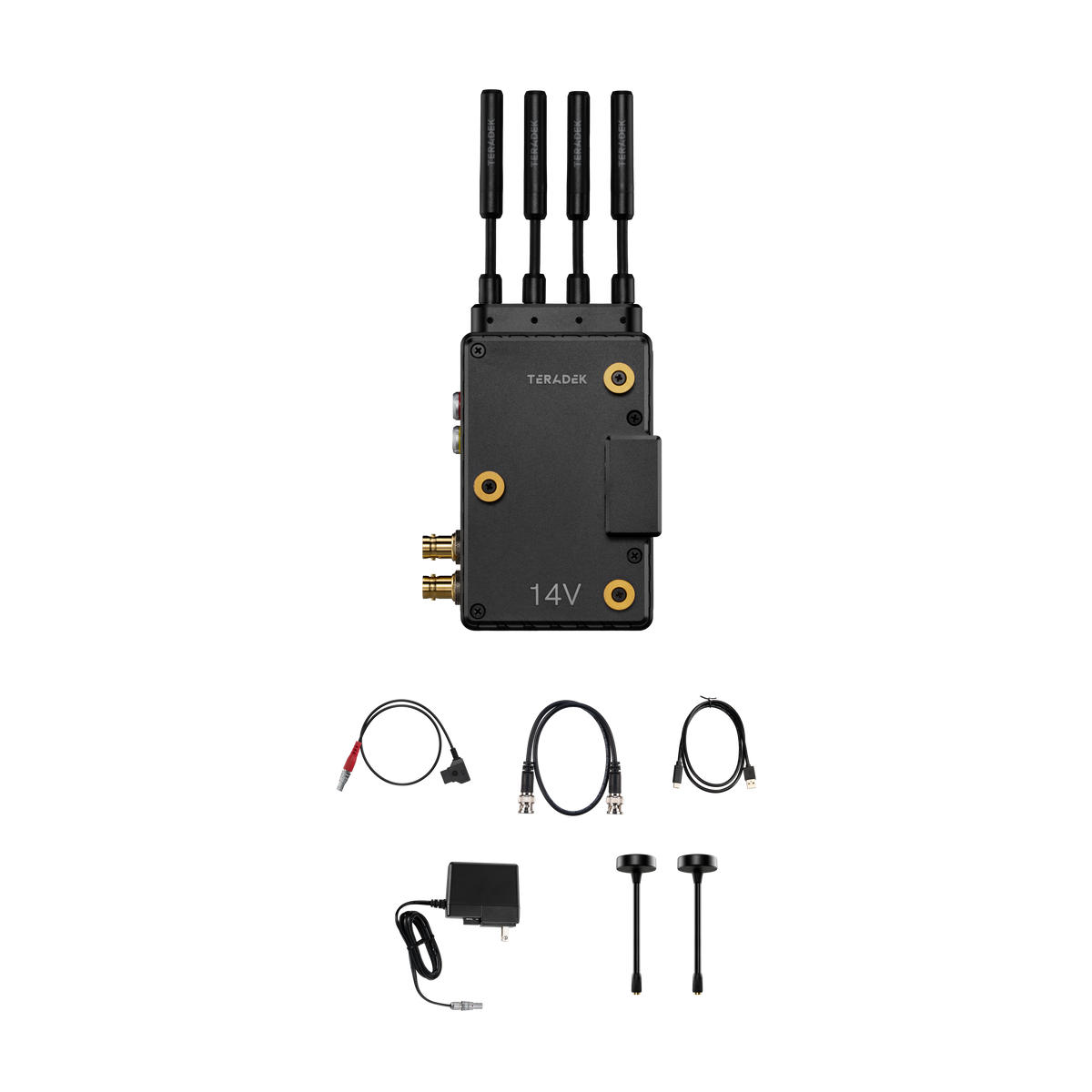

— Gold Mount —

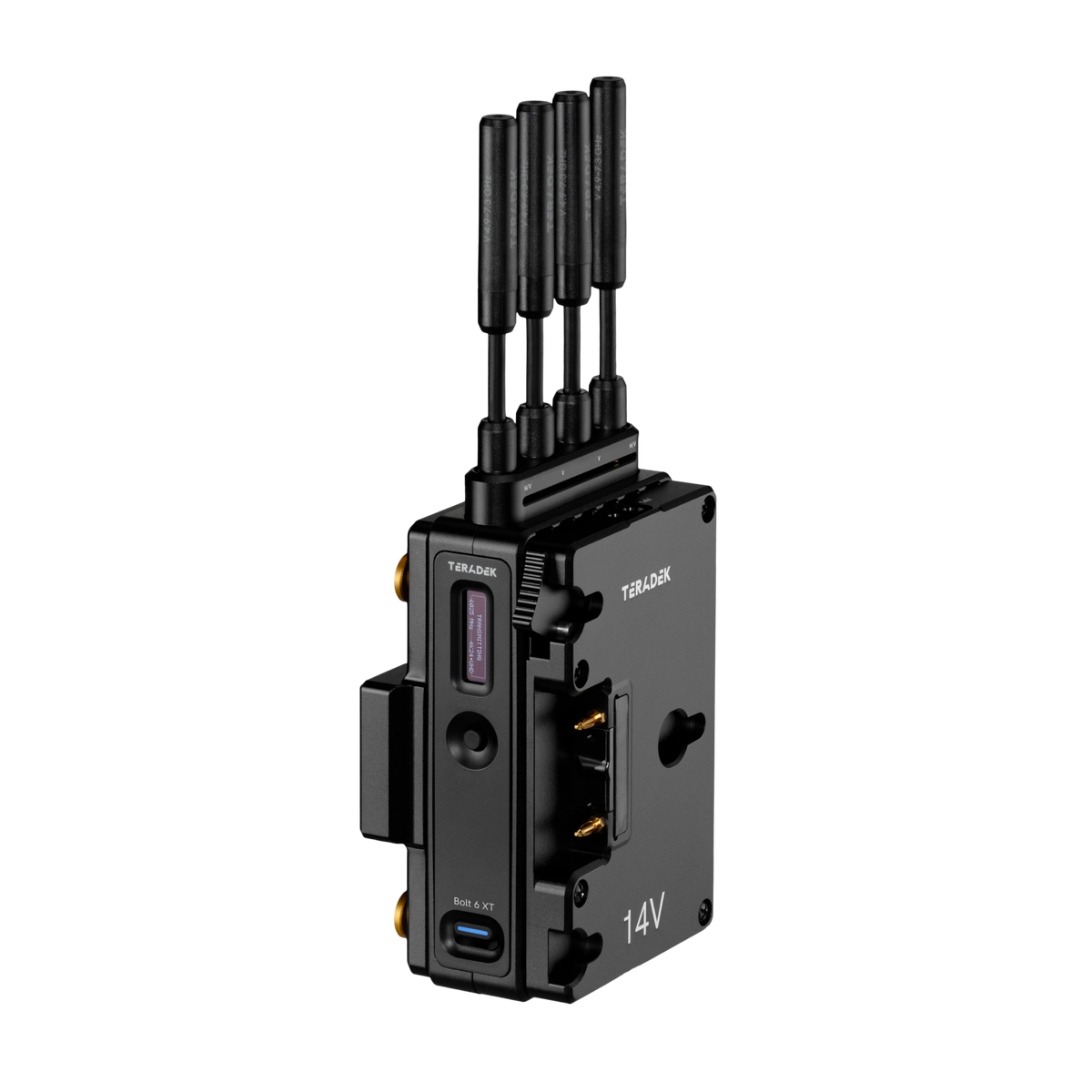

1 x Bolt 6 XT MAX TX Gold Mount
1 x Bolt 6 XT Battery Cover Plate Front
2 x Screw Flat Head Phillips
1 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
1 x SDI 12G BNC to BNC 18in/46cm Cable
1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
4 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
2 x Teradek 6G Flexible H Antenna "Mushroom" (2dBi 4.9-7.3Ghz RP-SMA)
1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable
1 x Bolt 6 XT Battery Cover Plate Rear

— V-Mount —

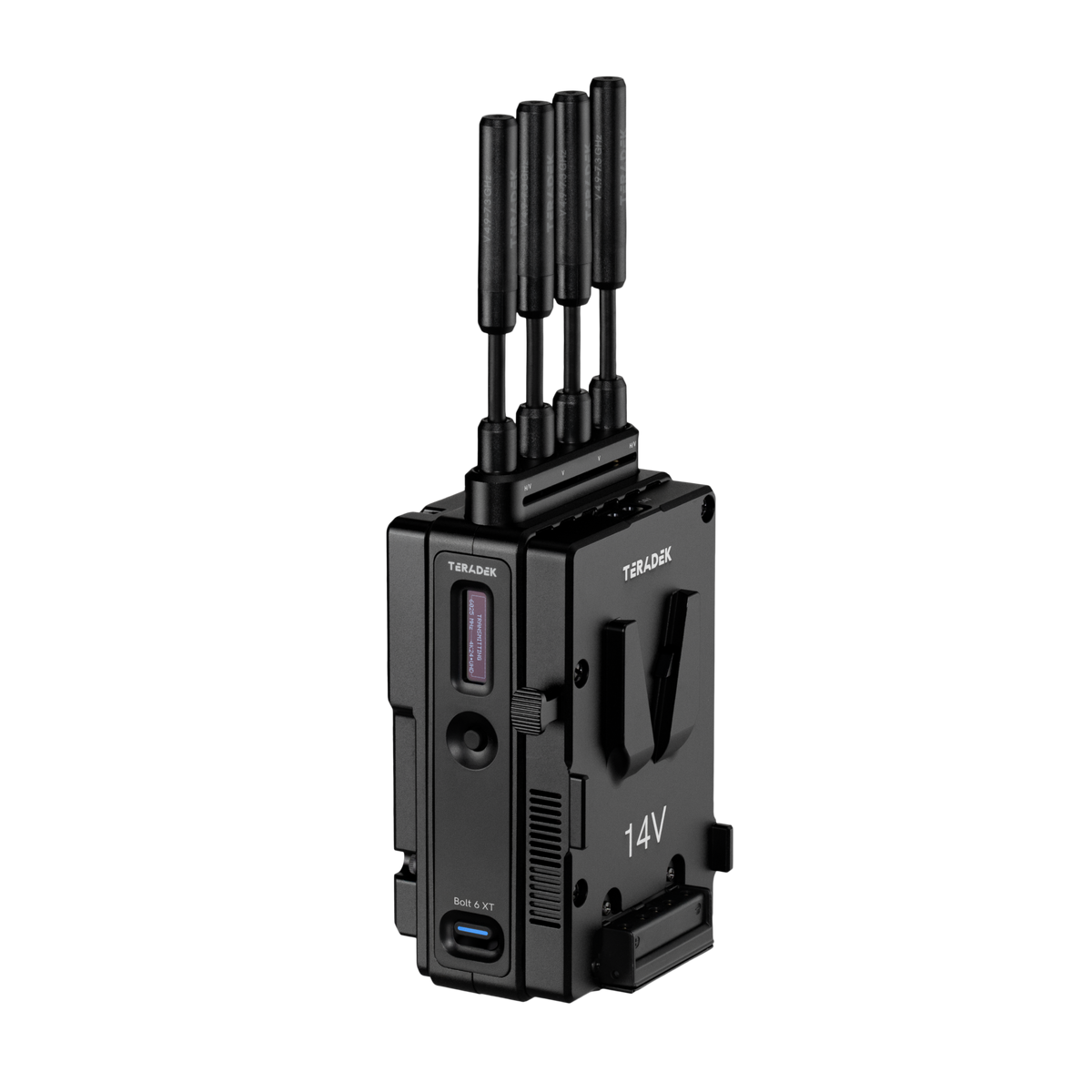

1 x Bolt 6 XT MAX TX V-Mount
1 x Bolt 6 XT Battery Cover Plate Front
2 x Screw Flat Head Phillips
1 x (Bit 118) 2pin Conn. to PowerTap - 18in/46cm Cable
1 x SDI 12G BNC to BNC 18in/46cm Cable
1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
4 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
2 x Teradek 6G Flexible H Antenna "Mushroom" (2dBi 4.9-7.3Ghz RP-SMA)
1 x USB 2.0 Type A Male to USB Type C Male - 1m Cable
1 x Bolt 6 XT Battery Cover Plate Rear
