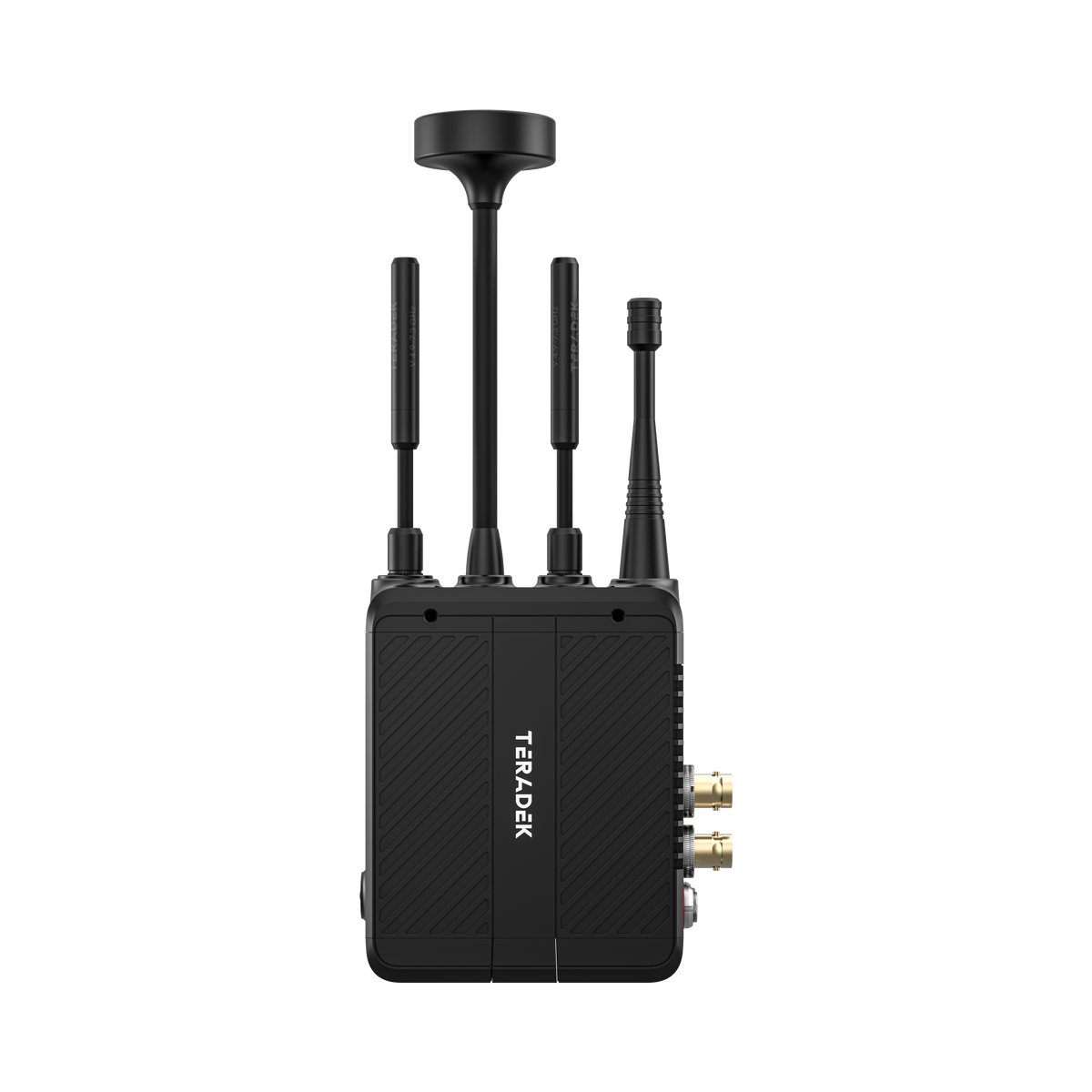

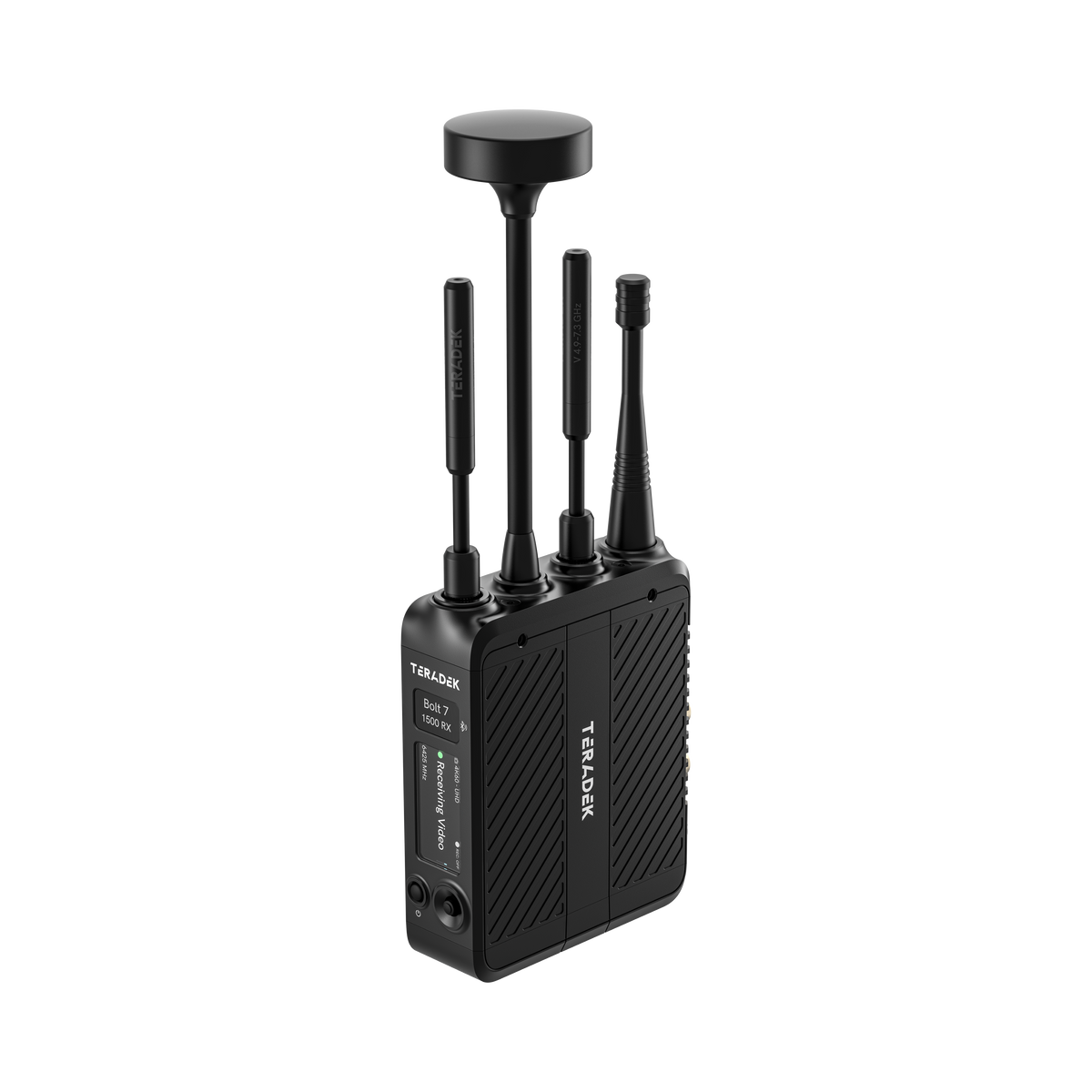

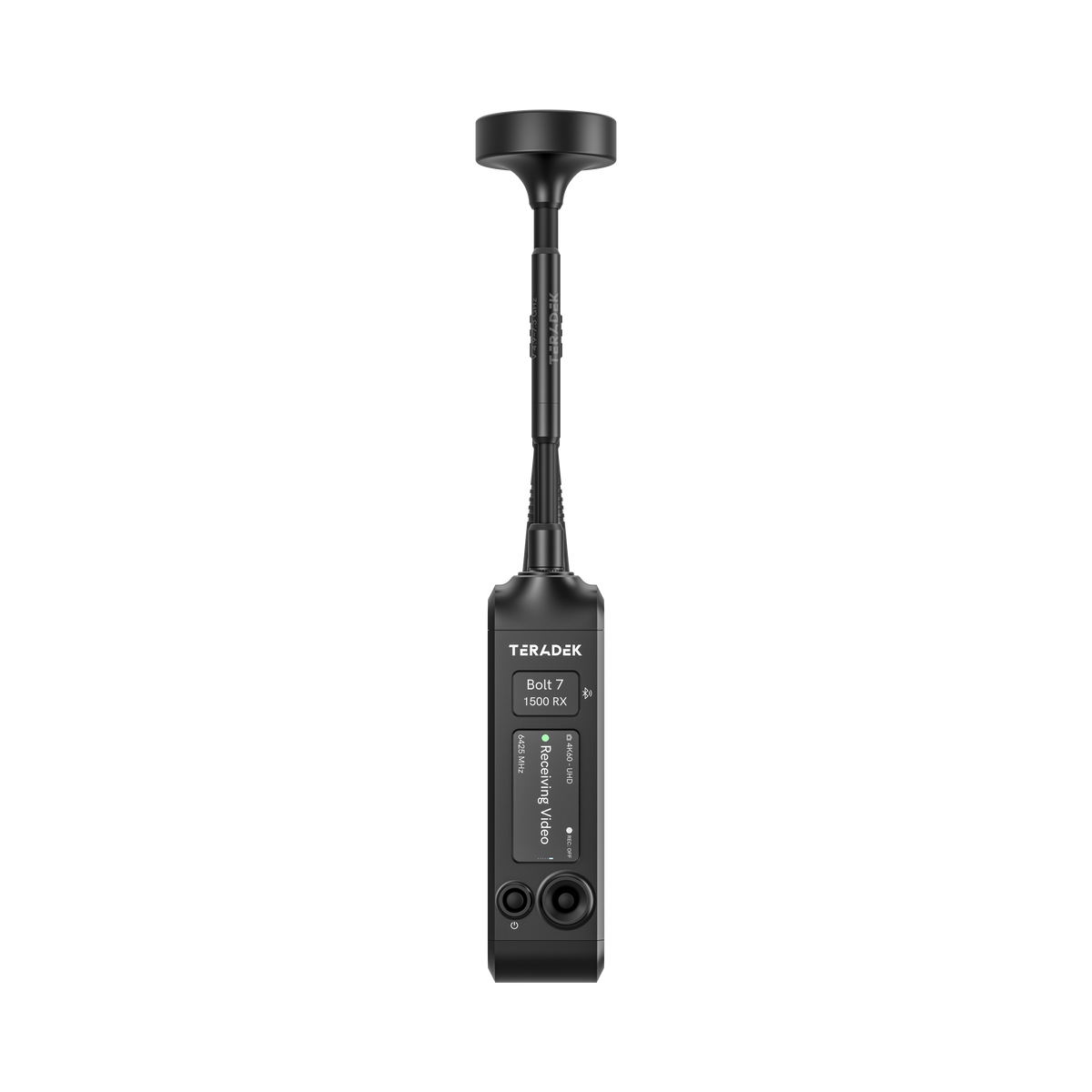

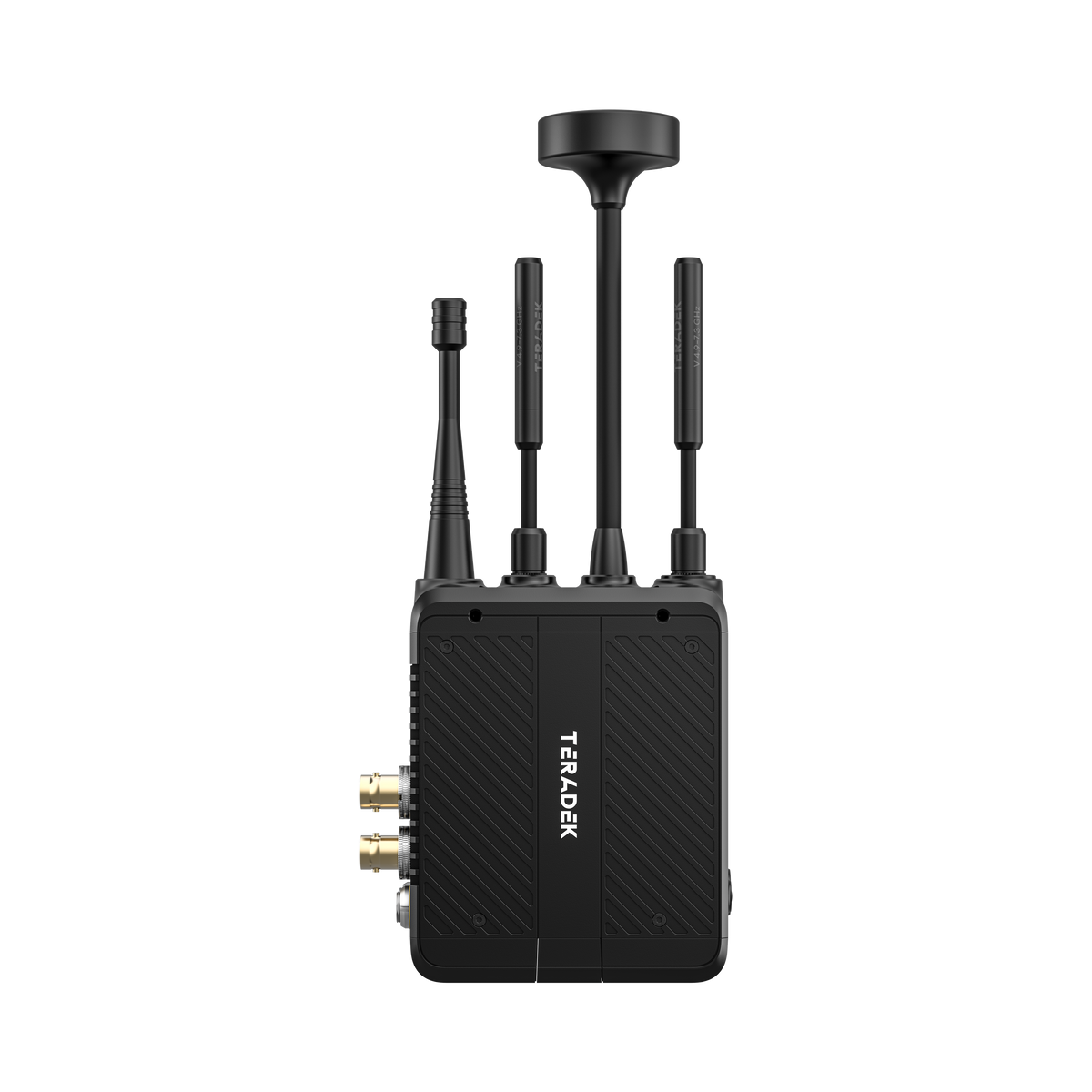

Teradek Bolt 7 1500 12G-SDI/HDMI Wireless RX
Teradek Bolt 7 1500 12G-SDI/HDMI Wireless RX
Teradek Bolt 7 1500 12G-SDI/HDMI Wireless RX
Teradek Bolt 7 1500 12G-SDI/HDMI Wireless RX
Teradek Bolt 7 1500 12G-SDI/HDMI Wireless RX
Teradek Bolt 7 1500 12G-SDI/HDMI Wireless RX
Teradek Bolt 7 1500 12G-SDI/HDMI Wireless RX
Teradek Bolt 7 1500 12G-SDI/HDMI Wireless RX

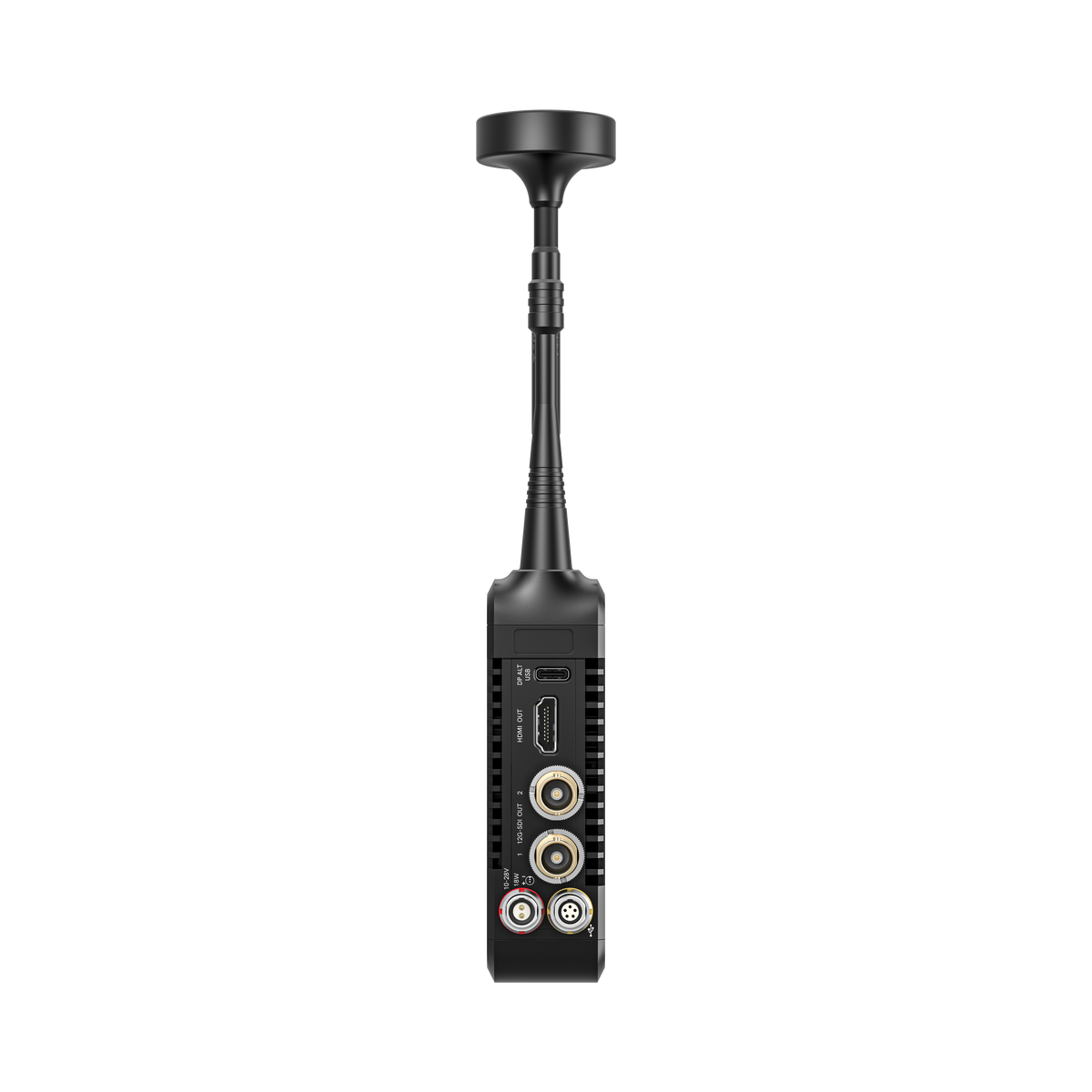

| Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 2) 1 x HDMI 2.0 Type-A receptacle 1 x USB-C Display Port ALT mode video output | |
| SDI Ancillary Data Support: Supports transmitting timecode and start/stop flags from most camera manufacturers. More metadata for Arri and Sony cameras. | |
| Color Sampling: SDI: YCbCr 4:2:2, 10-bit HDMI: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit | |
| Delay (TX to RX): <0.001sec | |
| Output Video Processing: Deinterlacer, frame rate converter, scaler, 3D LUTs | |
| Other Tools: Spectrum Analyzer, Test Pattern Generator | |
| Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL) | |
| Video Compression: Visually Lossless | |
| Color Correction: 33x33x33 3D LUT (supports 10-bit color) | |
| Audio Format: 48kHz 24-bit PCM | |
| Audio Output: Embedded SDI/HDMI Audio Output (2 Channel) | |
| Dimensions (cm): 11.2 x 8.8 x 3.2 | |
| Weight (kg): 0.463 | |
| Construction: Milled Aluminum(Chassis) and regulation-compliant PCB | |

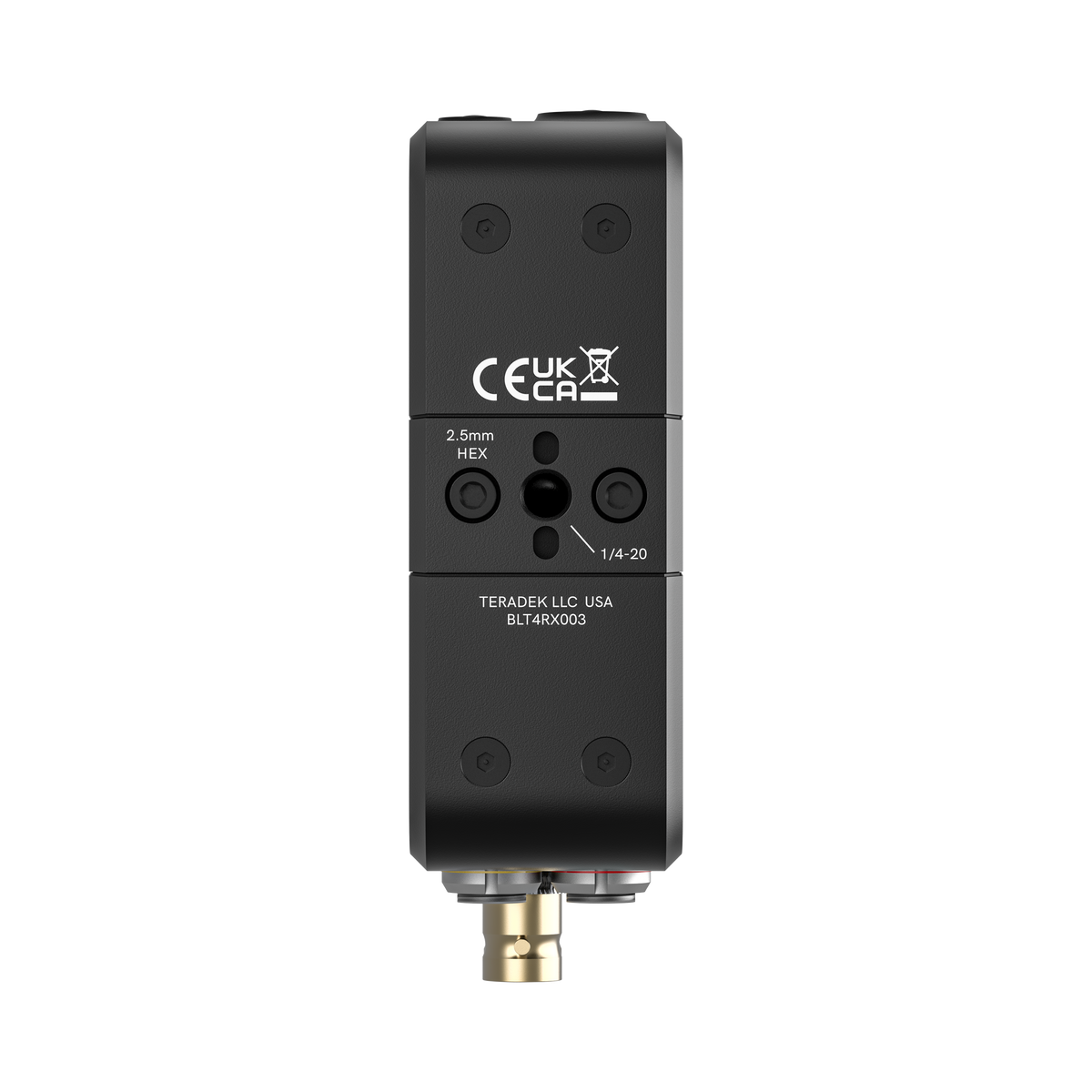

| Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes | |
| Configuration Interfaces: Color OLED with Menu, Joystick Navigation | |
| Switches: On/Off Switch | |
| USB-C port: Firmware upgrade Display Port ALT mode video out Device setup via Bolt Manager desktop app | |
| Locking 5 pin USB port: USB host port for camera control via smart cables (optional) | |
| Bluetooth Compatibility: BLE for device setup and monitoring via smart phone app | |
| Ethernet: Via smart cable connected to Locking 5 pin USB port | |
| Antennas: 6 External, can connect to long range panel antenna | |
| Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz | |
| Bluetooth: 2.4 GHz | |
| RF Channel Selection: Auto, Manual | |
| Encryption: AES-256, RSA-1024 key exchange | |
| RF Power: 21 dbm EIRP | |
| Range: Up to 750/1500 ft, line of sight | |
| Unicast / Multicast: Can connect one Transmitter to up to 6 Receivers | |
| Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 receiver sets in same location | |
| Interoperability (Compatibility): Compatible with all Bolt 4K, Bolt 6 and Bolt 7 products | |
| Broadcast: No | |
| Camera Control Radio: 900 MHz | |
| Power Input: 2-Pin Circular locking Connector 6-28 VDC | |
| Battery: None, optional field installable Gold- or V-Mount dual battery plate | |
| Nominal Power Consumption: 18 Watts | |
| Operating Temperature: 0-40℃ |
