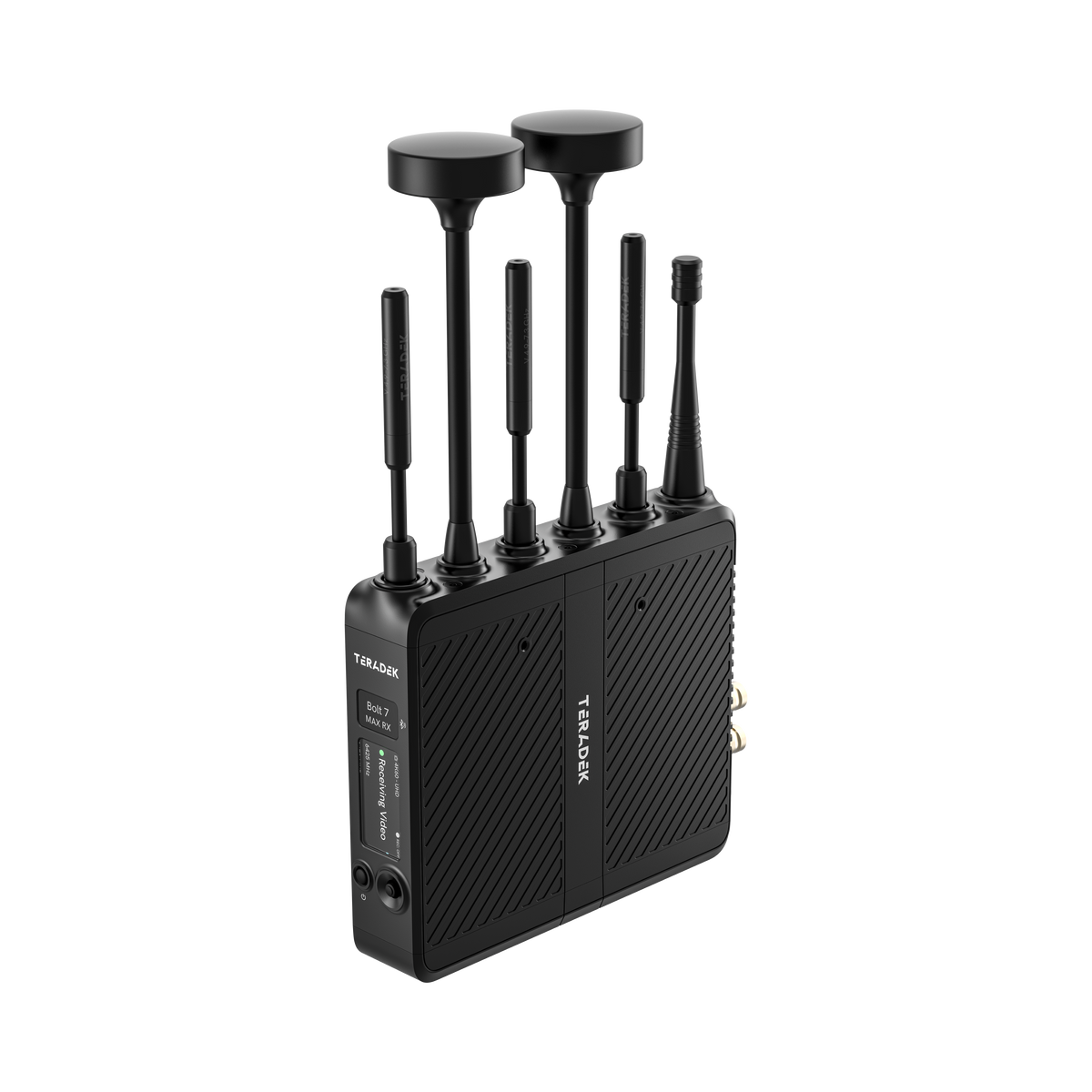

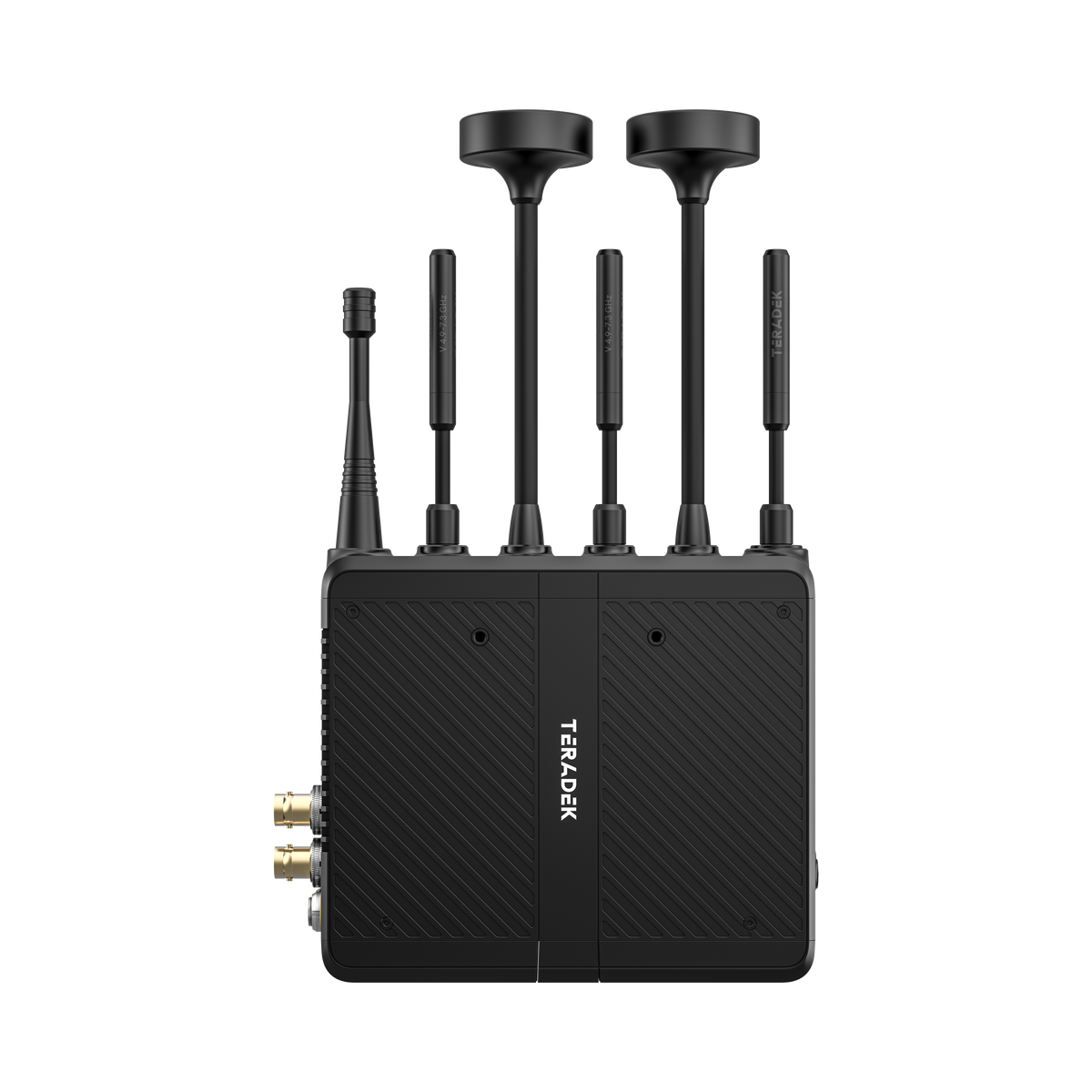

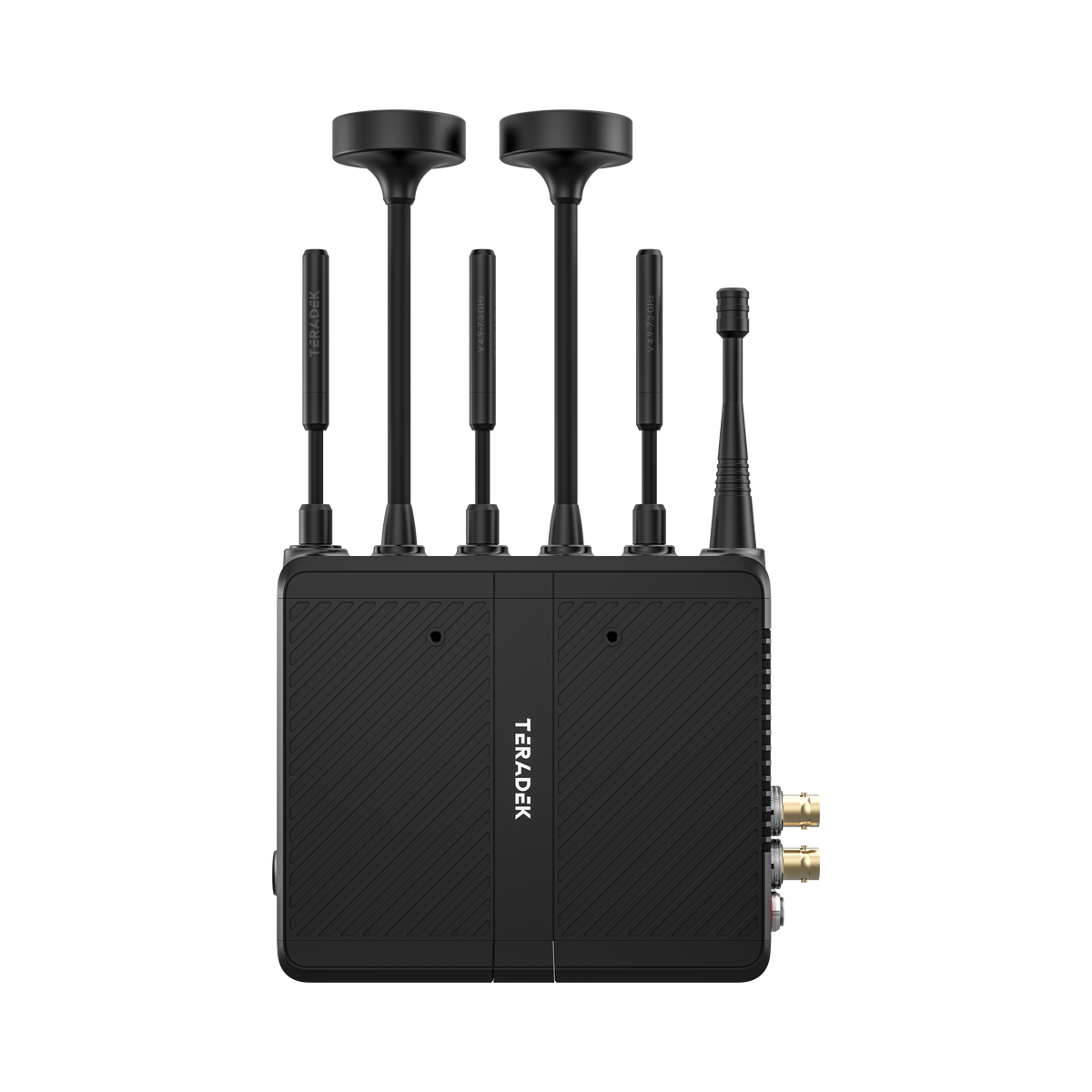

The Bolt 7 Wireless Receiver delivers Teradek's most advanced zero-delay wireless monitoring experience for cinema and broadcast productions. Available in 750ft (228m), 1,500ft (450m), and MAX (up to 5000ft/1.5km) models, Bolt 7 RX receives pristine 4K HDR video while expanding beyond traditional wireless monitoring with integrated production data capabilities.
Using Bolt 7's dedicated 900 MHz wireless data channel, the receiver supports camera control, monitor control, Ethernet transport, color management workflows, and future production applications, all alongside zero-delay wireless video.
A redesigned interface with a full-color OLED, simplified pairing, and enhanced control through the Bolt App makes deployment faster and RF monitoring easier than ever.
Bolt 7 maintains backward compatibility with Bolt 4K, Bolt 6, and RF-X systems, allowing productions to seamlessly integrate it into their current Teradek ecosystem and scale set capabilities.
The Bolt 7 MAX receiver also enables encoding to an SD card and can integrate with Wi-Fi routers for low-latency iPad distribution.
Key Features
- Zero-delay 4K HDR wireless video over 12G-SDI and HDMI
- Dedicated 900 MHz wireless data transport for camera control, monitor control, Ethernet transport and color workflows
- Smaller camera-mounted design with redesigned compact milled aluminum chassis

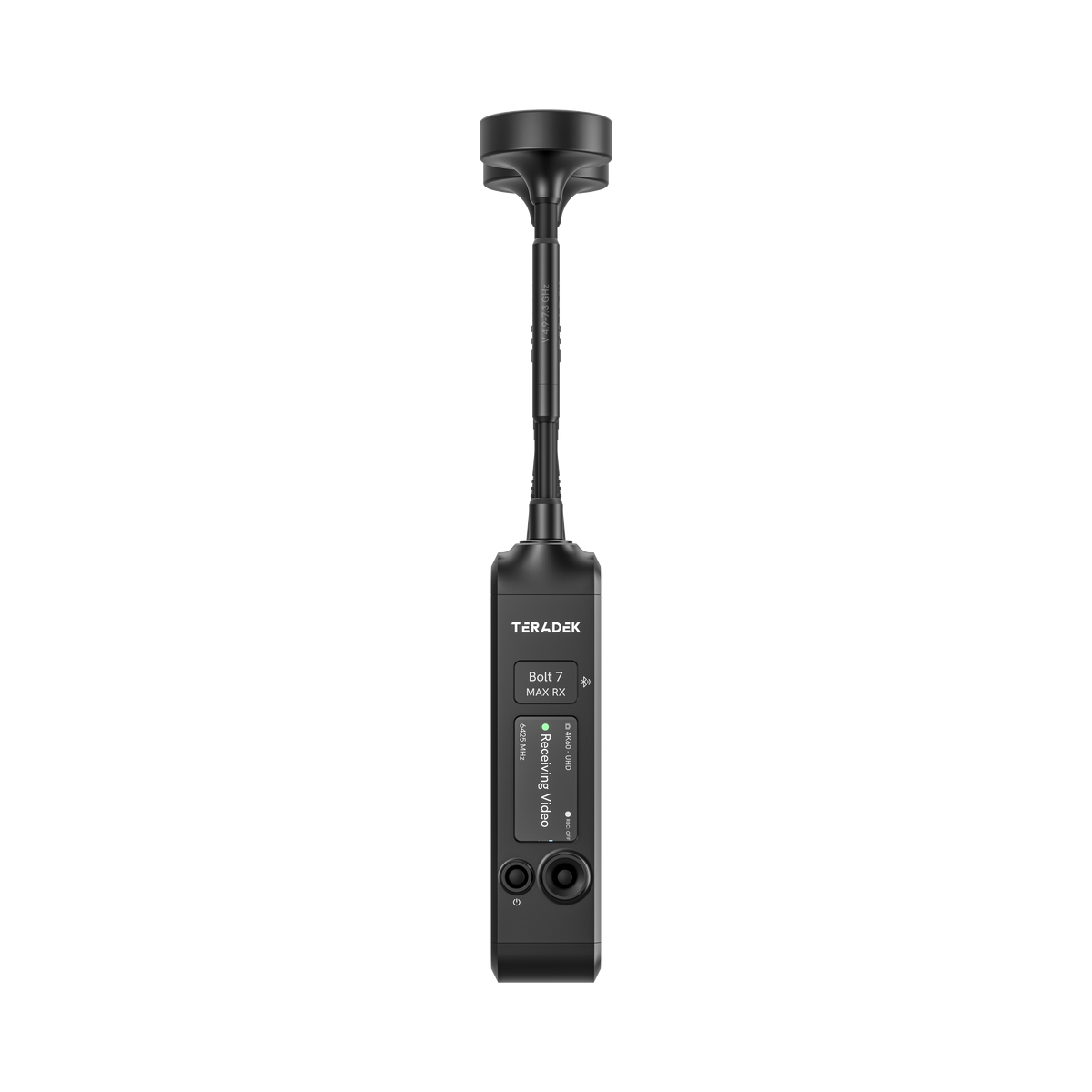

- Faster pairing and simplified setup with new full-color OLED display and joystick navigation
- New wireless and wired pairing options, plus control and RF monitoring through the Bolt App
- Support for DisplayPort Alt Mode over USB-C for single-cable video and communications with compatible cameras
- Backward compatible with Bolt 4K, Bolt 6 and RF-X systems
- Optional Gold Mount (14V or 26V), Gold Mount Plus, or V-Mount Battery Cradles
- MAX RX enables encoding to an SD card for low-latency distribution to iPads via Wi-Fi routers
Specifications
| Interfaces |
Color OLED with Menu, Joystick Navigation; On/Off Switch; USB-C Port for firmware upgrade and DisplayPort ALT mode video; Locking 5-Pin USB Port for camera control; Bluetooth compatibility |
| Wireless Frequencies |
Non-DFS: 5.190GHz to 5.230GHz, 5.755GHz to 5.795GHz, 5.945GHz to 6.425GHz; DFS: 5.270GHz to 5.670GHz; Bluetooth 2.4GHz |
| Data Radio |
Dedicated 900MHz (865 to 926MHz) camera control / data radio |
| RF Channel Selection |
Auto/Manual |
| Encryption |
AES-256, RSA-1024 |
| Transmit Power |
23dBm EIRP |
| Range |
Up to 5000ft (1.5km) line of sight |
| Compatibility |
Compatible with Bolt 4K, Bolt 6, Bolt 7 products; 1x TX to 6x RX; Coexists with WiFi/5GHz phones; Up to 6x receiver sets same location |
| Power |
6V to 28VDC input; No battery; 20W nominal consumption |
| Resolutions Supported |
4Kp23.98/24/25/29.97/30/50/59.94/60; 1080p all frame rates; 720p/480p/576p |
| RX Video Outputs |

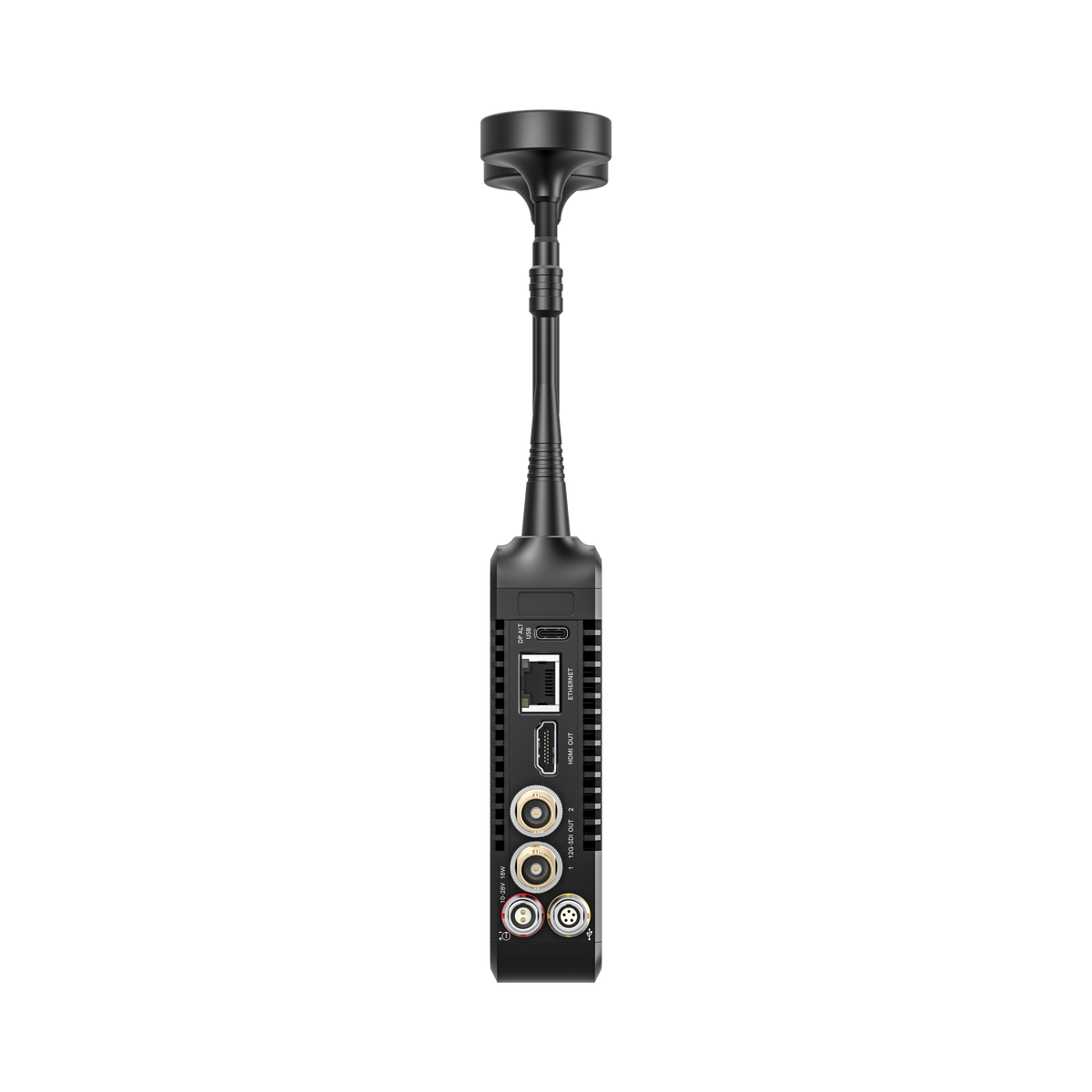

1x 12G-SDI; 1x HDMI 2.0; 1x USB-C DisplayPort ALT mode |
| Color Sampling |
SDI: YCbCr 4:2:2, 10-bit; HDMI: RGB/YCbCr 4:4:4/4:2:2/4:2:0, 8/10-bit |
| Delay |
<0.001sec TX to RX |
| Audio |
48kHz 24-bit PCM; Embedded SDI/HDMI audio |
| RX Dimensions |
4.41 x 2.60 x 1.26 in |
| RX Weight |
0.88 lb |
| RX Construction |

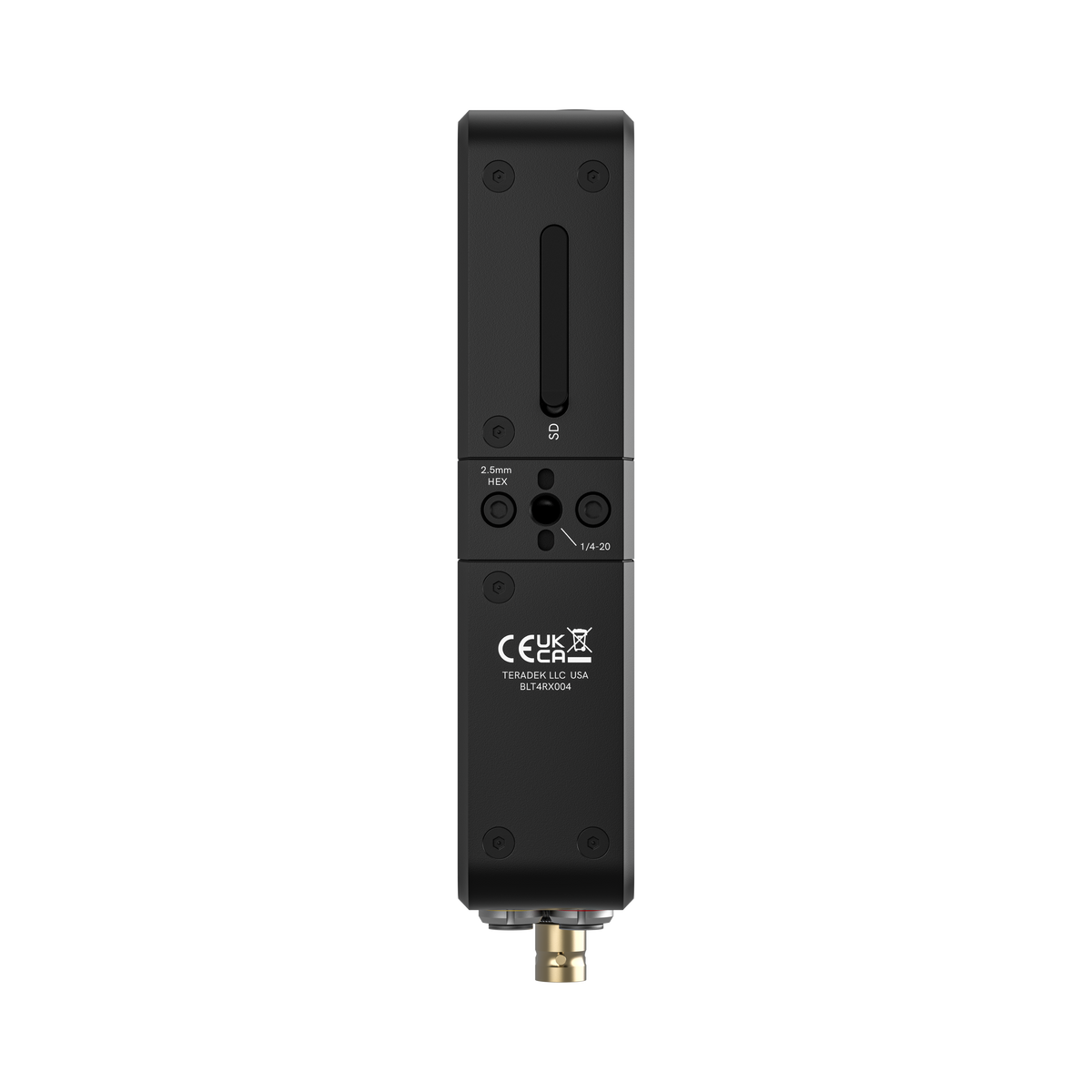

Milled aluminum chassis; 1/4"-20 and M3 mounting holes |
Compatibility
- Backward compatible with Bolt 4K, Bolt 6 and RF-X systems
- Pairs with Bolt 7 750, 1500 and MAX receivers (1x TX to up to 6x RX)
- Optional Bolt 7 Battery Cradles: Gold Mount 14V (11-1610), Gold Mount 26V (11-1611), V-Mount (11-1612)
- DisplayPort Alt Mode over USB-C with compatible cameras
