Teradek

Teradek RT MDR.X Three-Channel Lens Control Receiver with Bluetooth

$2,559.95 AUD
RRP inc GST /
SKU: 15-0010

For updated Stock on hand, please contact sales@blkflag.com.au otherwise we will email you ETA after confirmed order placement.

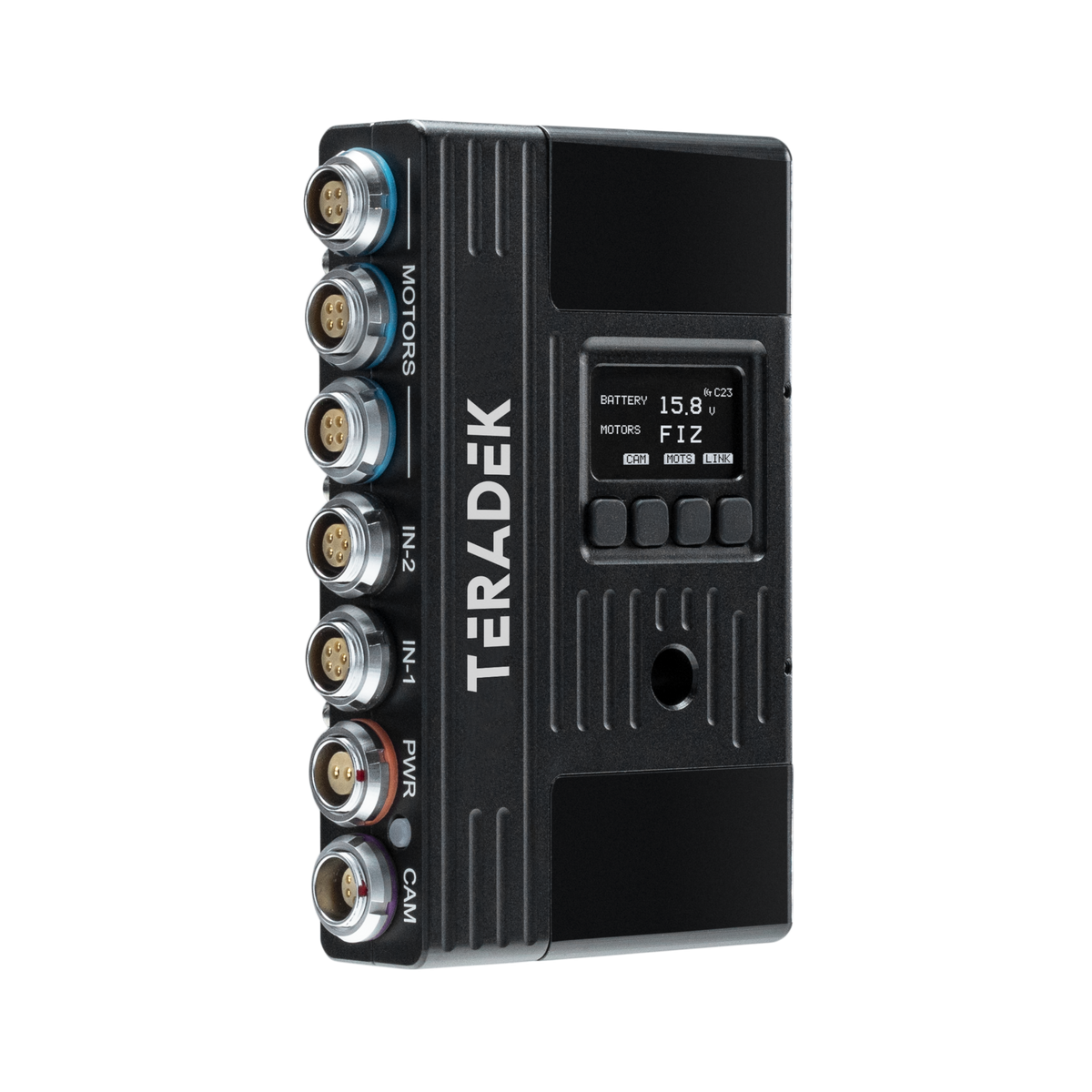

RT MDR.X Full Size Three Axis Lens Control Receiver w/ Bluetooth is our high-tech, 3-axis receiver for lens focus, iris, and zoom control with Teradek RT. This robust receiver weighs only 140g making it ideal for both smaller and mid-sized cameras, drones, or gimbals.

MDR.X features 3 dedicated lens-motor ports – with the ability to daisy-chain up to 3 motors for a cleaner build – and 2 serial ports for wired control, Cinetape, and more. The camera control port allows users to start and stop recording from your RT hand unit.

The MDR.X receiver features FHSS wireless technology – which prevents interference – an OLED screen with a simple menu system, a replaceable and customizable external antenna, and maximum line-of-sight range of 5,000 ft. Using the MDR.X’s integrated Bluetooth, you can remotely control your lens with the Teradek RT app for iOS.

MDR.X is compatible with MOTR.S, MOTR.S MAX, MOTR.X, MK3.1 motors, wired controllers, CTRL.5, CTRL.1, CTRL.3, TOF.1, and 3rd party rangefinders. This three-motor receiver can be bundled with our RT FIZ Wireless Lens Control Kit to give you complete lens control for focus, iris, and zoom.

Construction: Aluminum alloy base
Dimensions (cm): 0.23”W x 0.07”D x 0.37”H [5.8 x 1.8 x 9.4]
Weight (kg): 0.136
Power Input: Power via 2-pin LEMO 7-17V input

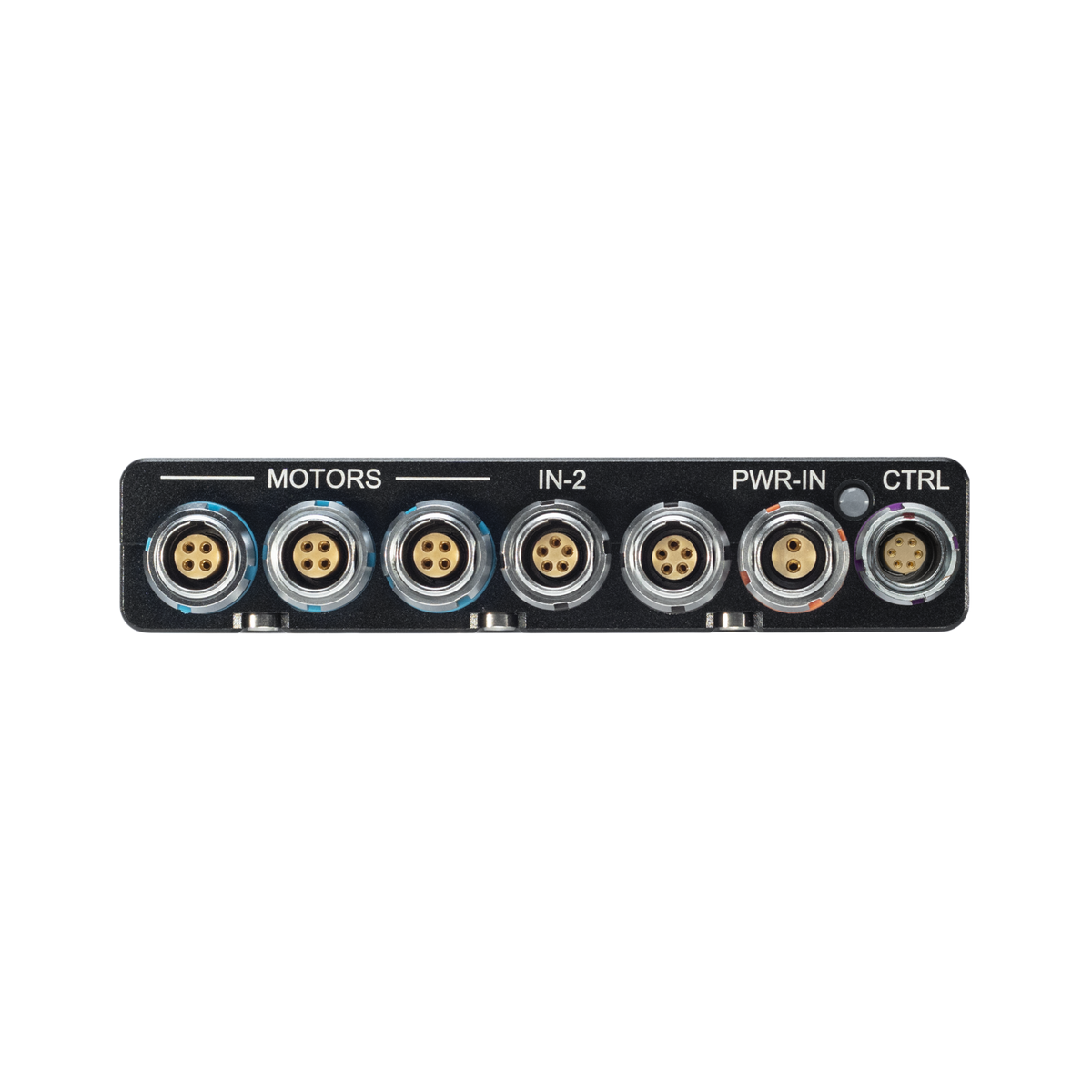

Connectors: 1 x Power input 3 x Motor ports 2 x Slave controller inputs 1 x CAM (Camera control port): 6-pin LEMO 0B 1 x USB: Mini-USB (firmware updates)
Run/Stop Control: Including but not limited to: ARRI ALEXA, ALEXA Mini, AMIRA, etc. Blackmagic Canon C100, C300 (MkII+), C500 Panasonic Varicam Phantom RED DSMC2, DSMC, ONE Sony F5, F55, FS7 (MkII+)
Camera Control Support: RED DSMC2, RED DSMC control: EF/AF Focus/Iris Shutter ISO Button features: 2x Magnification, Edge, Focus Assist
Wireless: 1 x 2.4 GHz BLE module 1 x 2.4 GHz RT FHSS wireless module
Wireless Range: RT FHSS: Line-of-sight: Up to 5000' (1500 m) (in USA/FCC mode) Indoors: Up to 492' (150 m) BLE 5: Theoretical maximum range of 800ft, actual range will vary.
Operating Temperature: -4 to 50°C (-20 to 50°C)
Storage Temperature Range: -40 to 85°C (-40 to 85°C)
1 x MDR.X
1 x Mini-USB (5-Pin) to USB - 18in Cable
